Old 08-19-2013, 07:48 PM
  #76
New Member

Join Date: Aug 2013
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
EGR valve engineering number

Hi! I am not sure if I am at the right place or not but I need to find out exactly which egr valve to buy for my '97 b4000, rear wheel drive. Every store tells me to look at valve for number but it is not visible. My vin: 4F4CR16X4VTM31161. Please, any help is greatly appreciated!

Last edited by Neide Guzak Haiden; 08-20-2013 at 12:32 AM.
Neide Guzak Haiden is offline
Old 08-22-2013, 05:09 AM
  #77
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,624
Received 154 Likes on 111 Posts
There are TWO types of EGR valves for your VIN, there is an identification label or stamped numbering into or on the old EGR which you must correspond with the correct replacement part number.

ZZM1-20-300 EGR Valve Stamped '''F37E-C2A'''

Or

ZZM5-20-300 EGR Valve Stamped '''F3DE-A2A'''
ASH8 is offline
Old 08-22-2013, 11:01 AM
  #78
New Member

Join Date: Aug 2013
Location: Horseheads, NY
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts

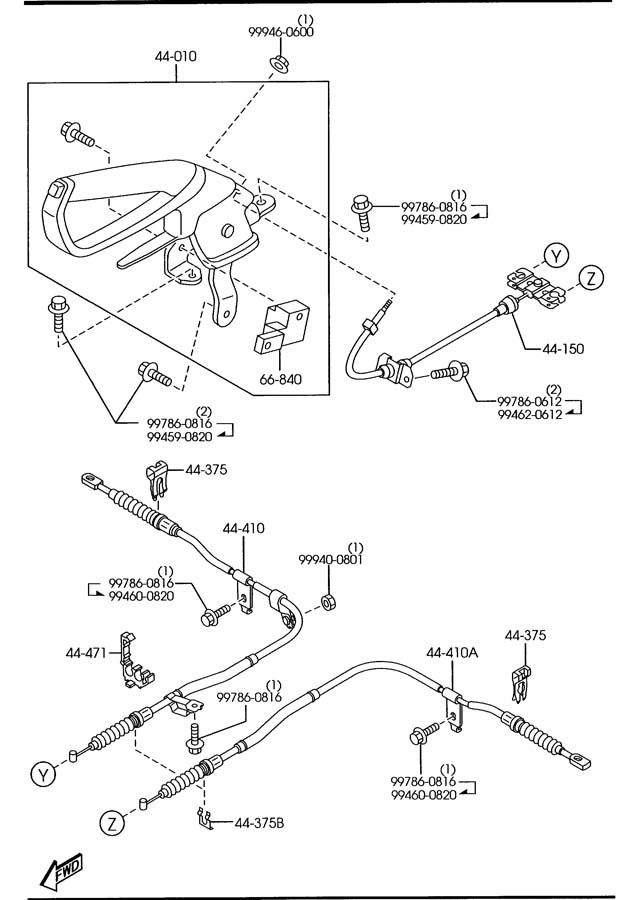

Parking Brake Bolt

Can anyone tell me what size this bolt is? I wouldn't mind ordering one online if they didnt want to charge $8 shipping on a $2 part.

Bolt - 99786-0816

Cannibal666 is offline
Old 09-02-2013, 09:52 AM
  #79
Registered

theashtraysays's Avatar

Join Date: Sep 2012
Location: Lexington, KY
Posts: 10
Likes: 0
Received 0 Likes on 0 Posts
I need the PN for the front door panel retainer clips. There are 7 or 8 per door... white plastic. You know, the ones that break a lot... 2004 series I, VIN JM1FE173940126929.
Thanks
theashtraysays is offline
Old 09-02-2013, 12:16 PM
  #80
Registered

theashtraysays's Avatar

Join Date: Sep 2012
Location: Lexington, KY
Posts: 10
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by theashtraysays View Post
I need the PN for the front door panel retainer clips. There are 7 or 8 per door... white plastic. You know, the ones that break a lot... 2004 series I, VIN JM1FE173940126929.
Thanks
Sorry, never mind... I found it earlier in this thread. GJ6A-68-AB1, AKA GJ6R-68-ABX at one of the online places. GIYF...
theashtraysays is offline
Old 09-17-2013, 09:39 AM
  #81
SPOOLN8
iTrader: (1)

RotaryMachineRx's Avatar

Join Date: Nov 2008
Location: Edmonton, Alberta, Canada
Posts: 1,750
Received 49 Likes on 47 Posts
Can I get the part number for a S1 USDM fuel pump assembly? Mainly the top plastic part of it that has the spring and guides for the float attached to it with the fuel outlet on top of it. It is the first thing you see after removing your back seat and the access panel to your fuel pump. See attached photo:

RotaryMachineRx is offline
Old 09-17-2013, 03:33 PM
  #82
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,624
Received 154 Likes on 111 Posts
N3H1-13-35ZG S1 Fuel Pump
ASH8 is offline
Old 09-17-2013, 04:48 PM
  #83
SPOOLN8
iTrader: (1)

RotaryMachineRx's Avatar

Join Date: Nov 2008
Location: Edmonton, Alberta, Canada
Posts: 1,750
Received 49 Likes on 47 Posts
Thanks!
RotaryMachineRx is offline
Old 10-12-2013, 09:14 AM
  #84
New Member

Join Date: May 2013
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Hello!

Can I get part numbers for rear brake rotors and rear brake pads? My VIN is JMZSE173640112546

Thanks!
zhare is offline
Old 10-12-2013, 01:22 PM
  #85
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,624
Received 154 Likes on 111 Posts
Hello Serbia!, Your Titanium Grey RX-8 rear Brake Rotors and Pads..

F152-26-251A Rotor (2)
F1Y0-26-48Z Pads (1) or F1Y1-26-48Z Pads (1)
F1Y1-26-49Z Shim/Clip Set (1)
ASH8 is offline
Old 11-25-2013, 07:26 PM
  #86
Trochoid Trafficker

aprtur's Avatar

Join Date: Jul 2012
Location: Maryland
Posts: 152
Likes: 0
Received 0 Likes on 0 Posts
Had a run in with a raccoon this weekend, and it split my bumper nearly in two :[. On the plus side, I'm looking to get insurance to replace my Sport bumper with an R3 one. Would you happen to be able to PM me the complete parts list for an R3 front bumper, Ash? nuts/bolts/bumper parts, etc, (and quantities) as I wouldn't be able to reuse anything from my stock bumper. Sorry for the bother, but I first thought of this thread for where to go for help.
aprtur is offline
Old 12-02-2013, 06:34 PM
  #87
04 and still lovin it

RotorWheeee's Avatar

Join Date: Jun 2004
Location: Toronto
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
PCM Number

I'm in the unfortunate position of having to replace my ECU. Dealer if having problem finding a used one.
I have an ECU Number N3H6 18 881M, I found the first replacement with this exact number (shipped out of California, I'm in Canada) failed on a final stage of the swap with a communication error. Not sure it it was a bad ECU or an incompatibility with a California units. Looking for another replacement but cant find another of that complete number.

Here's the question will any ECU with the same initial 9 numbers work? I can find J,K, and L's just not another M. Does the last letter represent the Flash level ship or is each letter increment hardware change?

Dealer also indicated N3Z2-18881L and N3ZD-18881B should work but they have not been able to find one of these either (they are unsure about the last digit question). Same problem 9 digits but not the final letter

Appreciate any incite.

PS vin JM1FE173440138017

Last edited by RotorWheeee; 12-02-2013 at 06:37 PM. Reason: Add vin
RotorWheeee is offline
Old 12-04-2013, 05:03 PM
  #88
Registered

theashtraysays's Avatar

Join Date: Sep 2012
Location: Lexington, KY
Posts: 10
Likes: 0
Received 0 Likes on 0 Posts
Center Console button

Looking for the center console button part number.
2004 series 1. It's the lock/button/latch. item #2 in the diagram.
It's $25 with shipping & handling from Mazparts (gah!)... would like to find something better.


Last edited by theashtraysays; 12-07-2013 at 09:15 AM.
theashtraysays is offline
Old 12-04-2013, 08:11 PM
  #89
Out of NYC
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,866
Received 11 Likes on 11 Posts
Originally Posted by RotorWheeee View Post
I'm in the unfortunate position of having to replace my ECU. Dealer if having problem finding a used one.
I have an ECU Number N3H6 18 881M, I found the first replacement with this exact number (shipped out of California, I'm in Canada) failed on a final stage of the swap with a communication error. Not sure it it was a bad ECU or an incompatibility with a California units. Looking for another replacement but cant find another of that complete number.

Here's the question will any ECU with the same initial 9 numbers work? I can find J,K, and L's just not another M. Does the last letter represent the Flash level ship or is each letter increment hardware change?

Dealer also indicated N3Z2-18881L and N3ZD-18881B should work but they have not been able to find one of these either (they are unsure about the last digit question). Same problem 9 digits but not the final letter

Appreciate any incite.

PS vin JM1FE173440138017
dealership ... wtf

ok, the ECU number on it don't mean ****, it just tells you what was the ORIGINAL firmware the ECU has inside, so you can get pretty much ANY Ecu of the same model/year and it WILL work. I did it just the other day on someone's car.

what exactly was the failed communication error ? was it all U code ? tell me what problem you have.
nycgps is offline
Old 12-04-2013, 08:15 PM
  #90
Out of NYC
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,866
Received 11 Likes on 11 Posts
Originally Posted by aprtur View Post
Had a run in with a raccoon this weekend, and it split my bumper nearly in two :[. On the plus side, I'm looking to get insurance to replace my Sport bumper with an R3 one. Would you happen to be able to PM me the complete parts list for an R3 front bumper, Ash? nuts/bolts/bumper parts, etc, (and quantities) as I wouldn't be able to reuse anything from my stock bumper. Sorry for the bother, but I first thought of this thread for where to go for help.
you need both head lights, fog lights (if u have it), both fenders, front impact beam, and of course, the bumpers.

and unless your whole front is done, I seriously doubt your insurance will replace everything above.

all insurance companies have parts database, and they will ONLY pay u up to whatever they need to get it back on the road, meaning unless the car is too new/no aftermarket parts, they will only give you$ for aftermarket parts, they will avoid stock/factory parts as much as they can to save them $$$
nycgps is offline
Old 12-04-2013, 08:47 PM
  #91
04 and still lovin it

RotorWheeee's Avatar

Join Date: Jun 2004
Location: Toronto
Posts: 297
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by nycgps View Post
dealership ... wtf

ok, the ECU number on it don't mean ****, it just tells you what was the ORIGINAL firmware the ECU has inside, so you can get pretty much ANY Ecu of the same model/year and it WILL work. I did it just the other day on someone's car.

what exactly was the failed communication error ? was it all U code ? tell me what problem you have.
Short version of a long story.

I've had intermittent No start condition for about two years. It only occurs when it get cold. Two years ago cold meant -20C , Last year the magic number was 0C, This year looks like it's +5C.

I get two code
PCM P1260- Immobilizer activated
RKE B2139- Data Mismatch (receive data does not match what was expected)

RKE signal is not getting the ECU tripping the Immobilizer.

I can start the car if I apply heat for 10 -15 minuets to the ECU or just move the car indoor for 15 minutes.

Two new ECU have been tried Same error on both. I don't recall the exact wording but there is a number entered into the WDS that starts of completed the setup, There is a failure to to establish a connection. To validate a functional connection the old ECU is
put in and there is no problem with the WDS connection

Once when I got the car back during this service time (waiting for parts)I briefly got an U1900 after a drive, clear the code an no further problem Don't have any previous history on this and have only had two incidences over 3 days

Yup this is the sort version

I'm starting to think about the pin connectors on the plug to the ECU, Both the RKE and data link connector happen through the same two pins.

Any thoughts or suggestions welcome
RotorWheeee is offline
Old 12-13-2013, 07:40 AM
  #92
Trochoid Trafficker

aprtur's Avatar

Join Date: Jul 2012
Location: Maryland
Posts: 152
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by nycgps View Post
you need both head lights, fog lights (if u have it), both fenders, front impact beam, and of course, the bumpers.

and unless your whole front is done, I seriously doubt your insurance will replace everything above.

all insurance companies have parts database, and they will ONLY pay u up to whatever they need to get it back on the road, meaning unless the car is too new/no aftermarket parts, they will only give you$ for aftermarket parts, they will avoid stock/factory parts as much as they can to save them $$$
I ended up figuring out the P/Ns myself after searching through Jim Ellis and whatnot, as well as working with my friend who's a painter at a collision shop (eBay helps with providing a VIN to look up, FYI!). Insurance provided the money for a new bumper and grille, as well as the center lower valence...I covered the rest of the cost for the different R3 components that were additional.

NYCGPS - I didn't need any of what you mentioned, as I own a Series II....it was strictly the bumper skin and front lip parts ("side spoiler large" and related components to make it all fit) that I needed to make the transition from a non-R3 front end. My old side grilles and a few other little parts transferred over without fuss.
aprtur is offline
Old 02-04-2014, 04:00 AM
  #93
New Member

Join Date: Apr 2011
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Hi,
The 04 parts catalog shows different assembly of the front suspension then the user manual.
The user manual shows the dust boot (marked as 9) on page two of the suspenssion section.
the parts catalogue dose not show this part.
what is the dust boot part number and why is not on the part catalogue ?

Best Regards,

Boris
boris.borukhin is offline
Old 04-25-2014, 04:34 AM
  #94
Red or Dead!

Join Date: Jul 2010
Location: Melbourne, Australia
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Part No's

Hi, does anybody have the diagram showing part no's for the front bumper assy and peripheral parts :

1. Front bumper reinforcement metallic bar.
2. Front Bumper Retainer - Nose support Panel (plastic).
3. Energy absorbing styrofoam.

Any idea were to find these used parts? I,m in Melbourne, Australia.

Car is a RX8 2005, vin: JM0FE103100103799.

Thanks, Palev7
Palev7 is offline
Old 07-11-2014, 11:00 PM
  #95
Registered

Marvel's Avatar

Join Date: Nov 2008
Location: Kailua, Hawaii
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
I used this thread once before and ASH8 was amazing and hooked me up with the exact right info, so I hope it will work again

2006 mt, vin #REDACTED

I'm looking for the part number of the passenger side dashboard airbag cover. It started cracking pretty badly. This is not my dashboard but it looks the same:



EDIT: pretty sure it's FEY157K5X so I went ahead and ordered one on onlinemazdaparts.com - hope I didn't screw up

Last edited by Marvel; 07-26-2014 at 12:53 AM.
Marvel is offline
Old 08-28-2014, 03:46 AM
  #96
Registered

Join Date: Oct 2011
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
^Hey Marvel, I have the same exact crack on my passenger side dash. Did the part you order fix it?

Also, does can anyone help me find the driver side visor catalog number, but the triangular piece that holds the visor into the roof- connected by two screws.
s3ntin3l is offline
Old 08-29-2014, 02:14 AM
  #97
Registered

Marvel's Avatar

Join Date: Nov 2008
Location: Kailua, Hawaii
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by s3ntin3l View Post
^Hey Marvel, I have the same exact crack on my passenger side dash. Did the part you order fix it?
Yup, worked great. There's a DIY here: https://www.rx8club.com/series-i-do-...%24150-201523/

Wish I did this years ago!
Marvel is offline
Old 10-15-2014, 09:29 AM
  #98
Registered

Gadowere's Avatar

Join Date: Oct 2014
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Hi Ash. I hope you can help me out.

I am missing several small pieces of hardware such as clips/fasteners/screws/bolts.

I PM'd you my VIN but here is what I am missing.


Missing a few of the screws from the above screenshot. I think they have varying lengths so I would need more than one part number for them I would guess.

I am also missing a few of these...


I basically just need to know what size they are.

Missing a couple of these as well.


Finally, I am missing some of the hardware from the stereo/climate control. Specifically the retaining bolt at the back of the unit that you have to reach under the drivers side dash to get to (first image) and then the two bolts holding the unit in at the bottom (second image)





I hope you can find these part numbers. Thanks.
Gadowere is offline
Old 12-14-2014, 08:20 AM
  #99
Registered

Join Date: Jan 2006
Posts: 94
Likes: 0
Received 0 Likes on 0 Posts
Looking for the plastic retainer clips that hold in the side skirts on an '09 R3. I think it is #3 in the pic I have attached.

Attached Thumbnails Mazda Part Number Help and Information..here...-image.jpg
muythaibxr is offline
Old 12-14-2014, 02:38 PM
  #100
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,624
Received 154 Likes on 111 Posts
#3 is G18K-51-SJ3 Cip X 24 Quantity Used Both Sides.
#4 is G22C-51-SJ3 Clip X 4
#5 is BP4L-51-SJ3 Clip X 12
#8 is B092-51-833 Rivet X 4

Mazda OEM Part Numbers
