Problem with lower arm?
So my sis took my car while I was in the army, crashed it and they fixed it up without me knowing anything.
Didnt really matter because shes ok and stuff but I have noticed something at my front right wheel. The car got smashed at that position so most of the compoments were changed. Anyway, dont know if I can explain it good enough for all to understand but I'll give it a try...
On the left wheel (the good one
) I can fit 4 fingers between the tire and the panel. So lets say you're looking at the wheel from the side, 4 fingers fit in the gap on the right side of the tire.
Now, on the right wheel (the bad one
). Looking at the wheel from the side again I can fit only 3 fingers, where on the other wheel theres more room. Also when turning the wheel left to right you can see it barely touching the plastic panels.
I went for an alignment and these are the numbers for up front.
Left (good wheel):
Camber -0.60
Caster 7.00
Toe -0.02
Right:
Camber -0.58
Caster 7.02
Toe -0.03

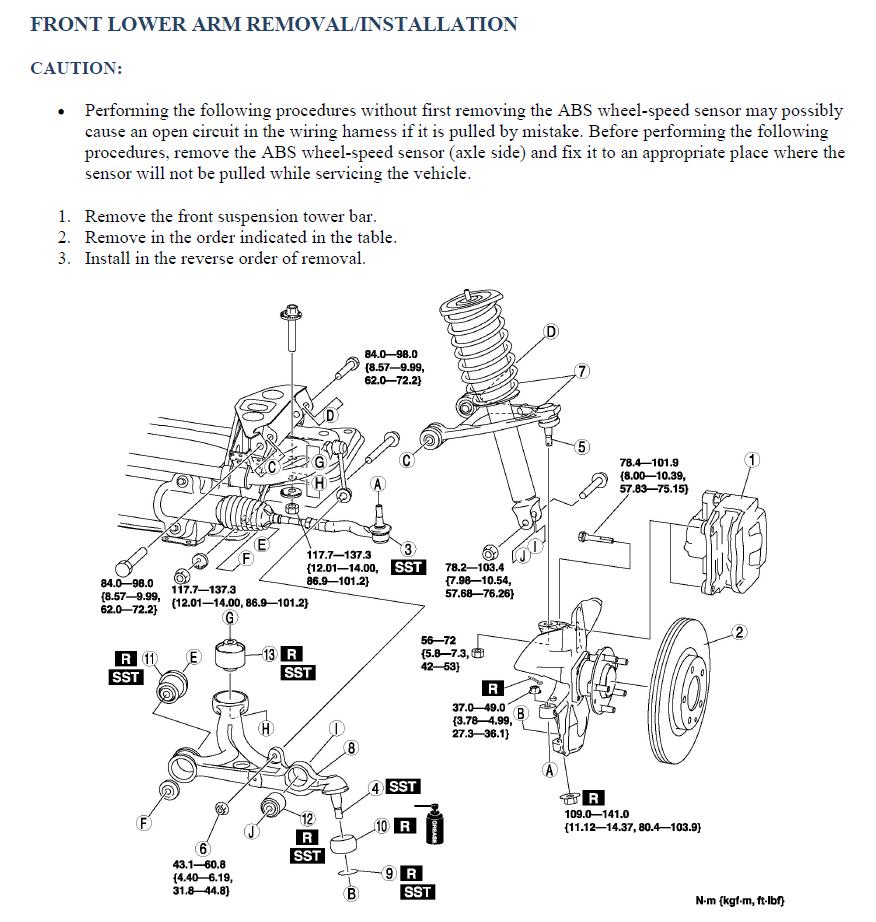

The guy there told me he adjusted the wheel the best he could and explained to me that the lower arm (?) is not fully installed right.
What does he mean with that? Are the swing arms adjustable on the RX8, if so is it just a labor job needed to fix it?
Didnt really matter because shes ok and stuff but I have noticed something at my front right wheel. The car got smashed at that position so most of the compoments were changed. Anyway, dont know if I can explain it good enough for all to understand but I'll give it a try...
On the left wheel (the good one
) I can fit 4 fingers between the tire and the panel. So lets say you're looking at the wheel from the side, 4 fingers fit in the gap on the right side of the tire.Now, on the right wheel (the bad one
). Looking at the wheel from the side again I can fit only 3 fingers, where on the other wheel theres more room. Also when turning the wheel left to right you can see it barely touching the plastic panels.I went for an alignment and these are the numbers for up front.
Left (good wheel):
Camber -0.60
Caster 7.00
Toe -0.02
Right:
Camber -0.58
Caster 7.02
Toe -0.03
The guy there told me he adjusted the wheel the best he could and explained to me that the lower arm (?) is not fully installed right.
What does he mean with that? Are the swing arms adjustable on the RX8, if so is it just a labor job needed to fix it?
Last edited by BillyGR; 05-19-2010 at 05:03 AM.
05-19-2010, 01:59 PM
#4
Registered
Thread Starter
Join Date: Dec 2009
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Could a worn out bushing do this? Could it give so much free sag to the wheel?
What can I do if the attaching points on the cradle are bend?
What can I do if the attaching points on the cradle are bend?
05-19-2010, 04:40 PM
#5
Registered
iTrader: (2)
Join Date: Dec 2008
Location: WA
Posts: 107
Likes: 0
Received 0 Likes
on
0 Posts
If the attatchment points are bent, it would require a trip to a good collision or chassis shop to straighten out, but it won't ever be perfect again. All that'll be done is to get it to as close to factory as possible and then adjust the alignment. Call a BMW, Mercedes-Benz, or Porsche dealer and ask who they go to for collision repair.
