Ohlins coilover installed
#1
車の性能の違いが戦力の決定的差ではない ということを
Thread Starter
Join Date: Jan 2004
Location: Taiwan
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Ohlins coilover installed
I just install my ohlins coilover(eibach spring) on my 8. It's really amazing. the bumpy ride and noise on the factory shock was soothed but the control of the car was enhanced. My coner speed incrases at least 10km/hr. Now I have a more comfort ride but sharper handling. The only pitfall of it is cost. Nearly 300,000jpy for a complete kit. You may see pictures here:http://www.rmagic.net/index2.html
#3
Momentum Keeps Me Going

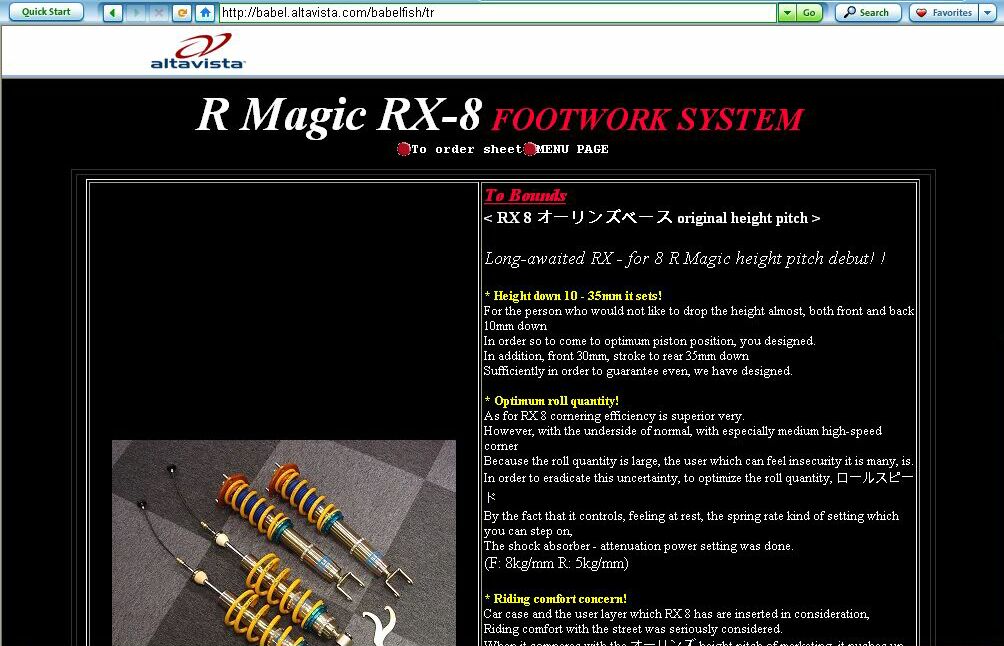

RMagic's web site http://www.rmagic.net/index2.html has to be one of the suckiest sites I've seen. Forget the language (but why not have an English version too since it is Bable Fish proof), but it is virtually un-unnavigable, with information in small popup windows, not to mention the stupid frames w/the glaring background. Poster child for how not to program a site.
Still, I'd like more info on your coilovers?. I just can't come up w/it on their web.
Still, I'd like more info on your coilovers?. I just can't come up w/it on their web.
#4
Registered
Join Date: Feb 2006
Location: Oreland, PA
Posts: 271
Likes: 0
Received 0 Likes
on
0 Posts
*nods* i wish i'd studied japanese in HS and college because it seems like the availability of the full rx8 aftermarket is pitifully slow in developing in the US. ugh.
#5
No respecter of malarkey
iTrader: (25)
Ohlins are real racing shocks and their support is weak in the US, I would recommend caution:
http://www.carrozzeriajapan.co.jp/oh...eup/mazda.html
you'd be beter off using Penske, Motec, Koni 28 or 30 series etc.
and here's the R Magic page, I Babel stuff there all the time
http://www.rmagic.net/rmrx8/rmrx8footwork.htm
http://www.carrozzeriajapan.co.jp/oh...eup/mazda.html
you'd be beter off using Penske, Motec, Koni 28 or 30 series etc.
and here's the R Magic page, I Babel stuff there all the time
http://www.rmagic.net/rmrx8/rmrx8footwork.htm
Last edited by TeamRX8; 03-10-2006 at 07:06 PM.
#8
Registered
Join Date: Feb 2006
Location: Oreland, PA
Posts: 271
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by TeamRX8
Ohlins are real racing shocks and their support is weak in the US, I would recommend caution:
http://www.carrozzeriajapan.co.jp/oh...eup/mazda.html
you'd be beter off using Penske, Motec, Koni 28 or 30 series etc.
http://www.carrozzeriajapan.co.jp/oh...eup/mazda.html
you'd be beter off using Penske, Motec, Koni 28 or 30 series etc.
and here's the R Magic page, I Babel stuff there all the time
http://www.rmagic.net/rmrx8/rmrx8footwork.htm
http://www.rmagic.net/rmrx8/rmrx8footwork.htm
at this point i'm strongly leaning towards dynamic suspensions' double-adjustables. i think it's the only coilover with double-adjustable shocks that i know of besides the kw v.3.
#9
車の性能の違いが戦力の決定的差ではない ということを
Thread Starter
Join Date: Jan 2004
Location: Taiwan
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by shinronin
what model of ohlins shocks were used? are they double-adjustable? inverted? are there a range of spring rates available? inquiring minds want to know. =) thanks!
My shocks should be PCV type
http://www.carrozzeriajapan.co.jp/oh...eup/index.html,sorry another Japanese link
look for SE3P for spec
the standard setting is:
8kgf/200mm/65 in diameter ---front, 5gk/f rear, all shock was not inverted (you can order inverted shock for front suspesion).
There're 20 ranges for adjustment. I stay with front-8 rear-6 for months. I lower my car down 20mm in front and 15mm in rear.
#10
No respecter of malarkey
iTrader: (25)
you can get any double adjustable made that you want WRT racing shocks though getting a complete package with springs and all is a different story, and also you said "arguably" and I would argue that when it comes to racing shocks the're all pretty damn good but there are four excellent support centers for Koni in the US, including KONI NA itself, TrueChoice, ProParts, and GroundControl. They're not just a race team offering a certain application on the side.
I presently have Koni NA building me a set of custom 2812 coilovers, pillowball mounts are OE parts converted by SpeedSource, spring rate will either be 8/6 or 9/7 but I have to figure out the lengths on my own - still waiting for the final dimensions to come back (shocks are shorter than OE to account for lowering) before I can start on those, the front shocks are normal orientation with both rebound/compression adjusters on top of the pillowball mount in the engine bay and the rear shocks in an inverted orientation with both adjusters located at the bottom shock mount for easy access from underneath the bumper, should be a pretty trick true racing coilover setup when done but you're probably talking $5k to duplicate it as a kit.
On a side note, bet you didn't know that almost every train car in the US is on Koni shocks
I presently have Koni NA building me a set of custom 2812 coilovers, pillowball mounts are OE parts converted by SpeedSource, spring rate will either be 8/6 or 9/7 but I have to figure out the lengths on my own - still waiting for the final dimensions to come back (shocks are shorter than OE to account for lowering) before I can start on those, the front shocks are normal orientation with both rebound/compression adjusters on top of the pillowball mount in the engine bay and the rear shocks in an inverted orientation with both adjusters located at the bottom shock mount for easy access from underneath the bumper, should be a pretty trick true racing coilover setup when done but you're probably talking $5k to duplicate it as a kit.
On a side note, bet you didn't know that almost every train car in the US is on Koni shocks
Last edited by TeamRX8; 03-11-2006 at 04:22 AM.
#12
Momentum Keeps Me Going
Think it must be a bable Fish issue... I got the "157 error" many, many times, even pasting in the words only on Bable Fishes page got the same error...after about 10 tries I finally got that translation...for what THAT'S worth...I think they need a name change lol ... to "Bable Garbage" ...cause it reads (?) like some kind of esoteric poetry!
