lower control arm bushing removal

Does anyone know how to remove this bushing its more like a sleeve I have a pic right below
Attached Thumbnails
lower control arm bushing removal-imag0086.jpg
sauceyI986 is offline   Reply With Quote
Old 06-06-2011, 08:24 PM   #2
Cam
this space for rent
iTrader: (1)

Cam's Avatar

Join Date: Jan 2003
Location: Indy
Posts: 1,179
Thanks: 0
Thanked 0 Times in 0 Posts
im not sure on an rx8, but on an audi/vw that is not a serviceable part. the whole control arm must be replaced if the ball joint is damaged.
Cam is offline   Reply With Quote
Old 06-06-2011, 10:00 PM   #3
Registered
Thread Starter

sauceyI986's Avatar

Join Date: Jun 2006
Location: Laveen,Az
Posts: 855
Thanks: 0
Thanked 0 Times in 0 Posts
Well to me its not really damaged it just won't come off. When I took the whole bracket off that the wheel goes on to it just stayed on instead of coming off with the bracket
sauceyI986 is offline   Reply With Quote
Old 06-06-2011, 10:25 PM   #4
Out of NYC
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,858
Thanked 5 Times in 5 Posts
as far as I remember, it's not a serviceable part, if anything happen to it, it has to be replaced.
nycgps is offline   Reply With Quote
Old 06-06-2011, 11:15 PM   #5
Registered
Thread Starter

sauceyI986's Avatar

Join Date: Jun 2006
Location: Laveen,Az
Posts: 855
Thanks: 0
Thanked 0 Times in 0 Posts
Are u serious ....
sauceyI986 is offline   Reply With Quote
Old 06-07-2011, 12:42 AM   #6
Registered
Thread Starter

sauceyI986's Avatar

Join Date: Jun 2006
Location: Laveen,Az
Posts: 855
Thanks: 0
Thanked 0 Times in 0 Posts
I don't think I'm being understood here. What I need to do is get it off. It's just stuck because even I buy a new control arm I'm still going to need to get that peice. Because it done not go Im there that price mounts on this I al post a pic with me pointing. Help
sauceyI986 is offline   Reply With Quote
Old 06-07-2011, 01:37 AM   #7
Registered

CRO8TIA's Avatar

Join Date: Nov 2009
Location: Adriatic Paradise
Posts: 596
Thanks: 0
Thanked 0 Times in 0 Posts
Use a gear puller and heat with a gas torch, be careful not to destroy the rubber boot. When it is removed, if it just slips in and out of the hub bracket, you may have to have it knurled .
CRO8TIA is offline   Reply With Quote
Old 06-07-2011, 06:59 PM   #8
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 19,721
Thanks: 0
Thanked 128 Times in 113 Posts

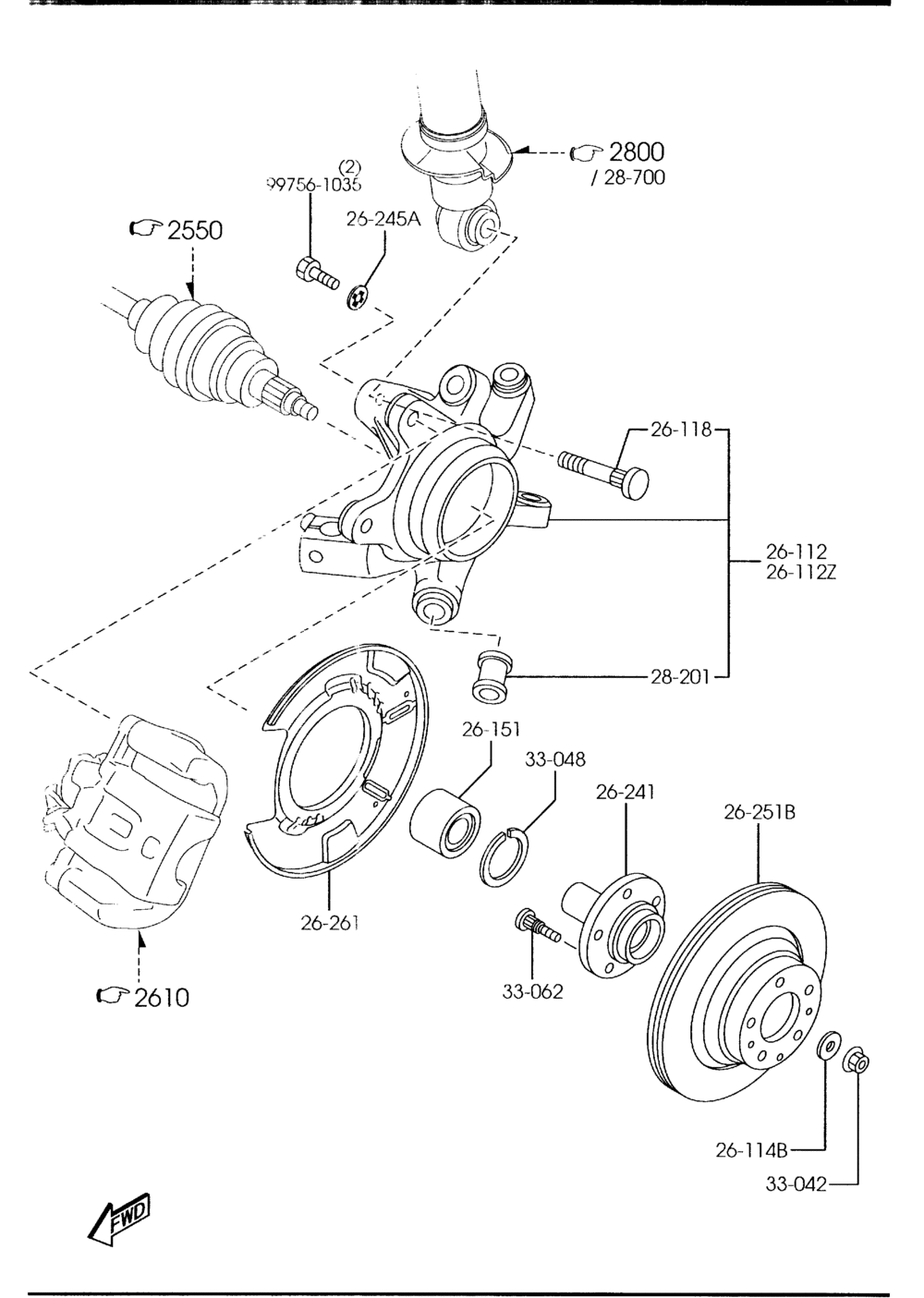

those sleeves are integral to the rear aluminum wheel hub/upright assembly, they do not need to be knurled as they are a tight but not secured/interference fit, they protect the aluminum hub mounting point from wear contact of the arm joint end, just slide it back in and then be sure to torque the end properly once you bolt it back up

this tool or something similar will work, even though it's intended for tie rod ends I have used it with great success on all of the RX-8 arm and ball joint separation points

http://www.tooltopia.com/otc-tools-7...googlebase_18u



.
Attached Thumbnails
lower control arm bushing removal-2f20162_1000.gif   lower control arm bushing removal-2f00411_1000.gif

Last edited by TeamRX8; 06-07-2011 at 07:07 PM.
TeamRX8 is offline   Reply With Quote
Old 06-08-2011, 03:15 AM   #9
Registered

CRO8TIA's Avatar

Join Date: Nov 2009
Location: Adriatic Paradise
Posts: 596
Thanks: 0
Thanked 0 Times in 0 Posts
Thats good, but isnt this the front lower control arm ? And, if it doesn't fit "tightly", tell me how to secure it properly.

Last edited by CRO8TIA; 06-08-2011 at 03:19 AM.
CRO8TIA is offline   Reply With Quote
Old 06-08-2011, 11:02 AM   #10
Registered
Thread Starter

sauceyI986's Avatar

Join Date: Jun 2006
Location: Laveen,Az
Posts: 855
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks teamrx8

One last question of the lower control arm bolt is kind of stripped and the bolt will not go on is there anyway of getting it fixed or replaced out for a new one with replacing the whole control arm.?
sauceyI986 is offline   Reply With Quote
Old 06-08-2011, 12:56 PM   #11
Registered

CRO8TIA's Avatar

Join Date: Nov 2009
Location: Adriatic Paradise
Posts: 596
Thanks: 0
Thanked 0 Times in 0 Posts
Which "bolt" do you refer to, the 2 on the chassis securing the control arm, or do you mean the ball joint ? If its the ball joint, you need another control arm. I have to ask again, This is your FRONT lower control arm ?
.

Last edited by CRO8TIA; 06-08-2011 at 01:02 PM.
CRO8TIA is offline   Reply With Quote
Old 06-08-2011, 01:01 PM   #12
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,350
Thanked 24 Times in 22 Posts
You can likely use a die to chase the threads....if they are not that screwed up

Otherwise the ball joint is not replaceable and you will need to replace the control arm
dannobre is offline   Reply With Quote
Old 06-09-2011, 12:40 PM   #13
Registered

SpIcEz's Avatar

Join Date: Jan 2008
Location: Montreal,QC
Posts: 390
Thanks: 0
Thanked 0 Times in 0 Posts
You can get a use lower control arm from a scrap yard or Mazmart for like 100-125$.

I got one which was almost like new for 100$ CND around here.
SpIcEz is offline   Reply With Quote
Old 10-05-2011, 02:34 PM   #14
Registered
iTrader: (1)

darnellm's Avatar

Join Date: Dec 2005
Location: Ashburn, VA
Posts: 345
Thanks: 0
Thanked 0 Times in 0 Posts
The attached pdf is for a 04 rx-8 and it shows that the metal bushings are servicable in the rear hub. These bushings are no longer available from Mazda.
I pulled one of the bushing out when the link was removed.
I guess I need a new rear hub like the factory workshop manual states.
Any one know why these bushings are no longer avaiable?
Must of been some problems with pressing in new ones I assume.
Attached Files
File Type: pdf 04rx8rear.pdf (46.4 KB, 188 views)
darnellm is offline   Reply With Quote
Old 10-06-2011, 07:52 PM   #15
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 19,721
Thanks: 0
Thanked 128 Times in 113 Posts
simply re-use the bushing, there is nothing wrong with it
TeamRX8 is offline   Reply With Quote
Old 01-17-2017, 10:45 AM   #16
Registered
iTrader: (1)

Join Date: Nov 2012
Posts: 618
Thanks: 0
Thanked 4 Times in 4 Posts
Quote:
Originally Posted by TeamRX8 View Post
those sleeves are integral to the rear aluminum wheel hub/upright assembly, they do not need to be knurled as they are a tight but not secured/interference fit, they protect the aluminum hub mounting point from wear contact of the arm joint end, just slide it back in and then be sure to torque the end properly once you bolt it back up

this tool or something similar will work, even though it's intended for tie rod ends I have used it with great success on all of the RX-8 arm and ball joint separation points

Great deal on OTC Tools 7315A at ToolTopia.com

.
Not sure if the right tool is linked in this post. Maybe for the front only? For the rear, this is the one to get or rent: Great deal on OTC Tools 6297 at ToolTopia.com
aka OTC Tools (OTC6297) Ball Joint Separator.

P.S. I know this is an old thread, and not quite on topic, but it took me quite a bit of head scratching and several failed attempts to remove the rear suspension links from the hub before I found that tool and had them off in about two minutes!
blu3dragon is offline   Reply With Quote
Old 06-19-2017, 08:40 AM   #17
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 19,721
Thanks: 0
Thanked 128 Times in 113 Posts
You can use that one too, but the other one works a little better if it will fit in where you need it (I have both)
