Another CEL with limp mode !!!!!!!!!!
#1
Registered User
Thread Starter
Join Date: Jan 2006
Location: Dhaka, Bangladesh
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
CEL Diagnosed with P1688 service guys have no idea HELP !!!!!!!!!!
Ok this is probably the 4th time the car came with a solid CEL and to limp mode. I drove the car about 2 hours with interval of 20 mins once during that 2 hours . I parked the car went to buy a dvd, came out and started the car no problem, I pulled up and the cel came up solid and went to limp mode restricting rpm to 3000. Then i pulled over , turned engine off and started again after 5 mins, i was fine took up to 9000 rpm no problem but CEL remains. Outside temp is about 85 . I cant go to the dealer for another week to check the error code. So far i have changed
engine mounts
clutch plate/ pressure plate
Coils
Plugs
Air Filter
Cleaned MAF
Checked ALL electrical points of the car excluding the EPS (no one here understands it)
changed all these 5 weeks ago , drove abt 600 miles.
Do you guys think its safe to drive like this for a week until i take it in to check the code?
engine mounts
clutch plate/ pressure plate
Coils
Plugs
Air Filter
Cleaned MAF
Checked ALL electrical points of the car excluding the EPS (no one here understands it)
changed all these 5 weeks ago , drove abt 600 miles.
Do you guys think its safe to drive like this for a week until i take it in to check the code?
Last edited by snkpkp; 05-22-2006 at 03:28 PM. Reason: needs new name as thread has changed path but same topic
#2
Hooked on go-fast crack
Join Date: Oct 2005
Location: Canada's capital
Posts: 208
Likes: 0
Received 0 Likes
on
0 Posts
If the CEL on your car works the same way as North American RX-8s, then yes it is safe to drive with the solid CEL. When it is blinking, that can mean something more serious is wrong, but solid won't lead to any damage.
Another piece of info, again assuming your car works like ours do. Certain faults detected by the ECU will cause the CEL stays on solid. It will stay lit for a while even if the fault is not detected again. After a few complete start/warmup/shutdown cycles without the fault being repeated, the CEL will shut off, but the code will stay in the ECU. So if it turns off in the next little while, it means that there was a one-time fault that occured, but the car is now fine. This can happen if something out of the ordinary happens (bad gas, high peak temperature for a brief moment, etc.)
Another piece of info, again assuming your car works like ours do. Certain faults detected by the ECU will cause the CEL stays on solid. It will stay lit for a while even if the fault is not detected again. After a few complete start/warmup/shutdown cycles without the fault being repeated, the CEL will shut off, but the code will stay in the ECU. So if it turns off in the next little while, it means that there was a one-time fault that occured, but the car is now fine. This can happen if something out of the ordinary happens (bad gas, high peak temperature for a brief moment, etc.)
#3
Registered User
Thread Starter
Join Date: Jan 2006
Location: Dhaka, Bangladesh
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
it does work more or less like North America spec vehicles. The car stays in limp mode for two drive cycles? it seemd like that? anyway i am begining to think i need to update to a 2006 model car. by the way i also changed the battery 5 weeks ago along with the other things.
#4
Registered User
Thread Starter
Join Date: Jan 2006
Location: Dhaka, Bangladesh
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
Anyone know how exactly the safe mode works? I got the safe mode only when the CEL came on and NO other lights. Car comes out of limp mode automatically? I turned the car off and turned it back on drove around and the limp mode was gone. Is that normal? I am freaking out , what if I get a limp mode in the middle of the highway tomorrow? have official visit out of the city...pls advice anyone.....!!!!
#5
when ur cel is blinkin its just a misfire take it to mazda u might be runnin to rich or lean an AFR, do u have an aftermarket midpipe or hi flow cat.....??? if so ur 02 sensor might be malfunctioning..... best bet find someone with a generic scanner or if u have access to mazdas scanner, plug into the OBD II connector,n find ur code n then u should know where to look next???
#6
Registered User
Thread Starter
Join Date: Jan 2006
Location: Dhaka, Bangladesh
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
just got the hymee scanalyzer, but did the ecu reset thing before my trip. Now have to wait for another cel. I cant understand all the numbers in the log either. and what does lean and rich mean? Ok i am totally lost. any post to educate a dummy?
#7
Registered User
Thread Starter
Join Date: Jan 2006
Location: Dhaka, Bangladesh
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
OK stalled the car a bit , couldn change gear fast enough from a red light and my throttle was too low so the car stalled followed by a solid CEL. Connected the scanaluzer software and i got P1688 which is some initial check blah blah....can anybody suggest what is it? do i need to change the MOP wiring harness ? Whats going on? pls anyone..advice....
#11
Registered User
Thread Starter
Join Date: Jan 2006
Location: Dhaka, Bangladesh
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
P1688 Freeze Frame
Ok here are freeze frame data, i dont know how to save them so took a picture.
I took it to the service center and as they are not mazda expert, the work shop manual does sort of work but they dont specifically know what to check , but they did check the wires and pcm harness, i did the reset from the scanalyzer few times and it keeps coming back, what do i do. help pls guys. sucks ......maybe time for a new car??? should i replace the wires and oil pump?
I took it to the service center and as they are not mazda expert, the work shop manual does sort of work but they dont specifically know what to check , but they did check the wires and pcm harness, i did the reset from the scanalyzer few times and it keeps coming back, what do i do. help pls guys. sucks ......maybe time for a new car??? should i replace the wires and oil pump?
#12
Modulated Moderator
iTrader: (3)
That's a Metering oil pump fault.
It could be a wiring fault...or a fault with the pump itself.
If you do the diagnostic procedures you can tell if it is the wiring....
That would leave the pump.
What do you have for mods....your LTFT is 7%...you must have intake/exaust??
It could be a wiring fault...or a fault with the pump itself.
If you do the diagnostic procedures you can tell if it is the wiring....
That would leave the pump.
What do you have for mods....your LTFT is 7%...you must have intake/exaust??
#13
Registered User
Thread Starter
Join Date: Jan 2006
Location: Dhaka, Bangladesh
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
stock intake, stock exhaust what does LIFT 7% mean ????
...sorry for being a dum ***. I know almost nothing about vehicle engineering, I had 0 problems with the car until it hit 18000 miles and all hell broke loose, coils, shocks, clutch, mounting, new battery.....and now this....
...sorry for being a dum ***. I know almost nothing about vehicle engineering, I had 0 problems with the car until it hit 18000 miles and all hell broke loose, coils, shocks, clutch, mounting, new battery.....and now this....
#14
Registered User
Thread Starter
Join Date: Jan 2006
Location: Dhaka, Bangladesh
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
Also i am trying to reset the CEL from the scanalyzer, it is going off but every second start after clearing it comes back on. I guess its a constant failure of the Oil Pump?
#15
Registered User
Thread Starter
Join Date: Jan 2006
Location: Dhaka, Bangladesh
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
Wires Checked , is it the MOP?????
Took the vehicle for service for 2nd time. Changed engine oil, Oil filter. Checked all connections as per workshop manual, and all seems to be in order. Vehicle still showing CEL with P1688 code. After vehicle shows the error vehicle rpm locks at 3000. But after 30 mins the vehicle is drivabale at normal speed, accelaration.
questions : Pls help if you guys can.

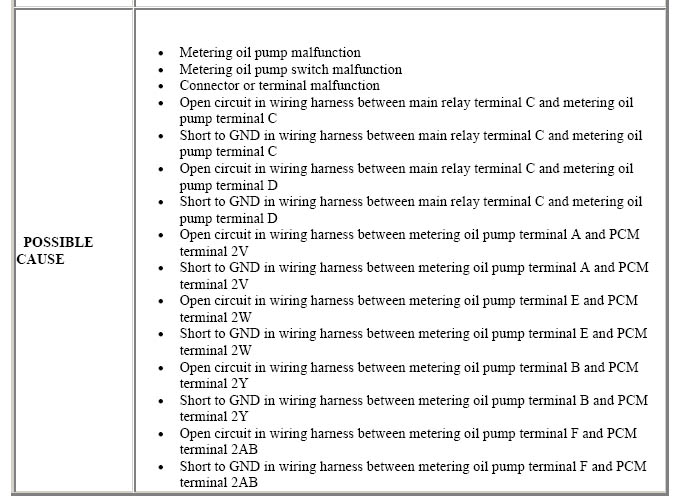

Now to what i understand the P1688 is an error code from the MOP circuit or switch which is inside the MOP??
If the MOP is toast then how would the engine get its lubrication, and wouldn it be showing the red oil indicator lamp which looks like aladdin's lamp?
If I change the MOP do you guys suggest changing all the wires even if the wires test shows the connections are ok?
If I get the wiring harness for the ecu to MOP would it require the whole stack of wires as shown in this attachment or just the 8 wire connections?
Do you think it could be from faulty ecu ?
I know I am asking too much questions, but pls advice as much as possible, love this car, wouldn want to loose it so fast.....
questions : Pls help if you guys can.
Now to what i understand the P1688 is an error code from the MOP circuit or switch which is inside the MOP??
If the MOP is toast then how would the engine get its lubrication, and wouldn it be showing the red oil indicator lamp which looks like aladdin's lamp?
If I change the MOP do you guys suggest changing all the wires even if the wires test shows the connections are ok?
If I get the wiring harness for the ecu to MOP would it require the whole stack of wires as shown in this attachment or just the 8 wire connections?
Do you think it could be from faulty ecu ?
I know I am asking too much questions, but pls advice as much as possible, love this car, wouldn want to loose it so fast.....
