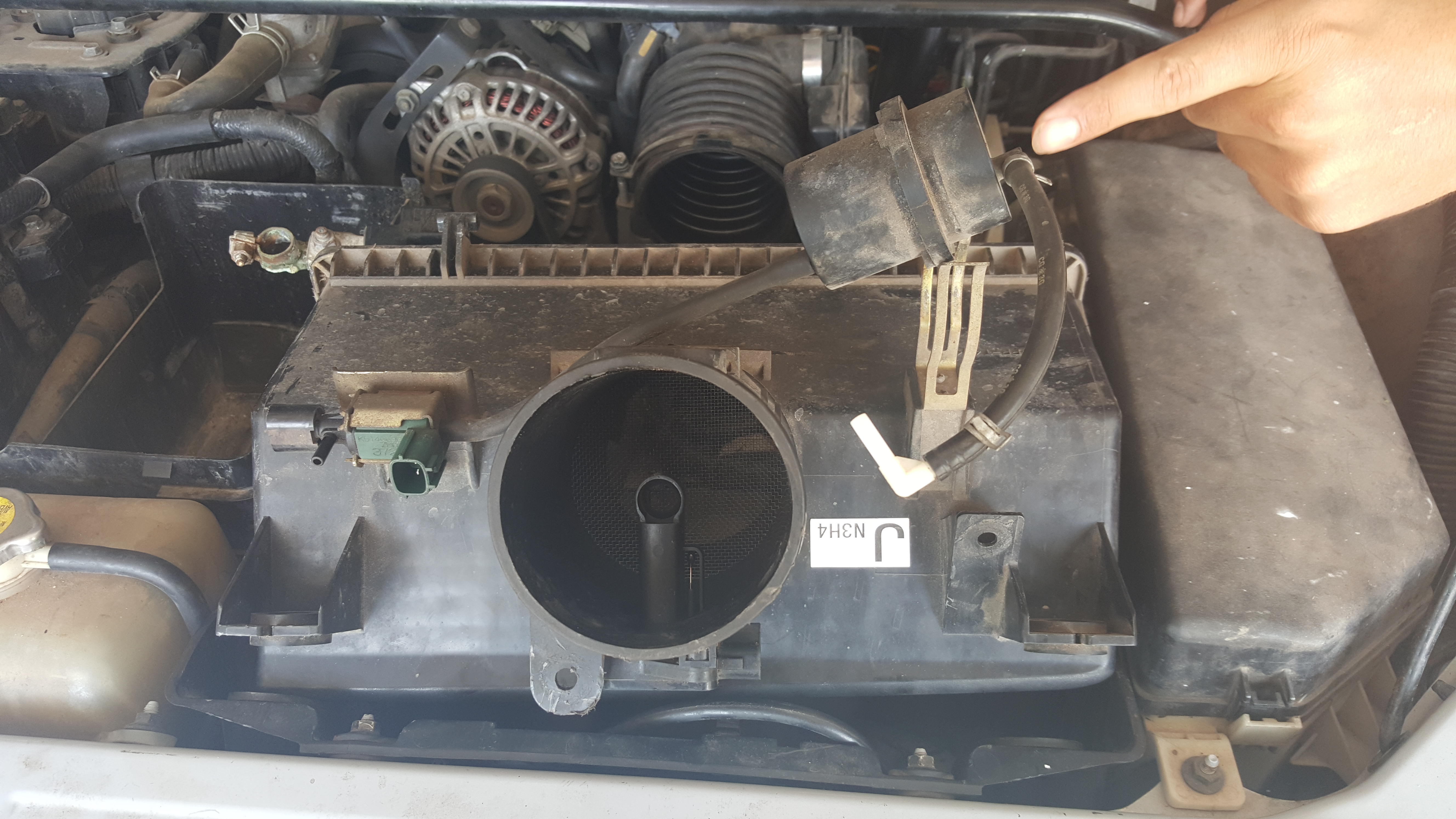

I was wondering if somebody could elaborate on what this is on the intake box, and if it is possible to delete the vacuum hose that goes to the intake manifold. The reason being I want to just make a custom one.



vac lines for the vfad. i removed mine



Whats the purpose of the vfad



variable fresh air duct. its behind the bumper and opens at a certain rpm (iirc) its to reduce noise



SEARCH.



ohh okay cool, Yea I already took that **** out haha. And what about the other connection on the air box, do you know what that is? It splits on the harness with the maf sensor and connects to the air box?



Okay I Just saw the picture. So basically I can delete all of that orange?



vfad solenoid trigger wire



yes and cap the tb



Okay great! Thanks guys.



Yes and all this will be for nothing.



oh man ... another 8 fell into the wrong hands ...

epic fail alert ...



Why do you want to make a custom air box?
What are you trying to achieve?



Extraneous noise and loss of power? The RX-8 already has a very good cold air intake.

The green line is ambient air temp. The red line is intake air temp.



Don't forget to cap off the male spout on the underside of the upper manifold.
The orange line. See where it says cap here.



Not to reduce noise exactly, but to tune the intake via resonance of intake noise.



I don't recall seeing this on my 4 port auto, is it 6 port specific? I would assume that at higher RPM the additional intake opens to aid top end power. Not really required when the auto shifts for you.



Autos (not even 6 port autos) don't have VFAD because autos suck.



I didn't bother to put my VFAD back on after removing it to do some work. Turns out that was a really bad idea. Ambient temps for this run were around 85F. Intake temps went as high as 145F. Thats 60F higher than ambient! With the VFAD in place, intake and ambient temps are very close when running on track (I get similar results to Steve). It is only when sitting still that intake temps rise. So... if you do remove it, make sure your intake draws air from in front of the radiator, and there is no path for it to pick up air from behind the radiator.



This is is proper and inexpensive way of doing CAI, need to do this myself when I get around to it.



if you have the RB air box why not put the RB air duct on it instead? It makes more sense than that since it fills the oval intake opening completely rather than feeding two round tubes through it.

making a lot of odd decisions lately, you feeling all right?

.



I saw that my Brilliant Black 04 was missing the VFAD. Likely damaged and never put back on when it was wrecked before I bought it. I have a couple on the shelf and I'm going to toss one in just to be on the safe side. If it does help stabilize air intake temps then its a really good thing to have in place and working correctly.



:-) just getting my spring mod list sorted out before this track season. small diy improvements (intake, exhaust, camber, trimming weight with small battery, air pump delete and maybe custom muffler) that probably add up.

I have stock intake and don't really feel spending $$ on buying one when I can achieve similar effect with material sourced from home depot :-). similar approach on the exhaust if I can make it work with oem muffler mod.

forcing some fresh air into airbox can be beneficial for track use.
I will probably go with larger single flexible hose and make sure it seals nicely with stock airbox.



sorry, got you mixed up with the person asking about the RB filter/airbox in the other thread where you first posted that picture a week or so ago

the RB air duct still serves the same purpose for the OE airbox, imo it will do a better job than that idea.
.
