RX8 leather seat electrical plug pin-out?


Old 11-20-2011, 04:14 PM
  #1
Registered User
Thread Starter

WuNgUn's Avatar

Join Date: Nov 2011
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
RX8 leather seat electrical plug pin-out?
Hi everyone...
I'm looking for an electrical pinout for the RX8 powered, drivers leather seats...
Specifically, the airbag/seat heaters, etc...

Any help would be greatly appreciated!

Thanks
WuNgUn is offline
Reply Like
Old 11-20-2011, 04:51 PM
  #2
Flame On!
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Likes: 0
Received 4 Likes on 4 Posts
This?
Attached Thumbnails RX8 leather seat electrical plug pin-out?-img_1958.jpg   RX8 leather seat electrical plug pin-out?-img_1959.jpg
1.3_LittersOfFurry is offline
Reply Like
Old 11-21-2011, 04:38 AM
  #3
Registered User
Thread Starter

WuNgUn's Avatar

Join Date: Nov 2011
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 1.3_LittersOfFurry
This?
Maybe I should of been more specific...Im looking for the schematics of all the electrical wires for the powered/heated seats.
I need to know what wire is for what...

Thanks
WuNgUn is offline
Reply Like
Old 11-23-2011, 07:51 PM
  #4
Flame On!
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Likes: 0
Received 4 Likes on 4 Posts
This is all I got, (sorry my scanner is broken so it will be crappy iphone quality)
Attached Thumbnails RX8 leather seat electrical plug pin-out?-img_1967.jpg
1.3_LittersOfFurry is offline
Reply Like
Old 11-23-2011, 08:46 PM
  #5
Registered User
Thread Starter

WuNgUn's Avatar

Join Date: Nov 2011
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Appreciate it...do you also have the drivers seat power adjustment motors schematic and airbags (which I think are the yellow plugs). Any and all to do with the seat plugs.
Thanks again Shawn!!
WuNgUn is offline
Reply Like
Old 11-23-2011, 10:20 PM
  #6
Flame On!
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Likes: 0
Received 4 Likes on 4 Posts

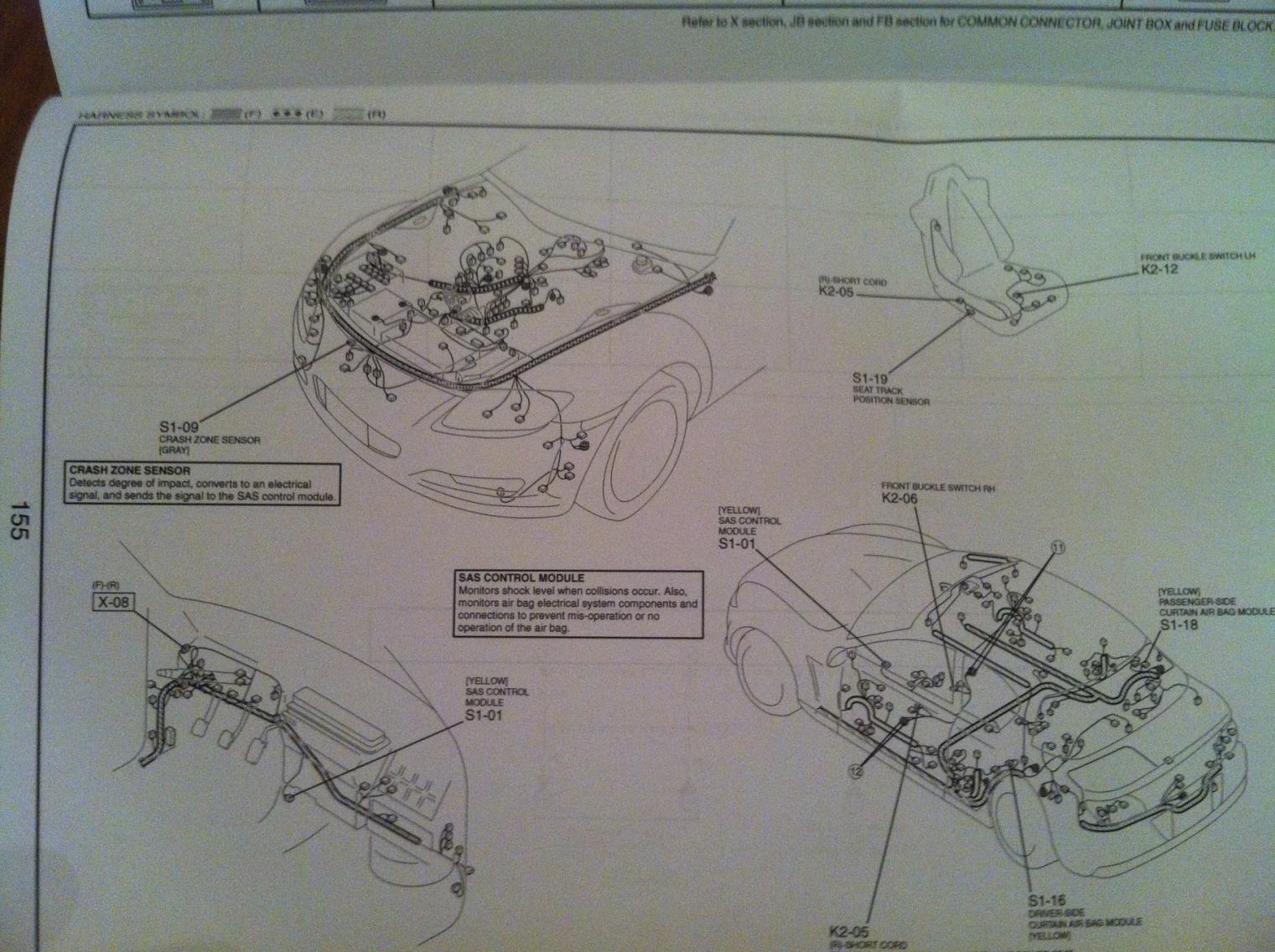

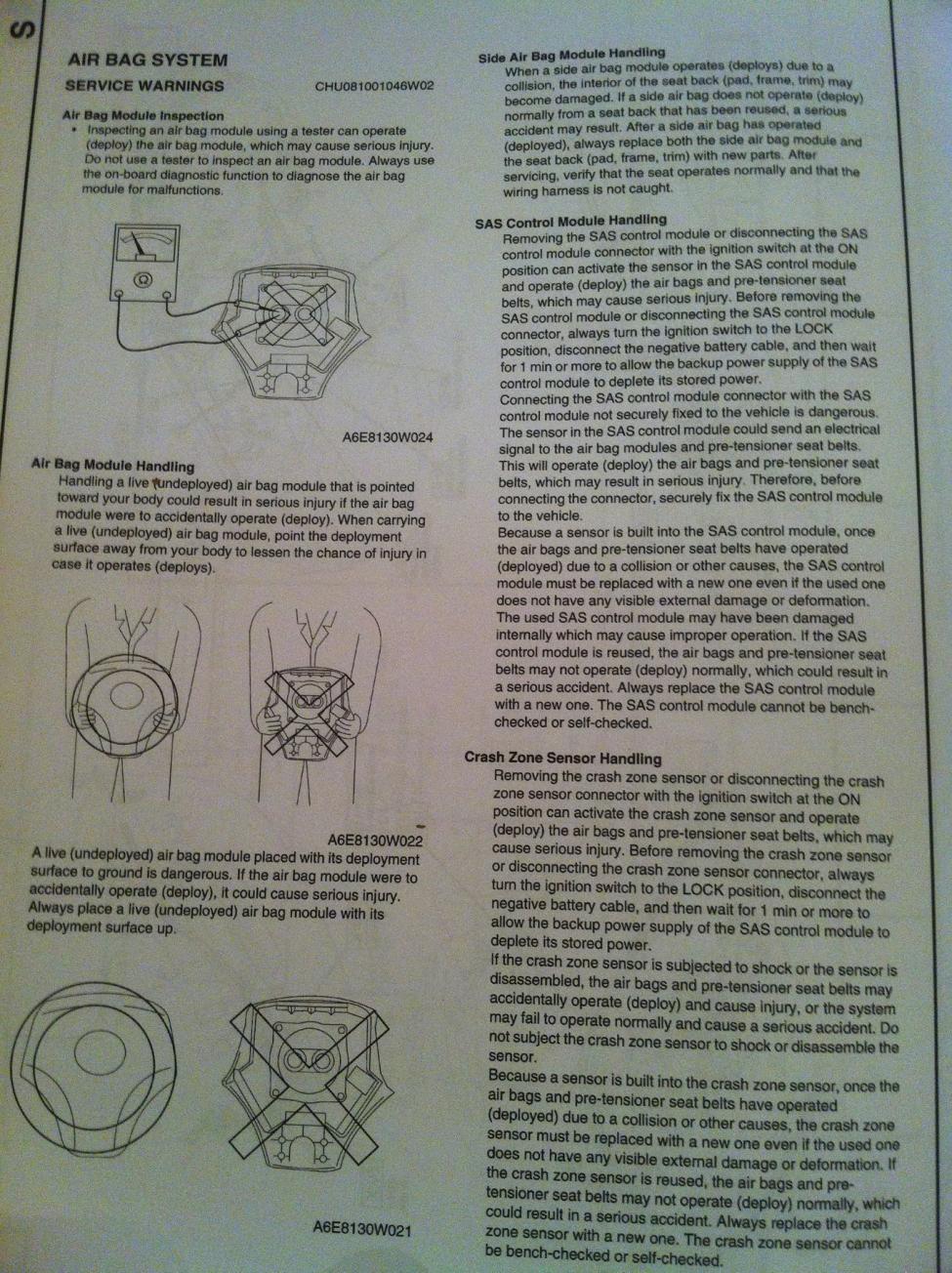

Here ya go.
Attached Thumbnails RX8 leather seat electrical plug pin-out?-img_1968.jpg   RX8 leather seat electrical plug pin-out?-img_1972.jpg   RX8 leather seat electrical plug pin-out?-img_1977.jpg   RX8 leather seat electrical plug pin-out?-img_1980.jpg   RX8 leather seat electrical plug pin-out?-img_1981.jpg

1.3_LittersOfFurry is offline
Reply Like
Old 11-23-2011, 10:21 PM
  #7
Flame On!
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Likes: 0
Received 4 Likes on 4 Posts

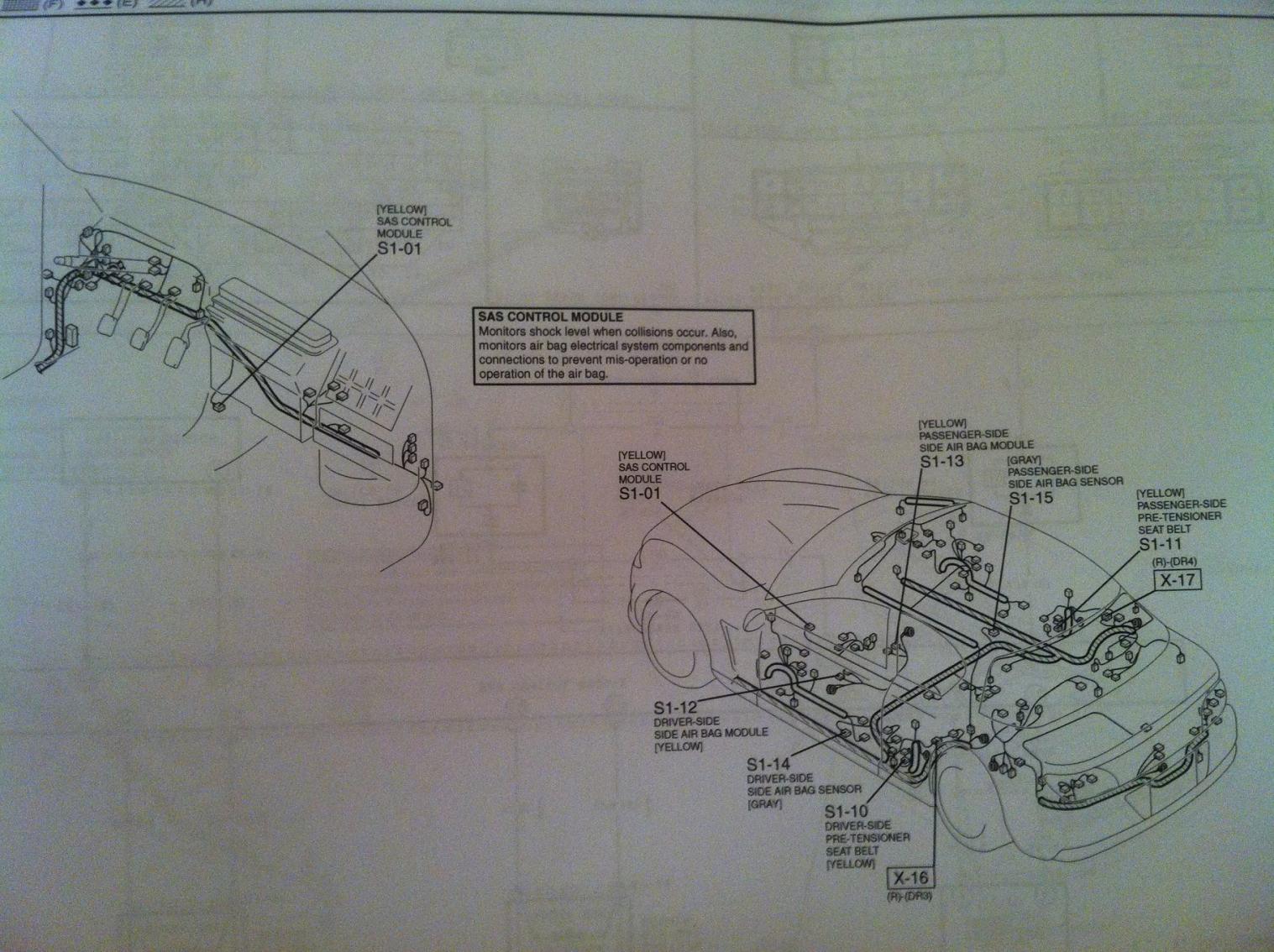

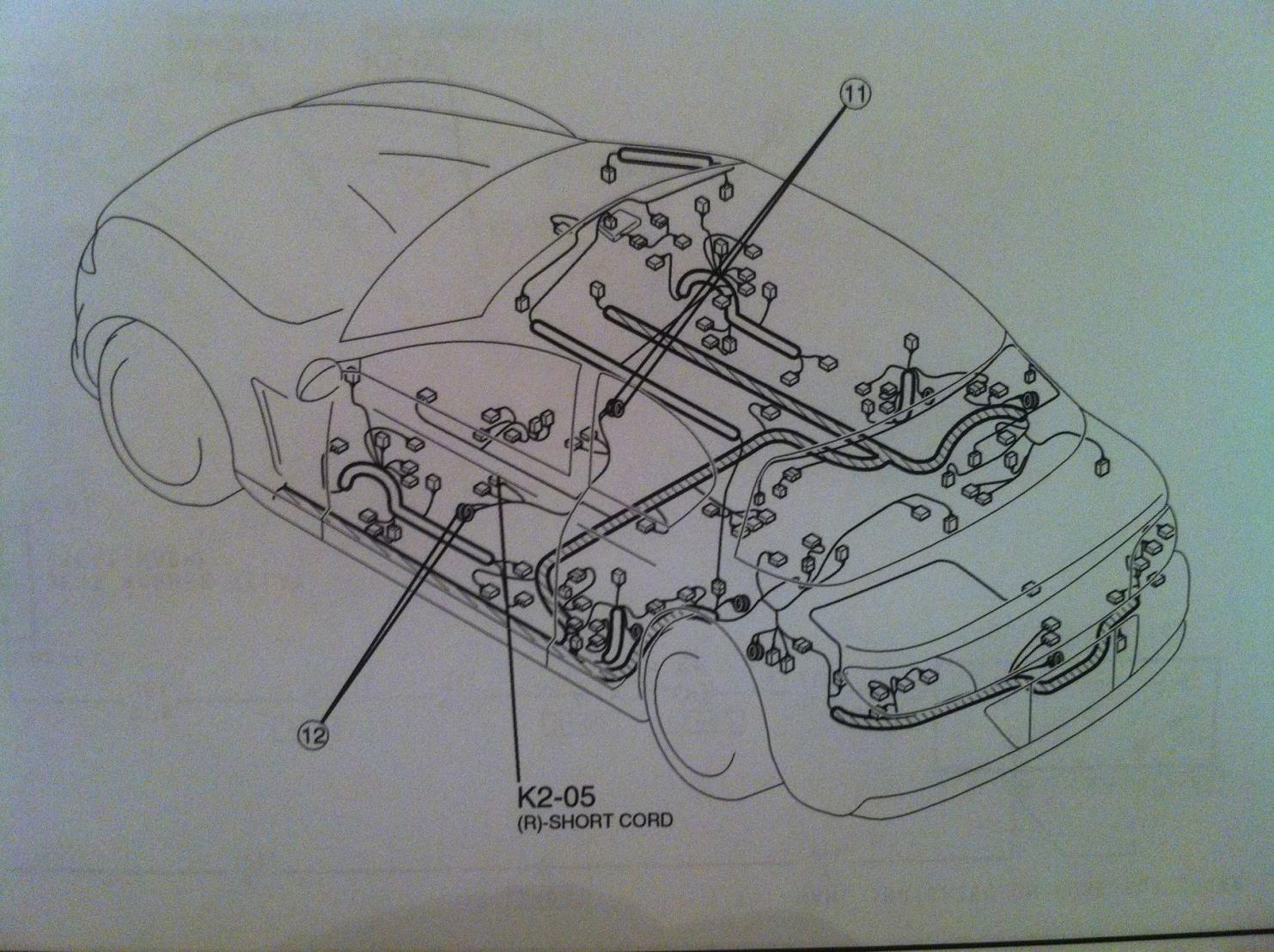

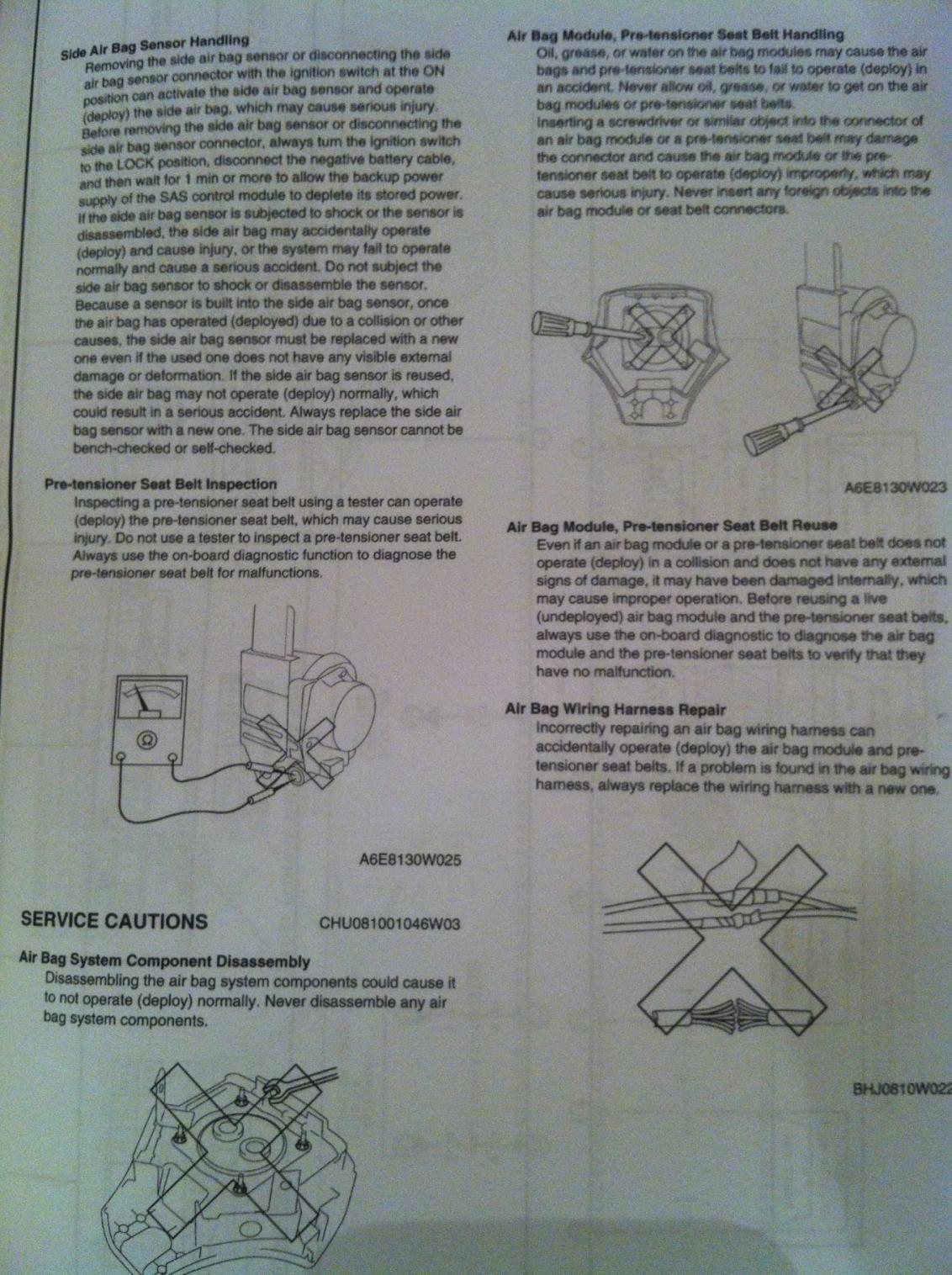

More.


-EDIT- Sorry its not quiet in order, not sure what happened there.
Attached Thumbnails RX8 leather seat electrical plug pin-out?-img_1979.jpg   RX8 leather seat electrical plug pin-out?-img_1982.jpg   RX8 leather seat electrical plug pin-out?-img_1976.jpg   RX8 leather seat electrical plug pin-out?-img_1975.jpg   RX8 leather seat electrical plug pin-out?-img_1970.jpg

Last edited by 1.3_LittersOfFurry; 11-23-2011 at 10:24 PM.
1.3_LittersOfFurry is offline
Reply Like
Old 11-23-2011, 10:23 PM
  #8
Flame On!
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Likes: 0
Received 4 Likes on 4 Posts
Last one.
Attached Thumbnails RX8 leather seat electrical plug pin-out?-img_1969.jpg
1.3_LittersOfFurry is offline
Reply Like
Old 11-24-2011, 04:11 PM
  #9
Registered User
Thread Starter

WuNgUn's Avatar

Join Date: Nov 2011
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Awesome!!! Thanks again!
WuNgUn is offline
Reply Like
Old 02-25-2012, 04:56 AM
  #10
Registered User
Thread Starter

WuNgUn's Avatar

Join Date: Nov 2011
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Does your manual show a 'legend' for the wire colour codes?
Not exactly sure what is being described in the schematic, for example, G/W (r).
Green/White with red stripe maybe?

Thanks again!
WuNgUn is offline
Reply Like
Old 02-25-2012, 05:05 AM
  #11
Flame On!
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Likes: 0
Received 4 Likes on 4 Posts
I'll post it after work. Everything is at my house.
1.3_LittersOfFurry is offline
Reply Like
Old 02-25-2012, 03:45 PM
  #12
Flame On!
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Likes: 0
Received 4 Likes on 4 Posts

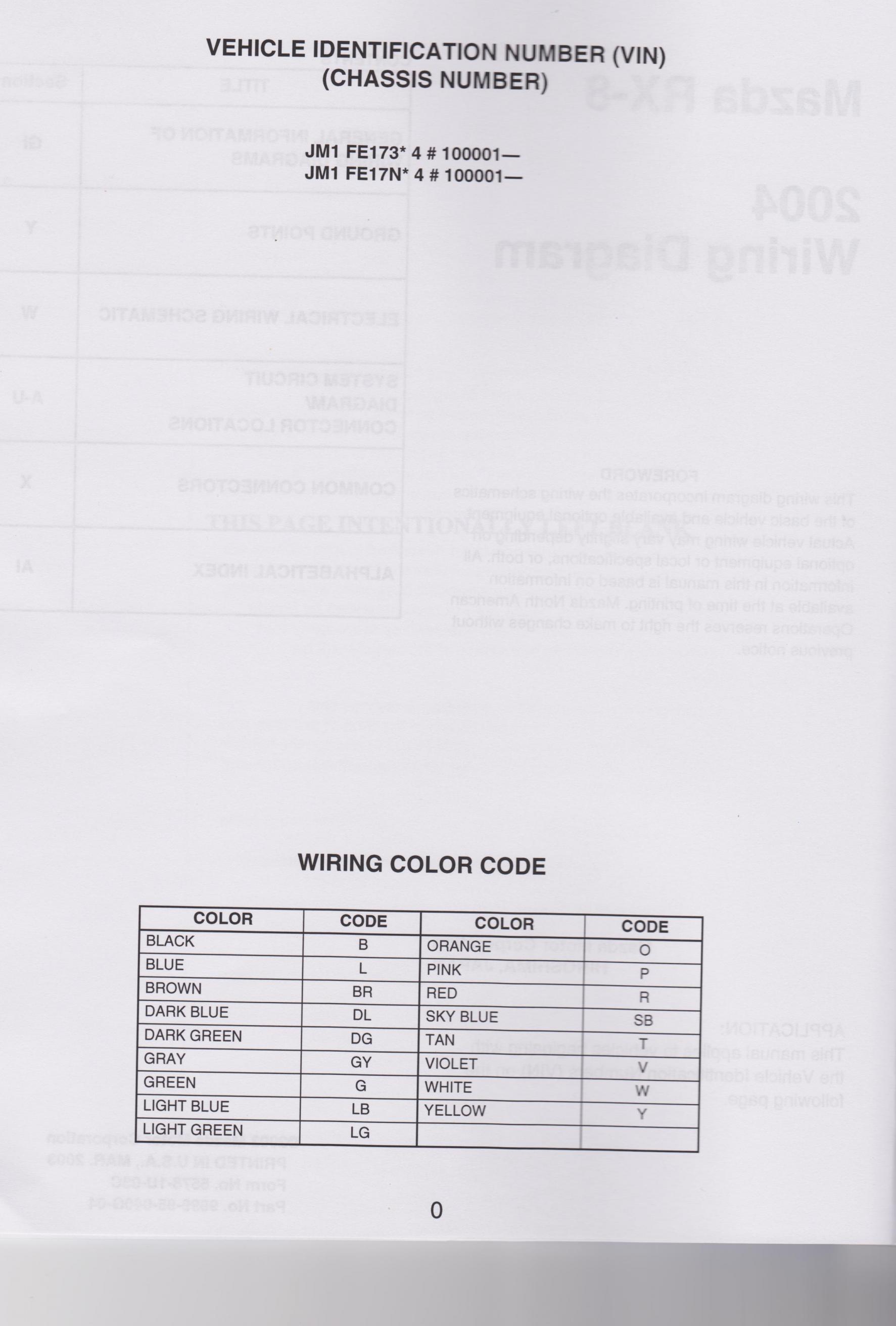

Here ya go.
Attached Thumbnails RX8 leather seat electrical plug pin-out?-004.jpg
1.3_LittersOfFurry is offline
Reply Like
Old 02-26-2012, 08:22 AM
  #13
Registered User
Thread Starter

WuNgUn's Avatar

Join Date: Nov 2011
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Thanks!!!
WuNgUn is offline
Reply Like
