rx8 on the Dyno Dynamics
#1
Last to the Finish line
Thread Starter
rx8 on the Dyno Dynamics
Okay guys just got the old 8 up on the Dyno today and was mildly disappointed, not because it didn't make allot of power but because it ran less than what most 8 are running stock "I think". 156hp
I was under the impression that most 8's do about 175-185 stock RWH please correct me if I'm wrong, it might make me feel better.
He did like 8 or so runs while trying different things and got no where we couldn't figure it out.
There was an 8 there a day or so before might be someone here it did like 174-175 with a pretty good looking chart where mine looked a little suspect. Mine spiked left and right and only increased upward very little.
We thought it might be the DSC or some sort of governor keeping it flat at 5600 rpms
we tried to turn it off, the ecu cut it right back on no matter how many oddball procedures we tried.
Anyway if this is normal cool if not could someone help me out I would like to try getting the car up with its competitors, Lets face it a non-turbo rotary is kinda dead end I'm sure many would disagree and thats cool.
My car is just about stock minus the Magna Flow exhaust and the "Simota intake which might be coming off".
I had to photoshop the exploded view I forgot to have him print it out sorry!
super close-up
Photo-chop version
I was under the impression that most 8's do about 175-185 stock RWH please correct me if I'm wrong, it might make me feel better.
He did like 8 or so runs while trying different things and got no where we couldn't figure it out.
There was an 8 there a day or so before might be someone here it did like 174-175 with a pretty good looking chart where mine looked a little suspect. Mine spiked left and right and only increased upward very little.
We thought it might be the DSC or some sort of governor keeping it flat at 5600 rpms
we tried to turn it off, the ecu cut it right back on no matter how many oddball procedures we tried.
Anyway if this is normal cool if not could someone help me out I would like to try getting the car up with its competitors, Lets face it a non-turbo rotary is kinda dead end I'm sure many would disagree and thats cool.
My car is just about stock minus the Magna Flow exhaust and the "Simota intake which might be coming off".
I had to photoshop the exploded view I forgot to have him print it out sorry!
super close-up
Photo-chop version
#7
Hit & Run Magnet
iTrader: (3)
that sucks, im sorry.
also, the temperature might have been really hot. so that has something to do with it. and several dynos give consistently different results. i forgot which one gives the lowest, you might have used that one. but 150whp is pretty sad if i say so myself.
its to bad you cant take that dyno to mazda and say there is no way you are losing 90 hp through the drivetrain and that you demand a turbo installed under warranty.
edit: uh, why didnt you goto 6th gear? those dyno graphs tend to go up as the gears go up. thats where your missing 30hp might be.
also, the temperature might have been really hot. so that has something to do with it. and several dynos give consistently different results. i forgot which one gives the lowest, you might have used that one. but 150whp is pretty sad if i say so myself.
its to bad you cant take that dyno to mazda and say there is no way you are losing 90 hp through the drivetrain and that you demand a turbo installed under warranty.
edit: uh, why didnt you goto 6th gear? those dyno graphs tend to go up as the gears go up. thats where your missing 30hp might be.
#9
I had a dyno run on a dyno dynamics as well. only "performance" mod I have is a k&n drop in filter. my best was 167.8hp after 3 pulls. I've heard that dyno dynamics bring in lower, but more accurate readings?? Something along those lines.
#10
Boosted Kiwi
iTrader: (2)
When mine was stock it was about 169 on a dyno dynamics and I'm pretty sure my motor is strong .
Just looking at the graph indicates that it was not taken to the hp peak as it stops just after the 2nd port opens . The 8 normally peaks after that valve has opened at 8500 rpm . Have a look at the dyno thread & you will see what I mean
Just looking at the graph indicates that it was not taken to the hp peak as it stops just after the 2nd port opens . The 8 normally peaks after that valve has opened at 8500 rpm . Have a look at the dyno thread & you will see what I mean
Last edited by Brettus; 09-16-2007 at 01:52 AM.
#11
Last to the Finish line
Thread Starter
Thanks guys! the guy at the shop "linh" really cool dude told me that the other 8 had some sort of chip in the ecu, I assume its some kind of racing flash.
But whats odd is that I didn't even hit the 160's range my motor seems very capable of it. Its very responsive almost as if it could take on most cars in its league, up until they pass me lmao
Does the dsc play a role in limiting our hp output?
Thanks again
I'll check out the main thread see what I can learn.
But whats odd is that I didn't even hit the 160's range my motor seems very capable of it. Its very responsive almost as if it could take on most cars in its league, up until they pass me lmao
Does the dsc play a role in limiting our hp output?
Thanks again
I'll check out the main thread see what I can learn.
#12
Last to the Finish line
Thread Starter
yeah thats what he told me and I believed him after I saw a 240sx with a Skyline swap do 159hp on that very same dyno. He told me that the guy came back that same day after fixing a few hoses and uping the boost a few lbs. picked up an extra 20-30hp!
#13
Last to the Finish line
Thread Starter
that sucks, im sorry.
also, the temperature might have been really hot. so that has something to do with it. and several dynos give consistently different results. i forgot which one gives the lowest, you might have used that one. but 150whp is pretty sad if i say so myself.
its to bad you cant take that dyno to mazda and say there is no way you are losing 90 hp through the drivetrain and that you demand a turbo installed under warranty.
edit: uh, why didnt you goto 6th gear? those dyno graphs tend to go up as the gears go up. thats where your missing 30hp might be.
also, the temperature might have been really hot. so that has something to do with it. and several dynos give consistently different results. i forgot which one gives the lowest, you might have used that one. but 150whp is pretty sad if i say so myself.
its to bad you cant take that dyno to mazda and say there is no way you are losing 90 hp through the drivetrain and that you demand a turbo installed under warranty.
edit: uh, why didnt you goto 6th gear? those dyno graphs tend to go up as the gears go up. thats where your missing 30hp might be.
even I can laugh at this
#14
Race Steward
iTrader: (1)
Thats part of the problem - wheel speed is too fast in 5th gear for "saftey" at the top end. We normally go in 3rd.

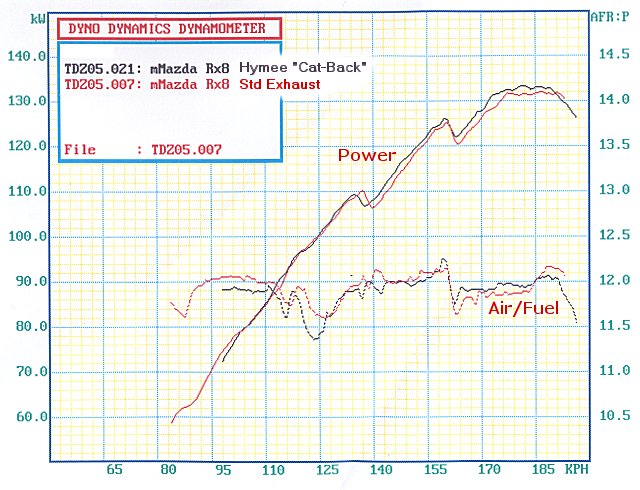

Here is my Dyno Dynamics dyno runs from around 4 years ago for a comparison:
134 kW is basically 180 HP.
Cheers,
Hymee.
Here is my Dyno Dynamics dyno runs from around 4 years ago for a comparison:
134 kW is basically 180 HP.
Cheers,
Hymee.
Last edited by Hymee; 09-16-2007 at 03:58 AM.
#17
Laid back in the pocket
Join Date: Mar 2006
Location: Blacksburg, VA
Posts: 522
Likes: 0
Received 0 Likes
on
0 Posts
I thought you had to hold the DSC button for approx. 8-10 sec. to fully disable it to run on a dyno (never done it just read here). Even when I was getting my speedo calibrated I had to do this. It was done on a dyno-like device with the rear wheels running on drums. With DSC on the car would bog itself down.
#19
Last to the Finish line
Thread Starter
I thought you had to hold the DSC button for approx. 8-10 sec. to fully disable it to run on a dyno (never done it just read here). Even when I was getting my speedo calibrated I had to do this. It was done on a dyno-like device with the rear wheels running on drums. With DSC on the car would bog itself down.
Only problem we had was that the damn ecu is so smart it would turn the dsc on the second we picked up some speed. The "sound" guess was that the ecu may have detected no front wheel motion making the car think something is wrong "who knows" .
The only other thing I noticed was that most of you are dyno-ing on a level dyno. His was on a ramp because the dyno has yet to be put in the ground. This may have had something to do with the dsc tripping.
#20
Last to the Finish line
Thread Starter
And when you do this should you still take it up to 8500rpms?
Oh I also noticed the guy shifting kinda early does this make a difference on our cars or is it that he was red-lining very quickly on the dyno wheels cause its not pushing the car
Sorry for the dumb @$$ questions new to doing real performance testing when compared to my butt dyno!
Oh I also noticed the guy shifting kinda early does this make a difference on our cars or is it that he was red-lining very quickly on the dyno wheels cause its not pushing the car
Sorry for the dumb @$$ questions new to doing real performance testing when compared to my butt dyno!
#21
Power!!
You'll need to turn off the DSC by holding it down for 8-10 seconds until the "slippery when wet" sign lights up. Then the computer won't bog the car when it senses the rear wheels turning but not the front.
Also you should run it up to redline. Can you post your graphs in RPM? That makes it more meaningful for us to see if your curve is different from someone elses. Also it looks like from Hyme's post that Dyno Dynamics dyno's tend to read lower than Dynojet dynos. Your best bet is to compare to other RX8's on Dyno Dynamics dynos to see if you're in the right ballpark.
Also you should run it up to redline. Can you post your graphs in RPM? That makes it more meaningful for us to see if your curve is different from someone elses. Also it looks like from Hyme's post that Dyno Dynamics dyno's tend to read lower than Dynojet dynos. Your best bet is to compare to other RX8's on Dyno Dynamics dynos to see if you're in the right ballpark.
#22
Race Steward
iTrader: (1)
And when you do this should you still take it up to 8500rpms?
Oh I also noticed the guy shifting kinda early does this make a difference on our cars or is it that he was red-lining very quickly on the dyno wheels cause its not pushing the car
Sorry for the dumb @$$ questions new to doing real performance testing when compared to my butt dyno!
Oh I also noticed the guy shifting kinda early does this make a difference on our cars or is it that he was red-lining very quickly on the dyno wheels cause its not pushing the car
Sorry for the dumb @$$ questions new to doing real performance testing when compared to my butt dyno!
Once he is up to the begginning speed, he tells the dyno to start putting full load on the load cell, and starts measuring his WOT power run. Normally the operator will get off it when she starts to lay over (ie. the power starts to fall off). If the operator is inexperienced with these engines, he could mistaken the port transition for that peak power, but they need to push on.
I hope that helps explain what is going on.
BTW - We also did an experiment where we tricked the computer into thinking the front wheels where spinning as well...
Cheers,
Hymee.
#23
Last to the Finish line
Thread Starter
How did you manage to trick the computer like that cause we got the dsc to shut off completely got all the little lights and junk but somewhere along the line it got pissed off and came back on.
#24
Best way is to pull the room fuse. Then the whole DSC is shut down.
I think I got 167 RWP and had the same problem as you.
A year later I dyno'd at the So. Calf dyno run. Drove 35 miles and then put it on the dyno. No waiting. Got 198.6 RWP. Nice HP gain for pulling the fuse.
I think I got 167 RWP and had the same problem as you.
A year later I dyno'd at the So. Calf dyno run. Drove 35 miles and then put it on the dyno. No waiting. Got 198.6 RWP. Nice HP gain for pulling the fuse.
#25
Last to the Finish line
Thread Starter
Best way is to pull the room fuse. Then the whole DSC is shut down.
I think I got 167 RWP and had the same problem as you.
A year later I dyno'd at the So. Calf dyno run. Drove 35 miles and then put it on the dyno. No waiting. Got 198.6 RWP. Nice HP gain for pulling the fuse.
I think I got 167 RWP and had the same problem as you.
A year later I dyno'd at the So. Calf dyno run. Drove 35 miles and then put it on the dyno. No waiting. Got 198.6 RWP. Nice HP gain for pulling the fuse.
I guess I want to start building this thing as much as I can this is my first rotary and it has grown on me as many said it would so we'll see!
Hopefully I don't end up with Evo-syndrome like so many others :P the 8 seems to be pretty solid despite the little things.
