9krpmrx8

iTrader: (46)

Okay so I know I posted pics from the manufactures website in another thread but I just got this thing in today and it is just perfect for my needs. This gauge is made by http://www.auberins.com and the size is just perfect. i didn't want another pod or the RB pod so I did some research and came across this. Not only is it the perfect size but from the research they seem to be very reliable and very accurate.

Here is the manufactures pic:

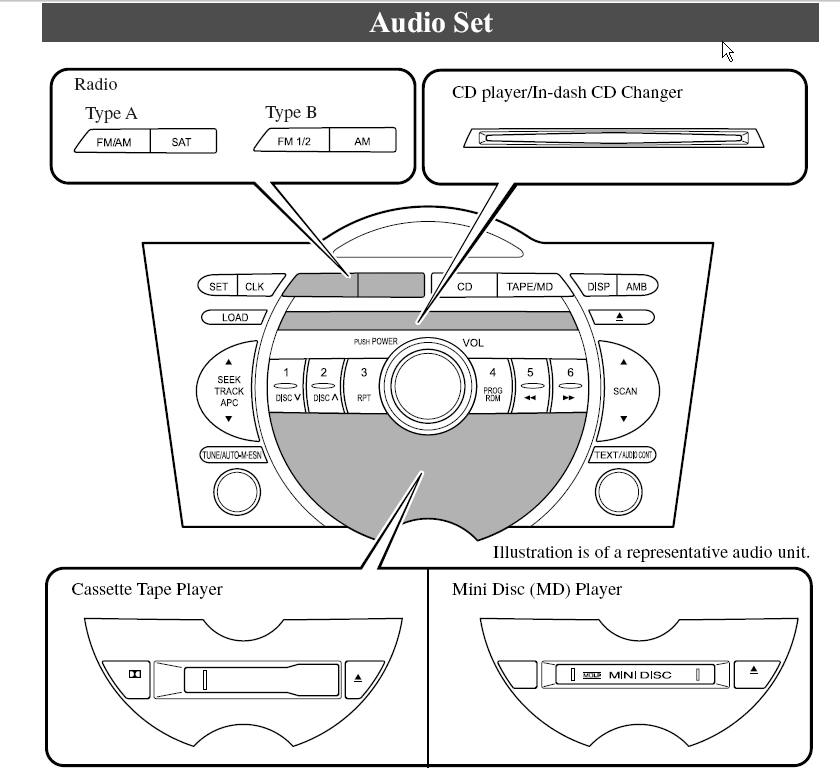

Anyway I plan to mount it in the center of the radio where the minidisc player goes. Any input is welcome. Sorry about the quality, just some quick pics.

nycgps

iTrader: (1)

seriously man, that thing looks like a toy haha

Lets see how you gonna integrate it into the dash, it's gonna be cool

dannobre

iTrader: (3)

That should fit nicely in the center of the stereo cutout

9krpmrx8

iTrader: (46)

Yeah it should fit perfectly there. I had the measurements before but actually holding it, it is just a solid product. With the amber display everything should match perfectly.

trustbuddy

iTrader: (3)

this is exactly something I could use~!!!!!
GOOD FIND OP~!!

btw, I went to the website- which one or parts did you purchase???

9krpmrx8

iTrader: (46)

Yeah I was just looking at different options for measuring oil temperature and came across this being used on a cappuccino machine, haha.

jones75254

iTrader: (2)

Thats pretty neat. Beats the heck out of mounting a special pod or doing too much modification. Wouldnt mind having one for EGT...

9krpmrx8

iTrader: (46)

And they have one that does multiple readings, boost, EGT, etc.

trustbuddy

iTrader: (3)

please do a detailed diy write up~
looking forward to the install.

9krpmrx8

iTrader: (46)

I don't know about detailed but we will take pics. It's pretty simple because I have an oil filter sandwich adapter already with extra ports that I will screw the oil temp sensor into. Then I will run the wire through the firewall and into the back of the gauge. Then I just have to get 12v from the cigarette lighter.

9krpmrx8

iTrader: (46)

Okay, these quick pics suck and my car is always clean as whistle so forgive the greasy dirty prints all over everything from the install. But I am very happy with it!!! I still want to get into the setup to see what else it can do. It will also measure EGT and some others with the right sending units. I will take more in the daylight. It was an easy install but my headunit went dead and it took me a couple hours to get it apart and figure out how to fix it. The face plate needed to be removed and reseated.

Grungepup

iTrader: (2)

sweet man.... wish we could have done this at an install meet

9krpmrx8

iTrader: (46)

Yeah me too but I couldn't wait and my dad brought his Dremel so we knocked it out. I am really impressed. You would be amazed, at how long it takes for the oil to heat up. Those temps at 120 degrees are at full warm up with the coolant temps at over 180 degrees.

So, even me letting the cars coolant warm up fully to 150-170 degrees is not enough time to get the oil temp up. So that means all the guys that just get in an go are driving around with cold oil for a while. I will start data logging tomorrow and time just how long it takes to heat up.

trustbuddy

iTrader: (3)

looks good.
can you let me know which part numbers I need to order to replicate this?

9krpmrx8

iTrader: (46)

This : http://www.auberins.com/index.php?ma...products_id=19

And this: http://www.auberins.com/index.php?ma...roducts_id=134

9krpmrx8

iTrader: (46)

Oh, and I already had the Prosport oil filter sandwich adapter plate so the temp probe just screws right in.

trustbuddy

iTrader: (3)

thanks. I'm definately doing this before my next track run...
thanks again 9krpmrx8~!

and good tip about the prosport filter adapter- those are half the price of RB ones...

9krpmrx8

iTrader: (46)

Just make sure you ground the gauge properly. Yeah the Prosport one is great and I still have two available ports. I thought about tapping the oil pan for the oil temp but it was too much of a pain in the ***.

Huey52

iTrader: (2)

A digital oil temp gauge in place of a radio? Now that's dedication.

9krpmrx8

iTrader: (46)

It's not in place of anything that panel is just a blank piece where the factory minidisc player is supposed to go. so behind that panel is open space. Perfect spot.

Huey52

iTrader: (2)

Nice (if you don't have the mini-disc)!

9krpmrx8

iTrader: (46)

I have never even known anyone to own a mini-disc let alone have the player in their 8.

Huey52

iTrader: (2)

Me either, but I do have the 6-CD slot.

edit: oh I see now [lightbulb finally came on]

trustbuddy

iTrader: (3)

dingdingdingding~~~!!! LOL

9krpmrx8, I ordered everything including the prosport adapter.
Where did you use to ground the gauge?
I'd assume any metal should do fine...

9krpmrx8

iTrader: (46)

Great, it's a great product.

Actually I'm having an issue with my ground point and I am getting an intermittent error code. I was lazy and grounded to the bolt that holds the shifter down because I didn't have a quick splice small enough to attach to the ground on the cigarette lighter. I used the positive on the cigarette lighter for 12v. This weekend I will re-ground it to the cigarette lighter's ground.

Also, the end of the sensor doesn't spin so remember to screw it into the prosport adapter before running it through the firewall. I will also be running a copper wire wrapped around the metal sheathing on the sensor wire to a ground because the tech said it will help reduce noise and give more accurate readings. The Tech support was great when I called about the error code I was getting.
