Series I Tech Garage The place to discuss anything technical about the RX-8 that doesn't fit into any of the categories below.

Oil cooler thermostat?

Old 08-07-2009, 11:07 AM
  #101
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
Sweet. Do you know what the BTU/hr ratings are for the stock units or are you just going with bigger units to assure they cool better?
9krpmrx8 is offline
Old 08-07-2009, 12:00 PM
  #102
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,747
Liked 90 Times in 87 Posts
The stock units are small...they are quite thin in cross section The replacement units are much thicker as well as being larger in size

I want to be able to beat on it with no heat problems I have already done the cooling system..and other than ducting in the front for brakes and the inflow to the rad and coolers most of the mods to the cooling system are done
dannobre is offline
Old 08-07-2009, 12:43 PM
  #103
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
For Summer coming, I am actually going to open up my rear cooler splash shields even more, going to cut a hole of 11 x 10" and fit a one piece screen in the hole....probably rivet the screens through the plastic shields.

I have an original set of Black Splash shields I will just put back for next winter (water).

I just don't like the idea of restricting extracted air through tiny slits.

Frankly IMO you are waisting your time putting larger coolers on if you can't extract the air volume = heat.
ASH8 is offline
Old 08-07-2009, 04:40 PM
  #104
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,747
Liked 90 Times in 87 Posts
Don't worry...there will be much more flow

There will be 9-10" high flow fans and screen on the wheel wells....plus a much more open front with ducting to direct airflow

If this thing overheats after I'm done there is no hope
dannobre is offline
Old 08-07-2009, 04:47 PM
  #105
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
Riveting screens is a good idea, I just worry about water too. It rarely rains here but when it does, it rains like crazy. Have you fabbed up the screens yet? I wonder if there is anything pre-made small enough to rivet on?

If you mounted one larger single oil cooler the same way ODragger did his secondary radiator do you think air flow would be sufficient? Do you think it would block air flow to the radiator too much?
9krpmrx8 is offline
Old 08-07-2009, 05:28 PM
  #106
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Sounds Good..Dan..

9krpm ,No I haven't sourced the screen material yet, I am thinking of using the "Fly" or Bug screen mesh you get on home security doors it is strong and has holes in it about the size of a match head....I am hoping this will give more air flow, I guess the mesh is about a 45-50% air flow rate which has to be better than the original.

I could go to a larger mesh...any thoughts??

Not sure about the oil cooler in front on the radiator, that means there is an oil cooler, air con condenser and radiator....

Last edited by ASH8; 08-07-2009 at 05:31 PM.
ASH8 is offline
Old 08-07-2009, 05:41 PM
  #107
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts

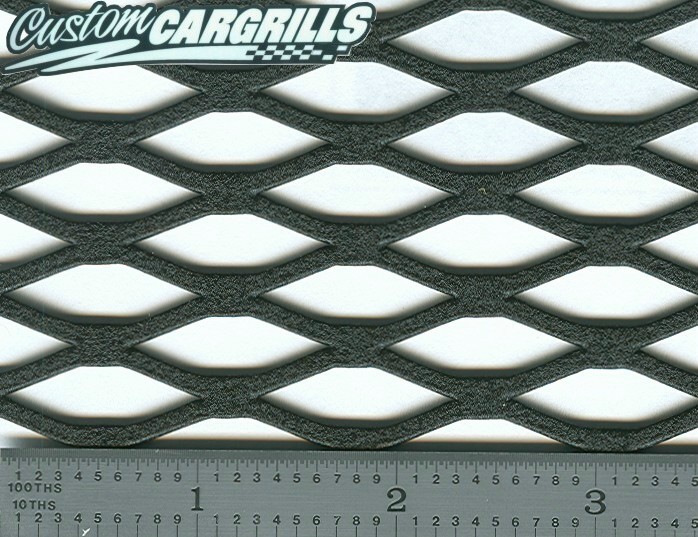

Powdercoated flat black?

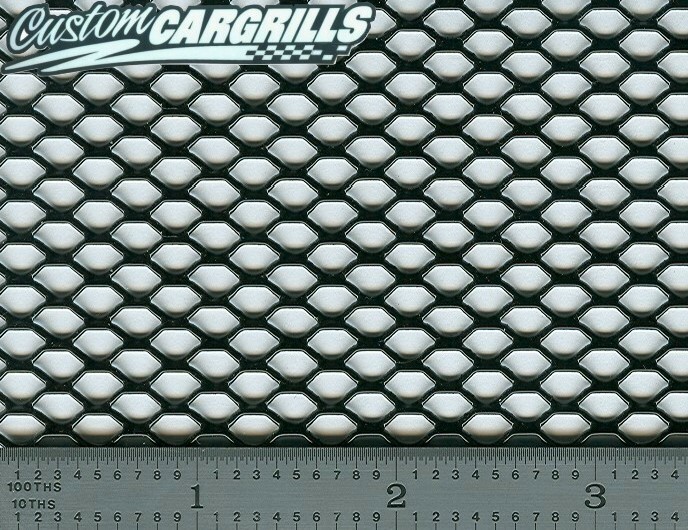

Or I really think this will flow better



This may flow less but keep bigger stuff from the tires out.


Last edited by 9krpmrx8; 08-07-2009 at 05:43 PM.
9krpmrx8 is offline
Old 08-07-2009, 05:46 PM
  #108
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
Okay last one.
9krpmrx8 is offline
Old 08-07-2009, 05:47 PM
  #109
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Your 3rd one is probably what I would go for...now to find it.....here in oz
ASH8 is offline
Old 08-07-2009, 05:48 PM
  #110
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
or maybe your last one...gee i hope i can find all this variety here, i really only need 2 x 12" square pieces
ASH8 is offline
Old 08-07-2009, 05:49 PM
  #111
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
Would you make a frame for it or just rivet straight through it?
9krpmrx8 is offline
Old 08-07-2009, 05:56 PM
  #112
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Na, no frame, just rivet mesh on the oil cooler side of the black plastic...thinking about 10 rivets per side would be more than enough.
ASH8 is offline
Old 08-07-2009, 07:19 PM
  #113
Rotary , eh?
iTrader: (1)

mac11's Avatar

Join Date: Jun 2006
Location: Elkhart, IN
Posts: 1,850
Likes: 0
Liked 0 Times in 0 Posts
I know there is a thermostat in the coolers. I've played with it. But I would be surprised if it were a 194 open temp, unless it starts opening MUCH MUCH sooner than that. In the winter I was seeing 140-150*F temps consistently until I would cover the heat exchangers, which would bring the temps up ~20*F.

This is all around 25*F.


But never below ~140 after startup no matter how cold it got. So that is where I would throw my hat in the ring for opening temp.
mac11 is offline
Old 08-08-2009, 03:36 AM
  #114
Ayrton Senna Forever
Thread Starter

ayrton012's Avatar

Join Date: Sep 2005
Location: Europe
Posts: 406
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by mac11 View Post
I know there is a thermostat in the coolers. I've played with it. But I would be surprised if it were a 194 open temp, unless it starts opening MUCH MUCH sooner than that. In the winter I was seeing 140-150*F temps consistently until I would cover the heat exchangers, which would bring the temps up ~20*F.

This is all around 25*F.


But never below ~140 after startup no matter how cold it got. So that is where I would throw my hat in the ring for opening temp.
It's similar to that Ash experienced on his second gen RX-8. His coolers get warm short after cold starting.
I have an oil temp gauge, and it shows that the 194F is right data.
Usually the oil temp at the filter is between 176-194F, rarely at high speed I got about 203F. (now it's hot summer here)
ayrton012 is offline
Old 08-12-2009, 12:19 PM
  #115
Lucky #33
iTrader: (4)

hoss -05's Avatar

Join Date: Feb 2009
Location: San Antonio, SARX Garage
Posts: 2,849
Likes: 0
Liked 3 Times in 3 Posts
Is there thermostats on both oil coolers? Danbobre what coolers did you end up going with? Dose the 8 use standard AN oil line fittings?
hoss -05 is offline
Old 08-12-2009, 12:23 PM
  #116
Lucky #33
iTrader: (4)

hoss -05's Avatar

Join Date: Feb 2009
Location: San Antonio, SARX Garage
Posts: 2,849
Likes: 0
Liked 3 Times in 3 Posts
As I understand it the oil coolers are set up in series what side is feed and what side is return. Or another way to put it is dose the oil flow from drivers side to passenger side or passenger side to drivers side?
hoss -05 is offline
Old 08-12-2009, 01:09 PM
  #117
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Liked 51 Times in 27 Posts
Originally Posted by hoss -05 View Post
As I understand it the oil coolers are set up in series what side is feed and what side is return. Or another way to put it is dose the oil flow from drivers side to passenger side or passenger side to drivers side?
It leaves the pump and goes to the L cooler before heading to the R cooler which both have thermostats prior to entering the rear of the motor.

Paul.
Mazmart is offline
Old 08-12-2009, 01:13 PM
  #118
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
left as in drivers side right as in passenger side?
9krpmrx8 is offline
Old 08-12-2009, 06:59 PM
  #119
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Liked 51 Times in 27 Posts
Originally Posted by 9krpmrx8 View Post
left as in drivers side right as in passenger side?
That is correct (In the US but not in Japan)!

Paul.
Mazmart is offline
Old 08-12-2009, 07:29 PM
  #120
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Liked 5 Times in 5 Posts
Glad we got at least that cleared up!
Mazurfer is offline
Old 08-12-2009, 09:32 PM
  #121
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Originally Posted by 9krpmrx8 View Post
left as in drivers side right as in passenger side?
left as in passengers side right as in drivers side?

Japan, Australia, England, New Zealand, Hong Kong, Brunei, Singapore, India, ETC
ASH8 is offline
Old 08-12-2009, 09:39 PM
  #122
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
BTW: This is Internationally known..

When one talks of Right Hand Side or Left Hand Side on any motor car in any country, you view the side you may be discussing as if you are sitting in the car.
NOT LOOKING AT THE CAR OUTSIDE FROM THE FRONT..

Groundbreaking Hey!!
ASH8 is offline
Old 08-13-2009, 08:53 AM
  #123
Lucky #33
iTrader: (4)

hoss -05's Avatar

Join Date: Feb 2009
Location: San Antonio, SARX Garage
Posts: 2,849
Likes: 0
Liked 3 Times in 3 Posts
This is Great info guys! Anyone know what type of fitting this is:

hoss -05 is offline
Old 07-29-2010, 02:55 AM
  #124
Registered User

Join Date: Feb 2009
Location: ATHENS-GREECE
Posts: 19
Likes: 0
Liked 0 Times in 0 Posts
.

in the models with 2 oil coolers the thermostats open both in the same temperature?which opens first?
kokats8 is offline
Old 07-30-2010, 03:29 PM
  #125
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
The stock "thermostats" always allow oil to flow through, they are not true oil thermostats like the unit i run on my Fluidyne unit.
9krpmrx8 is offline
