My pics are of various coolers from differing years.

Paul
Mazmart is offline
Old 08-05-2009, 01:25 PM
  #77
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Liked 51 Times in 27 Posts
Originally Posted by ASH8 View Post
Paul, what Mazda is that off again, and location, I am just trying to visualize , the second pic looks like a separate attachment bracket with two bolt holes. Line in, line out.
The second one is 2nd gen FC.

Paul.
Mazmart is offline
Old 08-05-2009, 01:30 PM
  #78
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
The FC is the long single skinny cooler N326-14-700A ...yes?
Same oil cooler for all FC's.

Would like to see an RX-8 one cracked open Paul.

Last edited by ASH8; 08-05-2009 at 01:33 PM.
ASH8 is offline
Old 08-05-2009, 01:41 PM
  #79
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Liked 51 Times in 27 Posts

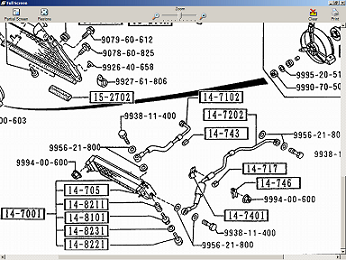

Here's the EPC diagram for the FC showing the thermo pellet.

Paul.
Attached Images
File Type: bmp
Mazmart is offline
Old 08-05-2009, 01:45 PM
  #80
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Liked 51 Times in 27 Posts
Originally Posted by ASH8 View Post
The FC is the long single skinny cooler N326-14-700A ...yes?
Same oil cooler for all FC's.

Would like to see an RX-8 one cracked open Paul.
I'm sure I have a damaged one we can do. I'll also check my 09 stuff as well.

Paul.
Mazmart is offline
Old 08-05-2009, 02:34 PM
  #81
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Originally Posted by Mazmart View Post
I'm sure I have a damaged one we can do. I'll also check my 09 stuff as well.

Paul.
Great, Thanks Paul, yes I agree on the FC having a Thermo Pellet in it's oil cooler, would be great to see an RX-8 one, BUT the EPC does not show any separate parts breakdown like the FC has.

Here is the FC Part Numbers
8871-14-810 Thermo Pellet
1757-14-821 Spring

I can tell you that from the parts model codes (front 4 numbers) the pellet
8871 is from Series I RX-7, and the 1757 spring is from the original 1974 13B RX-4.
Attached Thumbnails Oil cooler thermostat?-fc.jpg

Last edited by ASH8; 08-05-2009 at 02:43 PM.
ASH8 is offline
Old 08-05-2009, 02:45 PM
  #82
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
I guess the RX-8 OC thermostat is in this location..

Attached Thumbnails Oil cooler thermostat?-8.jpg
ASH8 is offline
Old 08-05-2009, 08:50 PM
  #83
Registered
iTrader: (3)

Join Date: Apr 2004
Location: macon, georgia
Posts: 10,769
Likes: 0
Liked 7 Times in 7 Posts
maybe that could be used for a drain plug too?
OD
olddragger is offline
Old 08-05-2009, 09:51 PM
  #84
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Great to use as a cooler drain spot, but I am pretty sure the RX-8's don't have this removable bolt, the parts pic above does not show one and I don't recall seeing one on mine, you could always undo the oil cooler hose OD to drain mate.??

Correction, gee I am an old stupid BASTARD at times, yes there plainly is a bolt head there??? Derrr DUMB aren't I, a senior moment.

So yes, OD perhaps this is a drain point...MMMmm will have to investigate...

Sorry Dudes..

Last edited by ASH8; 08-05-2009 at 09:53 PM.
ASH8 is offline
Old 08-05-2009, 10:05 PM
  #85
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
WOW...
$87.03 US for the 8871 Pellet and $2.81 for the 1757 Spring, is it GOLD Plated or something.

8871-14-810 Thermo Pellet
1757-14-821 Spring
ASH8 is offline
Old 08-06-2009, 07:33 AM
  #86
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Liked 51 Times in 27 Posts
This is the access point to the thermostat as Mr Engman reminded me last night. That's how we modify them on the FD and FE (SE3P). The design is a bit different as the bolt head will not separate from the thermostat.

Paul.
Mazmart is offline
Old 08-06-2009, 08:04 AM
  #87
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Liked 51 Times in 27 Posts

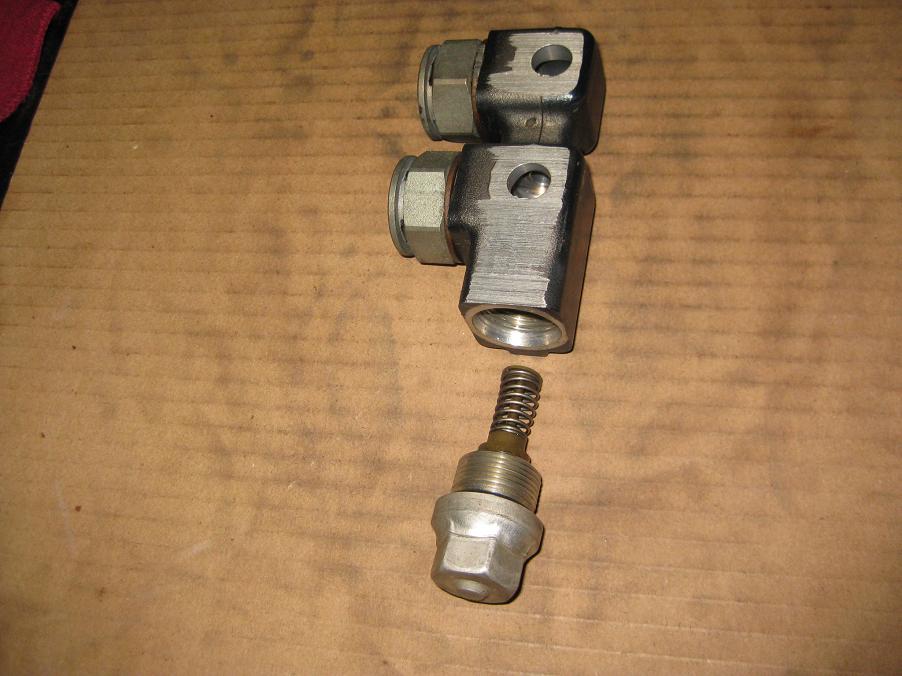

Here's what it looks like inside boys and girls:

Paul.
Attached Thumbnails Oil cooler thermostat?-080609-001.jpg   Oil cooler thermostat?-080609-002.jpg   Oil cooler thermostat?-080609-003.jpg
Mazmart is offline
Old 08-06-2009, 08:44 AM
  #88
3-wheeler

Flashwing's Avatar

Join Date: Dec 2005
Location: Phoenix
Posts: 2,734
Likes: 0
Liked 0 Times in 0 Posts
Paul is that thermostat unit able to be replaced without buying a whole new cooler? That would certainly be a cake install!
Flashwing is offline
Old 08-06-2009, 08:59 AM
  #89
Registered
iTrader: (3)

Join Date: Apr 2004
Location: macon, georgia
Posts: 10,769
Likes: 0
Liked 7 Times in 7 Posts
well looks like a good drain spot and it appears to be on the passenger side?
Good info guys--great job--Paul you are the man! Ash you aint bad yourself mate.
olddragger
olddragger is offline
Old 08-06-2009, 09:10 AM
  #90
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Liked 51 Times in 27 Posts
Originally Posted by Flashwing View Post
Paul is that thermostat unit able to be replaced without buying a whole new cooler? That would certainly be a cake install!

Or modified as we do. The problem is Mazda does not sell the thermostat by itself so no part number exists just as Ash pointed out.

Paul.
Mazmart is offline
Old 08-06-2009, 09:11 AM
  #91
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Liked 51 Times in 27 Posts
Originally Posted by olddragger View Post
well looks like a good drain spot and it appears to be on the passenger side?
Good info guys--great job--Paul you are the man! Ash you aint bad yourself mate.
olddragger
Thanks Denny.

Paul.
Mazmart is offline
Old 08-06-2009, 10:09 AM
  #92
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
So that is on the passenger side right? Is there a downside to constantly removing and reinstalling that bolt/thermostat?
9krpmrx8 is offline
Old 08-06-2009, 10:33 AM
  #93
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,747
Liked 90 Times in 87 Posts
You will be surprised at how little oil you will get out by draining the coolers.

I opened both and cleaned out the lines with an air nozzle...and got maybe an extra 1/2 - 3/4 quart for about 1/2 hours work......

Just not worth it in the big picture
dannobre is offline
Old 08-06-2009, 11:02 AM
  #94
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
Oh, well scratch that then.
9krpmrx8 is offline
Old 08-06-2009, 02:10 PM
  #95
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
Okay, does anyone know what size the oil cooler line fittings are? Does anyone have a full diagram of the stock oil cooler system?
9krpmrx8 is offline
Old 08-06-2009, 02:14 PM
  #96
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,747
Liked 90 Times in 87 Posts
I used -10AN lines for all my oil lines...Not sure if that helps
dannobre is offline
Old 08-07-2009, 09:18 AM
  #97
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
So you ditched the factory lines for an fittings and aftermarket lines?
9krpmrx8 is offline
Old 08-07-2009, 10:13 AM
  #98
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,747
Liked 90 Times in 87 Posts
It's kinda in progress..I did it with stock coolers and new lines...but now I'm redoing the front with the new nose..and will put in larger cooler with fans when I do that
dannobre is offline
Old 08-07-2009, 10:21 AM
  #99
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
Are you going with one large single cooler?
9krpmrx8 is offline
Old 08-07-2009, 10:35 AM
  #100
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,747
Liked 90 Times in 87 Posts
Nope...2 approx. 11X10" with fans Just have to find the right units
dannobre is offline
