Interesting PDF on Formula Mazdas (Renesis Engine)
#27
Super Moderator
10W30W engine oil hey...so where is Jackson!..
Glad to know someone else (Star Mazda) knows which coloured Injectors go into an S2, as MNAO DON'T, their advice to their Mazda Dealers is appalling wrong (yet again)....been this way for over 10 months..
I did not want to post this 'M-tip', I have been sitting on it since January this year in the 'hope' it will be fixed, but, communication from myself and a few US Dealers I know have tried, it all falls on deaf ears @ MNAO, including the useless J Barnes...is it any wonder this Upper Managerial mob at MNAO all need sacking!....and yeah it make me mad!.
You have a "President" that is an old FORD hack!
The old Ivory Tower of management...BS castle!
You guys pick the error in this M-Tip..
Glad to know someone else (Star Mazda) knows which coloured Injectors go into an S2, as MNAO DON'T, their advice to their Mazda Dealers is appalling wrong (yet again)....been this way for over 10 months..
I did not want to post this 'M-tip', I have been sitting on it since January this year in the 'hope' it will be fixed, but, communication from myself and a few US Dealers I know have tried, it all falls on deaf ears @ MNAO, including the useless J Barnes...is it any wonder this Upper Managerial mob at MNAO all need sacking!....and yeah it make me mad!.
You have a "President" that is an old FORD hack!
The old Ivory Tower of management...BS castle!
You guys pick the error in this M-Tip..
#28
Super Moderator
BTW, Unless Star Mazda uses a different Injector in the Secondary LIM Ports (N3R2-13-250) in production S2's RX-8's are actually Dark Red, not Brown?
#29
weeeeeeeeee
iTrader: (12)

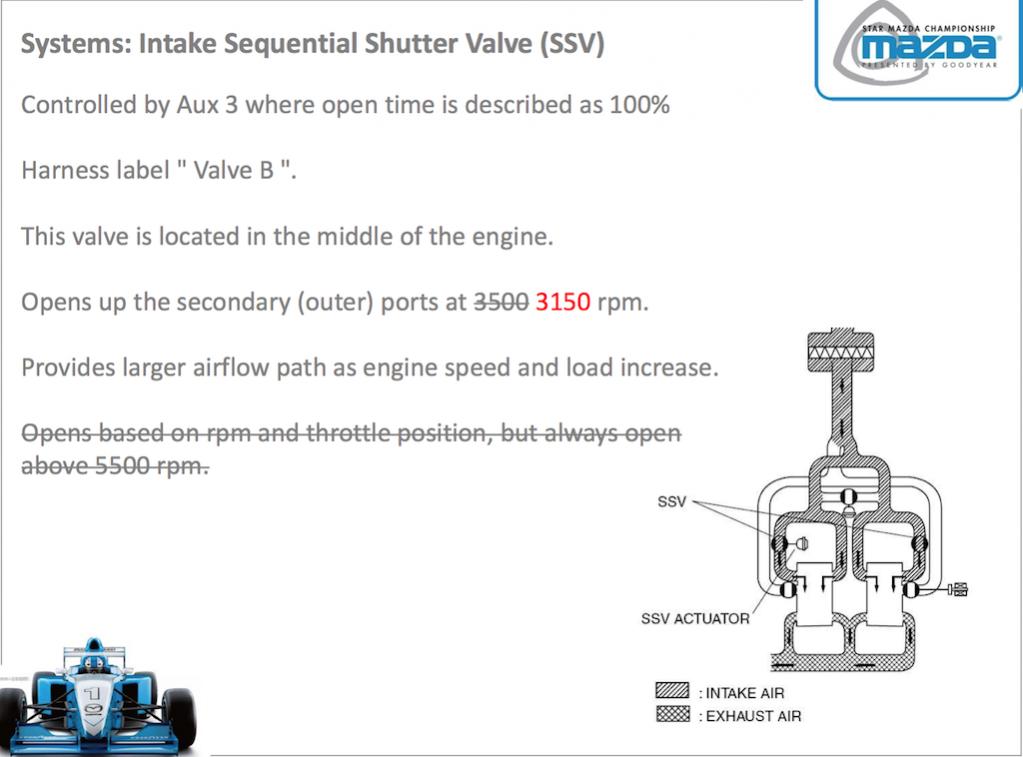

Lotsa good tidbits of data there... this slide jumped out at me moreso than the others. Hopefully it dispels the belief that there some magical combination of events controlling the SSV in the stock ECU.
#31
No respecter of malarkey
iTrader: (25)
Edit: apology to Ash, thought you were referring to Shelldudes statement about the SSV, which is incorrect.
They are using a MoTeC racing ECU, not an Rx8 PCM. So they are controlling everything directly, not something that can be done on an Rx8 with the Cobb AP etc.
.
They are using a MoTeC racing ECU, not an Rx8 PCM. So they are controlling everything directly, not something that can be done on an Rx8 with the Cobb AP etc.
.
Last edited by TeamRX8; 10-07-2012 at 10:13 AM.
#32
weeeeeeeeee
iTrader: (12)
^^^ this ... I'm not sure it was obvious to everyone ... didn't see it called out previously. team can you link back to the S1 version?
Last edited by ShellDude; 10-06-2012 at 04:09 PM.
#35
Super Moderator
What is so hard to understand...
The Star Mazda PDF says secondary Injectors are Brown, well in factory S2's they are Dark Red,
perhaps they are using a different secondary injector...obviously...but they are using the S2 green Primary's..so I hope their information is correct.
I have genuine (OEM) parts stock of S2 Injectors for Series 2 Engines...they are Red and Green...
not Blue with Red or Green with Brown.
The MNAO 'M-Tip" I just uploaded has the wrong color Injectors listed for factory S2, Primary's are GREEN, not RED...Secondaries are Dark Red not Blue.
The Star Mazda PDF says secondary Injectors are Brown, well in factory S2's they are Dark Red,
perhaps they are using a different secondary injector...obviously...but they are using the S2 green Primary's..so I hope their information is correct.
I have genuine (OEM) parts stock of S2 Injectors for Series 2 Engines...they are Red and Green...
not Blue with Red or Green with Brown.
The MNAO 'M-Tip" I just uploaded has the wrong color Injectors listed for factory S2, Primary's are GREEN, not RED...Secondaries are Dark Red not Blue.
#36
Registered
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 239 Likes
on
109 Posts
Not making any assumptions, especially about math.
Engine speed does not equal load.
As I said, "The street RX-8 is RPM only according to this."

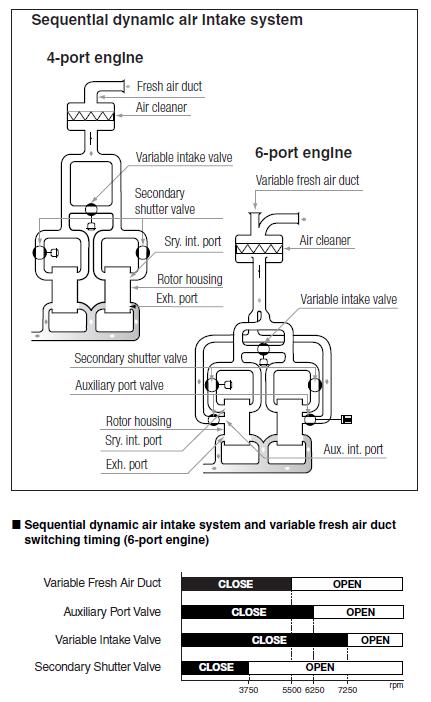

The 6-port engine has 3 intake ports per rotor chamber: primary, secondary and auxiliary (giving a total of 6 intake ports for the twin rotor RENESIS engine), with timing different for each port. The sequential dynamic air intake system (S-DAIS) operates in response to engine speed by controlling the secondary and auxiliary ports, and opening/closing the variable intake valve installed upstream of the secondary port’s shutter valve. In this way, the system achieves optimal control of intake pressure propagation for each port. RENESIS also takes full advantage of the twin rotor’s charging effect to boost intake for more substantial low-to-mid range torque as well as increased torque and power output at higher engine speeds. Since all valves are formed to streamline flow through the intake passage during valve opening/closing, intake resistance is substantially reduced.
As I said, "The street RX-8 is RPM only according to this."
#38
Registered
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 239 Likes
on
109 Posts
The PDF I attached is for S1, and they detail both 4 port and 6 port. Only place where both aren't referenced is in the RPM-opening chart at the bottom, which only references the 6-port. The PDF doesn't have a similar chart for the 4-port.
#39
No respecter of malarkey
iTrader: (25)
Your assumption is that they are telling you ALL the details, which they aren't
Raise your hood and have some start and run the engine from the driver seat while you watch the SSV actuator assembly. Tell them to slowly raise the rpm above 4000 - SSV doesn't move. Then tell them to wail on the engine hard with sharp WOT bursts - SSV actuates.
Here is a later post I made with several documents from the original Pro Mazda series using the S1 engine
https://www.rx8club.com/engine-tunin...3/#post3907774
Raise your hood and have some start and run the engine from the driver seat while you watch the SSV actuator assembly. Tell them to slowly raise the rpm above 4000 - SSV doesn't move. Then tell them to wail on the engine hard with sharp WOT bursts - SSV actuates.
Here is a later post I made with several documents from the original Pro Mazda series using the S1 engine
https://www.rx8club.com/engine-tunin...3/#post3907774
#40
Registered
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 239 Likes
on
109 Posts
You are assuming that because I am posting a document and pointing out things that it says in the document that I am making assumptions about it. I have done nothing more than point out what it says. I'm not even making a statement of if I believe it or not.
No assumptions made at all on my end. Just yours.
No assumptions made at all on my end. Just yours.
#41
weeeeeeeeee
iTrader: (12)
I was referring to the injectors slide in the star mazda pdf regarding injector colors.
I've referenced the diagram you posted previously ... didn't help to convince some otherwise .... thanks RIWWP!
I agree with team to an extent here. Load is certainly taken into account but I'm not sure to what extent.
I've referenced the diagram you posted previously ... didn't help to convince some otherwise .... thanks RIWWP!
I agree with team to an extent here. Load is certainly taken into account but I'm not sure to what extent.
#43
Super Moderator
Shell, here is their (SM) PDF where they say they are phasing out the 6 injectors in 2010 to the 4...I assume it is S2 (most of it) as S1's never had green injectors...but yeah..agree.
Got to go, Bathurst 1000 is about to start now..50 years old.
Edit...Even this 2010 info on the use of 4 Injector colours is back to front to what is in the August 2012 PDF??
Got to go, Bathurst 1000 is about to start now..50 years old.
Edit...Even this 2010 info on the use of 4 Injector colours is back to front to what is in the August 2012 PDF??
#44
Yank My Wankel
iTrader: (4)
The debate about the load dynamic on port actuation seems to defy common sense. Taking load into this equation is useless, I'm not saying it does or does not differentiate between actuation of the ports or not I'm saying it is useless to worry about it. When acceleration of a certain rpm is achieved it will trigger the solenoids to engage opening the different ports at different ranges, from readin the PDF it notes that these actuators have about a 500rpm buffer meaning the close at a lower rpm then they opened. With all of this in mind if you are entering the given rpm range of these ports it is due to acceleration which in turn is a load. Who cares if these actuators open or close during none load revs your not going anywhere if your not under load why do you care how many ports are open. In this instance both variables go hand in hand. And it seems unnecessary to be concerned with load, fact is if your not under load your not doing anything relevant to require additional intake volum.
#45
Registered
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 239 Likes
on
109 Posts
For the Star Mazda cars, yes, I'd say that anything dealing with partial load activation of the valves is pretty much a moot point. If you want full power, you have the pedal to the floor. Anything other than full power needed and the valve alignment isn't really all that important, since you are still going to use the gas pedal by feel of how much power you need at the moment, regardless of what the valve configuration currently is. If it's not optimal configuration, you will just have the pedal down a bit further is all.
For the OEM ECU, Team is correct in that there does appear to be a load based component to the activation, simply because of how the valves respond. Mazda's official documentation doesn't appear to back this up anywhere that I have found, but that is probably because they didn't feel that it needed to be published. For street cars, I would think the only reason partial load valve configuration would matter would be for cruising economy.
For the OEM ECU, Team is correct in that there does appear to be a load based component to the activation, simply because of how the valves respond. Mazda's official documentation doesn't appear to back this up anywhere that I have found, but that is probably because they didn't feel that it needed to be published. For street cars, I would think the only reason partial load valve configuration would matter would be for cruising economy.
#46
weeeeeeeeee
iTrader: (12)
Shell, here is their (SM) PDF where they say they are phasing out the 6 injectors in 2010 to the 4...I assume it is S2 (most of it) as S1's never had green injectors...but yeah..agree.
Got to go, Bathurst 1000 is about to start now..50 years old.
Edit...Even this 2010 info on the use of 4 Injector colours is back to front to what is in the August 2012 PDF??
Got to go, Bathurst 1000 is about to start now..50 years old.
Edit...Even this 2010 info on the use of 4 Injector colours is back to front to what is in the August 2012 PDF??
#47
BearBlasterExtraordinair!
iTrader: (3)
I'm wondering if the engine damage is solely from the fuel and spark cut on throttle lift? I can't imagine Mazda would put a car out that can damage itself by going through the normal rev range. I think I'll be keeping it below 9k on the dial just in case....
#48
Registered
iTrader: (2)
Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 239 Likes
on
109 Posts
The ECU cuts spark above 8600 rpm, but it also cuts fuel at zero
throttle input. Therefore the engine is being starved of the lubricating
oil in the fuel at high rpm for long periods of time when running above
8600 rpm t zero throttle
throttle input. Therefore the engine is being starved of the lubricating
oil in the fuel at high rpm for long periods of time when running above
8600 rpm t zero throttle
#50
No respecter of malarkey
iTrader: (25)
Instead of hiding behind silly word games and making guesses why not try doing something productive like trying it out and then come report what you observed ....
according to your expectation the SSV will open at 3750 rpm regardless. Maybe every Renesis I have personally observed free revving above this is malfunctioning
.
