Fuel Lines? Where do they go?
Hi,
I recently had my engine rebuilt last week. I am tryin to put in the motor. I have most everything connected except for the "fuel line"? I have the line with the Red clip hooked up to the fuel rail. But where does the fuel line with the blue clip go? The blue clip has a mounting bracket on the line. Any help? Pictures?
Thanks
I recently had my engine rebuilt last week. I am tryin to put in the motor. I have most everything connected except for the "fuel line"? I have the line with the Red clip hooked up to the fuel rail. But where does the fuel line with the blue clip go? The blue clip has a mounting bracket on the line. Any help? Pictures?
Thanks
#4
2004 RX8 Owner
Thread Starter
Join Date: Mar 2009
Location: Pelham, Alabama
Posts: 146
Likes: 0
Received 0 Likes
on
0 Posts
Hmm, that one is on the fuel rail. I think mine are connected their, but there seem to be 1 more on the car itself? So, another blue fuel line? Are there 2?
#6
Grasshopper
iTrader: (1)

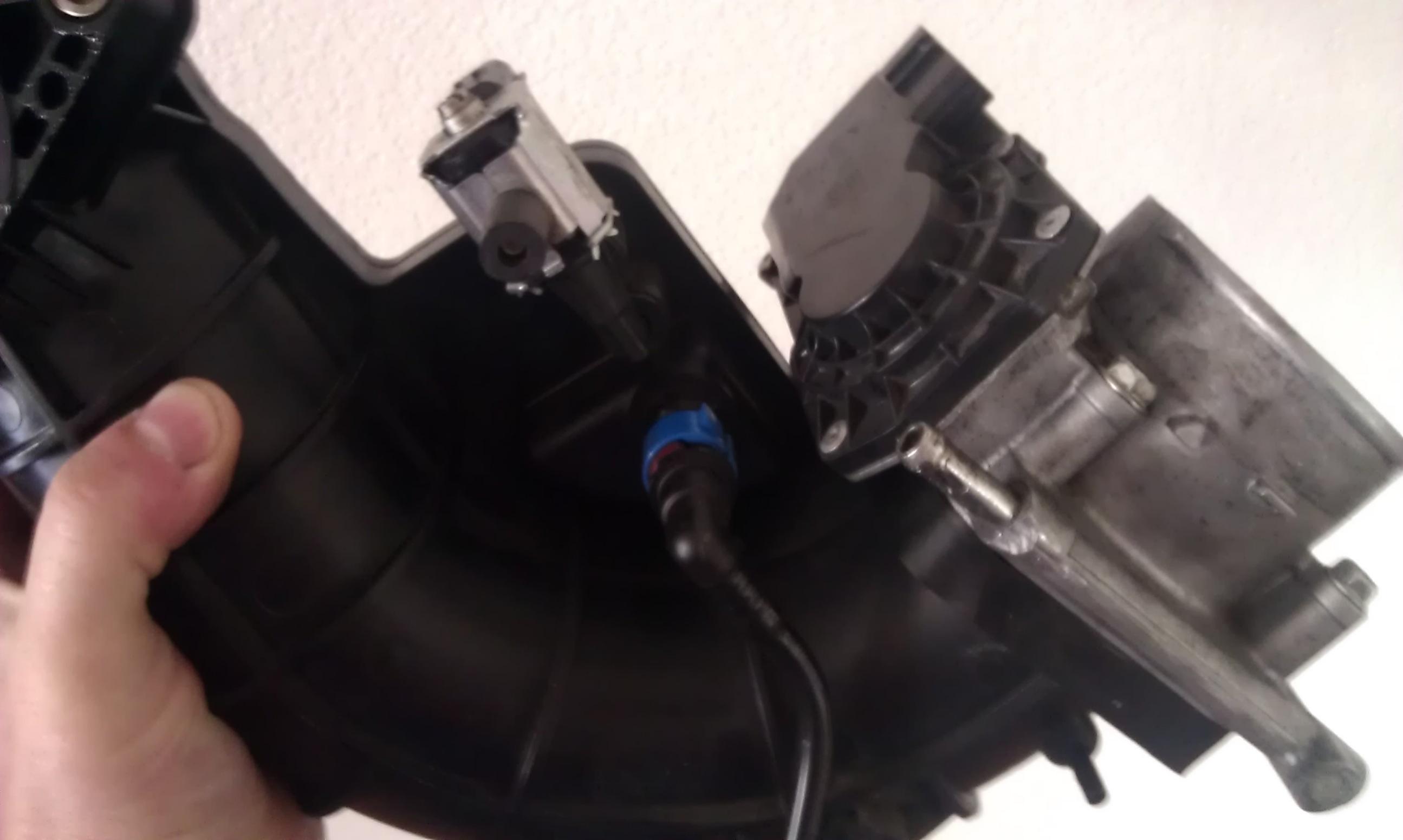

One end connects under the UIM (like it shows in Highway8's pic) and the other end will connect to a line above the rear spark plugs, next to the red disconnect.
The mounting bracket holds the fuel and evap line and is bolted to the bottom of the UIM.
I usually keep the bracket off because it can be a pain to remove the two bolts securing the bracket.
#8
Registered
Which fuel line needs this. Did I lose all but one or do I only need one. Putting engine back in after a rebuild.
#9
What am I doing here?
Join Date: Mar 2006
Location: 2017 Miata RF Launch Edition
Posts: 3,606
Received 649 Likes
on
510 Posts
All the fuel lines have the same fitting from the factory. They may differ on color or whether they are 90° elbows or straight, but the connection point is the same.
I don't recognize that one. Looks like it might be from an aftermarket replacement or a random piece of plastic completely unrelated.
Are you missing a fuel fitting?
I don't recognize that one. Looks like it might be from an aftermarket replacement or a random piece of plastic completely unrelated.
Are you missing a fuel fitting?
#11
Registered
I’m thinking it’s the one straight red connection that takes this.
