Defi Gauges, Where do you route the sensors ?

Thread Tools

Search this Thread

Rate Thread

Old 08-27-2007, 03:03 PM
  #1
Out of NYC
Thread Starter
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,881
Received 32 Likes on 30 Posts
Defi Gauges, Where do you route the sensors ?
Just like the topic saids.

I just installed the Defi Control Unit (Thx StealthTL!)

Now Im trying to find a *path* where I can squeeze 3 sensor wires thru the firewall without drilling a hole thru it ...

For Water Temp, Oil Temp, and Oil Press.

I have all the wires and oil filter block, just cant find any clear path

Can Anybody guide me to the light ?
Last edited by nycgps; 08-27-2007 at 03:05 PM.
nycgps is offline
Reply Like
Old 08-27-2007, 03:06 PM
  #2
Metatron
iTrader: (1)

StealthTL's Avatar

Join Date: Mar 2003
Location: A Pacific Island.
Posts: 7,280
Received 173 Likes on 130 Posts
Just follow the heater/a.c. hoses, dig a screwdriver thru the big rubber grommet.

....much easier from the engine side, easier still if you pull the washer bottle out.

S
StealthTL is offline
Reply Like
Old 08-27-2007, 03:10 PM
  #3
Out of NYC
Thread Starter
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,881
Received 32 Likes on 30 Posts
OOOO

Im going to check it out RIGHT NOW
nycgps is offline
Reply Like
Old 08-27-2007, 03:29 PM
  #4
Out of NYC
Thread Starter
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,881
Received 32 Likes on 30 Posts
Im back

Well, my screwdriver probably too short or I got the wrong line.

I keep hitting walls, I probably did it wrong.

Im gonna keep digging ....
Last edited by nycgps; 08-27-2007 at 04:26 PM.
nycgps is offline
Reply Like
Old 08-27-2007, 07:52 PM
  #5
Registered Tracker

BlueRenesis82's Avatar

Join Date: Feb 2004
Location: Chicago
Posts: 3,295
Likes: 0
Received 0 Likes on 0 Posts
I found a rubber plug in the firewall, used a hot soldering iron and burned a hole thru it, ran the wires right thru that
BlueRenesis82 is offline
Reply Like
Old 08-27-2007, 09:27 PM
  #6
Out of NYC
Thread Starter
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,881
Received 32 Likes on 30 Posts
Originally Posted by BlueRenesis82
I found a rubber plug in the firewall, used a hot soldering iron and burned a hole thru it, ran the wires right thru that
Do you have a picture of the location ?

Im thinking my sensor will go 2 ways. Left side for Oil Press and Oil Temp, Right side for Water temp.
nycgps is offline
Reply Like
Old 08-27-2007, 09:31 PM
  #7
Registered Tracker

BlueRenesis82's Avatar

Join Date: Feb 2004
Location: Chicago
Posts: 3,295
Likes: 0
Received 0 Likes on 0 Posts
mine both ran thru the same hole
BlueRenesis82 is offline
Reply Like
Old 08-27-2007, 10:15 PM
  #8
Out of NYC
Thread Starter
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,881
Received 32 Likes on 30 Posts
I will give it a shot tomorrow.

Might as well do a DIY for it. Cuz I think this will help lots of people. (Bro took my camera, god damn it)
nycgps is offline
Reply Like
Old 08-28-2007, 08:25 AM
  #9
Registered Tracker

BlueRenesis82's Avatar

Join Date: Feb 2004
Location: Chicago
Posts: 3,295
Likes: 0
Received 0 Likes on 0 Posts
^ post pics once you are done
BlueRenesis82 is offline
Reply Like
Old 08-28-2007, 10:59 AM
  #10
Out of NYC
Thread Starter
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,881
Received 32 Likes on 30 Posts
Im Done :D

Spent another 3 hours on it. almost got myself killed in the process ...

Well, its working now.

Still waiting for my brother to come back with my camera.
nycgps is offline
Reply Like
Old 08-28-2007, 11:07 AM
  #11
Registered Tracker

BlueRenesis82's Avatar

Join Date: Feb 2004
Location: Chicago
Posts: 3,295
Likes: 0
Received 0 Likes on 0 Posts
pics
BlueRenesis82 is offline
Reply Like
Old 08-28-2007, 11:14 AM
  #12
Out of NYC
Thread Starter
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,881
Received 32 Likes on 30 Posts
Dont worry man, I will post pics up :P
nycgps is offline
Reply Like
Old 08-28-2007, 11:38 AM
  #13
Apexing at Oak Tree

RPIRX-8's Avatar

Join Date: Oct 2003
Location: The Blue, Educated State in the North
Posts: 717
Likes: 0
Received 0 Likes on 0 Posts
With my install, we ran all wires through a hole we drilled behind the windshield washer fluid resevoir. We placed a rubber grommet on the hole and its super stealth.
RPIRX-8 is offline
Reply Like
Old 08-28-2007, 04:04 PM
  #14
Out of NYC
Thread Starter
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,881
Received 32 Likes on 30 Posts
I route them thru the Hood release cable hole. No drilling needed.

but it was a *BITCH* get the the last cable into the hole cuz with 3 already in place (the hood cable and 2 sensor cables), the hole was kinda tight. :P

I just got the Oil Temp and Oil Press running, will finish the water part later the weekend.
nycgps is offline
Reply Like
Old 09-18-2007, 05:14 PM
  #15
Out of NYC
Thread Starter
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,881
Received 32 Likes on 30 Posts
forgot to post pics.

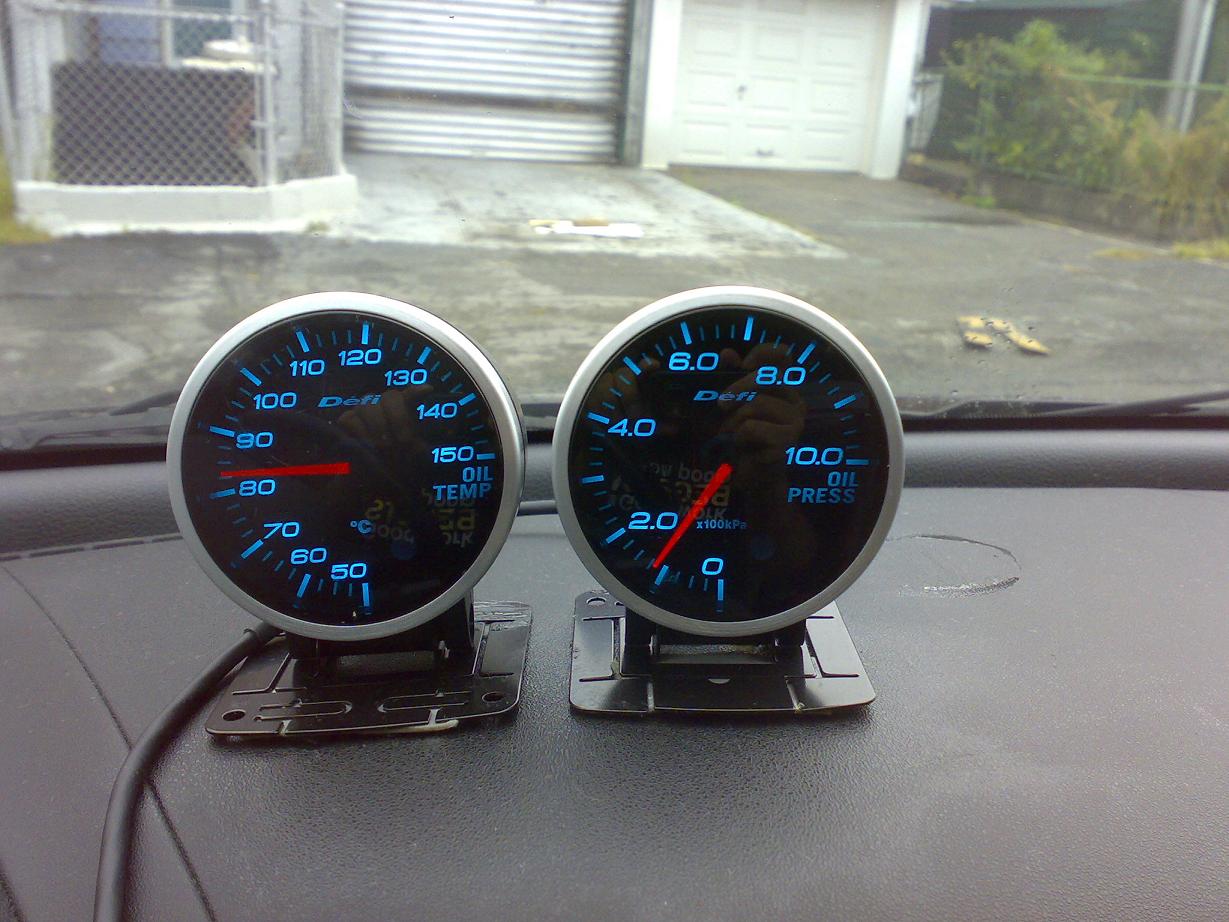

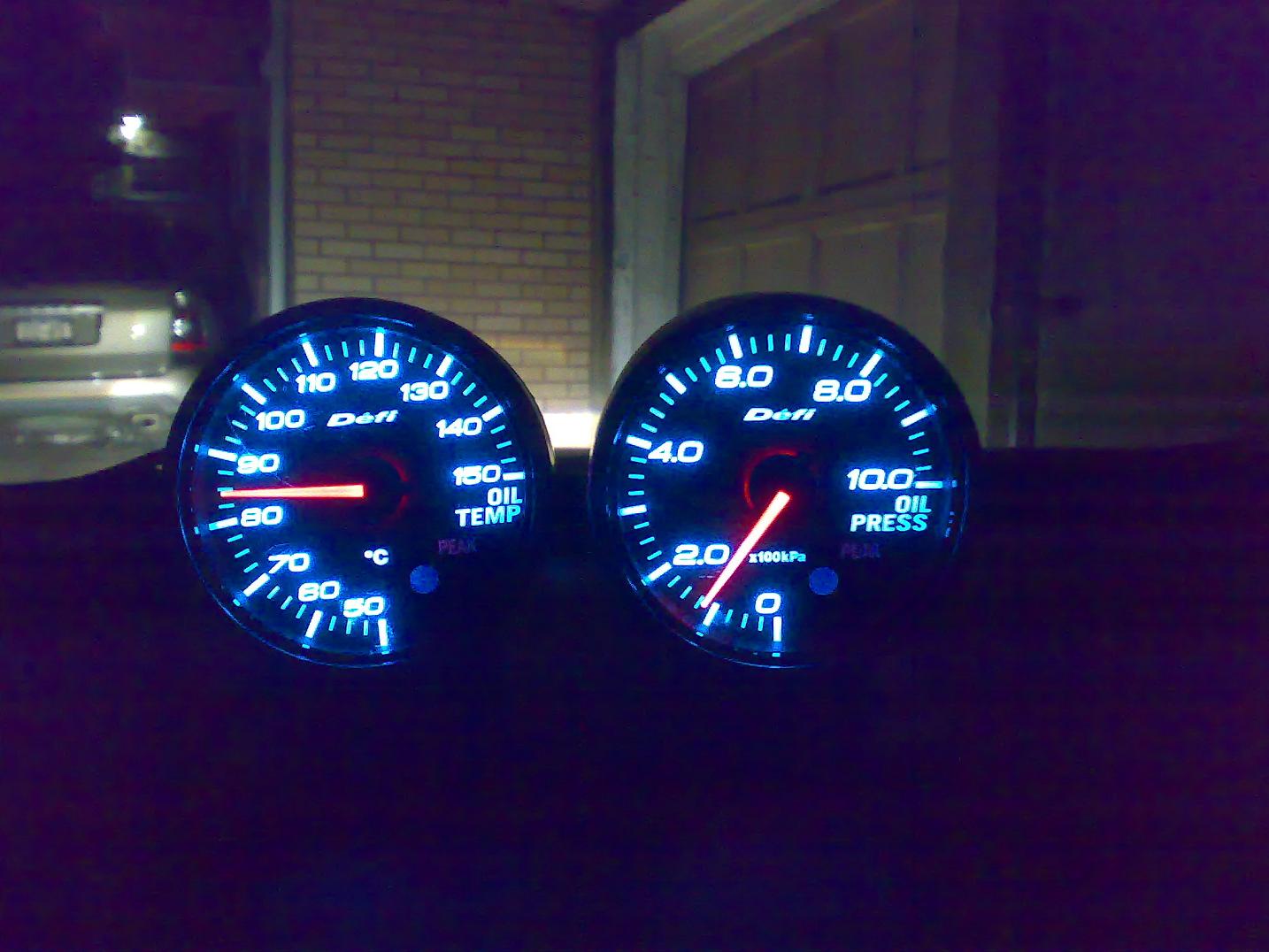

Oil Temp and Oil Press shown, Water temp coming soon (as soon as I get my new PUMP from Paul @ Mazmart )

The install looks kinda whack, I just use Epoxy to glue them on the dash. I will fix it up later.
Attached Thumbnails Defi Gauges, Where do you route the sensors ?-09112007180s.jpg   Defi Gauges, Where do you route the sensors ?-09102007179s.jpg
nycgps is offline
Reply Like
