Nemesis8

iTrader: (3)

Be sure to re-plumb your coolant overflow hose to extend below your cooling fan motor and connectors. Mine was way too short!

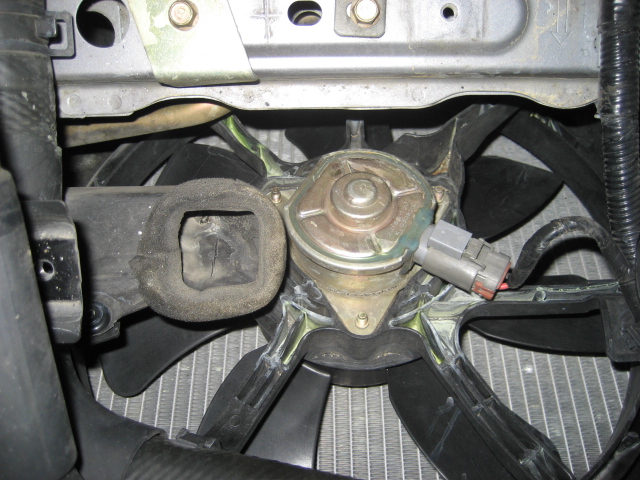

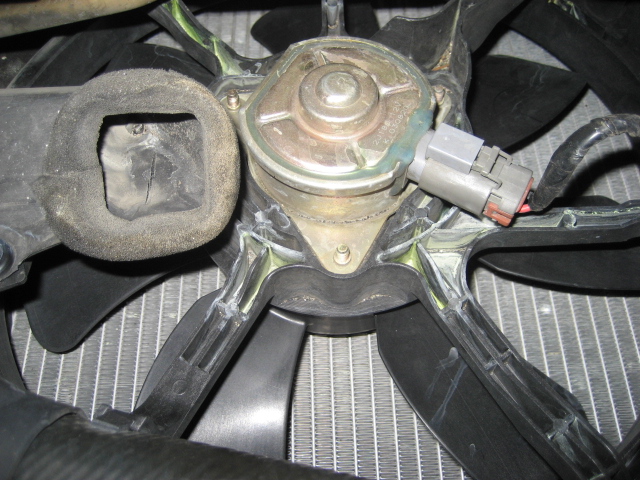

It seems mine overflowed and toasted one of my cooling fans. I tried everything to get her to start, but alas she gave up the ghost it seems. You can see the green remnants of the coolant.

This must of caused a locked rotor amp draw or similar, because it blew the 40A fuse. Jumpered the relays, wiggled and cleaned the connectors, no go it seems.

I'll need to test the motor once I get it out of the engine bay....

G3tR3DDY2GR3DDY

iTrader: (8)

i have a few replacements if you need.

my solution was a universal AST mounted next to the ECU box and plumbed into the subframe

Nemesis8

iTrader: (3)

Interested. Is there a difference in the two motors? I need the passenger side one.

dmp

WOW - very crazy.

How's things otherwise, bro?

Nemesis8

iTrader: (3)

Other than I need to win the lottery to get out of debt, not much.

LOL

Nemesis8

iTrader: (3)

Found what I need HERE Confirmed bad motor.

dmp

Anytime you and the misses wanna get away to (near) some of the best beaches in the world...holler!

:D

Razz1

Это интересно остаться на ИМКА

are you Russian?

Nemesis8

iTrader: (3)

^ Who me? Nope - born in the USA.

dmp

I have family that is russian. :D

Nemesis8

iTrader: (3)

In looking at the service manual, it says I need to remove the radiator with the cooling fans all together as one unit. What? Why can I not just get to them from the top?

nycgps

iTrader: (1)

because the fan mounts are "stuck" on the radiator

you dont really have to take the radiator off, but you DO need to loose it a bit. which is almost same **** lol

take the fan mount out, the motor is secured by 3 screws. after that, put it back in the way it was.

probably takes about an hour or 2.

I dont think the coolant killed it tho, consider the motor itself is sealed. probably just got old and died.

dannobre

iTrader: (3)

Not a lot of room on the top...and you have to remove a lot more crap that way...from the bottom it's easier. Not sure if you could do one motor from the top??

TeamRX8

iTrader: (25)

everything there is supposed to be waterproof, if your coolant didn't short it a drive in the rain would have ...

this reminds me of the "pre-mix is the evil cause of fuel pump failure" thread

otherwise, sorry for your trouble

Nemesis8

iTrader: (3)

Yes, it is a sealed motor that should be waterproof.

Mercury

Your Location "Это интересно остаться на ИМКА" translates to "It is interesting to stay in EMKA"

Whattheheckis EMKA?

04RX8man

yeah that damn hose is in the worst spot possible...damn mazda!

markav33

iTrader: (1)

anyome kno the cmf or rpm of the stock fans ?

nycgps

iTrader: (1)

was it like 1800 or 1250 cfm or something. I forgot.

MM should know.

El Kabong

I know the fan and connector are supposed to be waterproof, but are they designed to resist steam and boiling coolant? Resisting rain is no big deal.

- Kabong

Nemesis8

iTrader: (3)

I think my problem was a combination of all of the above. Extremely high ambients, boiling coolant, overflow hose location, etc etc.
