Found some detailed information on changes that come with this new engine
http://www.mazda.com/mazdaspirit/rotary/16x/
http://www.mazda.com/mazdaspirit/rotary/16x/
Certified Mazda Tech
Joined: May 2003
Posts: 645
Likes: 12
From: Wayne, NJ

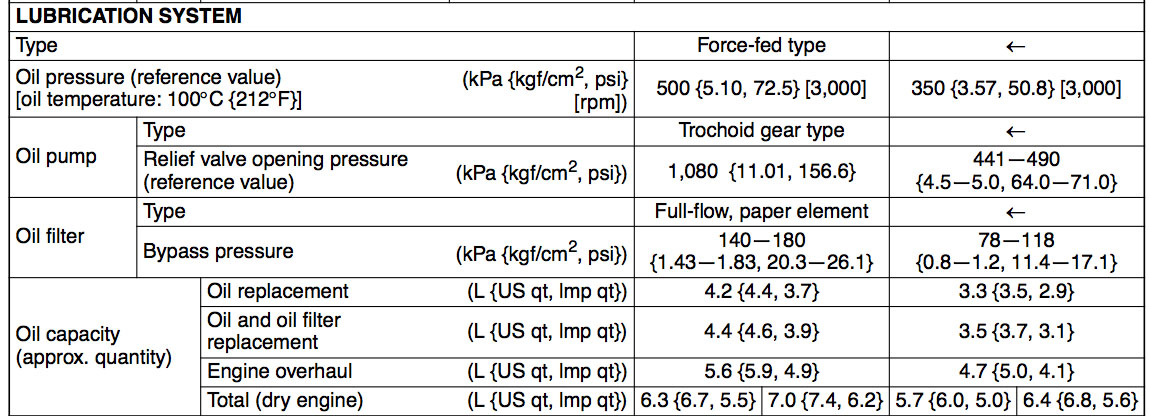

found the info i was looking for on the 09's 13b compared to the 08's (in the oil department). See attached specs below.
The oil pump was changed as well as a number of other smaller improvements.
kevin.
The oil pump was changed as well as a number of other smaller improvements.
kevin.
Last edited by teknics; Apr 4, 2009 at 05:36 PM.
Super Moderator
Joined: Apr 2005
Posts: 10,880
Likes: 340
From: Australia
Certified Mazda Tech
Joined: May 2003
Posts: 645
Likes: 12
From: Wayne, NJ
We should team up and diagram the entire technical side of the rx8's, with your EPC and my documentation/contacts we could literally dissect the whole car thru posts/topics.
kevin.
Last edited by teknics; Apr 4, 2009 at 05:42 PM.
Super Moderator
Joined: Apr 2005
Posts: 10,880
Likes: 340
From: Australia
you should have a mod go thru that topic and trim it down to only new info about the '09 rx8...it would be much better, too much new info is brought up in midst of normal conversation.
We should team up and diagram the entire technical side of the rx8's, with your EPC and my documentation/contacts we could literally dissect the whole car thru posts/topics.
kevin.
We should team up and diagram the entire technical side of the rx8's, with your EPC and my documentation/contacts we could literally dissect the whole car thru posts/topics.
kevin.
Sorry about the late reply...
Yes I am willing to give it a go, provided the Mods here believe it is "worthy" and "sticky it ", not much point in doing all the work to let it fade away".
I have a US 09 WS Manual in Paper (about 7 inches thick), I can only scan and then have to resize...a lot of work and time!?..
Have the 09 Service Highlights in PDF also thanks to a dedicated Mazda man somewhere in the Universe..
Ash
I don't buy Kool-Aid
Joined: Apr 2004
Posts: 8,823
Likes: 2
From: Vegas Baby!
This is the Oil Pressure Regulator (3648-14-250) Shown here on the 2003 S1 RENESIS which screws into the bottom internal Rear Iron Housing like ALL other previous Rotaries..
As I said the S2 RENESIS no longer has this separate Valve...well I can not find one...all I can find is an oil pressure SWITCH located on one of the EMOP's which obviously monitors (makes sure) there is oil pressure/oil available for the two EMOP's use.
As I said the S2 RENESIS no longer has this separate Valve...well I can not find one...all I can find is an oil pressure SWITCH located on one of the EMOP's which obviously monitors (makes sure) there is oil pressure/oil available for the two EMOP's use.
Thanks,
-Gil
