Ported and turbo (sharing the experience)
09-23-2010, 11:04 PM
#1
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Ported and turbo (sharing the experience)
hi, i have been in the forum for a quite awhile, and i went thorugh alot.
it's started from here : https://www.rx8club.com/series-i-major-horsepower-upgrades-93/9-psi-330whp-160698/
in July, i found out that my engine blew...before blowing it, i made a lot of mistakes, playing with the ignition which caused a lot of misfiring, and my fuel filter got clogged up, and gave me a hard time.
now, i decided to make a thread for my second engine, and i am ready to go again.
engine:
- Ported by KDR (don't want to have Bridgeport because you loose the street wise), but it was his work. don't have pics yet because he has to give them to me.
- RX7 RA superseals
- Meth 50/50
Turbo:
- top mount
- T67 (.81 AR hot side & .60 AR cold side)
what is the plan after getting it broken in:
getting it tuned, and i will run it for 8, 11, and 14 psi.
above are the new mods that i did after the first thread turbo i had above. you guys can read the first thread about my other mods. it's not finished yet, but still working on it.
i like to share my experience to ppl in the forum. all advice are welcome, but as we all know everybody has his or her own taste,

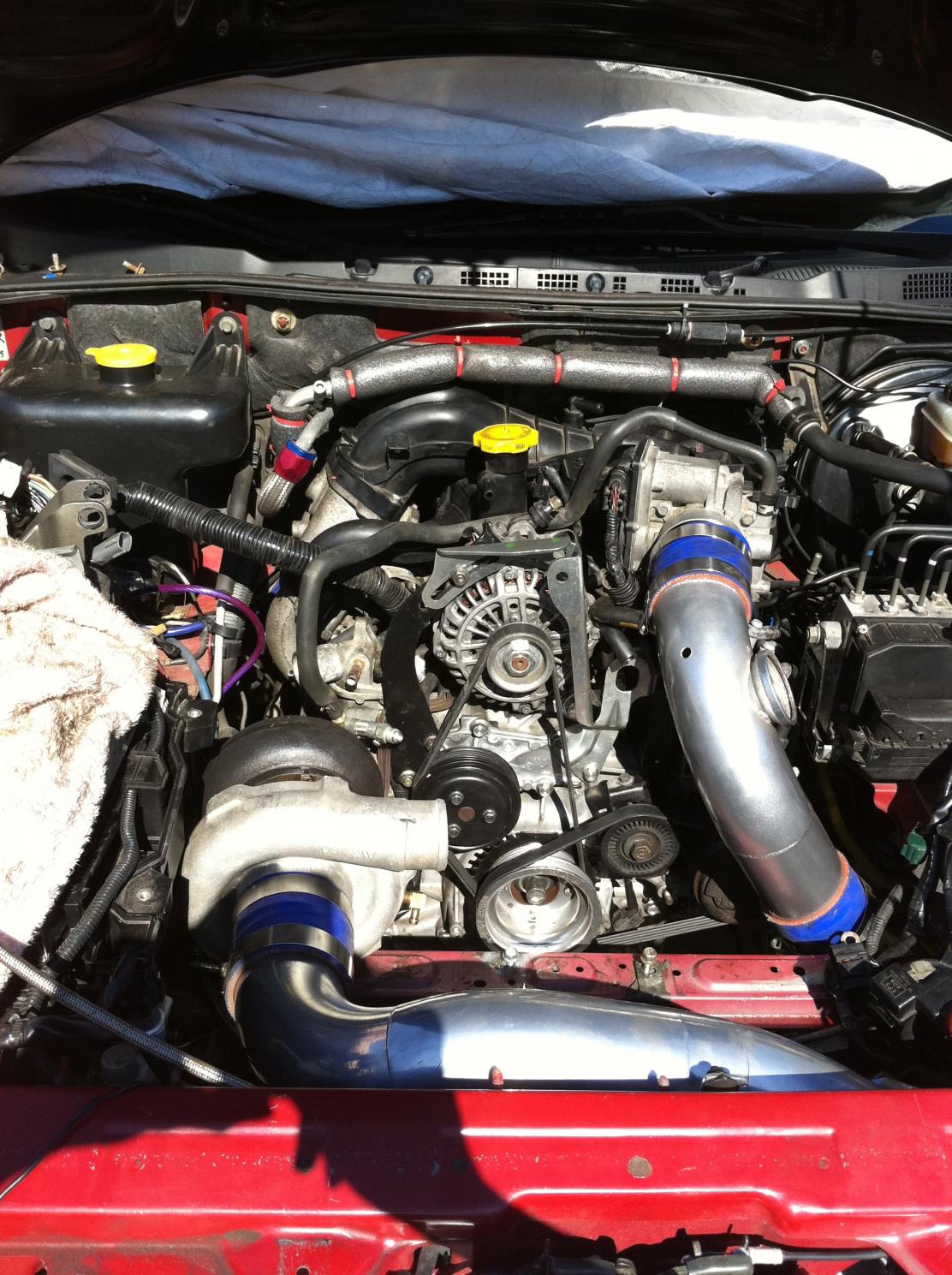

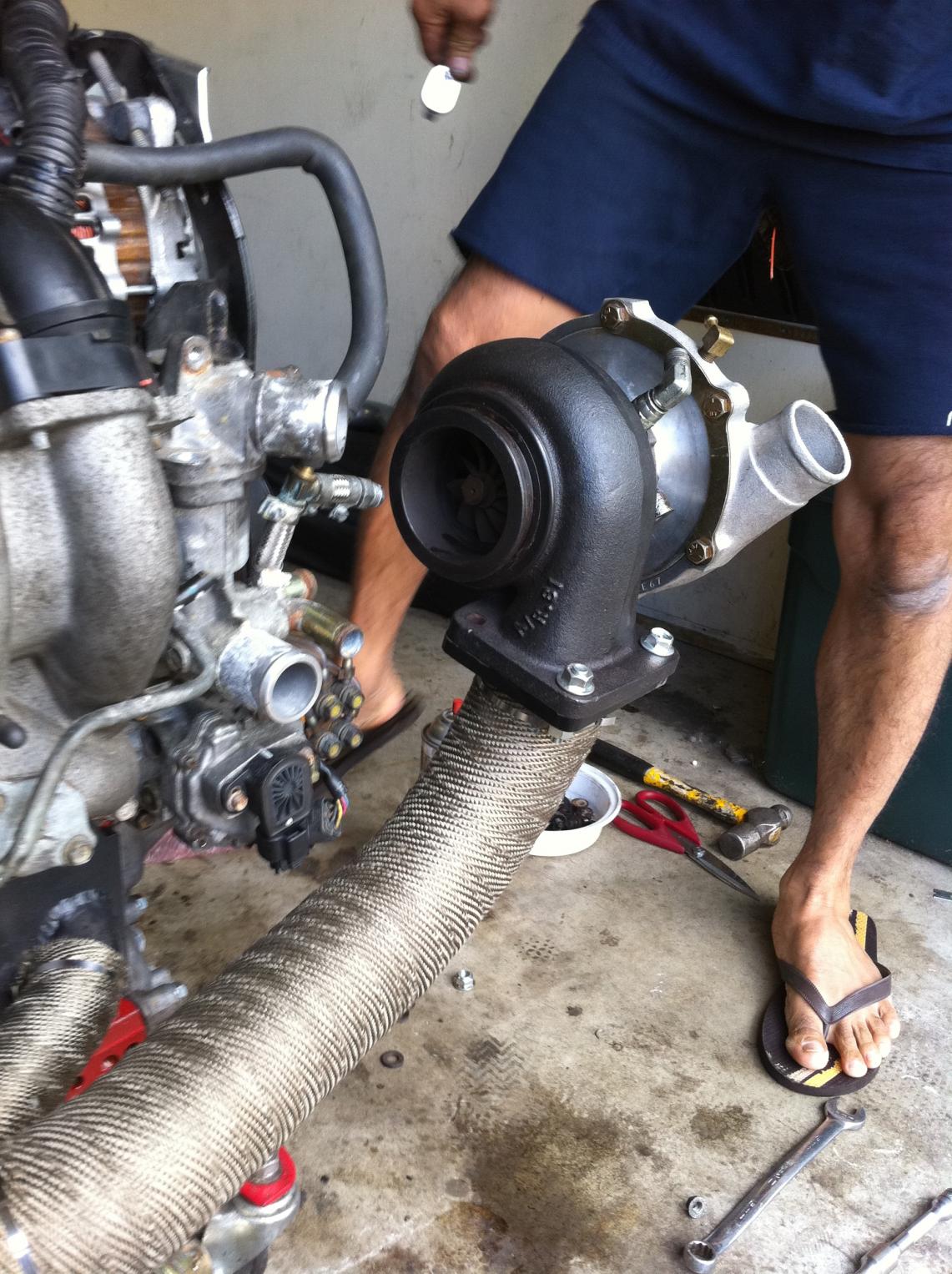

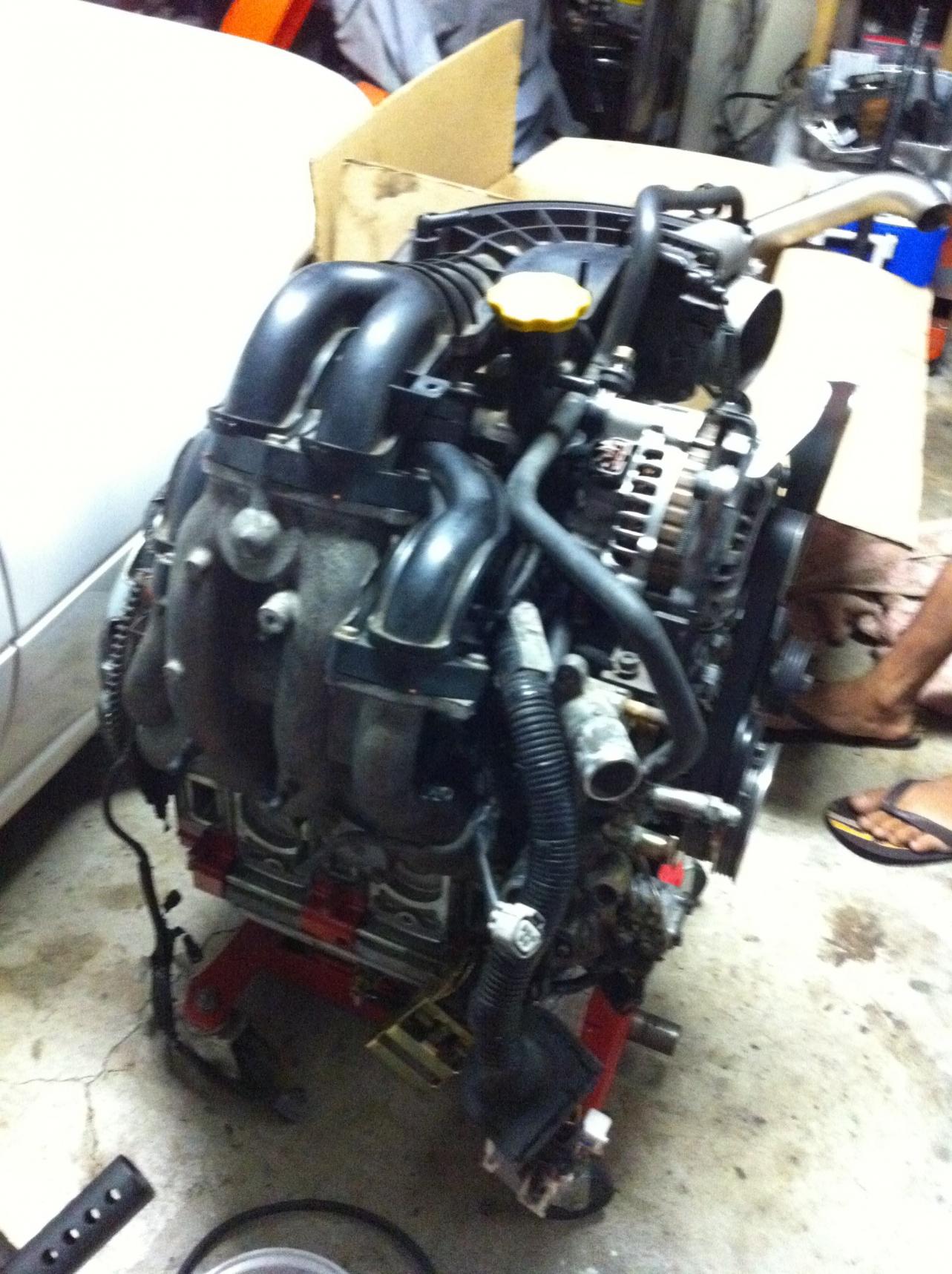

i posted some pictures little bit while it's being built toward finishing...

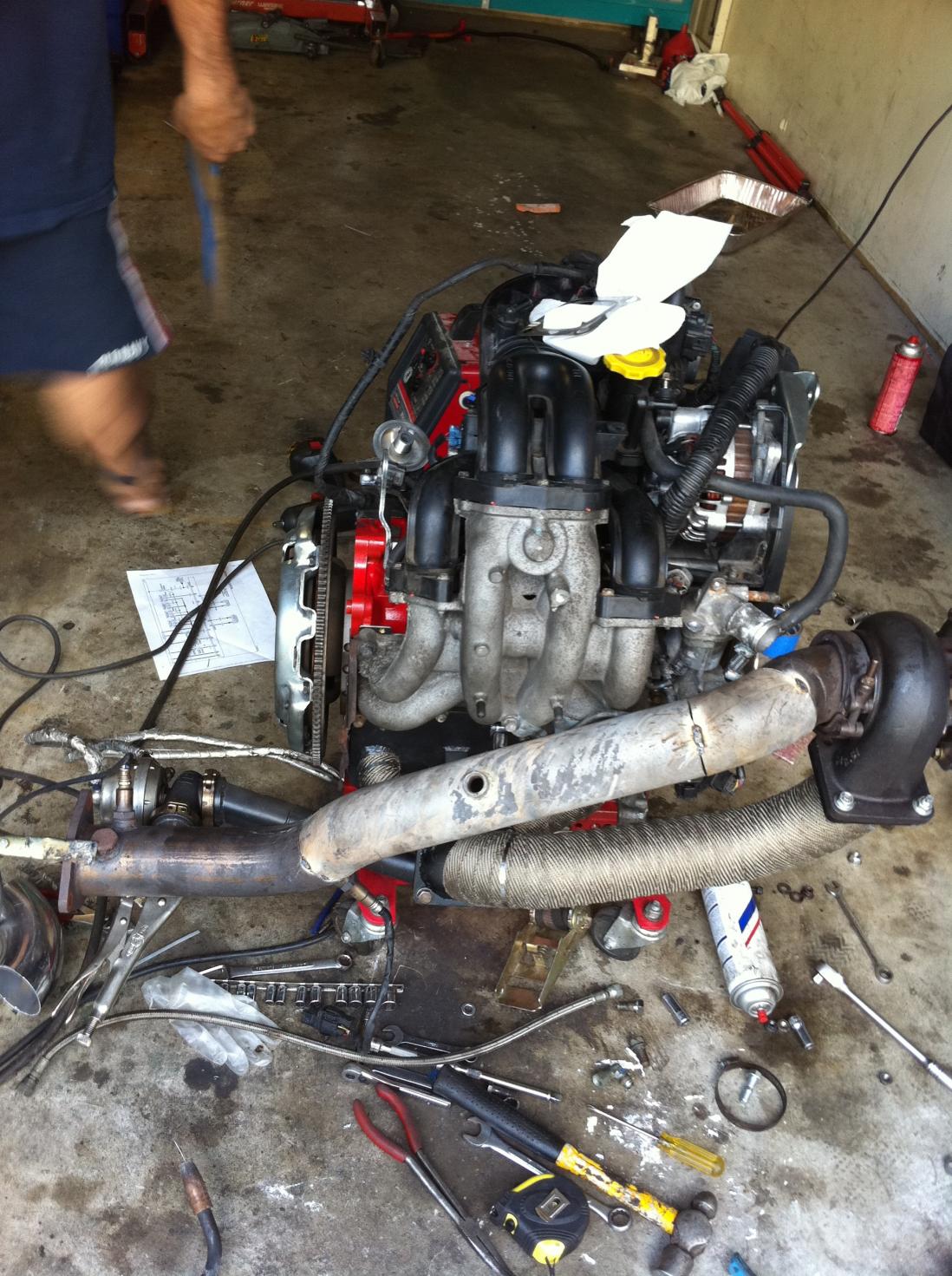

in the pictures, if you wonder, the downpipe has to be modified little bit because it hits the coolant lines. remember, it's no finished yet, and it will be finish hopefully by this weekend.
Note: i will keep updating it ...have fun guys...
it's started from here : https://www.rx8club.com/series-i-major-horsepower-upgrades-93/9-psi-330whp-160698/
in July, i found out that my engine blew...before blowing it, i made a lot of mistakes, playing with the ignition which caused a lot of misfiring, and my fuel filter got clogged up, and gave me a hard time.
now, i decided to make a thread for my second engine, and i am ready to go again.
engine:
- Ported by KDR (don't want to have Bridgeport because you loose the street wise), but it was his work. don't have pics yet because he has to give them to me.
- RX7 RA superseals
- Meth 50/50
Turbo:
- top mount
- T67 (.81 AR hot side & .60 AR cold side)
what is the plan after getting it broken in:
getting it tuned, and i will run it for 8, 11, and 14 psi.
above are the new mods that i did after the first thread turbo i had above. you guys can read the first thread about my other mods. it's not finished yet, but still working on it.
i like to share my experience to ppl in the forum. all advice are welcome, but as we all know everybody has his or her own taste,
i posted some pictures little bit while it's being built toward finishing...
in the pictures, if you wonder, the downpipe has to be modified little bit because it hits the coolant lines. remember, it's no finished yet, and it will be finish hopefully by this weekend.
Note: i will keep updating it ...have fun guys...
09-24-2010, 09:39 AM
#7
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
it's Mazsport design which is the type 3 kit that he had.,and i hope no boost creep a lot
when we opened it, it's not only the motor blown, but the turbo too, it is shut...
....but looking forward to a new set up, since we know what happened in previous experience...LOL...i still use the INT-X...i think it's preety good for my set up...
thank u...have you been coming to teh sushi meet lately?
thank you guys for all advice or complements...
steven
09-26-2010, 10:35 PM
#9
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
09-27-2010, 10:03 AM
#10
Registered
Join Date: Jul 2008
Posts: 324
Likes: 0
Received 0 Likes
on
0 Posts
09-27-2010, 02:47 PM
#14
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
brettus, what i meant was that the turbo gives full boost at 4.5 or 5k which was 9 psi last time i had...
i don't know until we do some experiments to ourselves......i can't wait to see..
about the turbo, that shiet is pretty big....we had a problem to fit it in ..
steven
09-27-2010, 10:20 PM
#18
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
about your friend, it is good then to hear it, i am happy now..LOL...yeah, i had dave take care of the rotor which was milled or deepened....
you can give me some advice too about the turbo, what you think about turbo, because i am planning to switch it with different on in the future, just planning,..
ssspeedfreak, how is your turbo set up going? are you going to build the engine too? because you bought esmeril kit right? i love the intake...
steven
09-28-2010, 09:53 PM
#19
Registered
iTrader: (1)
Join Date: Sep 2004
Location: Long Island NY
Posts: 373
Likes: 0
Received 0 Likes
on
0 Posts
Learning lots of learning! Chris did some stuff to this engine and I'm still learning. I do plan on doing an engine build but as i said before learning lots of learning!
09-30-2010, 03:35 PM
#20
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
steven
09-30-2010, 03:39 PM
#21
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts

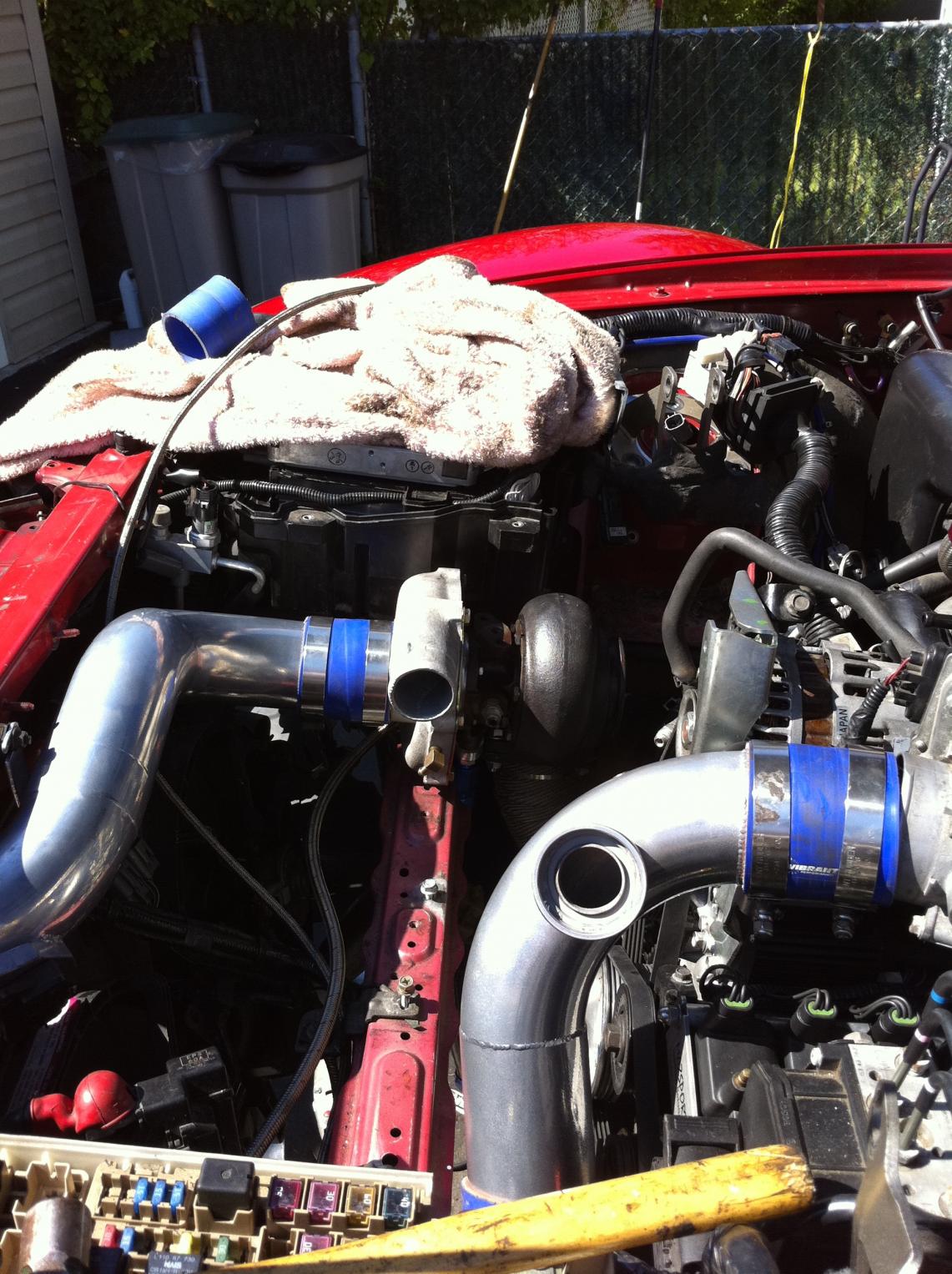

if anybody sees my pictures, on the 5th picture to the right, the last one, there is a cross bar under the turbo, as we know that all rx8 have them. they are the bar where we put our battery and intakes, but if we get rid of it and change it little bit, does anybody know if it's going to effect the handling?
steven
steven
09-30-2010, 07:50 PM
#22
I've been running a T67 on my 7 for over a year now with big street port (4 port FC engine with 8.5:1 rotors). With the 1.00 hotside and .70 coldside I get 16psi by 5000-5500 depending on the gear. It sounds laggy. But what that really means is that you need to downshift a little bit when going up hills around town, that's all. It's dead when you lug the engine at 2000rpm in 3rd gear, but so is a stock Renesis when you drive it like that. At 9psi you are missing out on a lot of torque.
Top end is very nice. 5000-8000rpm or so, and with the gearing you never really fall out of the powerband as you shift. Turn the boost up and you should be embarassing C6's, E92 M3's, etc. It should be a deep 12 second car at least if your drivetrain will hold up. 115+ mph in the 1/4. These turbos have done ~550whp on rotaries at 25psi (not that you would really want that kind of power).
Top end is very nice. 5000-8000rpm or so, and with the gearing you never really fall out of the powerband as you shift. Turn the boost up and you should be embarassing C6's, E92 M3's, etc. It should be a deep 12 second car at least if your drivetrain will hold up. 115+ mph in the 1/4. These turbos have done ~550whp on rotaries at 25psi (not that you would really want that kind of power).
Last edited by arghx7; 09-30-2010 at 07:54 PM.
09-30-2010, 08:13 PM
#23
Registered
iTrader: (1)
Join Date: Sep 2004
Location: Long Island NY
Posts: 373
Likes: 0
Received 0 Likes
on
0 Posts
As for what Chris has done, a ton to his engine! He's gone much further then anyone here, trust me on this. I've asked him to let out some of his tricks but I guess he uses them to make his products better? The guy is super busy and doesn't have time for newB questions. To be honest the stuff he could do is super cool but he's just one guy and does most stuff to his car.
09-30-2010, 08:22 PM
#24
Registered
iTrader: (1)
Join Date: Sep 2004
Location: Long Island NY
Posts: 373
Likes: 0
Received 0 Likes
on
0 Posts
If I were closer I'd use Dave for anything related to my car! He's a stand up guy, knows his stuff and unlike most places when he gives you a time it yours! He answers the stupidest questions and out of the 7 guys has warmed up really nice to the 8 and its engine. I've seen a crazy sick 3rd gen motor swap he did that was over 400whp on a DD.
With my car I learned that you need to be as informed as anyone else and get your hands dirty or it will never get done. Especially here, the NY attitude is learn it your self stupid!
With my car I learned that you need to be as informed as anyone else and get your hands dirty or it will never get done. Especially here, the NY attitude is learn it your self stupid!
10-01-2010, 03:09 PM
#25
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
If I were closer I'd use Dave for anything related to my car! He's a stand up guy, knows his stuff and unlike most places when he gives you a time it yours! He answers the stupidest questions and out of the 7 guys has warmed up really nice to the 8 and its engine. I've seen a crazy sick 3rd gen motor swap he did that was over 400whp on a DD.
With my car I learned that you need to be as informed as anyone else and get your hands dirty or it will never get done. Especially here, the NY attitude is learn it your self stupid!
With my car I learned that you need to be as informed as anyone else and get your hands dirty or it will never get done. Especially here, the NY attitude is learn it your self stupid!
the white RX8?
I've been running a T67 on my 7 for over a year now with big street port (4 port FC engine with 8.5:1 rotors). With the 1.00 hotside and .70 coldside I get 16psi by 5000-5500 depending on the gear. It sounds laggy. But what that really means is that you need to downshift a little bit when going up hills around town, that's all. It's dead when you lug the engine at 2000rpm in 3rd gear, but so is a stock Renesis when you drive it like that. At 9psi you are missing out on a lot of torque.
Top end is very nice. 5000-8000rpm or so, and with the gearing you never really fall out of the powerband as you shift. Turn the boost up and you should be embarassing C6's, E92 M3's, etc. It should be a deep 12 second car at least if your drivetrain will hold up. 115+ mph in the 1/4. These turbos have done ~550whp on rotaries at 25psi (not that you would really want that kind of power).
Top end is very nice. 5000-8000rpm or so, and with the gearing you never really fall out of the powerband as you shift. Turn the boost up and you should be embarassing C6's, E92 M3's, etc. It should be a deep 12 second car at least if your drivetrain will hold up. 115+ mph in the 1/4. These turbos have done ~550whp on rotaries at 25psi (not that you would really want that kind of power).
thank you for your advice, and yeah i don't mind shift it down, because i believe the rotary is good power on the higher rpm. it is true when i had my low mount, i had the same turbo, and mine spooled at 4.5 to 5k .....i was thinking to get Gt35R, but i went with this direction, because i didn't know anybody using t67 in their RX8, but you gave a good story whcih motivates me to keep this turbo in the future..thank you...it will be ready by tihs weekend....
steven
