Horsepower vs Boost Pressure comparison for Greddy based turbos
Thought this might be interesting to Greddy / Greddy upgrade owners to see what sort of power they can expect to make at various boost levels .
These dynos were all of the same car on the same dyno with more or less the same turbo setup .
Note that boost is not constant for any of the runs so this needs to be looked at in conjunction with the whp result .
These dynos were all of the same car on the same dyno with more or less the same turbo setup .
Note that boost is not constant for any of the runs so this needs to be looked at in conjunction with the whp result .
Last edited by Brettus; Jul 28, 2010 at 04:06 PM.
Thread Starter
Boosted Kiwi
iTrader: (2)
Joined: Apr 2006
Posts: 20,838
Likes: 1,794
From: Y-cat-o NZ
If you are refering to the BNR upgrade there are a few dynos around and from what I've seen there isn't any difference in hp vs boost as compared to above .
The GReddy gets you nowhere near the "flow restrictions" of the motor.
And, clearly, there are other things going on in the car's utilized in this graph since identical pressure at higher RPM is yielding more power in one case, indicating greater flow, which can be attributed to many possible factors not elucidated here.
And, clearly, there are other things going on in the car's utilized in this graph since identical pressure at higher RPM is yielding more power in one case, indicating greater flow, which can be attributed to many possible factors not elucidated here.
Last edited by MazdaManiac; Jul 22, 2010 at 08:52 AM.
Thread Starter
Boosted Kiwi
iTrader: (2)
Joined: Apr 2006
Posts: 20,838
Likes: 1,794
From: Y-cat-o NZ
And while i'm not positive I have a nice theory (that might rock a few boats) as to why that was .....
Last edited by Brettus; Jul 22, 2010 at 01:58 PM.
Thread Starter
Boosted Kiwi
iTrader: (2)
Joined: Apr 2006
Posts: 20,838
Likes: 1,794
From: Y-cat-o NZ
nope but good guess ... heh
I can tell you that afrs were pretty much identical for all 4 runs but there were some small revisions to the timing . Certainly not enough to make that much difference though .
I can tell you that afrs were pretty much identical for all 4 runs but there were some small revisions to the timing . Certainly not enough to make that much difference though .
Last edited by Brettus; Jul 22, 2010 at 03:07 PM.
Thread Starter
Boosted Kiwi
iTrader: (2)
Joined: Apr 2006
Posts: 20,838
Likes: 1,794
From: Y-cat-o NZ

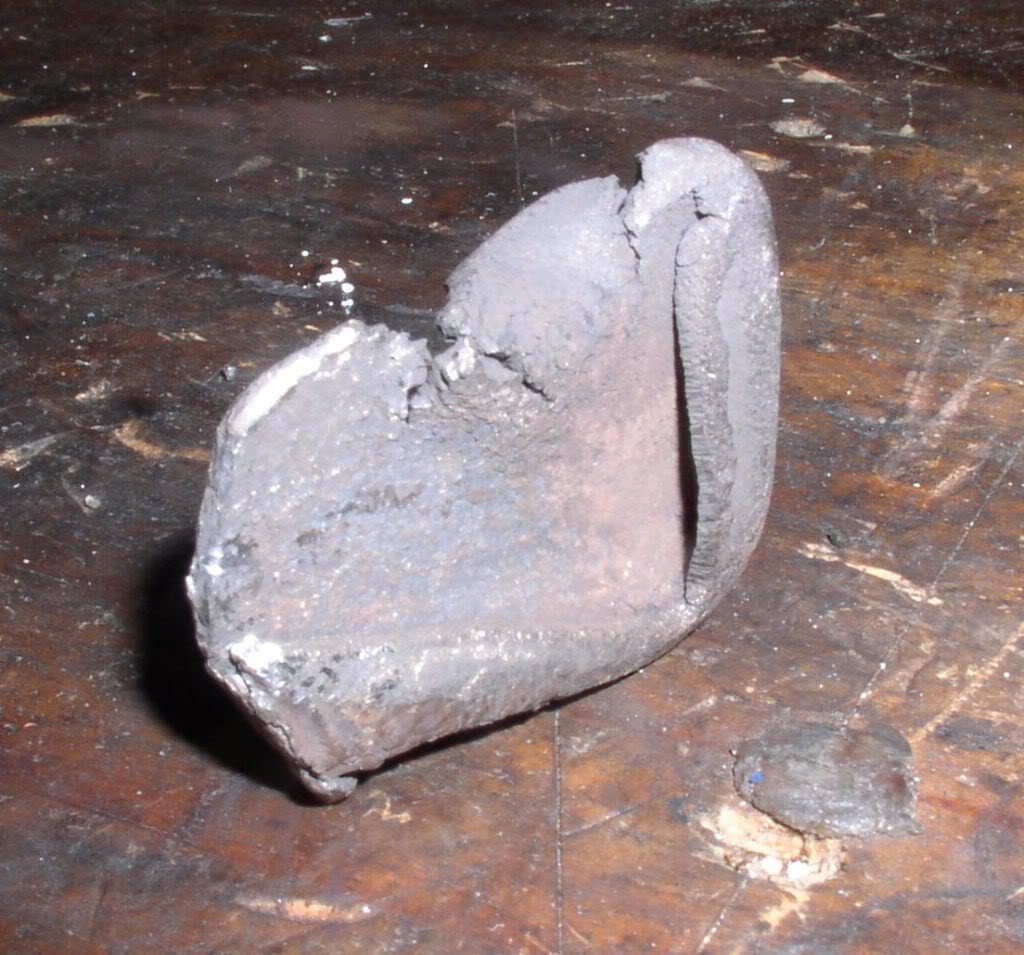

well it was still in there at the time of the dyno - just not doing what it was supposed to do .
It's a bit of a stretch but it is the only physical difference in the engine I can think of between the two dynos .
It's a bit of a stretch but it is the only physical difference in the engine I can think of between the two dynos .
haha were's the story behind this?..... Oh and PM recieved Brettus... Thanks for clarifying (Just recieved turbo today!!!)
Last edited by RotaryMachineRx; Jul 22, 2010 at 04:39 PM.
Thread Starter
Boosted Kiwi
iTrader: (2)
Joined: Apr 2006
Posts: 20,838
Likes: 1,794
From: Y-cat-o NZ
I think a redesigned insert could make a difference .
I don't think the divider needs to be nearly as long as it is to do the job . Combine that with some nice radiused corners and voila ...... double the port capacity .
I don't think the divider needs to be nearly as long as it is to do the job . Combine that with some nice radiused corners and voila ...... double the port capacity .
Last edited by Brettus; Jul 22, 2010 at 04:18 PM.
Thread Starter
Boosted Kiwi
iTrader: (2)
Joined: Apr 2006
Posts: 20,838
Likes: 1,794
From: Y-cat-o NZ
about WBO2 sensors
I divide by zero
Joined: Aug 2007
Posts: 1,192
Likes: 0
From: Spring Hill, FL
Ok I'm in a random ideas kinda mood...so please bear with me. This is kind of a cross discussion of this thread and the one about your melted housing.
Do the exhaust ports on the center and outer housings share the same shape where the rotor passes them? Or are they smaller for the center housing and the shared ports?
What would happen if I were to make a manifold where the center port was deidicated to the wastege? It would eliminate flow through those ports alltogether until the wastegate cracks. Would it then be subjected to less pressure/resistance under higher boost? Or would forcing all the bleeding of pressure through the center actually create more heat and/or boost creep?
Do the exhaust ports on the center and outer housings share the same shape where the rotor passes them? Or are they smaller for the center housing and the shared ports?
What would happen if I were to make a manifold where the center port was deidicated to the wastege? It would eliminate flow through those ports alltogether until the wastegate cracks. Would it then be subjected to less pressure/resistance under higher boost? Or would forcing all the bleeding of pressure through the center actually create more heat and/or boost creep?
Last edited by Mawnee; Jul 24, 2010 at 09:42 AM.
