drd8

Hey guys, I am just posting my turbo project. The kit is a custom built top mount on 6 port motor.

T66 turbo
2.5 into 3" intercooler piping
44mm wastegate
p1 yellows, p2 and secondary uncapped yellow injectors
D585 coils
MSD 8.5mm coil wires
BUR9EQP plugs (leading and trailing)
Goopy Apex seals
ACT Heavy duty clutch kit
Full 3" exhaust
28x9x4" Intercoler
255lph Walbro fuel pump
Custom log type turbo manifold

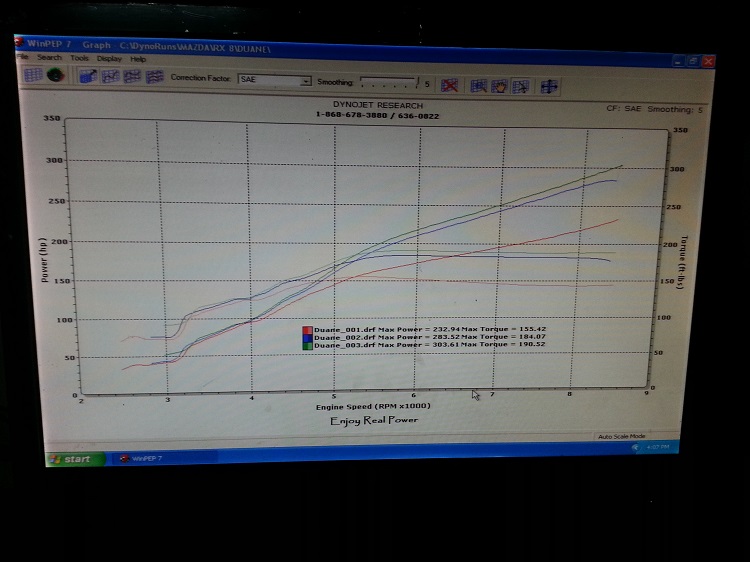

The car was tuned by Brettus using MazdaEdit Personal. Dynoed 303hp on 12psi. It has been running fine for the past 8 months ( 20000km ). Currently on 17psi and should dyno again soon. Only changes made are more boost and smaller turbine housing (.84AR T4 to .70AR T3 )....smaller turbine kicks in sooner and is alot more fun on the streets.

Dyno video link below:

yomomspimp06

nice
That setup looks laggy

gregs

iTrader: (7)

Great results! Especially for a low boost setting.

drd8

Thanks....it was a bit laggy until i changed from the T4 to the T3 turbine....now i can achieve full boost at 4500rpms.....which is much more fun than before. That dyno was done with the T4 turbine.

9krpmrx8

iTrader: (46)

Nice. Where is this Dyno located?

drd8

Well I am from Trinidad W.I. ....so it's located in Point Lisas.

Shanegrf2

iTrader: (1)

car sounds super quick

9krpmrx8

iTrader: (46)

Nice, I know Steve Kan (www.kantuning.com) is in Trinidad tuning all the time, you should get in on one of his tuning days there.

drd8

Yes..he comes here often..and I know he's good..but I am really satisfied with my current tuner. I have not had any major issues so I am kool.

9krpmrx8

iTrader: (46)

Yeah, just a recommendation since on site tuning is always better.

drd8

Yea I understand what you are saying....I will keep the suggestion in mind.

Brettus

iTrader: (2)

Thanks for posting this ...... I'm sure you will make a lot more power on your next dyno just going by the logs .

300 for your first dyno was pretty impressive though - very rare achievement . Good effort

yomomspimp06

how close were the logs to the dyno brett?

Brettus

iTrader: (2)

Very close . Latest logs are ......... WAY more impressive though

yomomspimp06

ekkk can't wait for results. I'm curious Brett. How close to the MAF ceiling are the closest logs? Just so I get this right. He's running 17psi on Pump?

Brettus

iTrader: (2)

He had to machine out the maf tube a little .................which raised the ceiling.


I'll let drd answer that last question .

yomomspimp06

now I'm really excited to hear the results.
You meant the question on fuel?

drd8

Yup I am running pump fuel (95 RON) to be exact...and Brettus is correct. ..I did machine the MAF tube as much as I could to give me a little more headway...now I think I could hit 18 or 19psi before it is maxed..."hopefully".

yomomspimp06

oh this sounds so promising. Nice to see you getting this done on pump although slightly higher grade than available around these parts.

drd8

Just to clarify...95 RON is equivalent to 91 Octane in the USA...and...at first I was a bit concerned about the fuel myself....but "so far all is good" so I kinda got more relaxed about it over time.

yomomspimp06

Any updates on this?

drd8

Not as yet....have not had a chance to revisit the dyno as yet

yomomspimp06

okay. Well, keep us updated
