Sub box and 1 12"???
06-16-2009, 06:42 PM
#1
Guest
Posts: n/a
Sub box and 1 12"???
I was thinking about putting a single 12" sub and amp in my 8 and running it off the stock deck using the stock bose speakers. Is this possible? Also for teh people running only 1 12" sub what is the best kind of box for our car sealed or ported? I was planning on fiberglassing a custom box and amp rack so that the sub is tucked in a the back corner of the trunk with the amp hidden. I plan on using either a Diamond Audio or Jl Audio sub with a Alpine PDX amp. any other suggestions?
06-16-2009, 07:56 PM
#2
i had a 12" polk sr with a polk mono 500rms amp before it was stolen. worked great i didnt have bose though. i used a zenclosure box, the air space for my sub filled the entire area from the edge u see in their pic all the way over, needed alot of air spae volume.
06-16-2009, 10:04 PM
#3
Call me Thread killer
Join Date: Sep 2008
Location: Tampa Bay area Florida
Posts: 331
Likes: 0
Received 0 Likes
on
0 Posts
Rob,
If you doing a 12" I would suggest you will want to do it in a sealed box. Unless you plan on using about half your trunk for a ported enclosure. Most your ported 12" subs boxes are about 2.25 to 2.5 cu ft. Seal you can go as small as 1.25 to 1.5 cu ft.
Of course you can check the specs for both to see what they recommend for sizes.
Both are great subs, almost indentical in SQ. I had the 10" diamond sub ported thru the arm rest. I took all the area under the rear deck area. I gave it to my son. Then went and purchase the 10w0 JL and went to a sealed box and cut the box size in half
Just for what my two cents are worth.
If you doing a 12" I would suggest you will want to do it in a sealed box. Unless you plan on using about half your trunk for a ported enclosure. Most your ported 12" subs boxes are about 2.25 to 2.5 cu ft. Seal you can go as small as 1.25 to 1.5 cu ft.
Of course you can check the specs for both to see what they recommend for sizes.
Both are great subs, almost indentical in SQ. I had the 10" diamond sub ported thru the arm rest. I took all the area under the rear deck area. I gave it to my son. Then went and purchase the 10w0 JL and went to a sealed box and cut the box size in half
Just for what my two cents are worth.
06-17-2009, 10:00 AM
#5
Registered User
Join Date: Jan 2008
Location: Edmond, Oklahoma
Posts: 146
Likes: 0
Received 0 Likes
on
0 Posts
unless you're using a sub that can run ported in a really small box, I'd go sealed tood. I have a 1.5 ft^3 box in my trunk and it's taking up a good bit of room under the rear deck. You also run into installation issues with a bigger box unless you plan on building the box in the trunk. I barely fit my box back there because the trunk hole is so small
06-17-2009, 11:42 AM
#6
Registered User
Join Date: Aug 2007
Location: San Antonio, TX
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Ported enclosures are not going to give you as much accuracy as sealed. The advantage of ported enclosures are that they are louder than sealed enclosures, at the cost of sound quality.
Decide what sub you want to install first, and go off the specs that the manufacturer recommends for the best size. That could be a factor in determining the sub since you are short on space.
Decide what sub you want to install first, and go off the specs that the manufacturer recommends for the best size. That could be a factor in determining the sub since you are short on space.
06-17-2009, 09:38 PM
#11
Call me Thread killer
Join Date: Sep 2008
Location: Tampa Bay area Florida
Posts: 331
Likes: 0
Received 0 Likes
on
0 Posts
I will be dropping off my 8 tomorrow to let my buddy at SRQ custom in sarasota florida use it was a temp for pre fab box for the rear. I'll have pics tomorrow to post and see want he wants to sell them for.
06-18-2009, 05:11 PM
#12
Call me Thread killer
Join Date: Sep 2008
Location: Tampa Bay area Florida
Posts: 331
Likes: 0
Received 0 Likes
on
0 Posts
Alright spent the day with the guy as he made the template for the box. I had him do mine as a single and just for the one side. He can make it full box all the way across with two subs or he can make a single box on one side and an amp rack on the other.
He should have them posted on Ebay soon. If you want info sooner that that contact him at
http://www.srqcustoms.com/
I'll edit this post later tonight and post a picture.
He should have them posted on Ebay soon. If you want info sooner that that contact him at
http://www.srqcustoms.com/
I'll edit this post later tonight and post a picture.
Last edited by adviceinst; 06-18-2009 at 10:25 PM. Reason: add pic
06-18-2009, 08:57 PM
#15
Guest
Posts: n/a
Alright spent the day with the guy as he made the template for the box. I had him do mine as a single and just for the one side. He can make it full box all the way across with two subs or he can make a single box on one side and an amp rack on the other.
He should have them posted on Ebay soon. If you want info sooner that that contact him at
http://www.srqcustoms.com/
I'll edit this post later tonight and post a picture.
He should have them posted on Ebay soon. If you want info sooner that that contact him at
http://www.srqcustoms.com/
I'll edit this post later tonight and post a picture.
06-18-2009, 10:13 PM
#16
Call me Thread killer
Join Date: Sep 2008
Location: Tampa Bay area Florida
Posts: 331
Likes: 0
Received 0 Likes
on
0 Posts

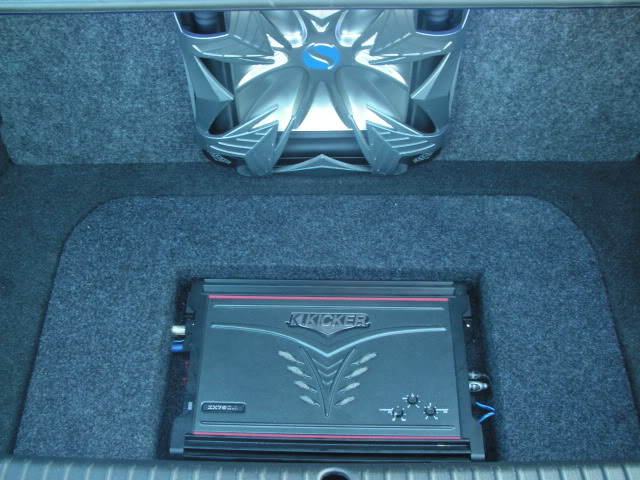

amp rack
He has not given me a price. But as soon as he does I will post it.
Last edited by adviceinst; 06-19-2009 at 05:11 PM. Reason: fix spelling
06-21-2009, 09:00 PM
#17
Call me Thread killer
Join Date: Sep 2008
Location: Tampa Bay area Florida
Posts: 331
Likes: 0
Received 0 Likes
on
0 Posts
Hows aund $110 shipped sound?
His ebay store says $80 plus $30 for shipping. Here are the links to his ebay store and personal web store.
eBay Store: http://stores.shop.ebay.com/SRQ-Custom-Autosound
My Store: http://shop.srqcustoms.com
Here is a link to my album
https://www.rx8club.com/members/adviceinst-48985-albums-new-sub-box-1086/
Last edited by adviceinst; 06-21-2009 at 09:07 PM. Reason: add link
06-23-2009, 05:28 PM
#18
His ebay store says $80 plus $30 for shipping. Here are the links to his ebay store and personal web store.
eBay Store: http://stores.shop.ebay.com/SRQ-Custom-Autosound
My Store: http://shop.srqcustoms.com
Here is a link to my album
https://www.rx8club.com/album.php?albumid=1086
eBay Store: http://stores.shop.ebay.com/SRQ-Custom-Autosound
My Store: http://shop.srqcustoms.com
Here is a link to my album
https://www.rx8club.com/album.php?albumid=1086
06-24-2009, 08:19 PM
#21
Call me Thread killer
Join Date: Sep 2008
Location: Tampa Bay area Florida
Posts: 331
Likes: 0
Received 0 Likes
on
0 Posts
It is a single 10", you can request it as a 12". The construction is perfect no leaks. He uses the high quality MDF 3/4". It has the terminal cup on the back. Nothing cheap about his work. He stands behind it 100%
Best thing to do is contact him. He'll tell you what is possible. Let him know what sub you have in mind.
Best thing to do is contact him. He'll tell you what is possible. Let him know what sub you have in mind.
07-02-2009, 10:52 PM
#23
Call me Thread killer
Join Date: Sep 2008
Location: Tampa Bay area Florida
Posts: 331
Likes: 0
Received 0 Likes
on
0 Posts
Well cool, that would explain why he has not finished the box for my wife z3...LOL
Here is a link to what he is building her.
https://www.rx8club.com/album.php?albumid=1167
Last edited by adviceinst; 07-03-2009 at 06:20 AM.
07-08-2009, 08:48 AM
#25
Registered User
Join Date: Aug 2007
Location: San Antonio, TX
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
:bigthumbup:
I just got it yesterday. It's all hooked up and it looks and sounds GREAT. For the money, there is no better box for the RX-8. Well, even if you don't consider money, I think it's the best box for the 8. I got the box that goes all the way across. The sub is on one side and I mounted my amp on the other side. I'll post some pics as soon as I get some.
