jquigley

Hey Guys,

Have an F90BT and metra kit ready to be installed in my car. I've transferred the HVAC controller to the dash kit and everything is ready to go.

Only thing is, I have no idea about the actual wiring between the deck, axxess box and factory system.

Any one in the area with experience willing to help for some cash and maybe a case of beer?

Would take to installer but cash is tight and would prefer to learn a bit in the process.

Juice

iTrader: (1)

If I was in the area I would do it just for the beer! Figures I'm all the way across the country.

Anyways, try and post this in the Regional Forums if you haven't already. I'm sure there is someone willing to help you out and you might have more luck finding someone if you post it there as well.

icedemon690

ok so im feeling nice. to hook into the factory system there will be a harness in the box with a red end. that just plugs into the factory system. (pretty hard to mess up & thats all you do with the factory system)....

so lets start with the red plugged harness which you will see is attached to another harness that has a white plug on the end (the white is for the axxess box) just take the pre cut ends of those harnesses which are already hooked together and just do the color matching game to your pioneer. thats pretty much it for wiring.

now look at the axxess box....grab ur dash kit and take the plug coming off your temp controls & plug it in and same for fan. also do this with the supplied extention for the 4ways. thats again pretty hard to mess up.

finally you will need to cut your dash up to fit the axxess box. so grab a dremmel or some cutters and start cutting. (to see what u actually need to cut take ur kit and the attached axxess box and just place it where it should go....you will see right where the axxess box hits the sub dash so just cut there. but watch out you dont cut the screw holes.)

im in PA if u need help. but as long as your not bose thats all you need to do. if you are bose <<laughing>> you have alot more time, work, and money to put into the car. seriously tho. and i was an installer before CCity closed.

-Charms

jquigley

Haha Demon,

I did in fact have the bose but after much I've got it in an it sound fantastic, loving the new setup.

EastCoastRX8

iTrader: (2)

I need help also. I have the metra kit and the Display plug doesnt fit in the Display axxess box port?!

icedemon690

ok the display pin. what u mean it doesnt fit. there is the temp fan 4way disp and power plugs. the temp and fan are obvious. and the 4way is smallest. the power is the one with the crap load of wires. but really over the past 4 years of installing metra has made all its products dummy proof. here is a small problem i had that sounds like your issue. i did mine half asleep and if u push that plug in too much or to hard you prolly bent a pin inside the metra box. carefully with all the other plugs out.... just take a small flat head and bend the pin to align with the rest. if thats not the problem than let me kno but 4 real....dummy proof. and yeah bose. forget bose. see my signature of my upgrades due to bose.

8rocks

Would love to see some pics of your setup icedemon!

The description in your sig has me intrigued.

jquigley

I would've preferred Icedemon's solution to the bose set up, for budgetary reasons, I had to stick with a Peripheral Sven4. Worked like a charm though.

icedemon690

Ill be putting up my pics in vBGarage Soon. Just working on having the time to upload them. And thank you its nice to see that the crap load of money (even at dealer cost) that I spent looks good to others. It sounds amazing and is one of the best quailty systems around. Not to mention that with the exception of the amp rack and sub everything else is still behind factory covers so it looks stock. and the dash kit looks good also. Just having a few minor problems that are both unexplained and not common.

such as amps getting extremely hot (weird cuz my gain is less than half on both amps)...which i think may be due to our sealed trunks and no air movement.

also the engine whine heard thru the speakers....even tho ive done everything to prevent it but bass blockers which is a bandaid fixer at best. may be due to our altenators facing the way they do.

forbidden

The whine is coming from a burned fuse in the ground trace for the preout section in your Pioneer head unit.... remove the head unit from the dash, take a small length of wire and touch one end of it to the case of the radio, take the other end and wrap it around the shield of the rca cable (the end of the rca cable where it attaches to the deck. See if you still have noise or not. This is a known issue on all Pioneer headunits for the last 20 years + . You only get noise in a amplified system IF that fuse is blown. If it has blown, it is due to how the unit / system was installed.

Chavy

+1 =]

icedemon690

forbidden (by the way decent job on the molex thread...did it than found urs but had done it the same way already lol).........anyway i know what u mean. blowing the ground fuse inside the radio. ill check it out tonight. ill just try using an ohm meter n see if i get more or less than 1 ohm. hopefully i didnt blow it cuz really i dk how i could have. ive been installing for four+ years and never made a careless mistake. but if i did i only know of one remedy and i think its a temp fix........

to take a fused ground and soder it to the outside of either the radio rca or my rca i put into it and ground it to the headunit case. or (which i dont feel like doing but taking the HU apart and fixing the P fuse inside on the circuit board)...any suggestions. cuz its mildly annoying but i listen to my music loud and dont notice it unless someone is in the car and the music is low. but u have any ideas about my other issue with my amp overheating?

icedemon690

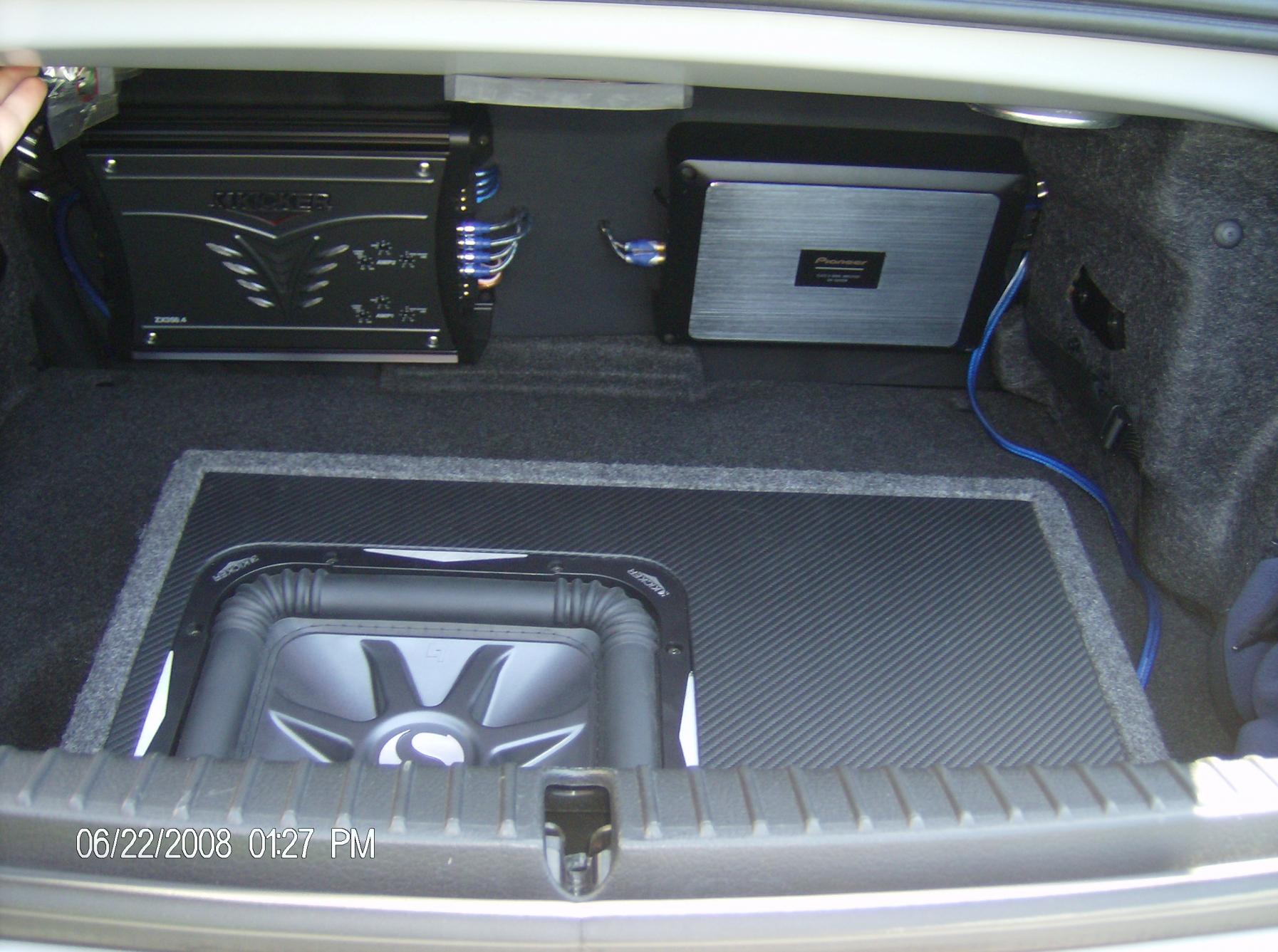

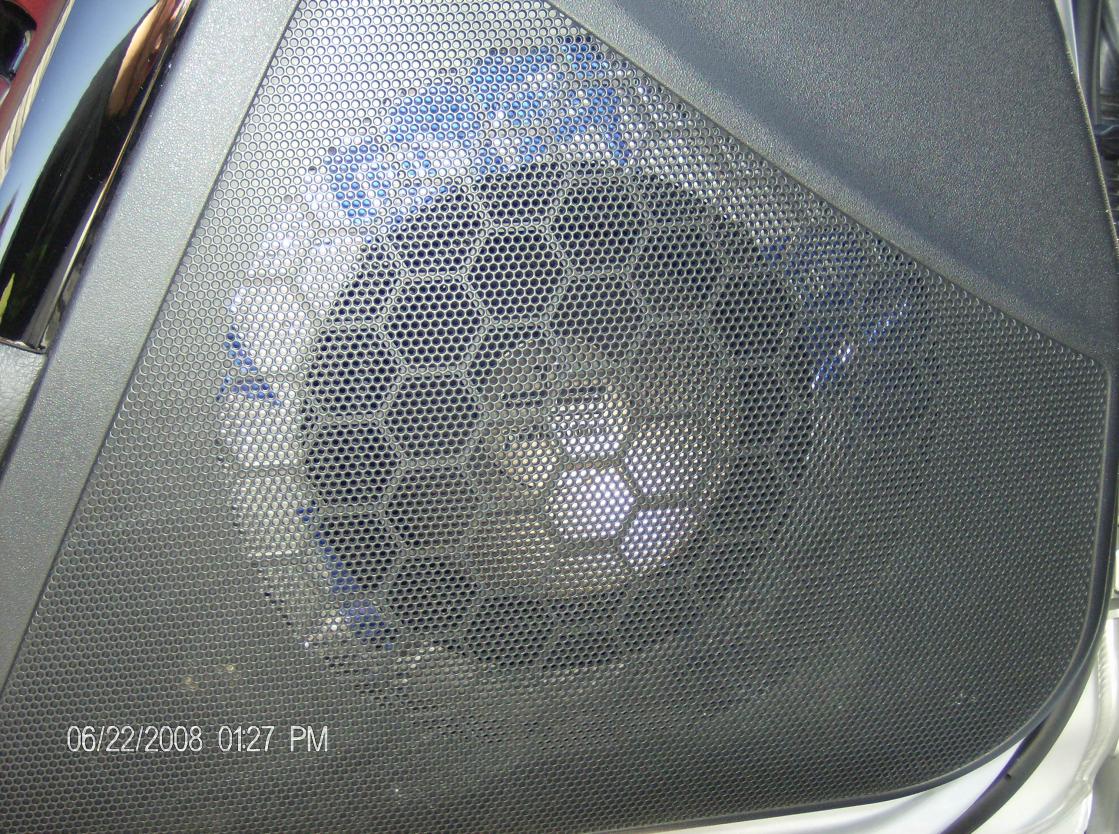

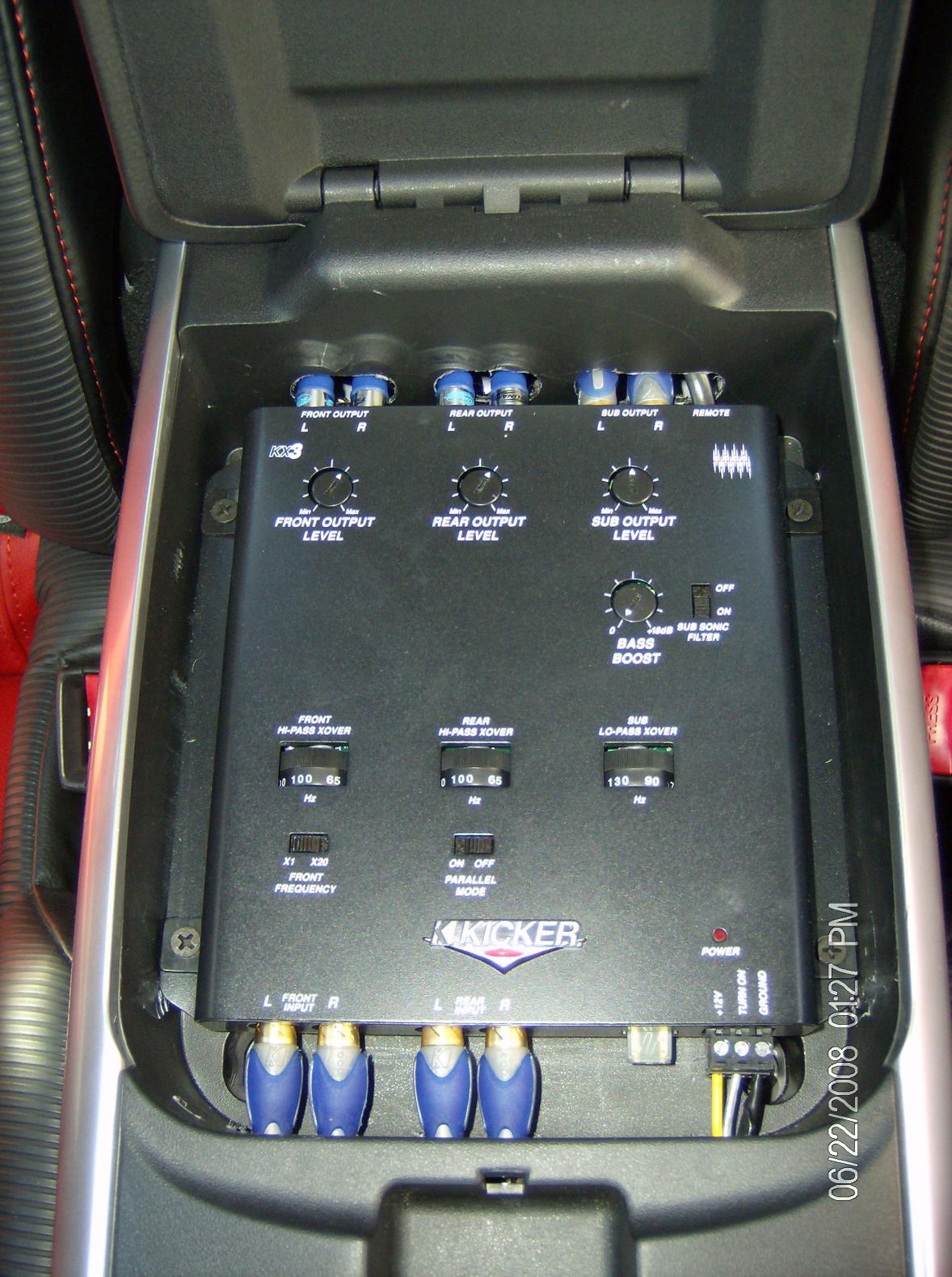

Here are a few pics that are not of great quality but not bad pics. just missing pics of rear speakers but they are obviously not easy to see thru.............


and forbidden i tested the ohms and i get both continunity and less than 1 ohm so im thinking the ground is still in tact
