having trouble removing piece aroung the clock...

Thread Tools

Search this Thread

Rate Thread

Old 05-16-2005, 08:31 PM
  #1
Registered User
Thread Starter

projectcar's Avatar

Join Date: Apr 2005
Location: boston
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
having trouble removing piece aroung the clock...

i need to get the peice around the clock off, the one just above the radio/center airconditioner vents...... i plan on getting four gaudes molded/ fiberglassed into the dash, but the shop workers cant get it off, without thinking they are goin to break it...
any suggestions.... should i start from the center console and work my way up?

also... i been reading about a NEO ION....... can someone explain to me what that is please?
Old 05-16-2005, 08:49 PM
  #2
On time, on target

ScudRunner's Avatar

Join Date: Mar 2004
Location: ABQ
Posts: 642
Likes: 0
Received 0 Likes on 0 Posts
you have to take the stock headunit out in order to access the mounting screws for the center dash console
Old 05-16-2005, 08:52 PM
  #3
Metatron
iTrader: (1)

StealthTL's Avatar

Join Date: Mar 2003
Location: A Pacific Island.
Posts: 7,280
Received 173 Likes on 130 Posts
Bottom up.....

You gots to work from the bottom up - it is not possible to just pry it out.

Remove-
shifter **** - unscrew
shifter surround - pull straight up
ash tray - two screws & electrical connectors
stereo unit - two screws (and a hidden bolt!) and pull out a bit
vents - just pull out
finally, top clock moulding, two screws then lift towards rear view mirror.

Have fun :D

S
Old 05-16-2005, 09:17 PM
  #4
Registered User

forbidden's Avatar

Join Date: Apr 2005
Location: CFB Comox, BC, Canada
Posts: 544
Likes: 0
Received 0 Likes on 0 Posts
Infernal hidden bolt.......
Old 05-16-2005, 10:39 PM
  #5
Ex- member.

adrian-1's Avatar

Join Date: Jan 2004
Location: Austin, TX
Posts: 1,694
Likes: 0
Received 1 Like on 1 Post
I took mine out this weekend to get my gauge pod in.

Here's some pics to help.

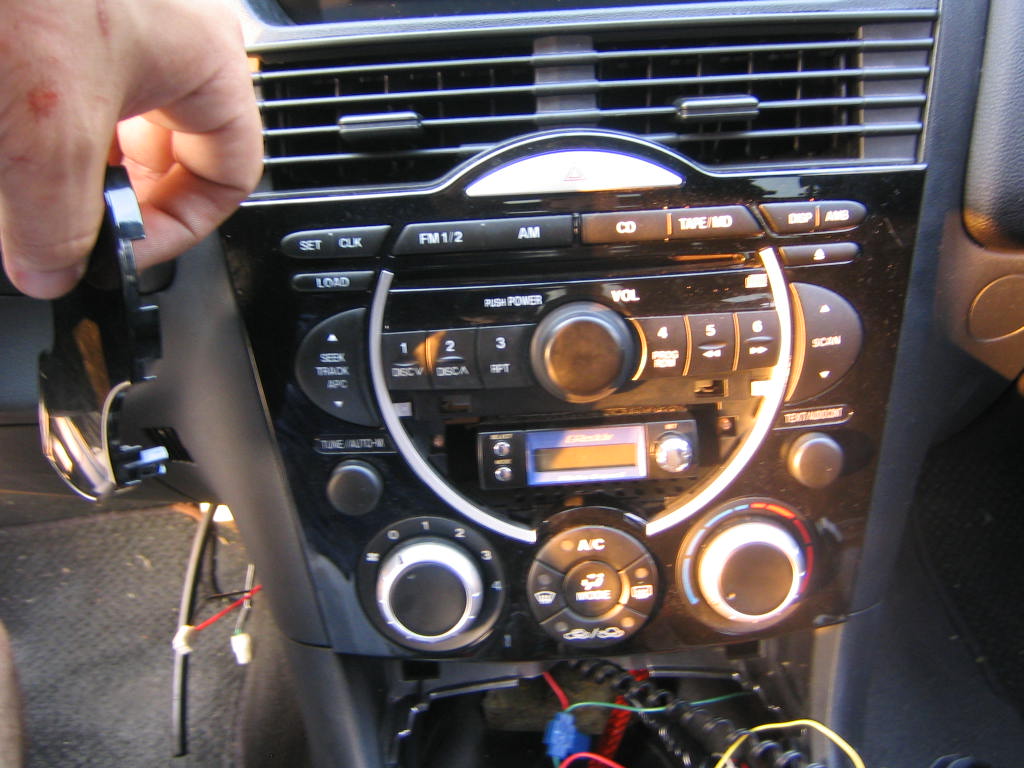

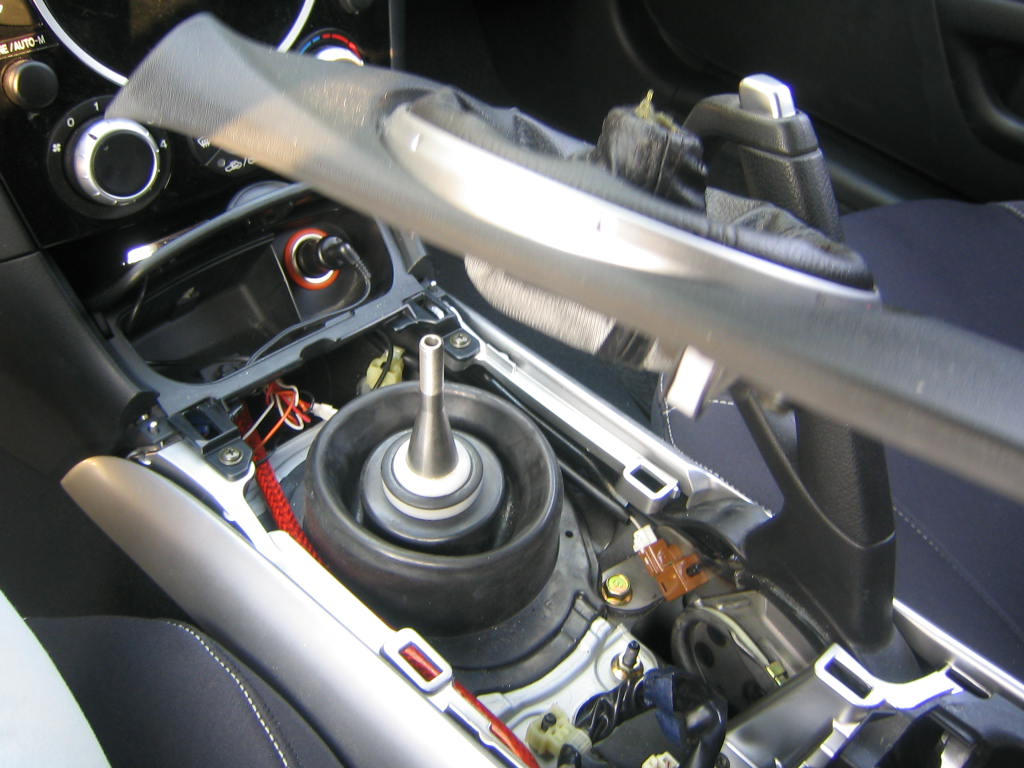

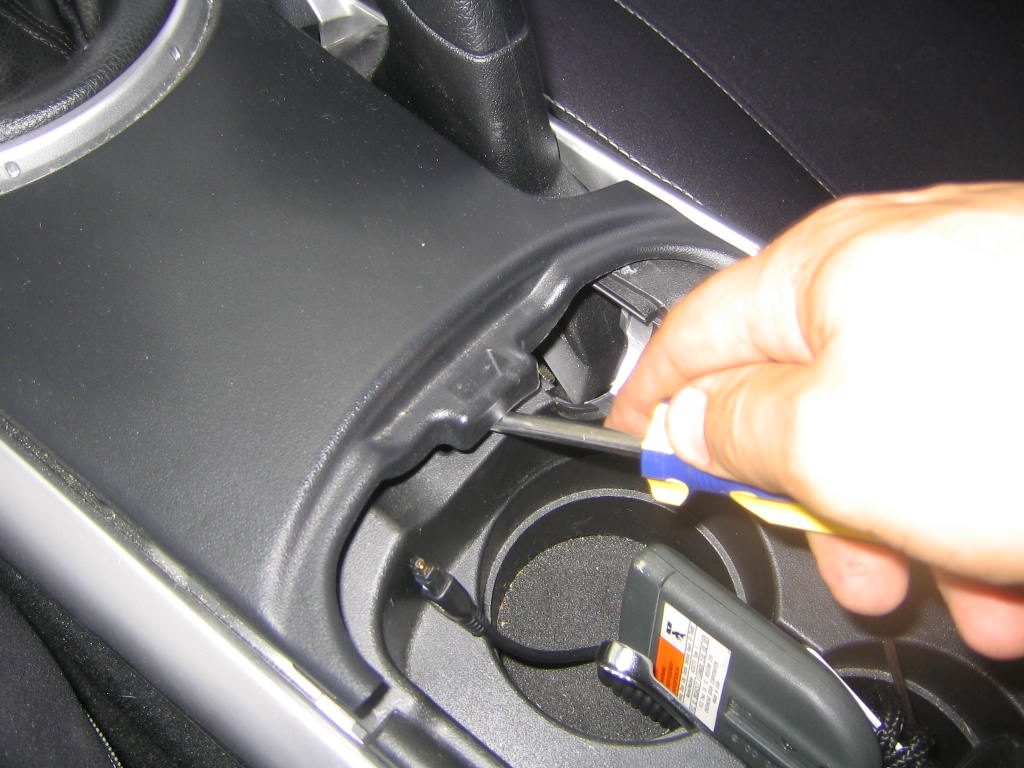

Attached Thumbnails having trouble removing piece aroung the clock...-img_1946.jpg   having trouble removing piece aroung the clock...-img_1947.jpg   having trouble removing piece aroung the clock...-img_1949.jpg   having trouble removing piece aroung the clock...-img_1951.jpg   having trouble removing piece aroung the clock...-img_1952.jpg

Old 05-16-2005, 10:41 PM
  #6
Ex- member.

adrian-1's Avatar

Join Date: Jan 2004
Location: Austin, TX
Posts: 1,694
Likes: 0
Received 1 Like on 1 Post
Yeah, that hidden bolt is hard to get to. It's 10mm and tricky to get to.

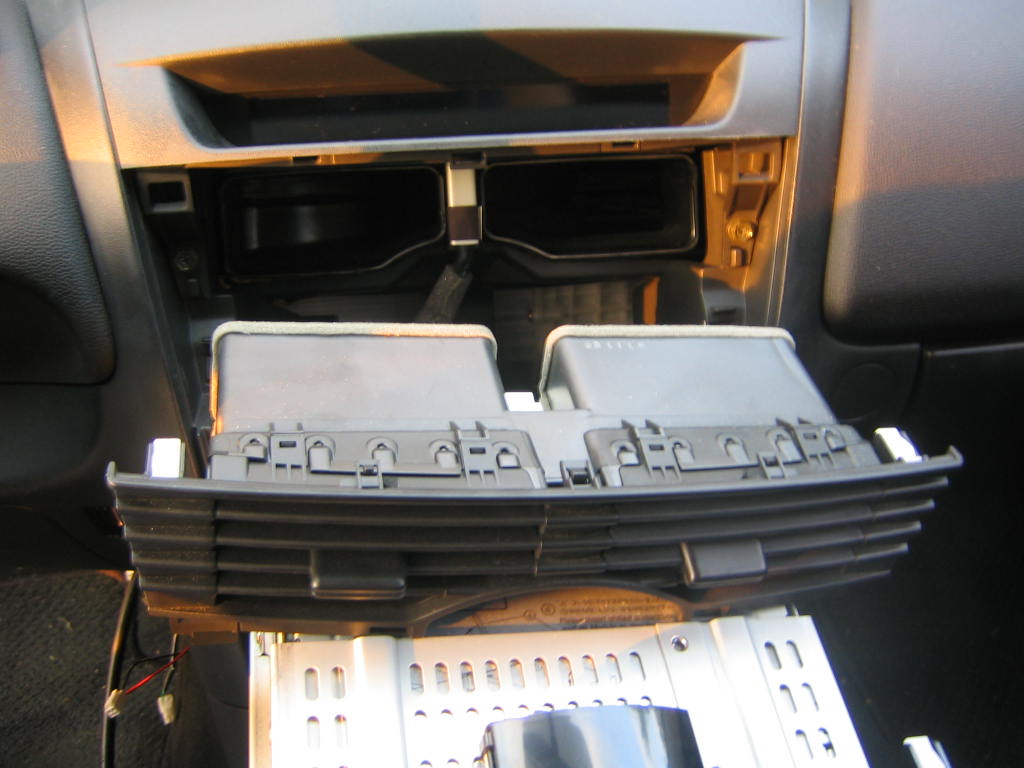

Attached Thumbnails having trouble removing piece aroung the clock...-img_1955.jpg   having trouble removing piece aroung the clock...-img_1957.jpg   having trouble removing piece aroung the clock...-img_1958.jpg   having trouble removing piece aroung the clock...-img_1959.jpg   having trouble removing piece aroung the clock...-img_1960.jpg

Old 05-16-2005, 10:42 PM
  #7
Ex- member.

adrian-1's Avatar

Join Date: Jan 2004
Location: Austin, TX
Posts: 1,694
Likes: 0
Received 1 Like on 1 Post
few more

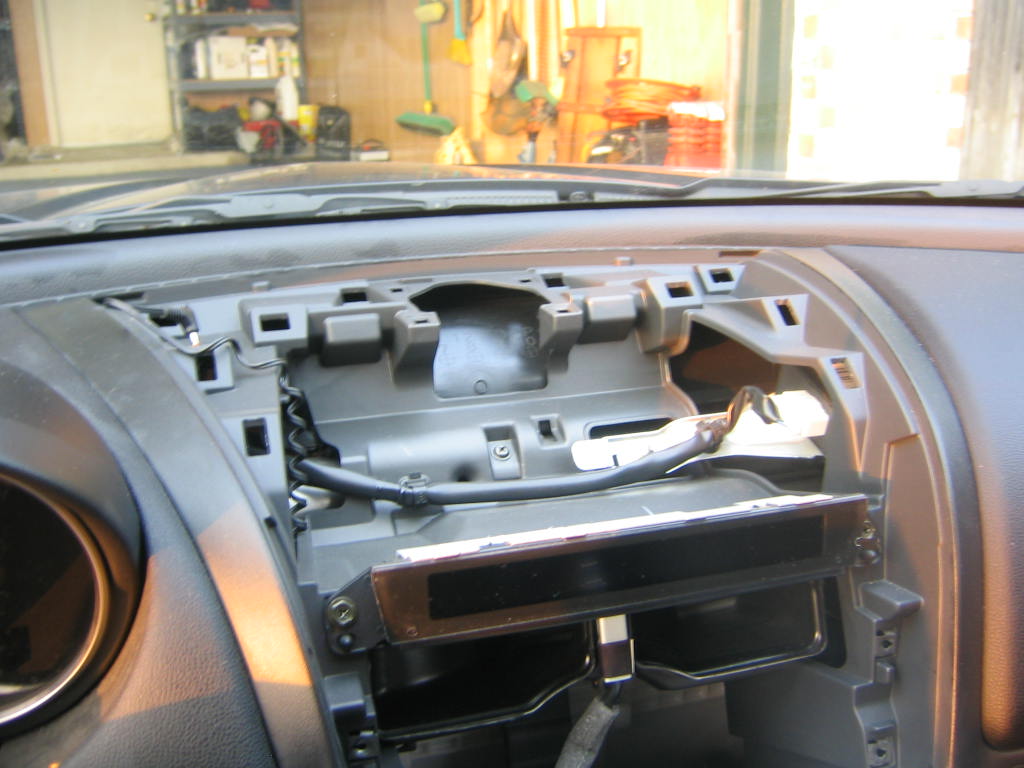

Attached Thumbnails having trouble removing piece aroung the clock...-img_1962.jpg   having trouble removing piece aroung the clock...-img_2057.jpg
Old 05-16-2005, 11:01 PM
  #8
Banned

jaehyun127's Avatar

Join Date: Apr 2004
Location: New York
Posts: 299
Likes: 0
Received 0 Likes on 0 Posts
adrian, u just saved my day... i was JUST looking for this... awesome!
Old 05-16-2005, 11:04 PM
  #9
Registered

rkostolni's Avatar

Join Date: Aug 2004
Location: Virginia/Maryland
Posts: 1,294
Likes: 0
Received 0 Likes on 0 Posts
What is the single guage pod you have mounted on the Apillar?
Old 05-18-2005, 02:27 PM
  #10
Registered User
Thread Starter

projectcar's Avatar

Join Date: Apr 2005
Location: boston
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
thankyou

all this info was great.. im not doing it myself.. but went to the garage today and showed them this thread... and they're doing as i type this..
so thankyou
-j
Old 05-18-2005, 03:55 PM
  #11
Ex- member.

adrian-1's Avatar

Join Date: Jan 2004
Location: Austin, TX
Posts: 1,694
Likes: 0
Received 1 Like on 1 Post
Originally Posted by rkostolni
What is the single guage pod you have mounted on the Apillar?
Defi BF boost gauge w/ warning led for the greddy turbo.

Originally Posted by projectcar
all this info was great.. im not doing it myself.. but went to the garage today and showed them this thread... and they're doing as i type this..
so thankyou
-j
Cool, I'd like to see how your pod turns out.

Last edited by adrian-1; 05-18-2005 at 03:58 PM.
Old 05-18-2005, 06:59 PM
  #12
Registered Tracker

BlueRenesis82's Avatar

Join Date: Feb 2004
Location: Chicago
Posts: 3,295
Likes: 0
Received 0 Likes on 0 Posts
Adrian-1, where did you get your gauge pod from? I've been waiting on the PTP one, but it's been like 6 months and nothing. Any input?
Old 05-18-2005, 07:47 PM
  #13
Ex- member.

adrian-1's Avatar

Join Date: Jan 2004
Location: Austin, TX
Posts: 1,694
Likes: 0
Received 1 Like on 1 Post
Check this thread.
Old 05-20-2005, 08:08 AM
  #14
Registered User
Thread Starter

projectcar's Avatar

Join Date: Apr 2005
Location: boston
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
in process...

it's off, mounted, now waiting for fiberglass to be set.. ill post pictures when complete.. thanks again..

o... could someone tell me what the neo ion is please.. i saw a couple of threads about it and still dont know what it is
Old 05-20-2005, 08:40 AM
  #15
Registered

hotpot's Avatar

Join Date: Oct 2003
Location: Tropical Island, Indian Ocean
Posts: 573
Likes: 0
Received 0 Likes on 0 Posts
Neo Ion connects your ipod to your car audio system.
