V-Led upgrade Brake and Signal Lights
I just picked up these from V-led- brake and front and rear signals. I'm running the conversion lights from rx-strakes at the moment. IMO they aren't up to par (not bright enough) I'll be taking pictures before and after once the new V-leds are installed. Stay tuned...
V-led light Specs:

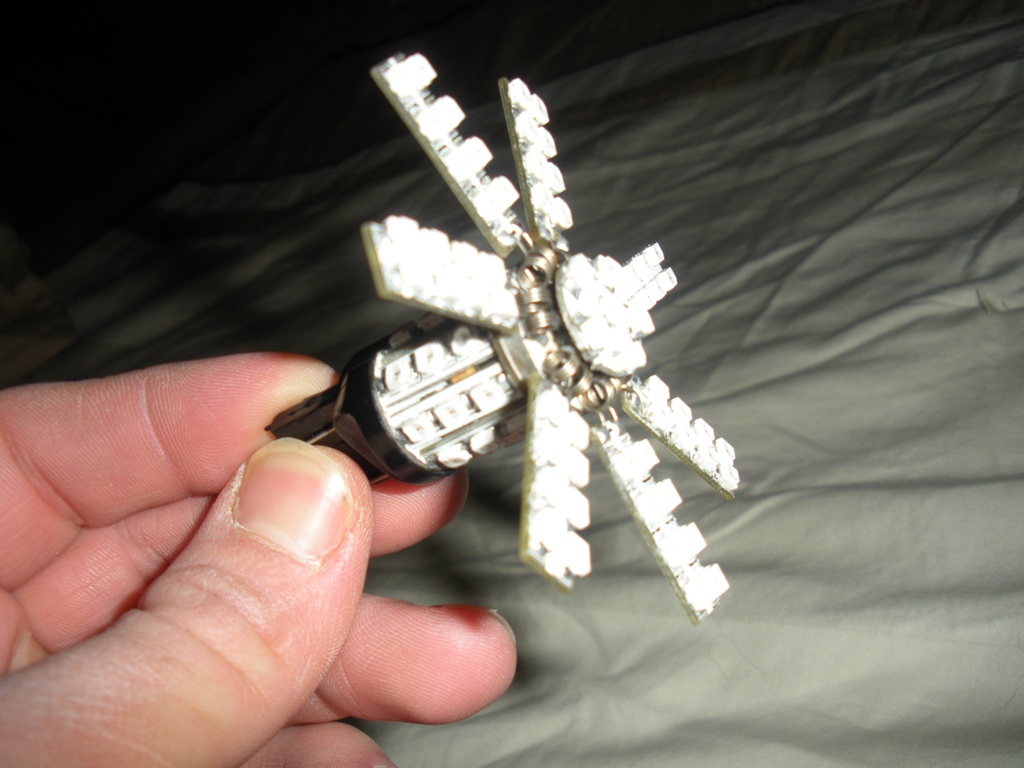

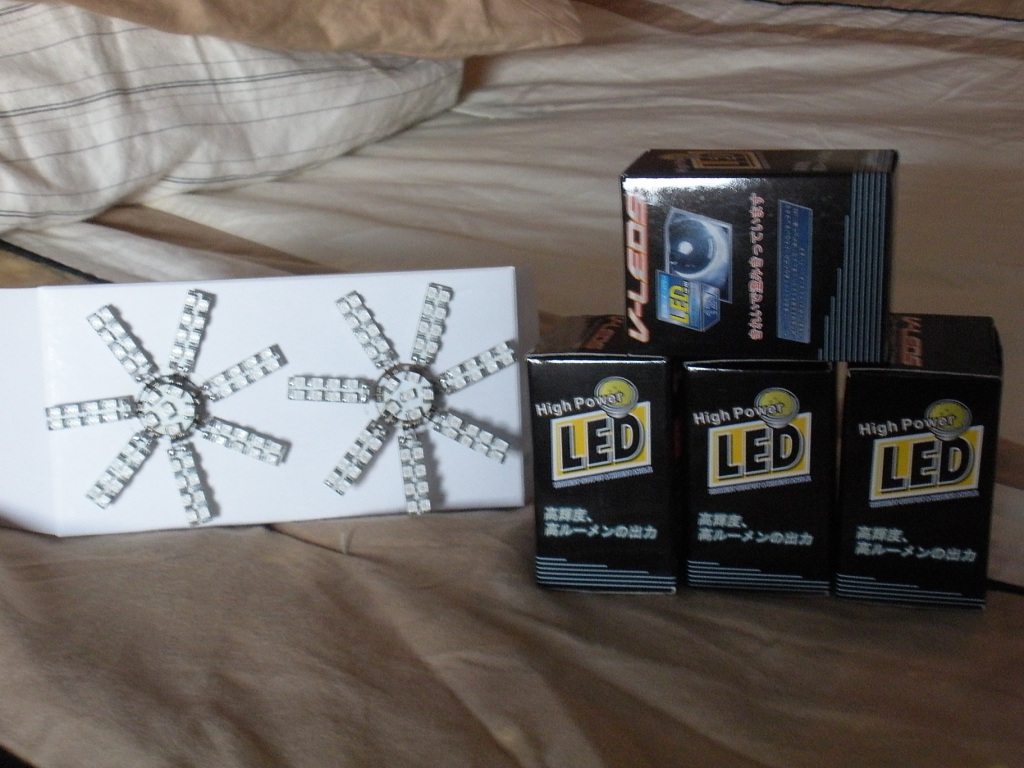

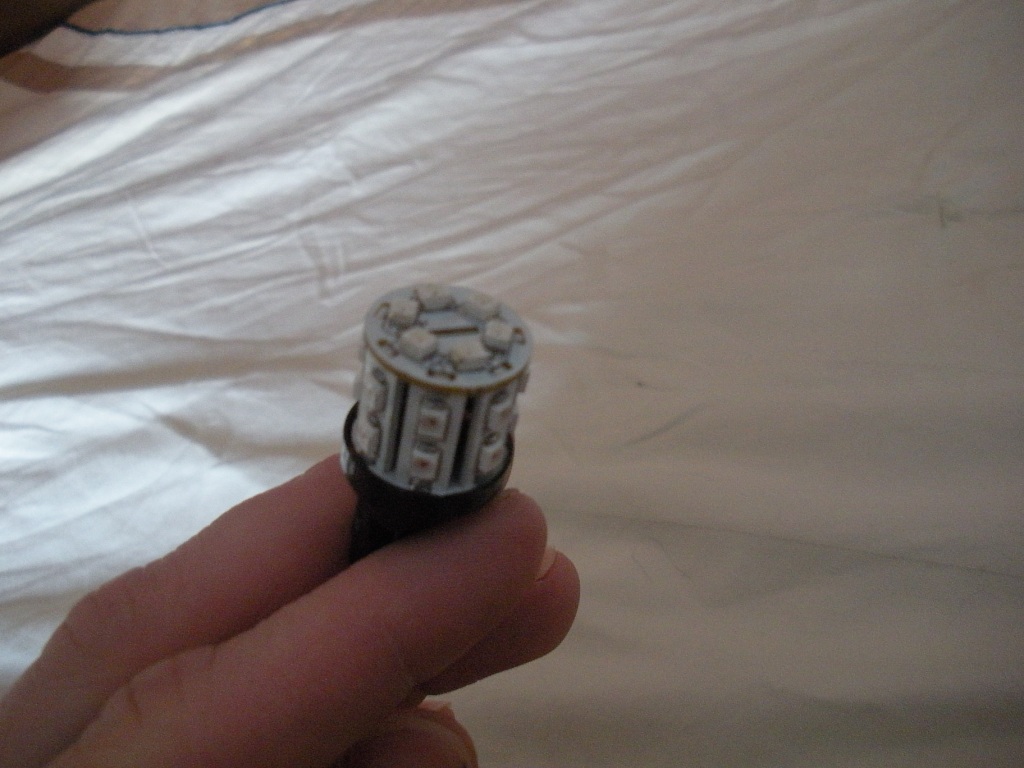

2- Vled vstars (Red) bulbs part# 7443 7440
4- Vled 7w 20LED High power (amber) signals part#7440
V-led light Specs:
2- Vled vstars (Red) bulbs part# 7443 7440
4- Vled 7w 20LED High power (amber) signals part#7440
Last edited by Pico; 03-20-2009 at 07:58 AM.
03-20-2009, 01:48 PM
#3
Administrator
iTrader: (7)
Pico: very cool
Your turn singals are going to blink much faster with the LED's though.
Your turn singals are going to blink much faster with the LED's though.
03-20-2009, 03:10 PM
#6
Administrator
iTrader: (7)
03-20-2009, 03:32 PM
#7
It's Complicated
Thread Starter
iTrader: (2)
Join Date: Feb 2008
Location: Dirty Jerz
Posts: 1,780
Likes: 0
Received 0 Likes
on
0 Posts
I got the resistors from the rx-strake setup plus i bought new ones from vled that yield a higher load. I should have mention that in my first post, my fault fellas. ?More pics to come hopefully this weekend if I get them installed.
03-21-2009, 10:47 PM
#10
It's Complicated
Thread Starter
iTrader: (2)
Join Date: Feb 2008
Location: Dirty Jerz
Posts: 1,780
Likes: 0
Received 0 Likes
on
0 Posts
Installed
Heres the comparison. 10 times better the the rx-strake setup. very bright. Thanks Mike. Oh, And there is a need for two resistors on the same circuit with using 2 7w bulbs for signals. I have resistors in the trunk already now I need to put them in the front. It going to suck getting to them and removing the front wheel. Thankfully I will have some help tomorrow.

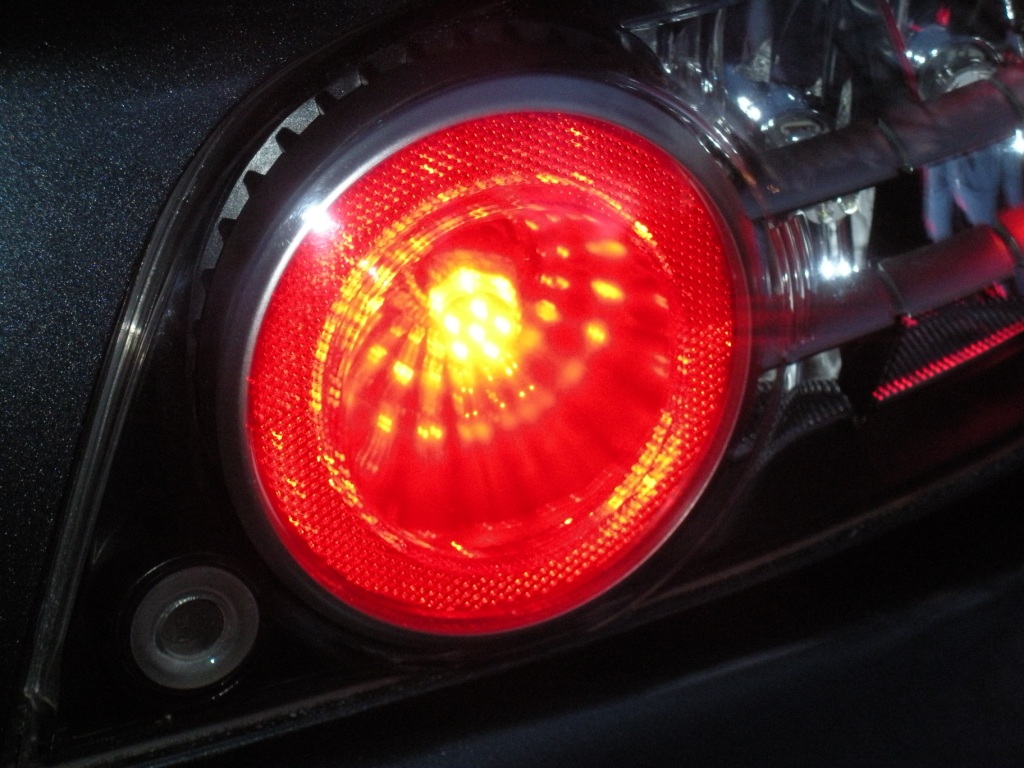

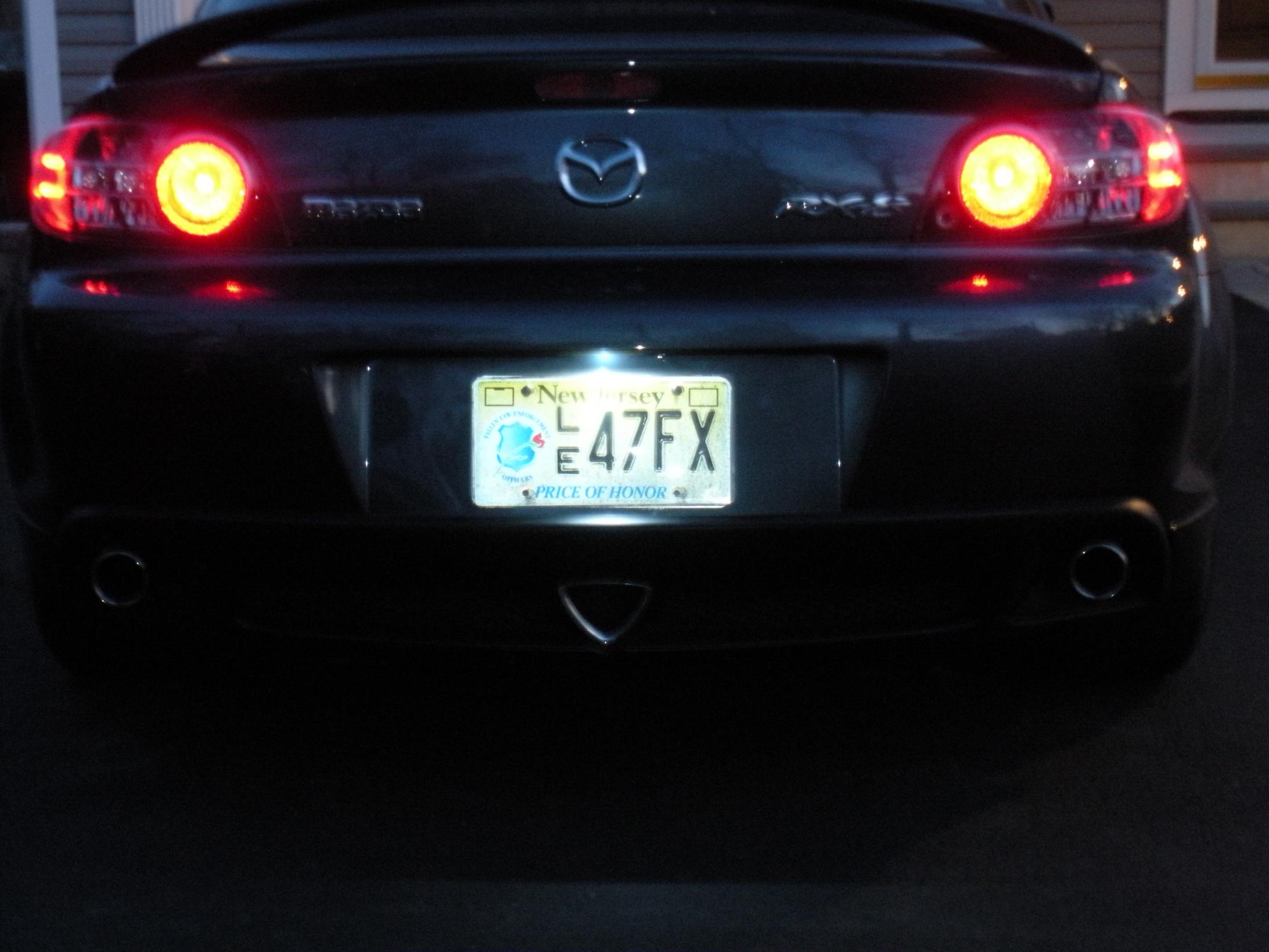

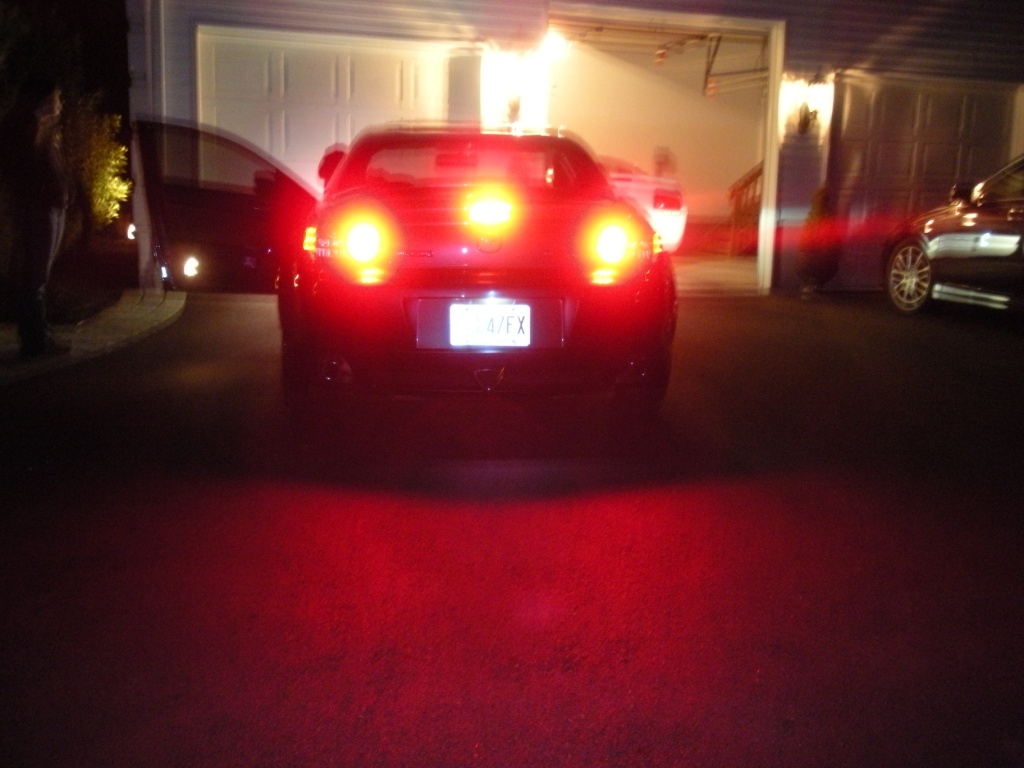

first two pictures are the befores last two and the afters
first two pictures are the befores last two and the afters
Last edited by Pico; 03-22-2009 at 08:28 AM.
03-22-2009, 07:07 AM
#11
Momentum Keeps Me Going
Sorry, but are you doing a comparison in the pics or just showing the new bulbs? You say comparison, but I can't tell or see a dif between pics. Also, in the last pic, how is it you have both amber turn signals on at the same time?
Can you do some turn signal and brake daytime pics? That's when the extra bightness is most useful. At night, almost any LED is bright enough.
Can you do some turn signal and brake daytime pics? That's when the extra bightness is most useful. At night, almost any LED is bright enough.
03-22-2009, 08:15 AM
#12
It's Complicated
Thread Starter
iTrader: (2)
Join Date: Feb 2008
Location: Dirty Jerz
Posts: 1,780
Likes: 0
Received 0 Likes
on
0 Posts

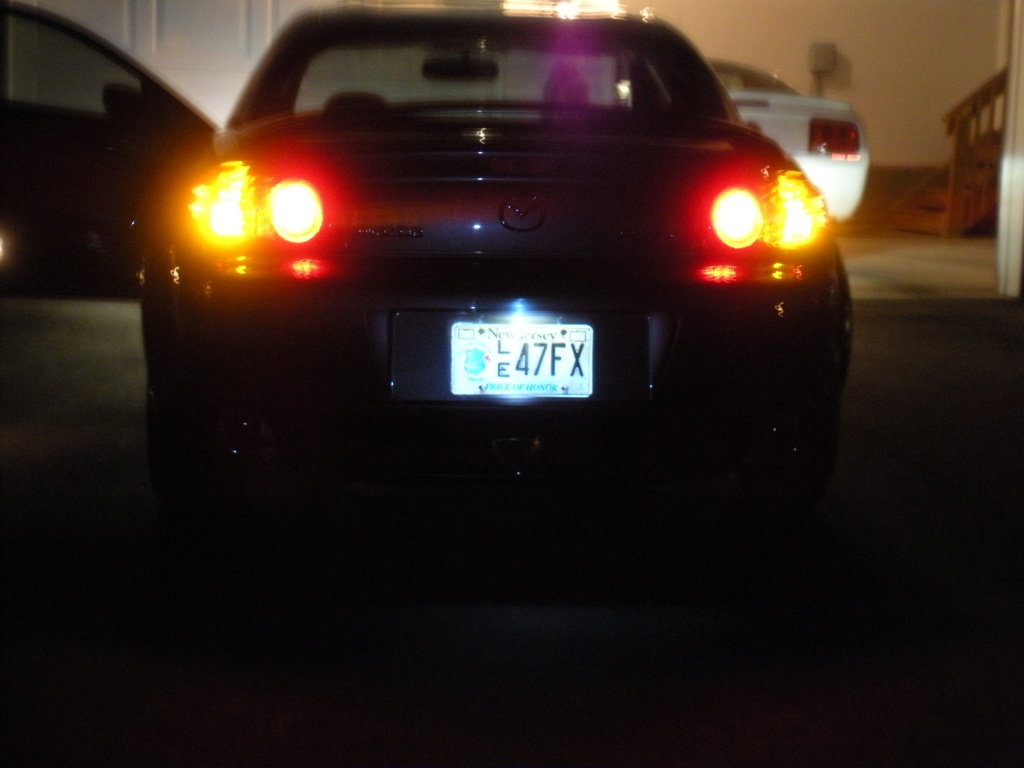

there both on because the Hazard (flasher) are on. And yes I can take more pictures during the day. these were quick pics at 10pm last night. So, give me time and I'll have new pictures posted soon.
now why didn't I think of that?
03-23-2009, 06:36 AM
#17
It's Complicated
Thread Starter
iTrader: (2)
Join Date: Feb 2008
Location: Dirty Jerz
Posts: 1,780
Likes: 0
Received 0 Likes
on
0 Posts
Mike and I worked on it yesterday and tried to put a resistor up in the front right fender and its still hyper blinking. I gotta call vled about the problem today. I works fine without the 7w in the front (no hyper blinking) but when the two 7w signals are install front and rear there's the hyper blinking problem. I already have a resistor in the trunk on both circuits and tried putting another in the front and it didn't fix the problem. We even tried putting a lower watt led in the front to see if that would fix the problem and still it was blinking fast.
03-23-2009, 06:41 AM
#18
Momentum Keeps Me Going
It 'should be' a simple current matching situation. Use an ohmmeter to measure the incandesent bulb current, then match that with the LED and resistor combo in parallel to produce the same draw. Once you have equal current draw all should work as before.
03-23-2009, 06:55 AM
#20
Momentum Keeps Me Going
This is what V-LED says:
Load Resistor Kits: 6 Ohm, 50 Watt resistors can be connected across the turn signal wire to simulate the load of a regular filament bulb (2 Amp load). This will solve LED related turn signal problems such as hyper flashing, no flashing or burnt out bulb indications. One resistor is required for each turn signal bulb. Kit includes two resistors and 4 gel filled moisture resistant splice taps.
But in this case (and in general) I found yoiu can get away with less draw thru the resistor and the flasher will still work ok. A 10 or 12 ohm min 25W resistor (max 1.2A draw) for example might be a good match for the higher current draw of the 7W LEDs as those LEDs take .58 amps all by themselves.
Load Resistor Kits: 6 Ohm, 50 Watt resistors can be connected across the turn signal wire to simulate the load of a regular filament bulb (2 Amp load). This will solve LED related turn signal problems such as hyper flashing, no flashing or burnt out bulb indications. One resistor is required for each turn signal bulb. Kit includes two resistors and 4 gel filled moisture resistant splice taps.
But in this case (and in general) I found yoiu can get away with less draw thru the resistor and the flasher will still work ok. A 10 or 12 ohm min 25W resistor (max 1.2A draw) for example might be a good match for the higher current draw of the 7W LEDs as those LEDs take .58 amps all by themselves.
03-23-2009, 07:03 AM
#21
It's Complicated
Thread Starter
iTrader: (2)
Join Date: Feb 2008
Location: Dirty Jerz
Posts: 1,780
Likes: 0
Received 0 Likes
on
0 Posts
Hmmmmmmmmmmm... I'm currently running 2 50watt 6ohm in the trunk causing the hyper flashing. I bought 50watt 3 ohm from Vled and install one in the front right and still had the problem.. I guess I'll have to see what type juice is getting pulled through that circuit.
03-23-2009, 07:08 AM
#22
Momentum Keeps Me Going
parallel ties ends together and connect to circuit
__led___
__res___
series ties LEd and res together and tie into circuit
__led___ __res___
.
.
.
.
.
03-23-2009, 07:16 AM
#23
It's Complicated
Thread Starter
iTrader: (2)
Join Date: Feb 2008
Location: Dirty Jerz
Posts: 1,780
Likes: 0
Received 0 Likes
on
0 Posts
the 3 ohm resistor was removed . just running the 6ohm in the trunk. We you say parallel and series what are you referring to? + /- connection?
03-23-2009, 07:34 AM
#24
Momentum Keeps Me Going
...oh dear... series means you connect one LED lead and one resistor lead together. Then the remaining lead of the resistor and the remaining lead of the LED connect to the circuit using the correct polarity. This IS NOT what you want to do here in this situation!
parallel means you connect the two leads of the resistor to the two leads of the LED and then connect those ends to the circuit using the correct polarity.
parallel means you connect the two leads of the resistor to the two leads of the LED and then connect those ends to the circuit using the correct polarity.
