Hid Help
Alright... I researched all night and found out most of the info I need. But I still have one unanswered question.... What is the difference between the 35w kit and the 55w kit? Can pick either one you want, is one brighter than the other?
http://www.therpmstore.com/product_i...roducts_id=744
http://www.therpmstore.com/product_i...products_id=38
also... I want a blue looking light but I don't want to lose too much vision which bulb would be the best to go with? I was thinking the 6000k but if i get the 55w kit it says violet hue and the 35w kit says white with blue hue...
thanks for the help
Adam
http://www.therpmstore.com/product_i...roducts_id=744
http://www.therpmstore.com/product_i...products_id=38
also... I want a blue looking light but I don't want to lose too much vision which bulb would be the best to go with? I was thinking the 6000k but if i get the 55w kit it says violet hue and the 35w kit says white with blue hue...
thanks for the help
Adam
#3
Hoarder of RPF1's
Join Date: Aug 2007
Location: Duluth, GA
Posts: 206
Likes: 0
Received 0 Likes
on
0 Posts
I went with the 4500k 35w. Mine is pure white with no tint whatsoever. I just wanted the most usable light, didn't care about looks. I don't trust the 55w kit for some reason.
#4
Registered User
Thread Starter
Join Date: Dec 2008
Location: Spring Hill, FL
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
thanks to both of you.... i know what i will be ordering now.... the 35w 6000k... hopefully my girlfriend will get them for me for christmas
thanks again
thanks again
#7
Finally a MT
iTrader: (11)
The install is pretty easy. Also in the wheel well there is a good spot to hide the little Ballasts.. the easy way to do this set up is take the front wheels off and the iner wheel well. it seems like a lot and you could do it just by turning your wheels but it is a lot easier and you get a better shot at it with the wheels off... If you need any help.. feel free to ask
#8
Hi guys! My name is Tony.
Join Date: May 2008
Location: San Francisco Bay Area 94542, USA. Earth. Solar System. Milky Way
Posts: 490
Likes: 0
Received 0 Likes
on
0 Posts

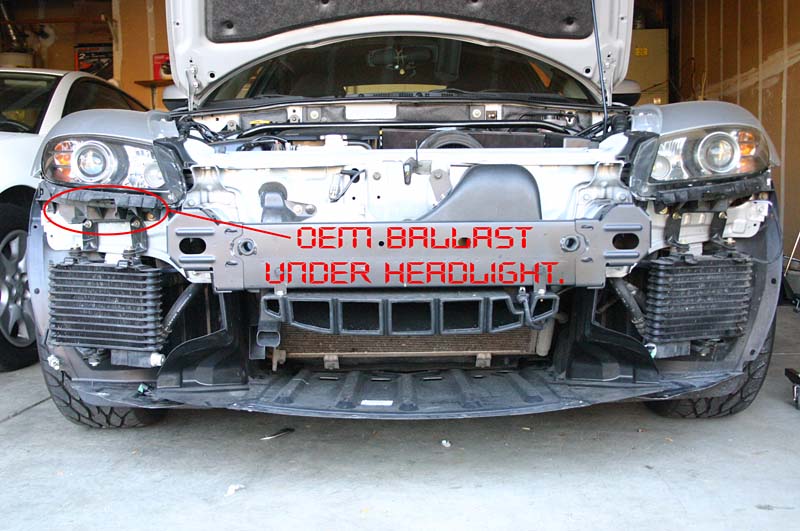

Plenty space to hide your ballast.
8 with factory HID hide its ballast under headlight.
The surface there is flat, very easy to install.
However, you need to remove front bumper to access that.
OR.... you can place ballast behind oil radiators. Just remove couples clip & wheel liner. You dont need to remove front nose to access this. Check your 8 manual for changing headlight light bulb. It
What I have.

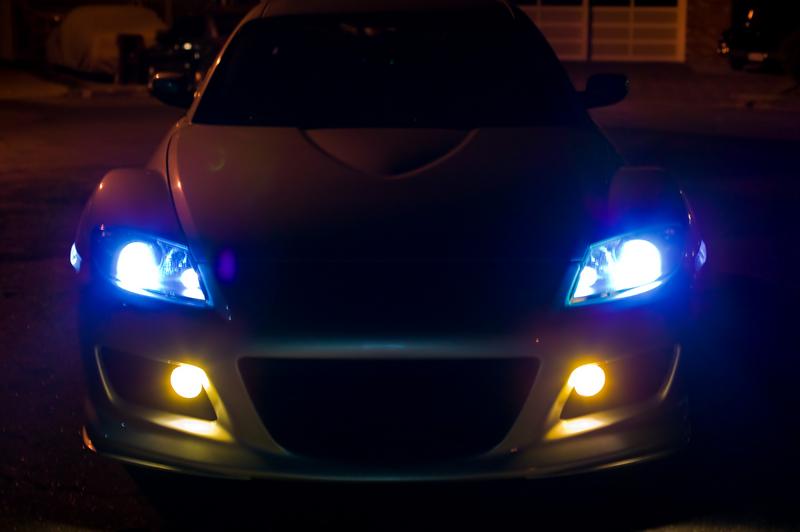

Front - 8000k HID + 8000k LEDs, Europe spec fog light (yellow output + blue tint daytime) (currently having a problem https://www.rx8club.com/series-i-trouble-shooting-95/oem-fog-light-fog-up-161524/)
8 with factory HID hide its ballast under headlight.
The surface there is flat, very easy to install.
However, you need to remove front bumper to access that.
OR.... you can place ballast behind oil radiators. Just remove couples clip & wheel liner. You dont need to remove front nose to access this. Check your 8 manual for changing headlight light bulb. It
What I have.
Front - 8000k HID + 8000k LEDs, Europe spec fog light (yellow output + blue tint daytime) (currently having a problem https://www.rx8club.com/series-i-trouble-shooting-95/oem-fog-light-fog-up-161524/)
#9
Hoarder of RPF1's
Join Date: Aug 2007
Location: Duluth, GA
Posts: 206
Likes: 0
Received 0 Likes
on
0 Posts
I installed them underneath the headlights. Honestly it's easiest to just take the bumper off. Gives you a lot lot more room to work with and it really only takes 15min to take off the bumper.
#11
Registered User
Thread Starter
Join Date: Dec 2008
Location: Spring Hill, FL
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
where did you get the led's to do that... did you wire them in with the headlights or seperate?
Plenty space to hide your ballast.
8 with factory HID hide its ballast under headlight.
The surface there is flat, very easy to install.
However, you need to remove front bumper to access that.
OR.... you can place ballast behind oil radiators. Just remove couples clip & wheel liner. You dont need to remove front nose to access this. Check your 8 manual for changing headlight light bulb. It
What I have.
Front - 8000k HID + 8000k LEDs, Europe spec fog light (yellow output + blue tint daytime) (currently having a problem https://www.rx8club.com/showthread.php?t=161524)
8 with factory HID hide its ballast under headlight.
The surface there is flat, very easy to install.
However, you need to remove front bumper to access that.
OR.... you can place ballast behind oil radiators. Just remove couples clip & wheel liner. You dont need to remove front nose to access this. Check your 8 manual for changing headlight light bulb. It
What I have.
Front - 8000k HID + 8000k LEDs, Europe spec fog light (yellow output + blue tint daytime) (currently having a problem https://www.rx8club.com/showthread.php?t=161524)
#12
Registered User
Thread Starter
Join Date: Dec 2008
Location: Spring Hill, FL
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
also thanks for everyones help..... also.... no owners manual for me car didn't have it in there when i bought it
Peppy@kacework:
how did you mount the ballast under the headlights... is there enough space that the headlight still fits flush? doesnt the ballast let off heat? if so could it melt the headlights or hurt them?
thanks again
Peppy@kacework:
how did you mount the ballast under the headlights... is there enough space that the headlight still fits flush? doesnt the ballast let off heat? if so could it melt the headlights or hurt them?
thanks again
Last edited by bowski05; 12-16-2008 at 10:36 AM.
#13
Stop Looking @ my Rotary!
Join Date: Sep 2006
Location: Tracy, Ca
Posts: 383
Likes: 0
Received 0 Likes
on
0 Posts
^^ I mounted the ballast for my Mazda behind the oil coolers near the wheel well. that way the air will cool it off too....I had my HID kit for 2 years, No issue. No water on them. Just my two cents
#16
Hi guys! My name is Tony.
Join Date: May 2008
Location: San Francisco Bay Area 94542, USA. Earth. Solar System. Milky Way
Posts: 490
Likes: 0
Received 0 Likes
on
0 Posts
#17
Registered User
Thread Starter
Join Date: Dec 2008
Location: Spring Hill, FL
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
parking lights... which ones should I buy?
side markers too.... are resistors needed for any of them? probably not since they wouldnt be blinking i think :/
side markers too.... are resistors needed for any of them? probably not since they wouldnt be blinking i think :/
#18
Hi guys! My name is Tony.
Join Date: May 2008
Location: San Francisco Bay Area 94542, USA. Earth. Solar System. Milky Way
Posts: 490
Likes: 0
Received 0 Likes
on
0 Posts
The brighter, the better. Also cost more.
SMT leds tend to be brighter.
For parking light: any 194 led will fit. (except spider led)
Side market: led must be equal or smaller than incandescent light bulb. Longer than usual bulb it will hit reflector housing.
Resistor not required.
People like V-Leds.com but I prefer Autolumination.com better since it give me size of each led.
I bought from V-Leds.com once and it does not fit my housing.
SMT leds tend to be brighter.
For parking light: any 194 led will fit. (except spider led)
Side market: led must be equal or smaller than incandescent light bulb. Longer than usual bulb it will hit reflector housing.
Resistor not required.
People like V-Leds.com but I prefer Autolumination.com better since it give me size of each led.
I bought from V-Leds.com once and it does not fit my housing.
#20
Hoarder of RPF1's
Join Date: Aug 2007
Location: Duluth, GA
Posts: 206
Likes: 0
Received 0 Likes
on
0 Posts
I just used the double sided tape that came with the kit and I had some extra double sided tape. I positioned the ballasts so that there is plenty of room underneath the headlight and they sit flush. I'm not worried about heat, you don't see stock HID's melting all the time do you? I'd be too afraid that qwater would get to the ballasts if you mounted them behind the oil coolers, but that's just me. If you do a quick search on HID kits, there is a pdf someone posted on how to remove the front bumper, it's super easy.
also thanks for everyones help..... also.... no owners manual for me car didn't have it in there when i bought it
Peppy@kacework:
how did you mount the ballast under the headlights... is there enough space that the headlight still fits flush? doesnt the ballast let off heat? if so could it melt the headlights or hurt them?
thanks again
Peppy@kacework:
how did you mount the ballast under the headlights... is there enough space that the headlight still fits flush? doesnt the ballast let off heat? if so could it melt the headlights or hurt them?
thanks again
#21
Registered User
Thread Starter
Join Date: Dec 2008
Location: Spring Hill, FL
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts

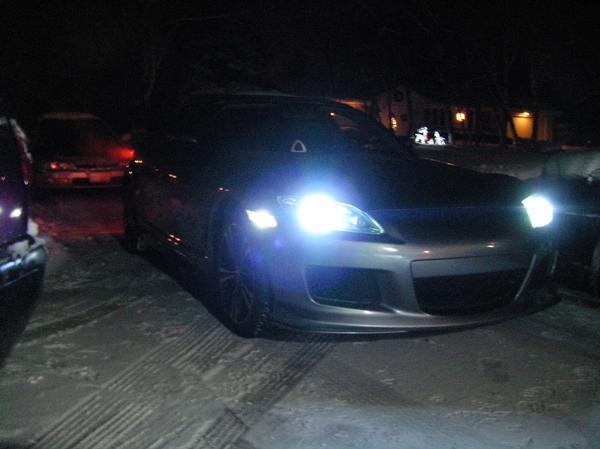

alright... thanks for everyones help... i will be posting pics shortly... i got too excited and never took a before picture so all i have is the picture of the car with the HIDs no DIY either since I just went through the wheel well to install.....
pics soon!
If someone could suggest a nice fog light kit that would be great... looking for anything.... probably gonna do an HID fog light more then lightly with yellow HIDs or Possibly the 10,000k blue... not too sure yet
pics soon!
If someone could suggest a nice fog light kit that would be great... looking for anything.... probably gonna do an HID fog light more then lightly with yellow HIDs or Possibly the 10,000k blue... not too sure yet
Last edited by bowski05; 12-18-2008 at 11:23 PM.
#22
Registered User
Thread Starter
Join Date: Dec 2008
Location: Spring Hill, FL
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
First, I am going to start you all off with a little background on the car and a couple day time pics.... then i will let you see my crappy camera phone pictures of the HIDs
2004 Mazda RX8
53,000 miles
bought 3 weeks ago
no mods everything stock (except new HIDs obviously)
thats about it
Sorry about the big pictures
NOW FOR THE HIDs
2004 Mazda RX8
53,000 miles
bought 3 weeks ago
no mods everything stock (except new HIDs obviously)
thats about it
Sorry about the big pictures
NOW FOR THE HIDs
#25
Registered User
Thread Starter
Join Date: Dec 2008
Location: Spring Hill, FL
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
im gonna order the clear side markers and leds from rx8strakes after christmas..... also the LEDs for the front parking lights aswell.... im also thinking about doing a set of HID fog lights with 3000k lights so they will have a yellow tint.... what do you guys think?
