Fender Grill Lights DIY
04-18-2009, 02:36 PM
#26
You could always use a strip of amber LEDs to make it a turn signal. I don't know the legality of it, but I would think you'd be a lot less likely to get in trouble for amber LEDs I would think. Realistically, I think it'd almost make the vehicle safer by making your blinkers more visible.
04-19-2009, 08:23 AM
#29
Rotary wanabee
iTrader: (1)
Join Date: Jul 2007
Location: Long Island, NY
Posts: 1,978
Likes: 0
Received 0 Likes
on
0 Posts
I was never a fan of rear lighting ... I believe now I am... I think i would prefer a more subtle look thought.... perhaps either a diffuser or spaced out light strip with a shinny metal reflector.
love the tin foil idea!
love the tin foil idea!
04-19-2009, 07:49 PM
#30
Proud lurker since 2005
Join Date: Apr 2008
Location: Trois-Rivieres, Canada
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Very nice mod and clearly explained!
One cool thing to try (and probably one sure way to get a ticket) would be to find some way to make red and orange leds flicker randomely in the vents, kind of like the engine was overheating or something. Man! the look on people's face would be priceless!
One cool thing to try (and probably one sure way to get a ticket) would be to find some way to make red and orange leds flicker randomely in the vents, kind of like the engine was overheating or something. Man! the look on people's face would be priceless!
08-10-2009, 04:06 PM
#34
The Black Pearl
iTrader: (2)
Join Date: Jan 2009
Location: Houston, Texas
Posts: 212
Likes: 0
Received 0 Likes
on
0 Posts
where do you find plastic pieces like that. I want to try this with my own twists on wiring, but I cant think of where to look for the plastic backing? Looks good btw.
08-10-2009, 08:34 PM
#36
Call me ROTO BAGGINS
iTrader: (1)
Join Date: Apr 2008
Location: The big OH yeah! (Cincinnati, OH)
Posts: 462
Likes: 0
Received 0 Likes
on
0 Posts
In regards to the plastic pieces, I am probably going to try using halved PVC pipe for mine. It seems like it'd be easy to get the reflectivity I want with a round housing. As for the reflective material though, I wonder if foil would be prone to corrosion. In another thread, mylar film was suggested. I just have to take some time wandering the Home Depot to see what's out there. I do really want to try to pull this off with a blinking amber strip though, I think it'd really pop.
09-23-2009, 06:22 PM
#47

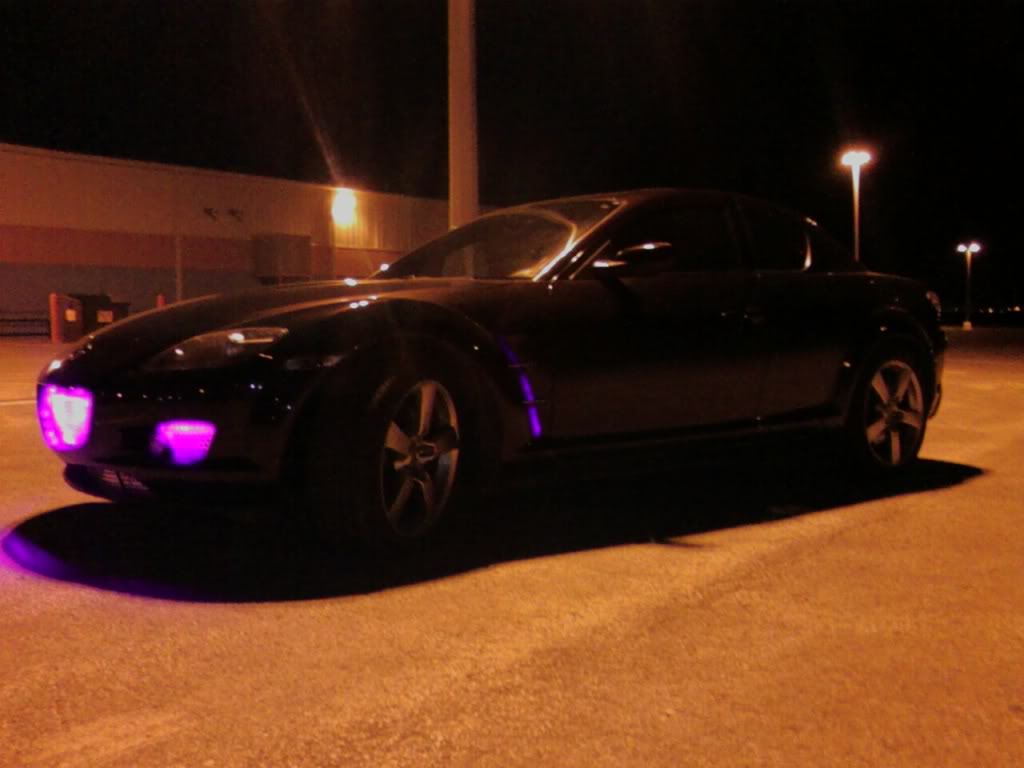

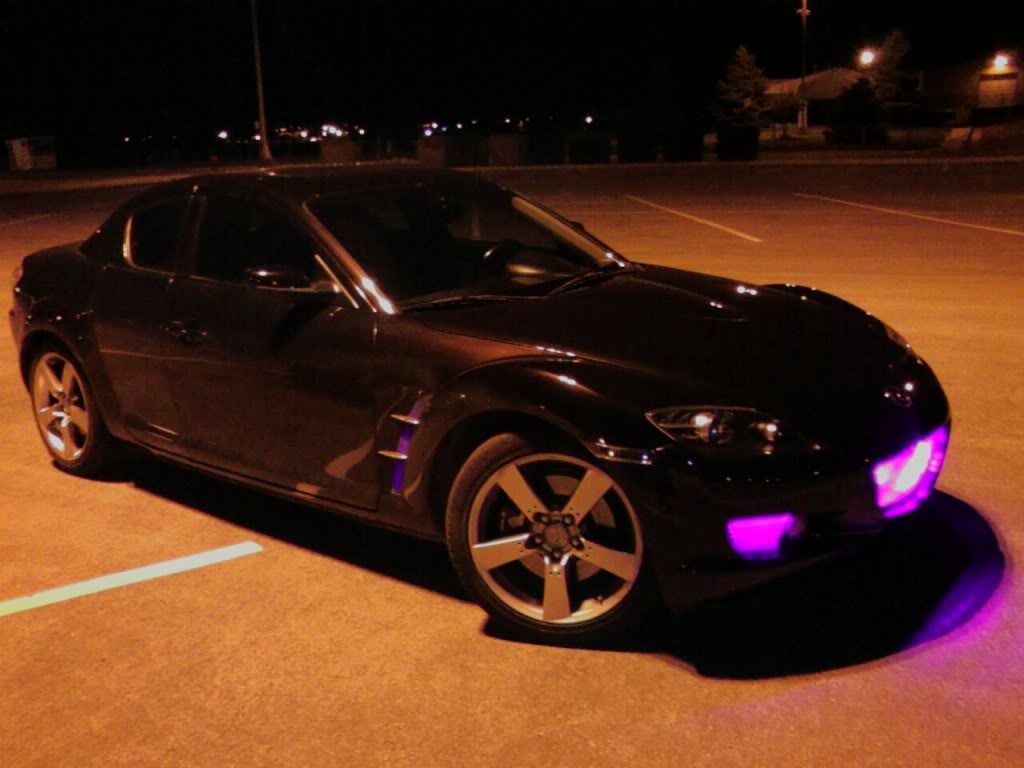

Dam nice write up man! very easy to follow. I did it this past weekend and added a few touches of my own. (Sorry for the shitty pictures, my digital camera decided to kill itself in the middle of the project)

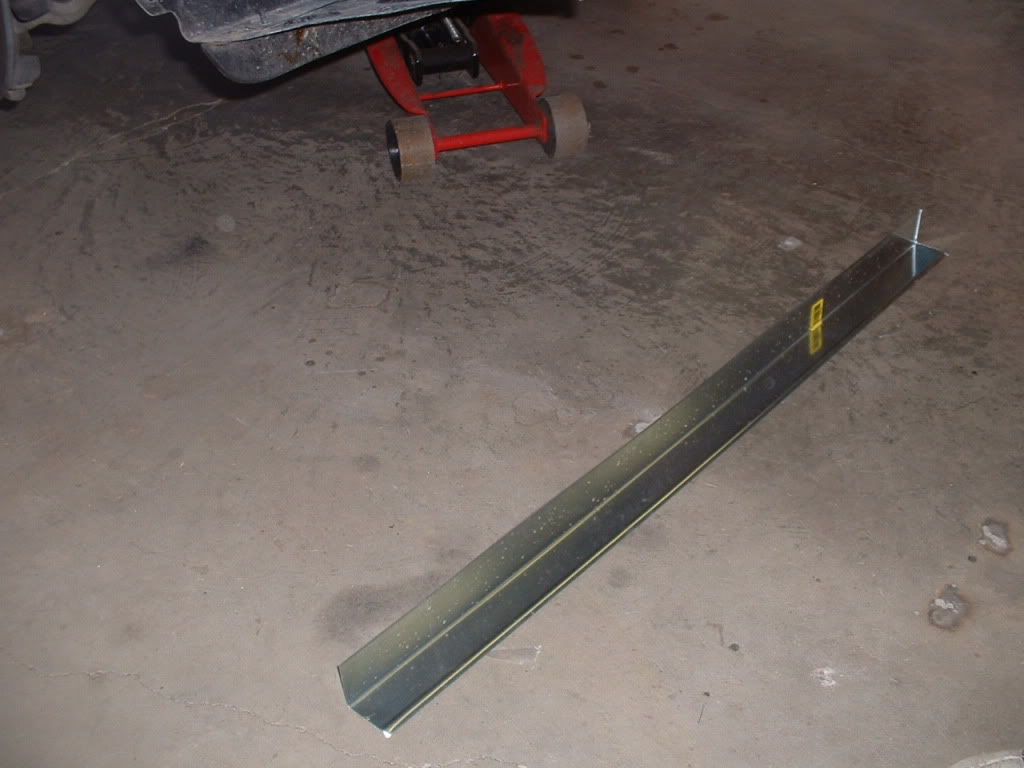

I used some angle sheet metal from Home Depot that's used for skirting/siding on houses, you can get 12 foot of it for about $4

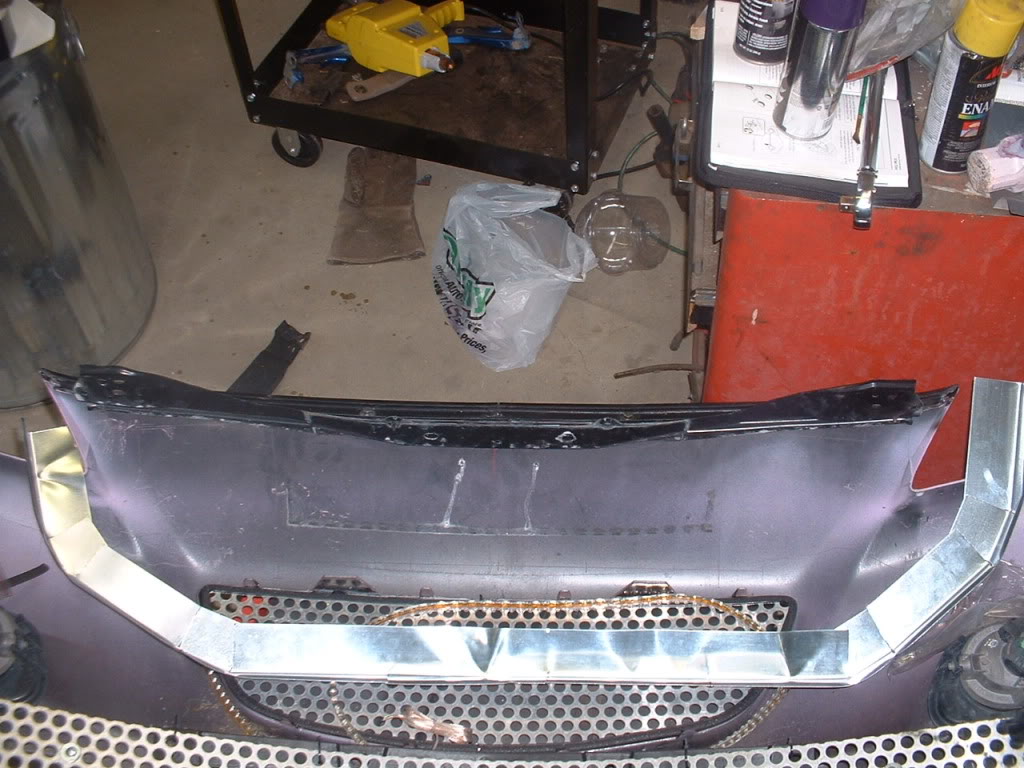

Then I cut it only on ONE side and bent the uncut side and formed it to the shape of the grill

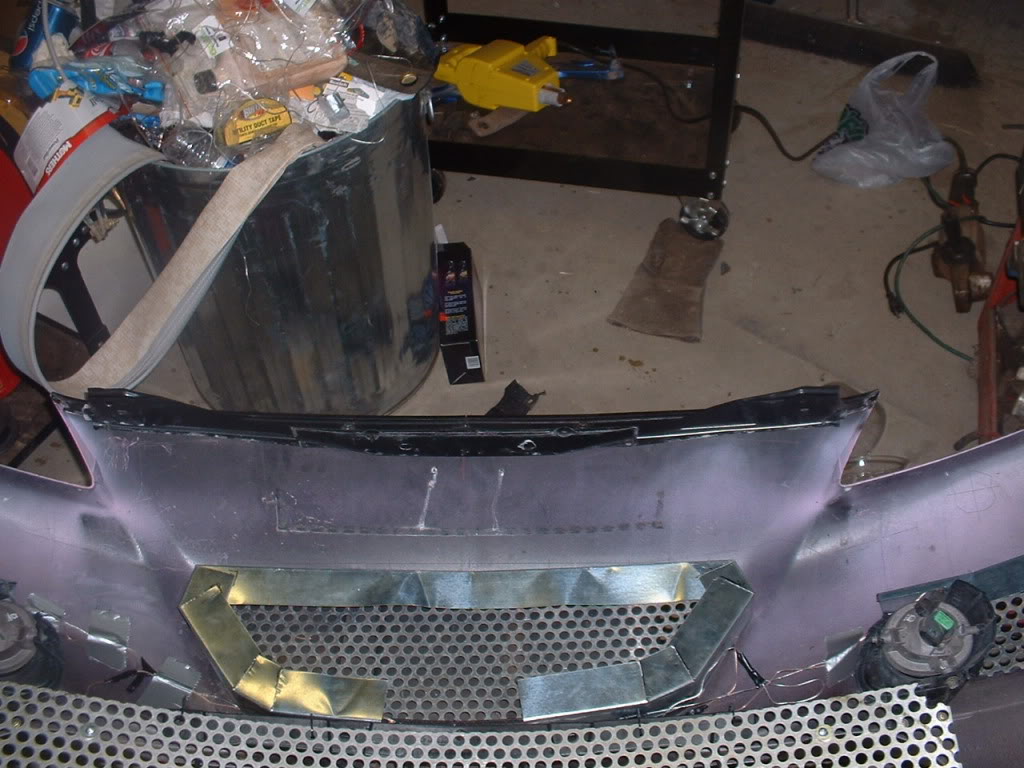

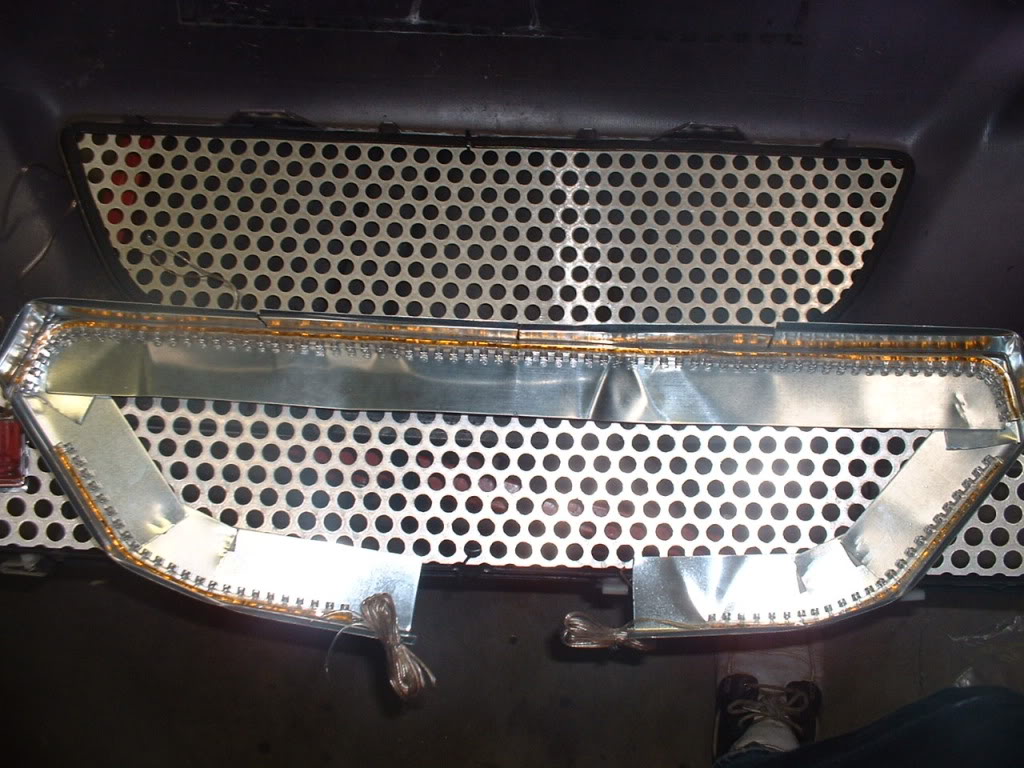

I then shaped the metal snugly around the grill so i could get placement right for the LED's, then 3m taped them to the sheet metal
Then I installed the sheet metal using 3m tape and wired it in. I used some wire connectors on the bumper side and on the wires running from the car then taped the car wires to my foglight connector (So I could just disconnect the wires going from the car to the bumper the same as the foglights)
Now I'm just trying to find some UV demon eyes to add into the mix.
I used some angle sheet metal from Home Depot that's used for skirting/siding on houses, you can get 12 foot of it for about $4
Then I cut it only on ONE side and bent the uncut side and formed it to the shape of the grill
I then shaped the metal snugly around the grill so i could get placement right for the LED's, then 3m taped them to the sheet metal
Then I installed the sheet metal using 3m tape and wired it in. I used some wire connectors on the bumper side and on the wires running from the car then taped the car wires to my foglight connector (So I could just disconnect the wires going from the car to the bumper the same as the foglights)
Now I'm just trying to find some UV demon eyes to add into the mix.
