So, you want to be a tuner? Look no further. - Page 18

Sep 21, 2021 | 08:41 PM

#426

evansg

New Member

Joined: Jun 2019

Posts: 9

Likes: 1

From: st. lucia

Quote:

Originally Posted by Brettus

FOUND IT !!!

Good news and bad . I found the map that affects the transition at low rpm WOT from CL into OL . Bad news is ................ it isn't available on the Cobb AP .

Here is what the stock map looks like :

hi Brettus, Did this work for you? I have a JDM 2005 model and it seems to stay in closed loop until the 6k rpm exit even if i lowered the values in the "unkn" map.

Sep 22, 2021 | 09:29 AM

#427

Brettus

Boosted Kiwi

iTrader: (2)

Joined: Apr 2006

Posts: 20,853

Likes: 1,806

From: Y-cat-o NZ

Quote:

Originally Posted by evansg

hi Brettus, Did this work for you? I have a JDM 2005 model and it seems to stay in closed loop until the 6k rpm exit even if i lowered the values in the "unkn" map.

Hi , yes it does work but only at low rpm I believe . If you want to exit closed loop at higher rpms just adjust the 'closed loop exit rpm' parameter.

Apr 17, 2026 | 06:21 AM

#428

hufflepuff

Registered

Joined: Aug 2015

Posts: 617

Likes: 105

From: Mid Atlantic

Quote:

Originally Posted by blu3dragon

Mmm, nice find. Might explain why my s2 likes to be in closed loop so much. Not too bothered as I am NA, but still useful.

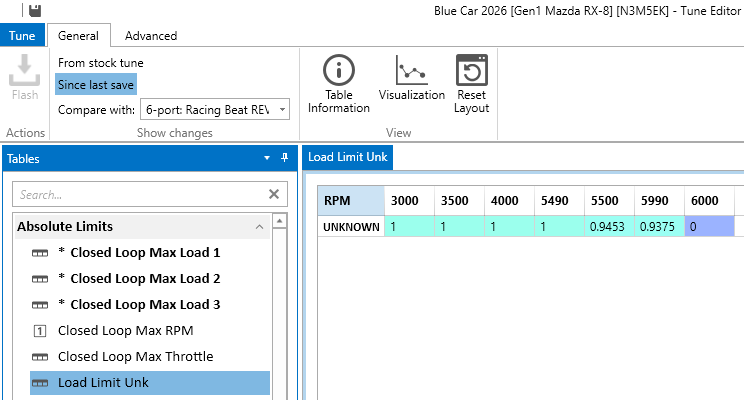

My Versatuner Load Limit UNK table looks exactly like that table above, and my 2007 also has inconsistent exit from CL into OL between 2,000-5,000 rpms. i wonder if i should set the values to ~0.75 or 0.80 between 1,000 and 5,490...?

Also, has anyone ever played with the acceleration enrichment tables, that seem to add fuel at heavier loads in the 1,500-3,000 rpm range? Or should i just tune with the air fuel tables?

Apr 21, 2026 | 05:18 AM

#429

hufflepuff

Registered

Joined: Aug 2015

Posts: 617

Likes: 105

From: Mid Atlantic

Follow-up: Load limit unknown was indeed screwing my attempts to tune in the 2,000-5,000 rpm range.

i changed my load limit unknown values to around 0.65 - 0.75 as rpms increase between 2,000 and 5,490, and now it is easy to enter open loop and rely upon the air fuel ratio tables for tuning.
