DIY: Oil temp and pressure sender install with modified banjo bolts

This is a very straightforward install. Please note that this does not cover any wiring of the senders, just the installation of the bolts. Also, I am in no way responsible for someone messing up their car. Your oil system is crucial, if your not competent then don't do this!!

Tools:
23mm open end spanner (wrench)
19mm socket and ratchet
Phillips head screw driver
oil drain pan
ramps (prefered) or jack stands
WHEEL CHOCKS

Materials:
2 modified banjo bolts
4 NEW crush washers
Teflon tape
2 quarts oil

If you want the information on were I got the bolts PM me, they have more made and ready to ship. I can say he was very helpful with the install, answering several questions I had.. In the rx8, there is little space available next to the firewall, making accessing the oil filter a pain. Adding an oil filter sandwich adapter makes this even more of an issue. With these modified banjo bolts the spacer is not needed. One replaces the banjo bolt attaching the oil cooler line to the front cover, and the other replaces the bolt securing the line to the cooler.

DIY:

First the oil temperature sender
1: put car on ramps and place wheel chocks behind rear wheels. I found ramps to work well; since I did not drain the oil I only lost 1/2 a quart since the front of the car was higher than the oil pan.

2: remove or pull back the underside of the drivers side splash guard to access the underside of the oil cooler. I just pulled mine back, there is not a need to remove the whole thing.

3: here you will need the 23mm spanner. The bolt closest to the drivers side goes to the next oil cooler, the one passenger side is coming from the front cover. My picture shows the one on the drivers side removed; you want to OTHER one, the passenger side. We want to measure the temps of the oil before it is cooled, as it comes out of the engine. The bolt is on there tight, but with enough force it will come off.

4:The shop already had my senders attached to the bolts; if yours are not now is the time to do it. Make sure you seal the threads on the senders with teflon tape or they will leak

5: DO NOT REUSE THE OLD CRUSH WASHERS!! Buy new ones. It will save you a huge headache and possible ruined day/week. they are $0.99 each at Napa, a cheap insurance.

6: put one new crush washer onto the bolt, slide it through the oil line, put another crush washer on, and bolt it to the oil cooler. The torque spec is 24 ftlbs. NOTE: do not use any sealant/tape here, thats what the crush washers are for. using these could result in a clogged oil line!!
Mod Edit: The factory service manual indicates that the torque spec is 39.4 to 50.5 ftlbs.
Thanks Pamion!


7: wipe off any remaining oil, but do not re-secure the splash guard.

Oil Pressure sender

1:this bolt is located directly under the A/c compressor. There is only one banjo bolt there, so there is no mistaking it. It is EITHER a 23mm or 19mm. I have seen it as either size, depending on the car. regardless of the head size, the shaft and threading of the new bolts fit perfect.

2: with a 19mm socket remove the old banjo bolt.

3: attach oil pressure sender to the new banjo bolt, being sure to apply teflon tape to the sender threading

4: put a new crush washer onto the new bolt, slide it through the oil line, place another new crush washer onto the bolt and bolt it to the front cover. the torque is 24 ftlbs. NOTE: do not use any sealant/tape here, thats what the crush washers are for. using these could result in a clogged oil line!!

5: check oil to ensure proper levels.

6: start car, check for leaks. if you have under/over tightened the bolts you could have leaks. If they are under tightened tighten them. If you over did it, replace the crush washers and try again.

7: Now you can reattach the splash guard your done!
Attached Thumbnails
DIY: Oil temp and pressure sender install with modified banjo bolts-front-cover.jpg   DIY: Oil temp and pressure sender install with modified banjo bolts-newbolts.jpg   DIY: Oil temp and pressure sender install with modified banjo bolts-oilcooler2.jpg   DIY: Oil temp and pressure sender install with modified banjo bolts-pressuresender.jpg   DIY: Oil temp and pressure sender install with modified banjo bolts-tempsender.jpg


Last edited by RIWWP; 10-14-2013 at 11:32 AM.
Sephitrask is offline   Reply With Quote
Old 07-17-2012, 01:45 PM   #2
Maude Rater
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Thanked 10 Times in 9 Posts
interesting idea. The oil temp is very handy for us S2 owners that do not want to replace their pan drain plug with the temp sensor.
paimon.soror is offline   Reply With Quote
Old 07-17-2012, 01:57 PM   #3
Registered
iTrader: (45)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,730
Thanked 322 Times in 264 Posts
Nice write up. I had thought of doing this but using an oil filter adapter plate is just easier all around. But if you want more than one temp/pressure position then this is a great idea.
9krpmrx8 is offline   Reply With Quote
Old 07-17-2012, 02:00 PM   #4
Zoom Frickin Zoom
Thread Starter

Sephitrask's Avatar

Join Date: May 2010
Location: Jacksonville, Fl
Posts: 408
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by 9krpmrx8 View Post
Nice write up. I had thought of doing this but using an oil filter adapter plate is just easier all around. But if you want more than one temp/pressure position then this is a great idea.
Once I had everything I needed this took me 30 minutes. I tried the oil filter adapter first, but I had a hard time getting it to not leak so said screw it and tossed it, lol
Sephitrask is offline   Reply With Quote
Old 07-17-2012, 02:13 PM   #5
Registered
iTrader: (45)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,730
Thanked 322 Times in 264 Posts
Weird, I have never had leaking issues with my cheapy Pro-sport adapter and it has been off an on at least a dozen times. You must work fast if you took your bumper off and replaced those bolt in 30 minutes
9krpmrx8 is offline   Reply With Quote
Old 07-17-2012, 03:02 PM   #6
Zoom Frickin Zoom
Thread Starter

Sephitrask's Avatar

Join Date: May 2010
Location: Jacksonville, Fl
Posts: 408
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by 9krpmrx8 View Post
Weird, I have never had leaking issues with my cheapy Pro-sport adapter and it has been off an on at least a dozen times. You must work fast if you took your bumper off and replaced those bolt in 30 minutes
It has been said that i work fast there is no need to take off the bumper, just pull back the splash guard on that side. I don't have fog lights though, they may get in the way
Sephitrask is offline   Reply With Quote
Old 07-17-2012, 03:26 PM   #7
Maude Rater
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Thanked 10 Times in 9 Posts
Quote:
Originally Posted by Sephitrask View Post
It has been said that i work fast
That's not always a good thing depending on who said it
paimon.soror is offline   Reply With Quote
Old 07-17-2012, 03:28 PM   #8
Registered
iTrader: (45)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,730
Thanked 322 Times in 264 Posts
9krpmrx8 is offline   Reply With Quote
Old 01-14-2013, 11:25 PM   #9
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,546
Thanks: 0
Thanked 264 Times in 218 Posts
Quote:
Originally Posted by 9krpmrx8 View Post
Nice write up. I had thought of doing this but using an oil filter adapter plate is just easier all around. But if you want more than one temp/pressure position then this is a great idea.
I disagree completely

My RB filter plate is coming off soon to be replaced by the banjo bolts. It makes more sense on every level; ease of access to the sensors, more access around the oil filter due to it not being raised up, etc.. I don't have any leaking issue or anything like that, but it costs a lot more than the bolts if that matters.

this mod is a win all around, wish I had thought of it.


.

Last edited by TeamRX8; 01-14-2013 at 11:29 PM.
TeamRX8 is offline   Reply With Quote
Old 01-14-2013, 11:42 PM   #10
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,537
Thanked 60 Times in 57 Posts
Im surprised you didn't I did this about 5 years ago. Took then out when I went to the braided AN lines and connectors. They worked well. .. only thing you have to watch is that the sensors don't decrease the flow
dannobre is offline   Reply With Quote
Old 01-15-2013, 12:08 AM   #11
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,546
Thanks: 0
Thanked 264 Times in 218 Posts
I think he is really just PO'd that the best price I've seen so far is from his favorite vendor

I figure while I'm updating to the AiM dash display I might as well straighten out some of the related stuff, had no real reason to mess with it otherwise, but will put it up FS with the the soon to be deleted RB ashtray gauge display. I know that my sensors won't protrude into the banjo bolt entrance/exit hole area.


.
TeamRX8 is offline   Reply With Quote
Old 01-15-2013, 12:24 AM   #12
Registered
iTrader: (45)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,730
Thanked 322 Times in 264 Posts
TX

Quote:
Originally Posted by TeamRX8 View Post
I disagree completely

My RB filter plate is coming off soon to be replaced by the banjo bolts. It makes more sense on every level; ease of access to the sensors, more access around the oil filter due to it not being raised up, etc.. I don't have any leaking issue or anything like that, but it costs a lot more than the bolts if that matters.

this mod is a win all around, wish I had thought of it.


.

I agree now. Corksport sells a product for this very purpose (for the RX7 but it works on the 8) and it makes things nice and tidy. Shady got this product a couple of weeks back and it is a bit expensive (a bit more than what the crook charges) but it's simple and effective.

http://www.corksport.com/corksport-r...anjo-bolt.html

Last edited by 9krpmrx8; 01-15-2013 at 12:28 AM.
9krpmrx8 is offline   Reply With Quote
Old 01-15-2013, 12:43 AM   #13
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,546
Thanks: 0
Thanked 264 Times in 218 Posts
sure, if you don't mind paying double ...

Oil Sensor Banjo Bolts by RX-8 Performance | RX8Performance.com
TeamRX8 is offline   Reply With Quote
Old 01-15-2013, 12:50 AM   #14
Registered
iTrader: (45)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,730
Thanked 322 Times in 264 Posts
I don't mind, the Corksport piece is a really nice machined piece and I don't have to worry about whether I will receive it or not.

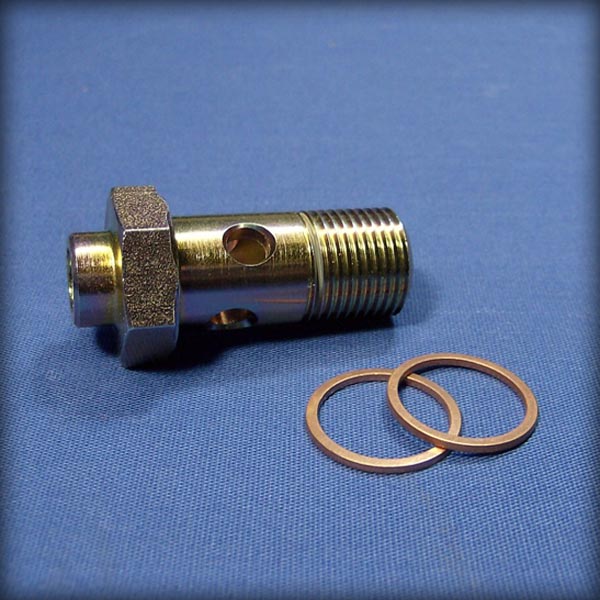

http://www.corksport.com/images/deta...-Bolt-Main.jpg

9krpmrx8 is offline   Reply With Quote
Old 01-15-2013, 12:53 AM   #15
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,546
Thanks: 0
Thanked 264 Times in 218 Posts
like I said, your favorite vendor ... I was just going to drill & tap my own, but the ones from RX8Performance are cheap enough for me to not bother making the effort. I think I can chance $25 rather than immediately throwing it away ...

Looks like Sephitrask got his from there too, fwiw


.
TeamRX8 is offline   Reply With Quote
Old 01-15-2013, 09:49 AM   #16
Registered
iTrader: (2)

HiFlite999's Avatar

Join Date: Jun 2009
Location: MI
Posts: 2,254
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by dannobre View Post
only thing you have to watch is that the sensors don't decrease the flow
Let me second this point. Lightly screw in the sensor you have and make sure it doesn't significantly cut into the flow path. An adapter may be required to space it out.

Also, with my AEM 0-5v oil pressure sensor banjoed into the oil cooler feed line at the block, I'm not getting stable readings. I suspect that it's picking up pulses from the oil pump that it didn't see when mounted under the oil filter. Anyone else have this problem?

Later on, I'll try switching the pressure and temp sender (located on the entrance to the LHS oil cooler) to see if that fixes the problem. The downside it that due to the bulk of the pressure sensor, it's very close the the fender liner and a blown tire or chunk of road debris just might break off the sender.

The mod is especially nice for those using Series II oil filters. The taller filter + adapter makes it very hard to fit and remove. It will also prevent lifting the engine high enough to get to the engine mounts without lifting the whole car when the filter jams against the firewall. (Don't ask me how I discovered this. Yes, you can lift the whole front of the car with the Mazda OEM filter ....)



And, btw, I got the bolts from the vendor-who-shall-not-be-named, just fine.

Last edited by HiFlite999; 01-15-2013 at 09:54 AM.
HiFlite999 is offline   Reply With Quote
Old 01-15-2013, 01:13 PM   #17
Boosted Kiwi
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 17,962
Thanked 150 Times in 110 Posts
This modification is just drilling and tapping a 1/8bsp hole in the end isn't it ? Or is there more to it ?
Brettus is offline   Reply With Quote
Old 01-15-2013, 05:08 PM   #18
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,546
Thanks: 0
Thanked 264 Times in 218 Posts
both the vendors listed so far have the sensor connection spaced out from the bolt head, just using different methods.

I suspect otherwise the sensor could protrude too far in and block the flow path through the bolt
TeamRX8 is offline   Reply With Quote
Old 01-16-2013, 05:30 PM   #19
Registered
iTrader: (2)

HiFlite999's Avatar

Join Date: Jun 2009
Location: MI
Posts: 2,254
Thanks: 0
Thanked 0 Times in 0 Posts
Yes, but one spacing doesn't fit all. Sensors from different sources can have different spacing from their threads to the tip.
HiFlite999 is offline   Reply With Quote
Old 01-16-2013, 05:34 PM   #20
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,537
Thanked 60 Times in 57 Posts
That's why it is really important to check

I had to remake one when I changed the sensor....the different threads on the new sensor made it screw in a lot further and it was blocking the flow
dannobre is offline   Reply With Quote
Old 01-30-2013, 07:27 AM   #21
Day Walker

kevinande's Avatar

Join Date: Oct 2011
Posts: 566
Thanks: 0
Thanked 5 Times in 2 Posts
I am preparing to do this modification. This will actually be the first thing I have done to this car since I've owned it. I was going to use the adapter plate, that seems pretty common, then came across this thread. I will be getting the banjo bolts to install the sending units. Is this a good place to install a sensor for pressure as well? If not please indicate the best place for a sender. I am sourcing material now and would like to have everything I need before I turn the first screw. In addition have any of you used the Maxtow series of gauges MaxTow Truck Gauge Series ? I am leaning this way, but would like some feedback as to quality and more importantly accuracy if anyone has any information on them. It indicates they are for trucks, however they are the standard 52mm.

Thanks
kevinande is offline   Reply With Quote
Old 02-23-2013, 04:58 PM   #22
Day Walker

kevinande's Avatar

Join Date: Oct 2011
Posts: 566
Thanks: 0
Thanked 5 Times in 2 Posts
Sephitrask: Thanks for posting this DIY, the idea of modified banjo bolts intrigued me to the point where I actually did do this. Thanks to these vendors

ProSport...Guages
RX8 Performance.com...Banjo Bolts
Racing Beat.com.com...Water temp sensor housing

I received all the parts two days after my order, with the exception of RX8 performance. Seems I ordered his last one so he had two make another production run to fill my order of 2. One quick call to Scott and he explained what had happened and all was well. They shipped when he said they would.

I would just like to add a note on the crush washers. Napa had them, but they were not labeled, just in a large bin of washers. Not feeling to good about this I went ahead and purchased them, but went to Mazda for the washers. Turns out they had them, and they were cheaper than NAPA? If you decide to do this mod the Mazda part number for the crush washers is 995621800 I just returned the NAPA ones. However they would have worked, I just prefer OE parts when I can source them and especially when they are cheaper.

The gauges are great, I chose the HALO series as they go black when not in use. It was tossup up between the Maxtow, but the color was not really working for me. If they change color they should emphasize that, otherwise I would have gone that route. After many years of ownership of this car, this is my first mod. I love being able to monitor these critical items. Thanks again to the OP for an awesome idea for the bolts.
kevinande is offline   Reply With Quote
Old 03-11-2013, 10:28 PM   #23
Yank My Wankel
iTrader: (4)

Carbon8's Avatar

Join Date: Nov 2009
Location: Buffalo, NY
Posts: 2,216
Thanks: 0
Thanked 1 Time in 1 Post
Seems putting the Temp sensor on the oil filter Banjo Bolt would make more sense, as you would read the temp right out of the engine. instead of reading it after one of the coolers.
Carbon8 is offline   Reply With Quote
Old 10-12-2013, 08:58 PM   #24
Registered

Join Date: Nov 2012
Posts: 97
Thanks: 0
Thanked 0 Times in 0 Posts
Has any one used a fitting to allow both pressure and temp to be attached to the oil cooler banjo bolt that is located on the motor?
i.e
Attached Thumbnails
DIY: Oil temp and pressure sender install with modified banjo bolts-%24t2ec16vhjgie9nnwqrsibq1-knzm8w%7E%7E60_57.jpg
Explode64 is offline   Reply With Quote
Old 10-12-2013, 09:38 PM   #25
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,537
Thanked 60 Times in 57 Posts
You can use one on the front bolt...and one on the rear

Just make sure they don't block off flow..that wouldn't be good
dannobre is offline   Reply With Quote
