DIY: Installing Series II Fuel Pump in Series I

Old 03-12-2018, 04:51 PM
  #101
Registered

vcoil's Avatar

Join Date: Sep 2008
Posts: 54
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RotaryMachineRx View Post
I don't believe it matters, everything should be the same size but since you are installing the S2 assembly I'd go with the S2 for assurance. Are you talking about the o-ring on pump motor or the o-ring around the pump assembly where it sits on top of the fuel tank?
Hi, I'm talking about the latter.
Thank you in advance


vcoil is offline
Old 04-24-2018, 11:03 PM
  #102
Registered

Join Date: Oct 2014
Posts: 14
Received 0 Likes on 0 Posts
Hi everyone !

What if i change the whole fuel tank form a series 2 (together with s2 fuel assembly and pump) and remove the s1 fuel tank with everything.

It should be completely plug and play in this case?
dirtyDEE is offline
Old 04-24-2018, 11:50 PM
  #103
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,624
Received 156 Likes on 113 Posts
Originally Posted by dirtyDEE View Post
Hi everyone !

What if i change the whole fuel tank form a series 2 (together with s2 fuel assembly and pump) and remove the s1 fuel tank with everything.

It should be completely plug and play in this case?
Yes you 'should' be OK after a quick check of OEM Part Number changes.

As we know the S2 Fuel Tank is slightly larger in fuel capacity and this was achieved by making the overall tank deeper (larger) by about 11 mm (memory), so the mounting Tank Straps are also different to cater for larger Tank.
All the fuel inputs like Fuel Cover and main supply (hose) appears to be the same/OK.
The Fuel Cut off Solenoids and equipment appears to be slightly different as are the OEM Part Numbers.
So as far as I can see provided you install a 'complete Fuel Tank" you should be OK.
You may see some slight differences with Wiring Loom PLUGS.
ASH8 is offline
The following users liked this post:
dirtyDEE (04-25-2018)
Old 04-25-2018, 12:49 PM
  #104
SPOOLN8
iTrader: (1)

RotaryMachineRx's Avatar

Join Date: Nov 2008
Location: Edmonton, Alberta, Canada
Posts: 1,759
Received 50 Likes on 48 Posts
You would still need to modify the wire loom for the fuel pump as mentioned in this DIY. Why would you replace all this in the first place though, what is the benefit?
RotaryMachineRx is offline
Old 04-25-2018, 07:32 PM
  #105
Registered

Join Date: Oct 2014
Posts: 14
Received 0 Likes on 0 Posts
The benefit is the correct reading of level sensors? since I have a s2 Dash coming with the fuel tank.

and not so much playing around with stuff inside the fuel tank. Leave everything how it was designed.

Last edited by dirtyDEE; 04-25-2018 at 07:50 PM.
dirtyDEE is offline
Old 04-25-2018, 11:14 PM
  #106
Registered

etzilon's Avatar

Join Date: Oct 2011
Location: Houston, TX
Posts: 425
Likes: 0
Received 3 Likes on 2 Posts
Originally Posted by dirtyDEE View Post
Hi everyone !

What if i change the whole fuel tank form a series 2 (together with s2 fuel assembly and pump) and remove the s1 fuel tank with everything.

It should be completely plug and play in this case?
Removing the tank is a MAJOR PITA, IIRC... and when I did it, the car was on a lift. Consider what it takes before choosing this route: PPF, exhaust, driveshaft, ...
etzilon is offline
The following users liked this post:
TeamRX8 (04-26-2019)
Old 05-15-2018, 12:18 AM
  #107
Registered

Join Date: Oct 2014
Posts: 14
Received 0 Likes on 0 Posts
Just wanted to say thanks for everyone's input and info on this thread. Did the swap recently. Stayed with the S1 tank, and put the S2 sensor unit left side, like in one of the posts here, using a s2 dash board as well with this setup.

Just i would like to add to make things clear for future readers that the cutting and splicing of the wires and connectors is actually for the fuel level sensors, not the fuel pump.
dirtyDEE is offline
Old 05-24-2018, 04:09 PM
  #108
What am I doing here?

NotAPreppie's Avatar

Join Date: Mar 2006
Location: 2017 Miata RF Launch Edition
Posts: 3,295
Received 455 Likes on 369 Posts
Just accomplished this myself. Was expecting a protracted fight. Took my time and only spent about an hour.

I used a cut off disc on a rotary tool to trim the blank/unpinned part of the connector for the passenger side level sensor. I left enough material behind that it is securely wedged in there.

My fuel pump ring was only mildly annoying using the $20 tool from amazon. The only real issue is that it interferes with the sheet metal after about 10-15 degrees of rotation so I had to move, reset, repeat.

Idle fuel pressure (according to my fabricobbled Arduino gauge) jumped 5 psi and my idle fuel trims dropped from +8% to +1%-ish.

And now, since my old S1 pump still mostly works, I have a spare to give away at track events for limp-home use.
NotAPreppie is offline
Old 05-24-2018, 05:00 PM
  #109
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,740
Received 340 Likes on 274 Posts

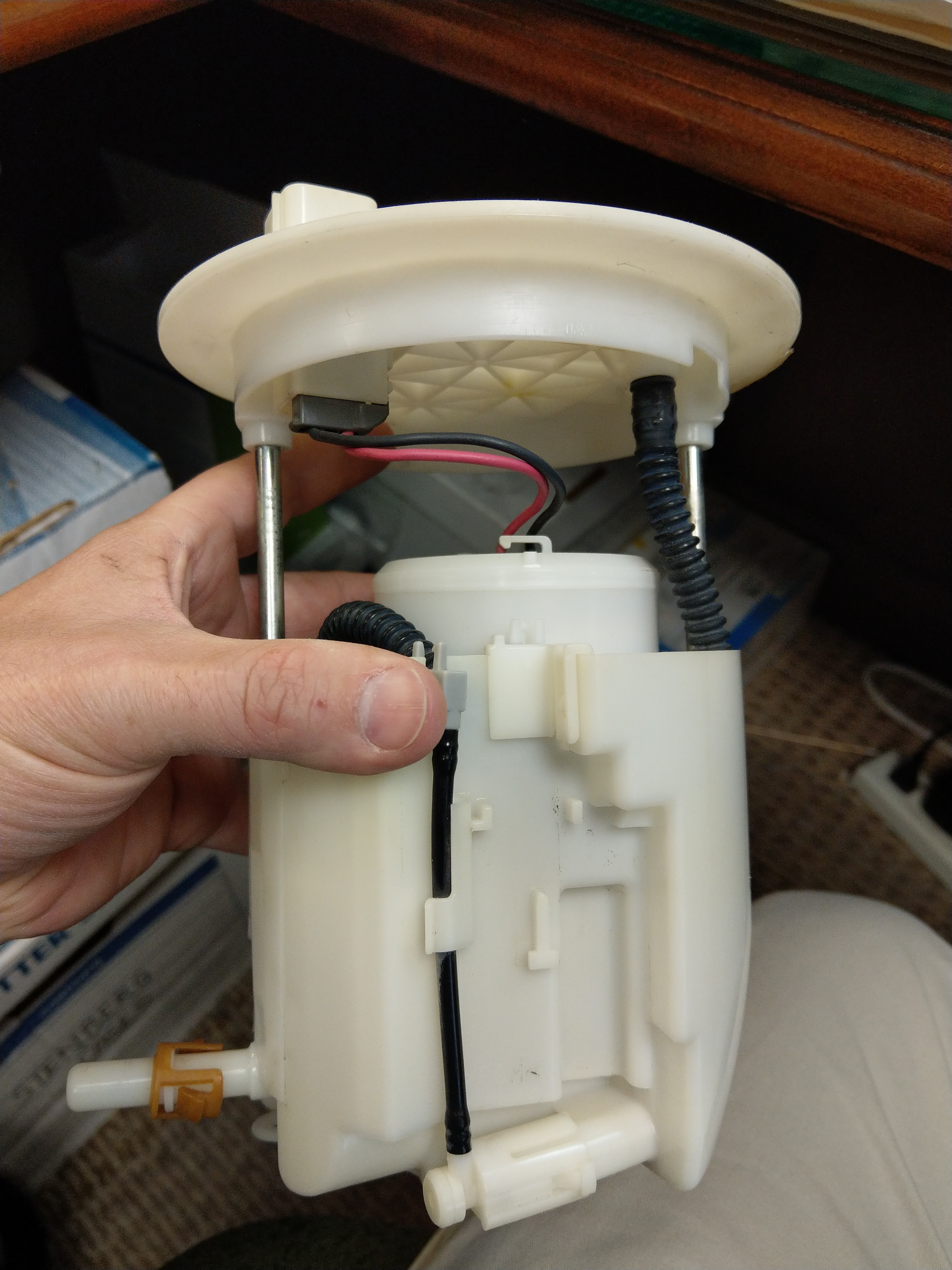

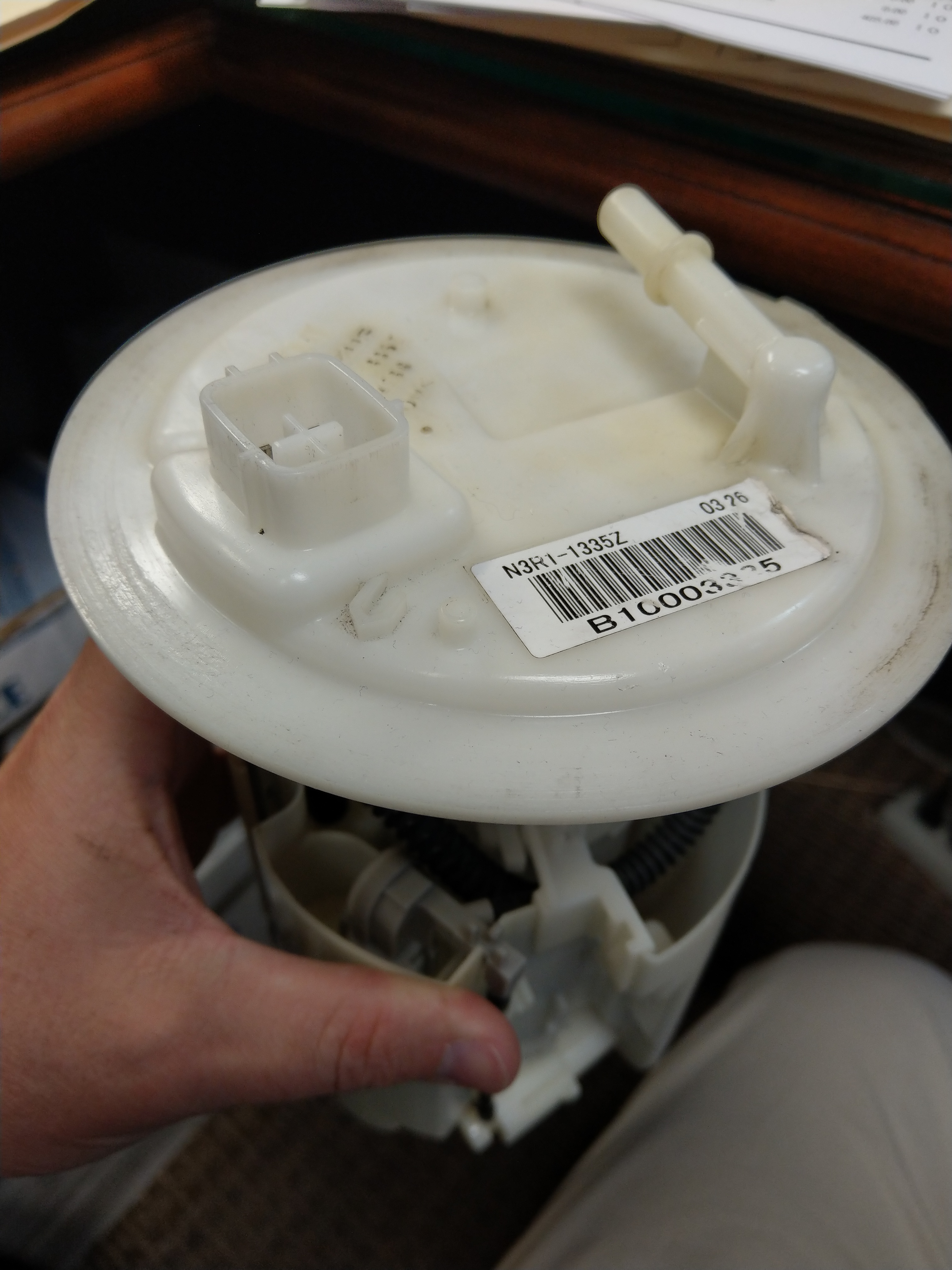

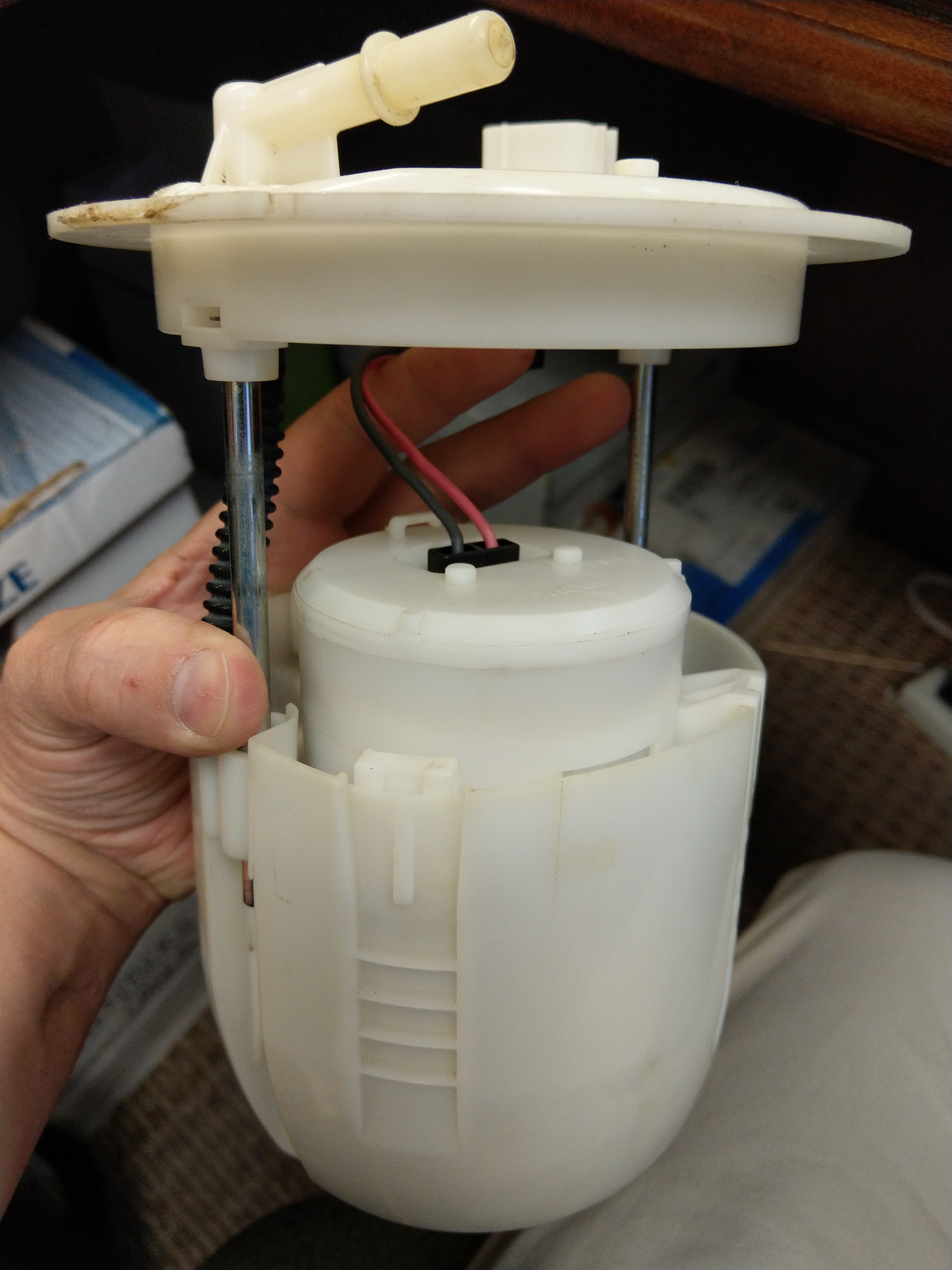

If anyone needs an S2 pump with 9000 miles on it let me know. It is missing the spring on the bucket though, I have no clue where it went.
Attached Thumbnails DIY: Installing Series II Fuel Pump in Series I-imag2523.jpg   DIY: Installing Series II Fuel Pump in Series I-imag2524.jpg   DIY: Installing Series II Fuel Pump in Series I-imag2525.jpg

Last edited by 9krpmrx8; 05-24-2018 at 05:10 PM.
9krpmrx8 is offline
Old 04-26-2019, 01:14 AM
  #110
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,882
Received 325 Likes on 264 Posts
Well I converted a local forum members S1 over to an S2 pump recently and tried to slot and re-use the S1 fuel pump connector for the level float wiring plug as some have done here in the DYI thread. Due to the difference in wire/connector sizes between the two plugs it proved to be too loose of a fit for the thin float wiring and the fuel level gauge started acting up shortly after the job was finished. It was actually fairly easy to pull the wires out of the connector plug without too much force. So I personally don’t recommend doing it that way despite some people getting away with it.

Rather than screw around I just bit the bullet and ordered a new S2 level float to have the proper connector and that solved the problem. A cheaper alternative would have been to cut off the larger wire ends and soldered them on the level float wires, but then you have to deal with that again if you change the float. Maybe could have heat shrinked some sleeves onto the wires to increase their diameter, but then the actual connectors are still small and loose in the plug ends. Couldn’t find a used S2 float assembly anywhere to get the connector plug cheap like when I did mine. So the only good solution was to just pay what it took to do the job right imo; a new S2 float just to rob the connector.


.
TeamRX8 is online now
The following users liked this post:
Warrior777 (04-26-2019)
Old 04-26-2019, 01:21 AM
  #111
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,882
Received 325 Likes on 264 Posts
Originally Posted by vcoil View Post
Hi,
Need I to buy the S1 O-ring or the S2 one for the swap?
Thank you in advance

Best regards
Iím not sure if it matters, but the top of the pump mounting surface is essentially the same between the S1 and S2 pump housings. So the safe bet is just get the S1 parts such as tank seal, top nut, O-ring seal, etc. You wonít have any issue doing it that way for sure.
TeamRX8 is online now
Old 04-26-2019, 08:56 AM
  #112
Registered
iTrader: (11)

Warrior777's Avatar

Join Date: Mar 2010
Location: Oklahoma City
Posts: 187
Received 0 Likes on 0 Posts
Originally Posted by TeamRX8 View Post
Well I converted a local forum members S1 over to an S2 pump recently and tried to slot and re-use the S1 fuel pump connector for the level float wiring plug as some have done here in the DYI thread. Due to the difference in wire/connector sizes between the two plugs it proved to be too loose of a fit for the thin float wiring and the fuel level gauge started acting up shortly after the job was finished. It was actually fairly easy to pull the wires out of the connector plug without too much force. So I personally don’t recommend doing it that way despite some people getting away with it.

Rather than screw around I just bit the bullet and ordered a new S2 level float to have the proper connector and that solved the problem. A cheaper alternative would have been to cut off the larger wire ends and soldered them on the level float wires, but then you have to deal with that again if you change the float. Maybe could have heat shrinked some sleeves onto the wires to increase their diameter, but then the actual connectors are still small and loose in the plug ends. Couldn’t find a used S2 float assembly anywhere to get the connector plug cheap like when I did mine. So the only good solution was to just pay what it took to do the job right imo; a new S2 float just to rob the connector.


.
TeamRX8,
I too have had similar issues with the small wires not fitting in the S2 connector so I went back to modifying the S1 connector to fit. I believe this was linked to a premature failure of my s2 pump, although I have no actual proof.
Warrior777 is online now
Old 04-29-2019, 08:06 AM
  #113
Registered
iTrader: (11)

Warrior777's Avatar

Join Date: Mar 2010
Location: Oklahoma City
Posts: 187
Received 0 Likes on 0 Posts
I understood what you said. Your right my statement uses faulty logic, a level float sensor would have nothing to do with pump operation. It was just my immediate knee jerk idea when the pump went bad.
I did end up buying a S2 Level float connector off a part out to fix the issue, I just have not actually swapped the connectors yet.
Warrior777 is online now
Old 05-02-2019, 09:38 AM
  #114
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,882
Received 325 Likes on 264 Posts
Ok, sorry for the misunderstanding. I just deleted those comments.
TeamRX8 is online now
Old 05-12-2019, 07:35 PM
  #115
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,882
Received 325 Likes on 264 Posts
While using the correct quick-disconnect connector on the siphon hose might be ideal, IMO just using the proper hose and clamps as indicated below is acceptable and should be issue free if installed properly. All this is doing is siphoning fuel from the RH tank saddle over into the LH tank saddle where the pump is. It has a very low vacuum suction pressure. Some people complained about it thinking it was a high pressure connection. Itís not. While I did buy the proper tool and install the proper quick-disconnect fitting it really was more trouble and cost than it was worth.


Originally Posted by rx8convert22 View Post
Next step is to prepare the input hose. As stated the Series I hose is to smaller in diameter to fit onto the Series II pump.

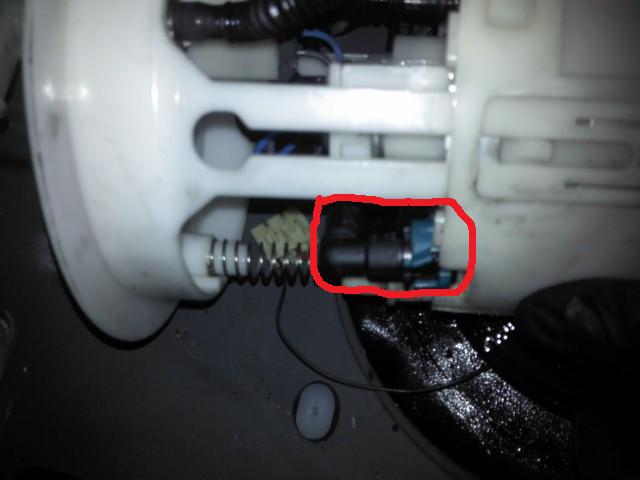

Pictured is the input hose still attached to the Series I pump for reference that you should have removed when you took out your Series I pump.
Attachment 182442

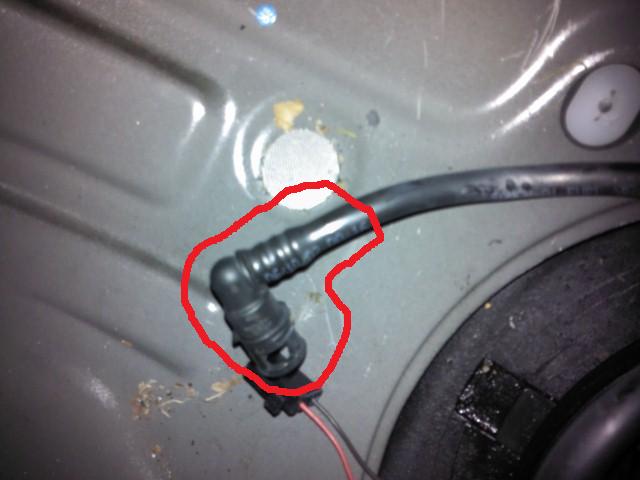

Here is a picture of the input hose detached from the Series I fuel pump that is in the fuel tank. You want to cut off the elbow with a utility knife. I've circled roughly how much I cut off.
Attachment 182445

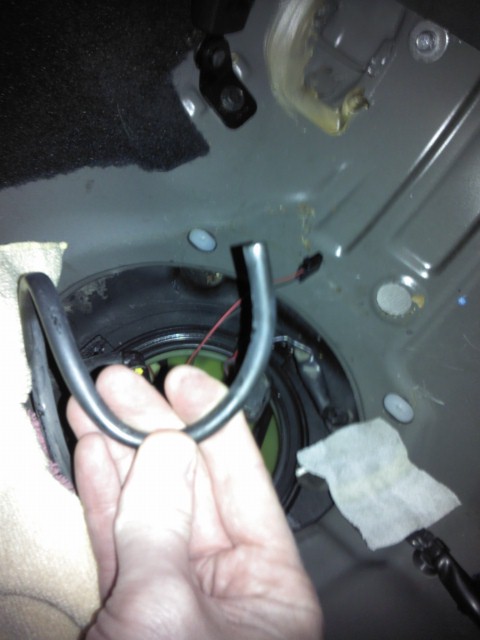

This is what it should look like once you've cut it elbow off.
Attachment 182446

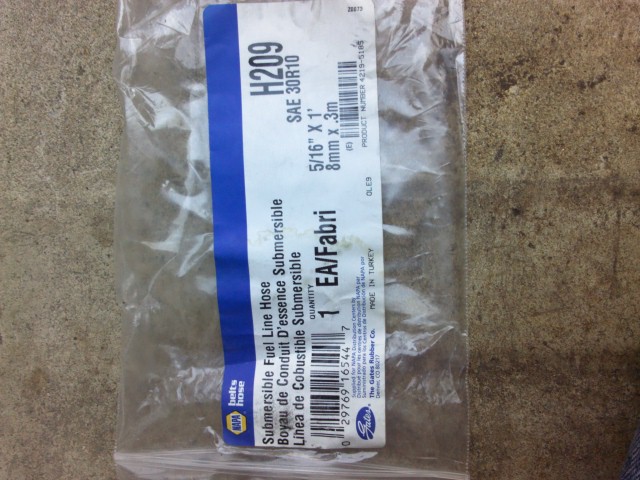

On the Series II fuel pump you should fit your new hose onto it. Here is a picture of the package of the hose I found through NAPA. It isn't cheep! It was $30 for 1 foot! Don't use any other rating of hose though! This is VERY important since this hose will be submersed in fuel.
Attachment 182444

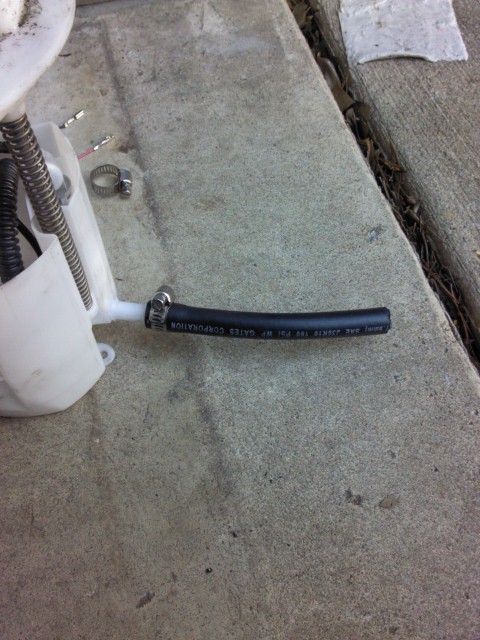

Cut a 5 inch piece of hose and put onto the inlet of the Series II fuel pump and secure it with a worm clamp.
Attachment 182443
TeamRX8 is online now
Old 05-27-2019, 09:26 PM
  #116
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,882
Received 325 Likes on 264 Posts
Ok, well always good to humbled by my own foolishness. Donít bother putting a new quick disconnect on the pump side siphon imo. Apparently Mazda did it that way just to make it a bit easier to swap the pump module. On the siphon side all they did was use a piece of submergeable fuel hose and some clamps as per the pic below. You might even be able to just order and use that hose and clamps instead. First time I ever pulled the siphon out and never saw any pics previously, though at some point they might have been uploaded somewhere and I missed the thread:


https://cimg9.ibsrv.net/gimg/www.rx8...e6c6f25e5.jpeg
TeamRX8 is online now
Old 05-27-2019, 09:36 PM
  #117
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,882
Received 325 Likes on 264 Posts
To add insult to injury; it also appears that the S1 RH fuel float has the wiring connector needed to plug the S1 LH fuel float into the S2 fuel pump module. Those should be easy to find in any part out or salvage RX8. Guess that’s what I get for not pulling the entire thing apart. Surprised by how much fuel is in the RH saddle too. Was expecting it to be empty since I ran the pump to empty the tank until it ran dry before installing the S2 pump.


https://cimg8.ibsrv.net/gimg/www.rx8...4add37fbd.jpeg

Last edited by TeamRX8; 05-27-2019 at 09:40 PM.
TeamRX8 is online now
The following users liked this post:
RotaryMachineRx (05-28-2019)
Old 06-13-2019, 07:46 AM
  #118
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 329
Received 11 Likes on 10 Posts
so i was at NJMP Thunderbolt last week. filled the tank to till fuel spill out. go out and do a warm up lap and three hot lap. on the 4th lap, i get fuel starve coming out the octopus turn, 180* tight left turn. i come in and it takes 3 gallons of fuel to fill it up. so i was getting fuel starve with just 3 gallons low from full. i thought it might be a bad fuel pump and got a new DW 300 to replace the pump. but now i'm thinking i'm going to do the S2 pump swap instead. thanks for the write up. FYI, i'm also running e85

this is the track
https://www.facebook.com/thaidiep/videos/10216993307722102/
