DIY: Home made Cold Air Intake
09-11-2005, 01:24 AM
#26
Originally Posted by adrian-1
I finally got around to extending my air filter out into the bumper.
I used a 12" silicone intercooler hose from hightempsilicone.com (cut the excess 1 inch to make it fit.)
Used a 3" hose joiner to connect the filter to the blue hose. (didn't take pic of that)
I tilted the coupler right before the MAF unit so it would line up with the bumper in the hole.
Zip tied the filter to a small hole on the top part of the bumper. It moved side to side alittle, but it's steady now.
http://www.hightempsilicone.com/ I also got 4ply hoses, reducers, and T-clamps to replace the blue hoses/reducers and worm clamps.
I'll post a new thread on that.
I used a 12" silicone intercooler hose from hightempsilicone.com (cut the excess 1 inch to make it fit.)
Used a 3" hose joiner to connect the filter to the blue hose. (didn't take pic of that)
I tilted the coupler right before the MAF unit so it would line up with the bumper in the hole.
Zip tied the filter to a small hole on the top part of the bumper. It moved side to side alittle, but it's steady now.
http://www.hightempsilicone.com/ I also got 4ply hoses, reducers, and T-clamps to replace the blue hoses/reducers and worm clamps.
I'll post a new thread on that.
FYI: I removed the plastic under the filter so allow cooler air to the filter..
also, did you notice your air/fuel ratio are different?? Mine went lean so I
had to richen mine.
Last edited by Speedrx8er; 09-11-2005 at 01:28 AM.
09-11-2005, 02:12 AM
#27
Ex- member.
Isn't that plastic piece also attached to the front curved plastic (the one that reinforces the bumper)?
My AFR's are pig rich after switching to the R flash last week, so I can't comment on if the intake leaned it out alittle.
My AFR's are pig rich after switching to the R flash last week, so I can't comment on if the intake leaned it out alittle.
09-13-2005, 10:21 AM
#30
Registered
Join Date: Aug 2004
Location: Virginia/Maryland
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
I'm liking this idea except it is a pain to have to take off the front bumper everytime you want to clean the filter. Adrian, it seemed like you had a CAI setup when you put your K&N in the original filter box and extended the inlet through the front bumper as it was stock. I think I like it better that way since you can still easily get to the filter. Why change it to this?
09-13-2005, 11:59 AM
#31
I agree it would be a pain to clean it hehe Advantage is cooler air then if you have it in the original filter box .
If you want to keep it stock look. you can put the covers back on.
hehe Advantage is cooler air then if you have it in the original filter box . If you want to keep it stock look. you can put the covers back on.
10-09-2005, 11:25 PM
#33
Cold air mod update..

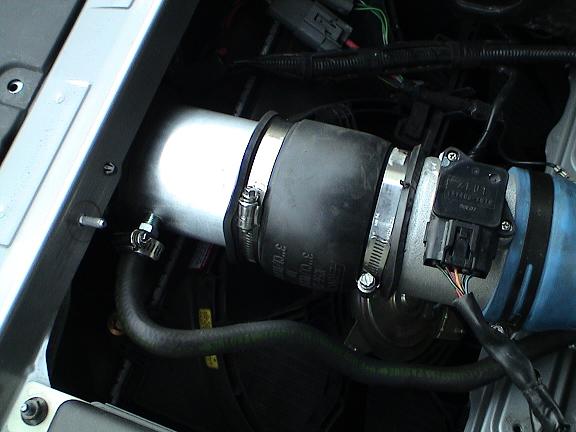

Although hooking up the air fuel meter hose to a breather was a great Idea.
I decided to run it from the intake tube.

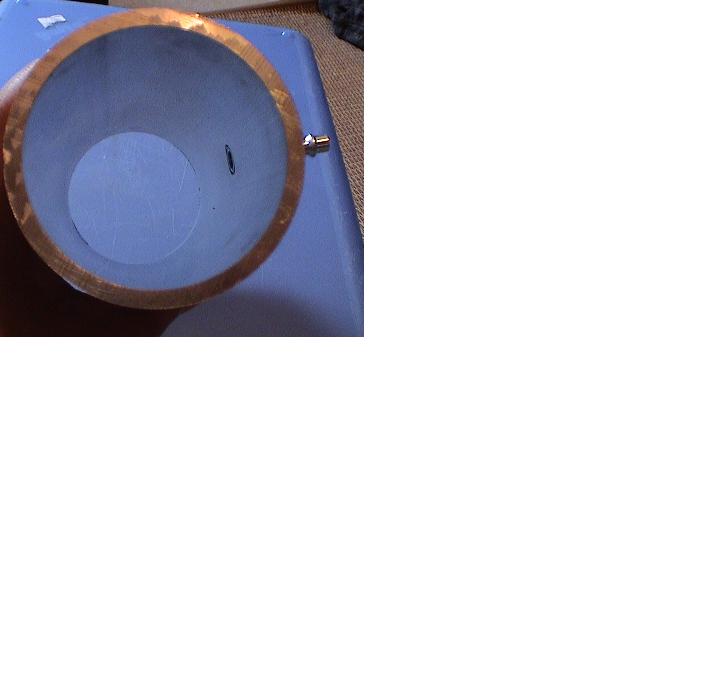

1.I tapped a 7/16 " hole on the aluminum tube
2. Wrapped the a 1/4 " male air hose connector (found in the air compressor area @ your home improvement store) thread with seal tape. Then screwed it in a
the tapperd hole.
3. Polish or prime & spray paint.
4. Reinstall
I'll post a picture later.
Although hooking up the air fuel meter hose to a breather was a great Idea.
I decided to run it from the intake tube.
1.I tapped a 7/16 " hole on the aluminum tube
2. Wrapped the a 1/4 " male air hose connector (found in the air compressor area @ your home improvement store) thread with seal tape. Then screwed it in a
the tapperd hole.
3. Polish or prime & spray paint.
4. Reinstall
I'll post a picture later.
10-10-2005, 01:16 PM
#37
Turbo'd 5
Join Date: Jun 2004
Location: Dalton, GA
Posts: 531
Likes: 0
Received 0 Likes
on
0 Posts
I'm waiting for a filter to complete mine. I used some pvc pipe that I coated with 2000 high-temp paint. It looks great under the hood, but I still dont have a filter for it....anyone know of any other filters that fit?
10-10-2005, 01:24 PM
#38
Registered
Join Date: Aug 2004
Location: Virginia/Maryland
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
I have been wanting to do this for a while, but I can't decide whether to just enclose the air filter in the original stock filter box and run some flexible tubing outside the front bumper or if I should put the whole filter out there like you guys did. I just really think it would be a pain to clean that thing and it seems that the air would be the same temp either way. Why would it be cooler if the actual filter was out there instead of a flexible hose?
This thread has some picks of what I mean by running some flexible tubing out there. Either way the air is coming from outside.
https://www.rx8club.com/showthread.p...&highlight=cai
This thread has some picks of what I mean by running some flexible tubing out there. Either way the air is coming from outside.
https://www.rx8club.com/showthread.p...&highlight=cai
10-10-2005, 01:34 PM
#39
Originally Posted by Spyder_doo
I'm waiting for a filter to complete mine. I used some pvc pipe that I coated with 2000 high-temp paint. It looks great under the hood, but I still dont have a filter for it....anyone know of any other filters that fit?
10-10-2005, 01:36 PM
#40
Originally Posted by rkostolni
I have been wanting to do this for a while, but I can't decide whether to just enclose the air filter in the original stock filter box and run some flexible tubing outside the front bumper or if I should put the whole filter out there like you guys did. I just really think it would be a pain to clean that thing and it seems that the air would be the same temp either way. Why would it be cooler if the actual filter was out there instead of a flexible hose?
This thread has some picks of what I mean by running some flexible tubing out there. Either way the air is coming from outside.
https://www.rx8club.com/showthread.p...&highlight=cai
This thread has some picks of what I mean by running some flexible tubing out there. Either way the air is coming from outside.
https://www.rx8club.com/showthread.p...&highlight=cai
I think Adrian had his inclose in the stock air box but not have a flexible tube to the outside. I think he had High air temp. I think the air temp inside the stock airbox would be a littel high because its still inside the engine.
Last edited by Speedrx8er; 10-10-2005 at 01:42 PM.
10-11-2005, 12:46 AM
#41
Registered User
With flexible hose would it be viable to run the filter underneath the engne bay slightly where it would be getting cooler air? I have seen some like that but getting water sucked up worries me. Would be easier to clean though.
10-11-2005, 12:10 PM
#42
Originally Posted by zoomzoom_8
With flexible hose would it be viable to run the filter underneath the engne bay slightly where it would be getting cooler air? I have seen some like that but getting water sucked up worries me. Would be easier to clean though.
eheheh Next I'll do a ram air to the filter :D. It won't be a as fancy as Revi.
But it should do the same job.
Also, I'll change to a round filter(size has yet to be determine) so I can rotate it around for cleaning without removing the bumper.
10-06-2006, 05:15 PM
#43
Originally Posted by Speedrx8er
First you'll have to remove the bumper.
Take out all of the stock Airbox
Parts:
K&N RC5000
Breather
Two 3" Plumbquik from Home Depot
One 3" radius aluminum pipe. <-- I'll have to go measure how long
Take out all of the stock Airbox
Parts:
K&N RC5000
Breather
Two 3" Plumbquik from Home Depot
One 3" radius aluminum pipe. <-- I'll have to go measure how long
10-06-2006, 08:43 PM
#44
Originally Posted by mysql101
I bought a K&N RC5000 intake, and measured the inside. It's 4", a 3" hose easily slides inside it. I'm thinking about getting a 4" to 3" reducer, but it's weird you're using the same model and it's 3" around.....
10-08-2006, 01:25 PM
#45
i'm looking at this from a cash perspective. I can get a 3" to 4" 90 degree elbow, or I can get a 3" to 3" 90 degree elbow and a 4" to 3" reducer, but both methods would cost more than just getting a proper fitting K&N filter.
I'm contacting the seller I bought from, and seeing if he'll do a return, plus if he has a filter with the proper 3" mouth.
I'll post back with my findings once I know what's going on.
I'm contacting the seller I bought from, and seeing if he'll do a return, plus if he has a filter with the proper 3" mouth.
I'll post back with my findings once I know what's going on.
12-21-2008, 02:16 AM
#48
Can we get any sound bytes or YouTube videos of how these projects are coming out? I'm super skeptical... I'm just glad to have this nice car. I want to mod it just so it gets its feet wet, ya know? But I dont wanna do anything to make my car turn out worse...
12-21-2008, 03:48 AM
#49
. I don't have a sound of it anymore. I dont' have this setup anymore. But you can hear it sucking are in . But it can easily be made and cheaper . Pm me if you have any question
12-21-2008, 10:04 AM
#50
I zoom therefore I am.
you should spend the money for a AEM/MS CAI or Racingbeat. If you're not up to chasing down gremlins then a homebrew mod is not the way to go. I have the MS CAI and love it.
