DIY: Filling the RX-8 engine (motor) mounts with urethane
06-18-2012, 05:42 AM
#28
Registered
Join Date: Jun 2011
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
No, when I autoxed Honda's & DSM's back in the day you could fill a broken mount with window weld or urethane and be good to go. I'm asking is this the same here or not. When they fail, what do they look like. Is it a failure in such a way that your only choice is to replace and fill a good/new mount prior to replacing.
That's basically what I'm asking.
That's basically what I'm asking.
06-18-2012, 07:53 PM
#29
When the motor mount fails, it can usually be filled with urethane. That is because our mounts are practically rubber bags with mineral oil in them for vibration dampening. When the rubber cracks (which is the norm), you get extra unwanted movement. This can be solved by filling the oil fill cavity with urethane. Read the first post in this thread and the links.
BTW, what is this "window weld" technique you speak of and how does it compare against 60A urethane?
BTW, what is this "window weld" technique you speak of and how does it compare against 60A urethane?
06-18-2012, 08:29 PM
#30
Actually, i did a little research on "windo-weld". 3M "Windo-Weld™ Super Fast Urethane" 08609. A common polyurethane used by many other DIYourselfers on the interwebs. Shore rating is 55-60A, so it seems prefect also. Shear strength, elongation, and tensile strength looks up to the task of our application also.
http://multimedia.3m.com/mws/mediawe...SevTSeSSSSSS--
I'll try this instead of what Mcmaster Carr carries, since the local Autozone should have this in stock. Might take a look at my differential mount also and do that too if it is going.
http://multimedia.3m.com/mws/mediawe...SevTSeSSSSSS--
I'll try this instead of what Mcmaster Carr carries, since the local Autozone should have this in stock. Might take a look at my differential mount also and do that too if it is going.
06-19-2012, 01:22 PM
#31
Registered
Join Date: Jun 2011
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Actually, i did a little research on "windo-weld". 3M "Windo-Weld™ Super Fast Urethane" 08609. A common polyurethane used by many other DIYourselfers on the interwebs. Shore rating is 55-60A, so it seems prefect also. Shear strength, elongation, and tensile strength looks up to the task of our application also.
http://multimedia.3m.com/mws/mediawe...SevTSeSSSSSS--
I'll try this instead of what Mcmaster Carr carries, since the local Autozone should have this in stock. Might take a look at my differential mount also and do that too if it is going.
http://multimedia.3m.com/mws/mediawe...SevTSeSSSSSS--
I'll try this instead of what Mcmaster Carr carries, since the local Autozone should have this in stock. Might take a look at my differential mount also and do that too if it is going.
Sorry if my initial explanation (ie: rambling) wasn't clear. But this is exactly what I was curious was if anybody had used this on these types of mounts. I was going to just repair my passenger side mount using this method with the readily available 3M product rather than ordering from online. I will be doing this in the next month. I will report back what I find out.
07-26-2012, 04:24 PM
#33
Registered
iTrader: (6)
Join Date: Jun 2007
Location: Pleasanton, CA
Posts: 1,781
Likes: 0
Received 0 Likes
on
0 Posts

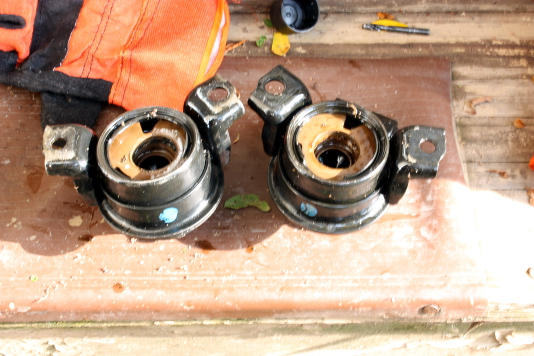

So I'm in the process of filling my mounts and used the extra passenger side mount as a test mule for the filling process. It came out great, but I'm trying to figure out how I'm going to fill the two in my car currently. Passenger side is easy because I can just swap out the one I already filled and repeat the process with the one on the car currently, but I'm trying to figure out the driver side. Can I use the passenger side one on the driver side for a week while the actual one cures? I know I'll have to make one of the holes bigger on the temporary mount, then use a washer to keep the smaller bolt so it can fit in the opposite hole of the right hand mount in order to line up on the right side.
Any reason this wouldn't work? I've been trying to source an extra mount for an AT, but haven't had much luck, so I figure this is my best bet so I can keep using my car. It's only for a week, how bad could it be, right?
Any reason this wouldn't work? I've been trying to source an extra mount for an AT, but haven't had much luck, so I figure this is my best bet so I can keep using my car. It's only for a week, how bad could it be, right?
07-26-2012, 06:20 PM
#35
I apologize I didnt read the whole thread but does this discuss the option of extending the depth the engine side mount bolts go into the top of the mount?
I did not personally do this on mine or 9k's but for higher HP application this would be worth while (I think bse50 is the one that turned me onto it)
I did not personally do this on mine or 9k's but for higher HP application this would be worth while (I think bse50 is the one that turned me onto it)
07-26-2012, 10:09 PM
#38
Registered
iTrader: (6)
Join Date: Jun 2007
Location: Pleasanton, CA
Posts: 1,781
Likes: 0
Received 0 Likes
on
0 Posts
So I'm in the process of filling my mounts and used the extra passenger side mount as a test mule for the filling process. It came out great, but I'm trying to figure out how I'm going to fill the two in my car currently. Passenger side is easy because I can just swap out the one I already filled and repeat the process with the one on the car currently, but I'm trying to figure out the driver side. Can I use the passenger side one on the driver side for a week while the actual one cures? I know I'll have to make one of the holes bigger on the temporary mount, then use a washer to keep the smaller bolt so it can fit in the opposite hole of the right hand mount in order to line up on the right side.
Any reason this wouldn't work? I've been trying to source an extra mount for an AT, but haven't had much luck, so I figure this is my best bet so I can keep using my car. It's only for a week, how bad could it be, right?
Any reason this wouldn't work? I've been trying to source an extra mount for an AT, but haven't had much luck, so I figure this is my best bet so I can keep using my car. It's only for a week, how bad could it be, right?
08-09-2012, 10:25 AM
#40
Ordered some 80A from MMC, should be here tomorrow (usually stuff I order from them is here next day). Going to be attempting this hopefully tomorrow night. Been reading on a few sites that the curing time can be decreased by placing the motor mounts in an oven at ~160F for about 10 hours, any truth to this?
08-09-2012, 05:30 PM
#41
Zoom Frickin Zoom
Join Date: May 2010
Location: Jacksonville, Fl
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
Ordered some 80A from MMC, should be here tomorrow (usually stuff I order from them is here next day). Going to be attempting this hopefully tomorrow night. Been reading on a few sites that the curing time can be decreased by placing the motor mounts in an oven at ~160F for about 10 hours, any truth to this?
08-09-2012, 05:57 PM
#42
05 RX8 Sold///05 Evo VIII
iTrader: (5)
Join Date: Feb 2009
Location: New Berlin, WI
Posts: 457
Likes: 0
Received 0 Likes
on
0 Posts
I'm interested in doing this but would like to hear more feedback from those who have done it. I'm all for better throttle response and cleaner shifts at the sacrifice of a little vibration.
But I'd still like to take road-trips in my car if need be.
But I'd still like to take road-trips in my car if need be.
08-09-2012, 07:45 PM
#44
Zoom Frickin Zoom
Join Date: May 2010
Location: Jacksonville, Fl
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
IIRC it is, but dont quote me on it. It came with instructions which I read several times, and it never mentioned an option to speed up the cure time by cooking it. Do it right or do it twice, a mantra to live (and mod) by.
