How many grooves in your AC belt

I need to know how many cars are out there with the three groove belt. I have three on my car but four on the extra engine I have on a stand.
I need to know how to design my S/C kit.

Reply Like

01-07-2006, 10:47 PM

#2

TheDosDog

Recovered Modaholic

Join Date: Dec 2003

Location: Napa, Ca.

Posts: 496

Likes: 0

Received 2 Likes on 2 Posts

4 ribs and 3 grooves on belt. 9/03 build.

Reply Like

01-07-2006, 10:55 PM

#3

StealthTL

Metatron

iTrader: (1)

Join Date: Mar 2003

Location: A Pacific Island.

Posts: 7,280

Likes: 510

Received 173 Likes on 130 Posts

Bad news....

Mine is a very early build date (April '03) and has FIVE (count 'em 5!) bumps on it.

S

Reply Like

01-08-2006, 12:03 AM

#4

swoope

Zoom-Freakin'-Zoom

iTrader: (5)

Join Date: Jan 2004

Location: orlando, fl

Posts: 14,602

Likes: 1

Received 35 Likes on 31 Posts

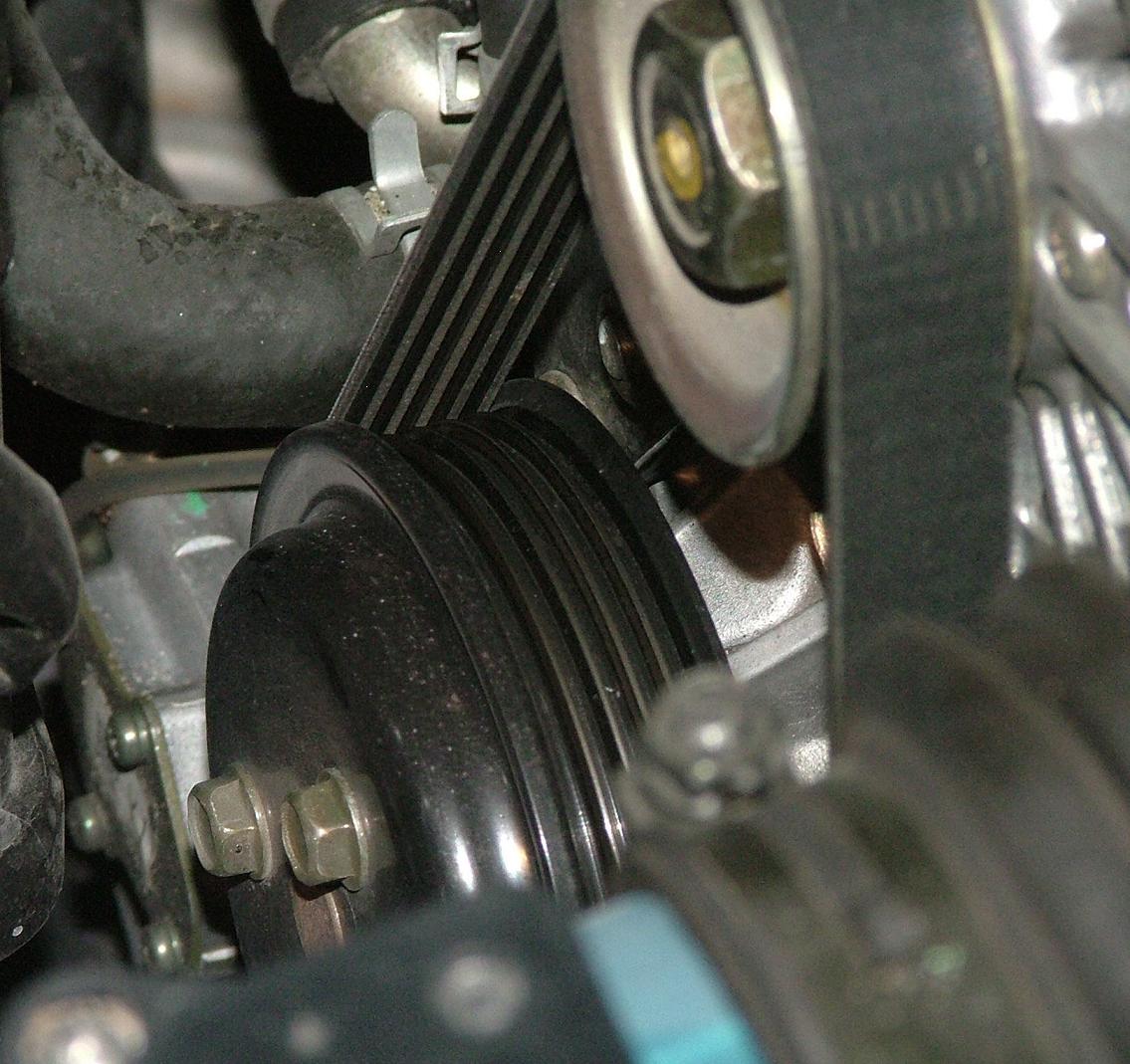

this is the water pump and alternator belt...

beers

Attached Thumbnails

How many grooves in your AC belt-dscf1417_edited.jpg

Reply Like

01-08-2006, 12:16 AM

#5

swoope

Zoom-Freakin'-Zoom

iTrader: (5)

Join Date: Jan 2004

Location: orlando, fl

Posts: 14,602

Likes: 1

Received 35 Likes on 31 Posts

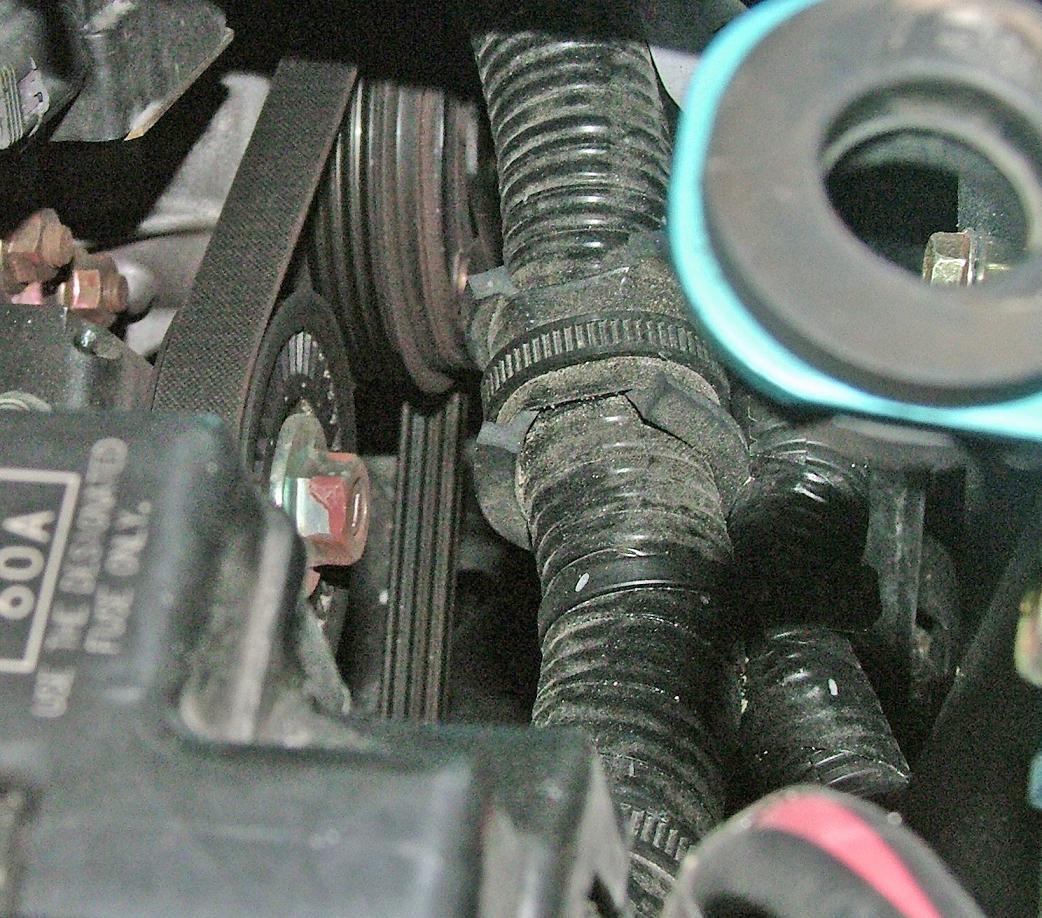

this is a photo of the ac belt.

sorry it is cold in fla.

beers

Attached Thumbnails

How many grooves in your AC belt-dscf1418_edited.jpg

Reply Like

01-08-2006, 12:19 AM

#6

Richard Paul

Registered

Thread Starter

iTrader: (5)

Join Date: May 2004

Location: Chatsworth Ca

Posts: 2,433

Likes: 0

Received 16 Likes on 9 Posts

Quote:

Originally Posted by swoope

this is a photo of the ac belt.

sorry it is cold in fla.

beers

So, do I count three or four ribs?? It looks like three and a half iin the photo.

Reply Like

01-08-2006, 12:29 AM

#7

swoope

Zoom-Freakin'-Zoom

iTrader: (5)

Join Date: Jan 2004

Location: orlando, fl

Posts: 14,602

Likes: 1

Received 35 Likes on 31 Posts

the ac i would count as three grooves and four ribs. and a small nether region...

f ing 42 degrees right now and i was in a bath robe....

i can send you big pics if you like....

beers

Reply Like

01-08-2006, 12:37 AM

#8

StealthTL

Metatron

iTrader: (1)

Join Date: Mar 2003

Location: A Pacific Island.

Posts: 7,280

Likes: 510

Received 173 Likes on 130 Posts

Doh....

After Swoopes guidance in finding my *** from my elbow -

-upon recount, four ribs, and pulley has three ribs/four grooves, looks like swoopes 2nd pic.
