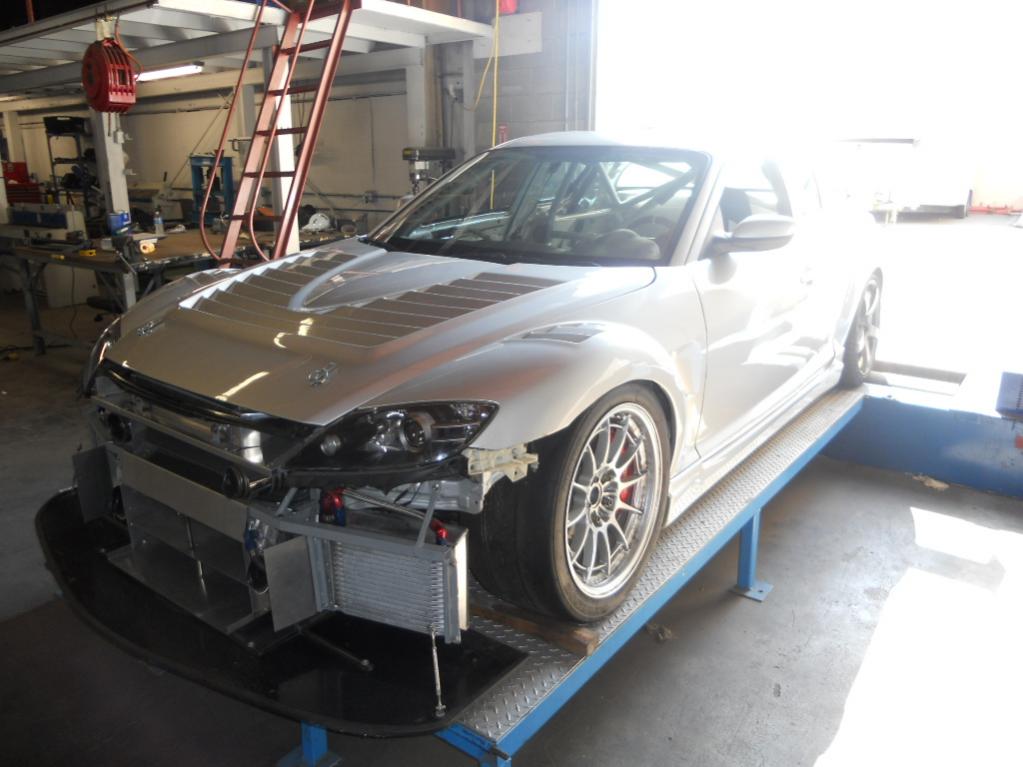

JIC-Magic Mazda RX8 Turbo New time attack race car
Year: 2004
Make: Mazda
Model: RX-8
Price: $60000
Mileage: 50
Color: silver
Private or Dealer Listing: Private Listing
Location (US State/Canada/Int): CA
Come with New engine and new transmission.
Here is information of this beautiful race RX8
This car is one by JIC-Magic Suspension Company. We are looking for next owner.
We hope local next owner pick this car. Be course we want to support suspension and development and tuning and make next racers success. We are going to work next project we have to looking for somebody race this car. We want to make sure next racer make good result at track. For local racer we will give and support upgrade suspension and tech support no charge. Any question email me
jon@jic-magic.com
2004 Mazda RX8 Cost to Build: Spend over $90000
Vehicle Weight: 2600lbs Weight Bias (F/R): front 52% rear 48%
ASKING Price $60000- US
ENGINE
Redline RPM: 8000rpm Peak Boost:1.5bar
Engine REW13B turbo
Displacement (cc): 654cc X2
Peak Horsepower (@ RPM): 550/7200
Compression Ratio:8.5:1
Fuel Injection: RC injector primary 1200cc secondary 1000cc
Engine Management: Haltech platinum sports 2000
Boost Control: Haltech
Ignition: GM X4
Spark Plugs: NGK
AEM water injection system
Turbocharger(s): Garret GT4088R ball bearing with 0.95 AR exhaust housing
Exhaust manifold made by JIC-Magic /Zielsports one of made
Exhaust system titanium made by JIC-Magic /Zielsports one of made front down pipe full stainless steel.\

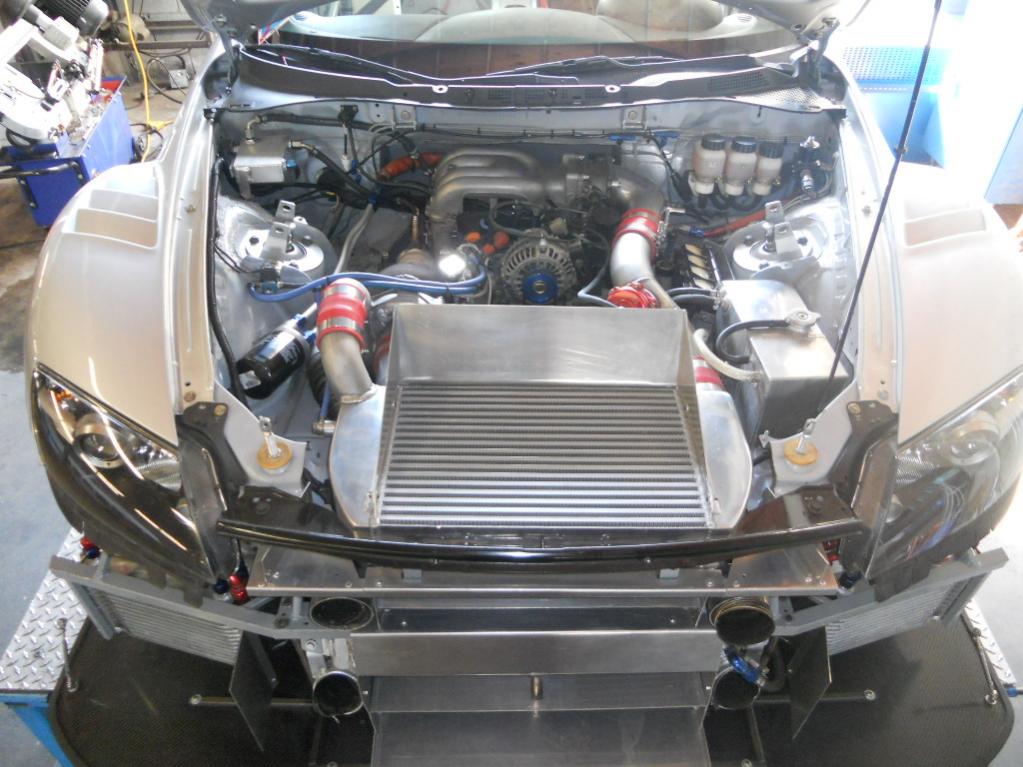

Front mount intercooler made buy JIC/ Zielsports
Front angle mount 3 lowcooling radiator with electronic fan fabrication by JIC-MAGIC/ Zielsports
Front dual oil cooler plus cooling fan made by JIC-MAGIC/ Zielsports
Front mount power steering oil cooler.
Solid engine mount.
DRIVE TRAIN
Exedy single metal
Tomei 1.5way deff with final drive 4.444 with electronic pump oil cooling systems
OS Giken 5 speed Transmission Gearing: 2.578, 1,772, 1,289, 1.000, 0.821
Solid rear deff case mounts.
Brake
Stop tech front and rear caliper and front 14 inch rotor and rear 13inch rotor

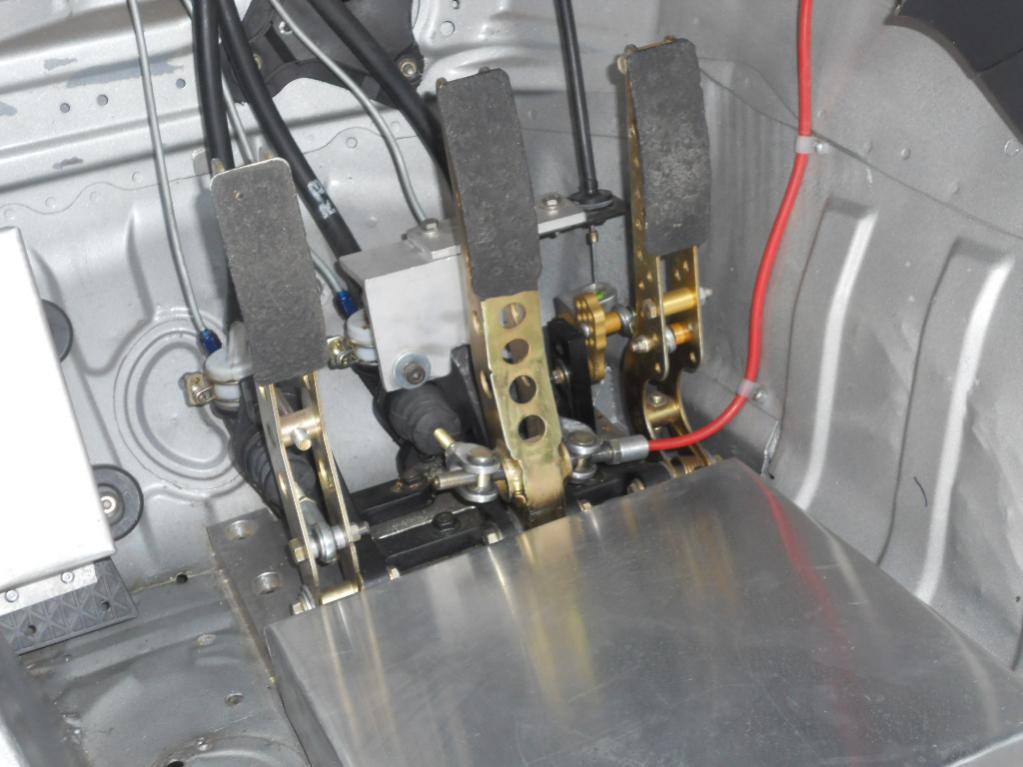

Tilton racing pedals full set with gas pedal. Using Motul oil
Front caliper air ducts and guide.
Chassis

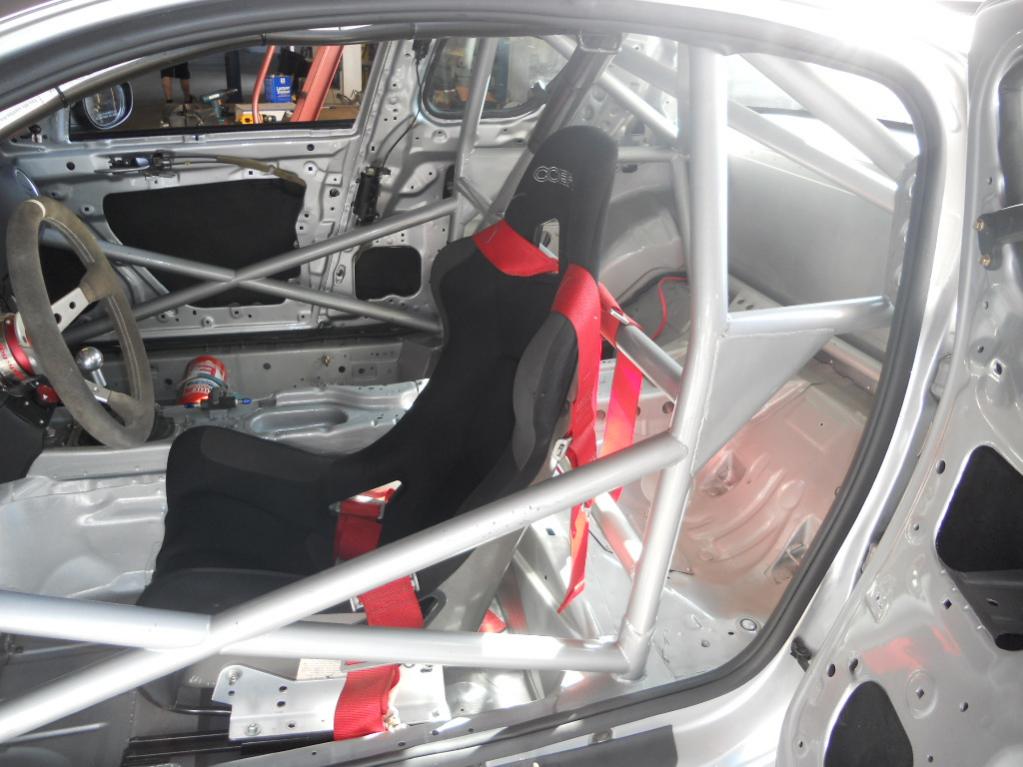

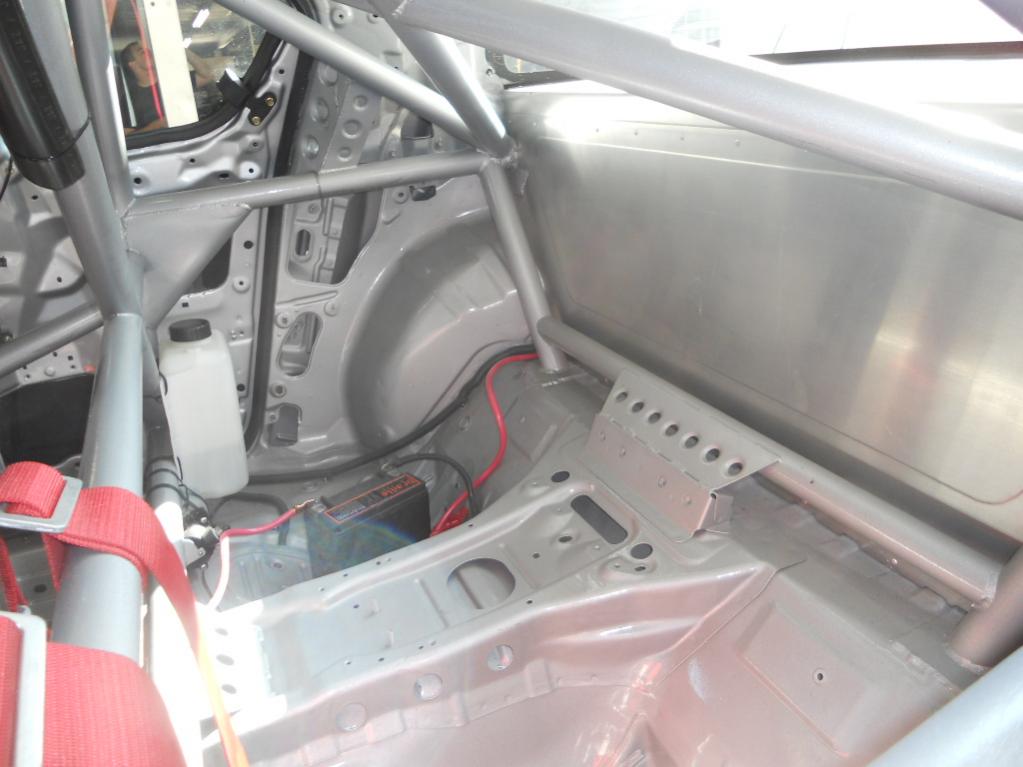

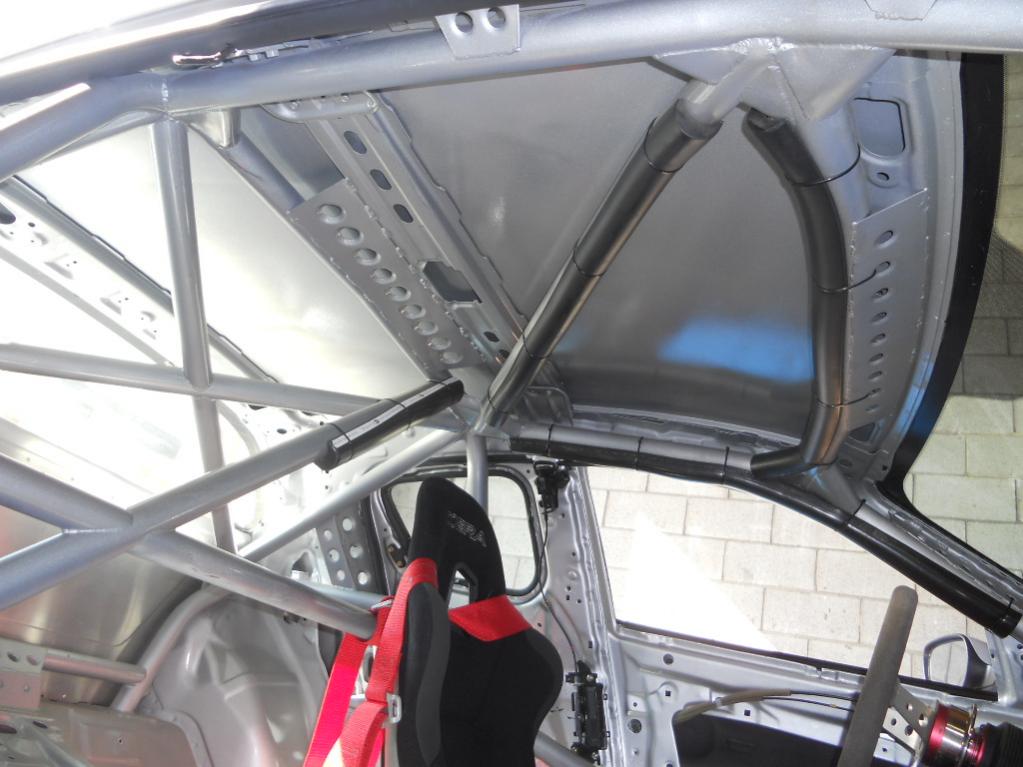

Custom 12 point roll cage
Front special upright /hub
Front custom sub frame, modified re located upper arm mount location
Front re located steering rack (using FD3S rack)
Front custom made bump steering end.
Front custom upper arms
Front full pillow ball bearing bushing
Front JIC Hard race tie rod
Rear special upright /Hub
Rear modified sub frame and re located upper arm location.
Rear full pillow ball bearings bushing.
Rear sub frame re located 1.4” up
Well dine canner weight balanced

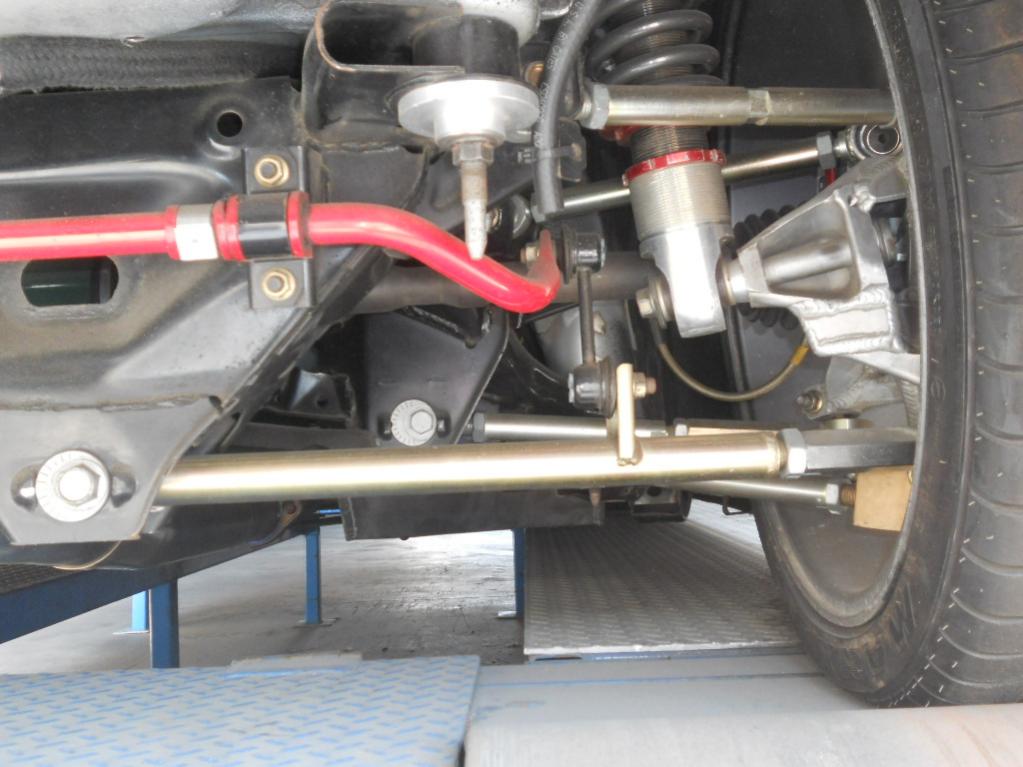

JIC-Magic pillow ball camber arms
JIC-Magic pillow ball lower arms.
JIC=Magic custom made traction rods

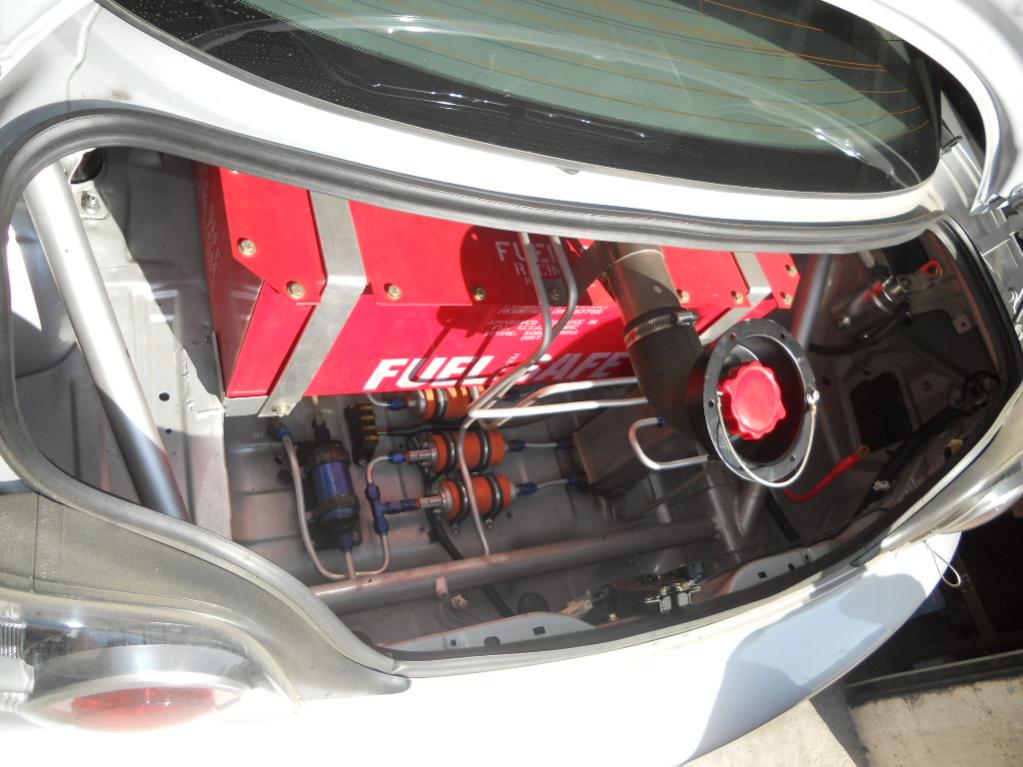

Fuel system
4 high flow full pump with mesh full filter
JIC-Magic / zielsports full collector tank and fuel system line.
Fuel Safe FT3 full race gasoline tank
Suspension
JIC-Magic mono tube TAR RS single 15way adjustable special
Front 16kg/mm with helper spring set.
Rear 10kg/mm single spring

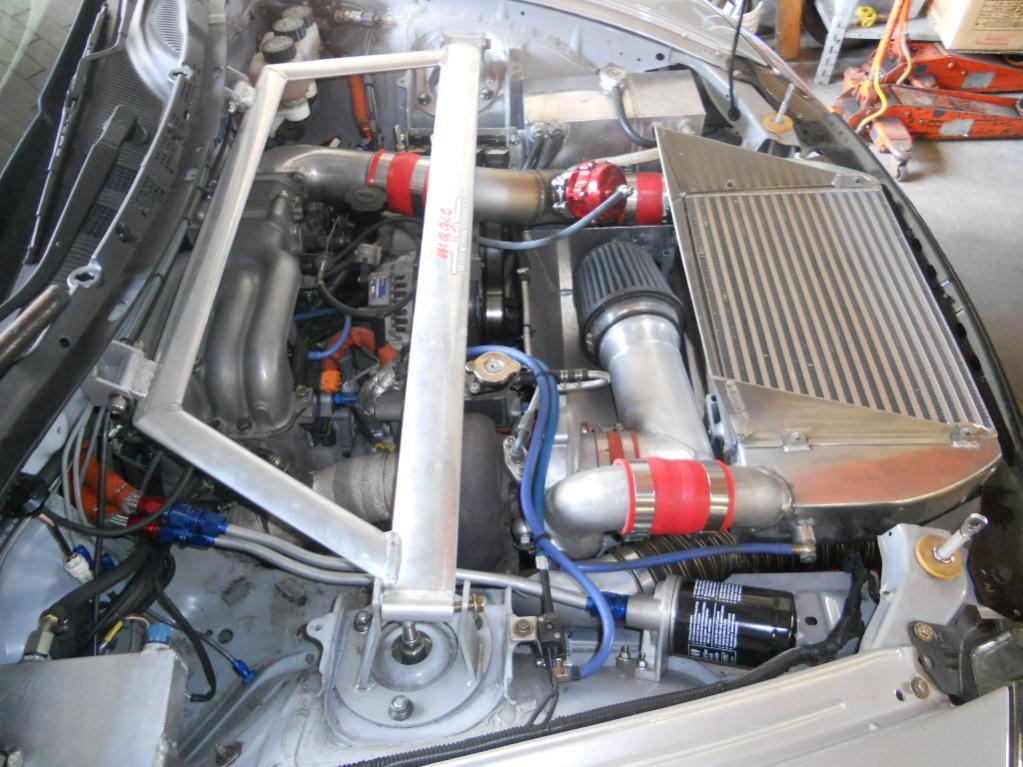

Front 4 point strut tower bar
BODY
Front fender BN Sports
Front bumper and Side step INGS
HOOD BN Sports
Front and rear Left and right fiber glass doors
Rear over fender Pan Speed.
Front lower custom spoiler
Rear wing by Kognition Design made by Mike
Other
Wheel Enkei
Apexi tach meter and boost gauge and all other gauge .

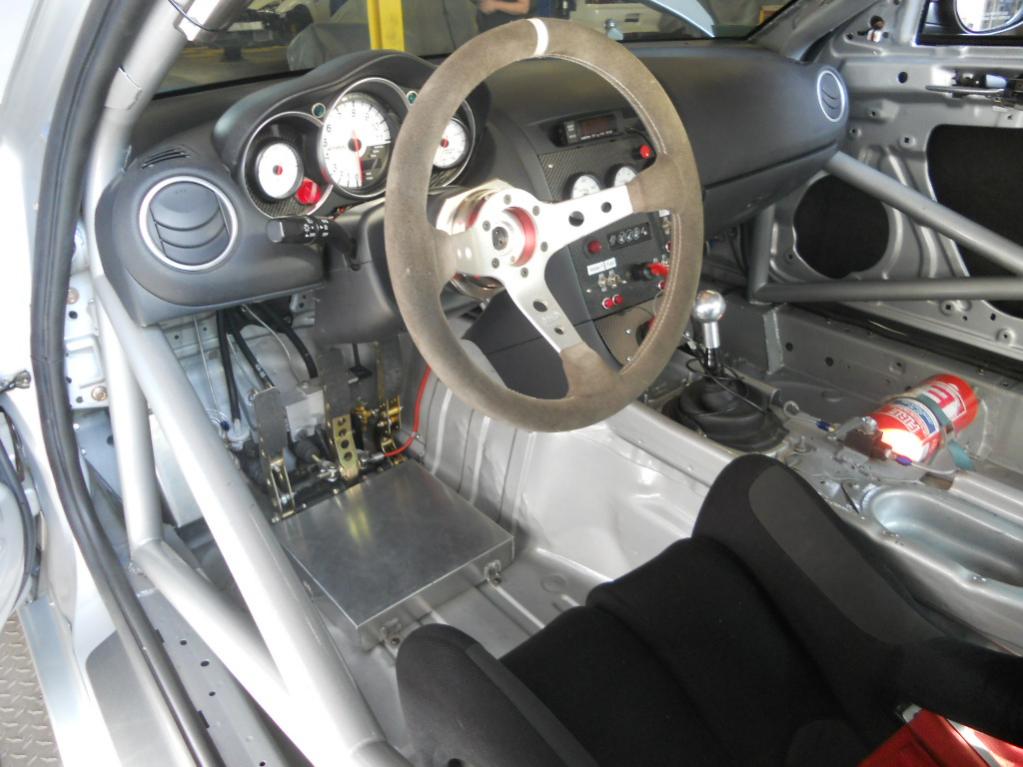

OMP steering
SEAT COBRA Suzuka
Last edited by JIC Magic; 10-05-2012 at 03:31 PM. Reason: email address mistake !
