Old 10-16-2017, 07:28 AM
  #26
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,551
Thanks: 0
Thanked 280 Times in 230 Posts
Originally Posted by wankelbolt View Post
Your catch can is vented to atmosphere. Why didn't you route it back to the intake?
Because it would be counterproductive to displace clean intake air with contaminated bypassed combustion gases on a non-emissions race engine.
TeamRX8 is offline
Old 10-16-2017, 10:34 AM
  #27
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2016
Posts: 167
Thanked 9 Times in 9 Posts
Originally Posted by TeamRX8 View Post
Because it would be counterproductive to displace clean intake air with contaminated bypassed combustion gases on a non-emissions race engine.
Yes. Thatís why.
Adax is offline
Old 10-16-2017, 01:32 PM
  #28
Pistons Please

Chezmanbespoke's Avatar

Join Date: Sep 2013
Location: Wasaga Beach, Ontario
Posts: 307
Thanked 7 Times in 7 Posts
Excuse me while I scrape my jaw off the floor.......

... And begin to feel a bit sad about the attention to detail in my own build LOL

Absolutely love it ! Fantastic work!!
Chezmanbespoke is offline
The Following User Says Thank You to Chezmanbespoke For This Useful Post:
Adax (10-16-2017)
Old 01-07-2018, 05:01 PM
  #29
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 284
Thanked 9 Times in 9 Posts
what did you do for heat/defroster since you took the HVAC out
trackjunkie is offline
Old 01-14-2018, 11:30 AM
  #30
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2016
Posts: 167
Thanked 9 Times in 9 Posts
Originally Posted by trackjunkie View Post
what did you do for heat/defroster since you took the HVAC out
Smearing a thin film of Dawn on the inside of the windshield works great. Also: A rag on a stick for the straights.
Adax is offline
Old 01-14-2018, 11:41 AM
  #31
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 284
Thanked 9 Times in 9 Posts
Originally Posted by Adax View Post
Smearing a thin film of Dawn on the inside of the windshield works great. Also: A rag on a stick for the straights.
lol old school. i'll probably use a small heat exchanger blower setup.
trackjunkie is offline
Old 01-14-2018, 02:29 PM
  #32
Registered

Join Date: Sep 2005
Location: Tampa
Posts: 674
Thanked 62 Times in 57 Posts
Great work on the build. How much does the car weigh?
strokercharged95gt is offline
Old 01-15-2018, 04:25 PM
  #33
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2016
Posts: 167
Thanked 9 Times in 9 Posts
Originally Posted by strokercharged95gt View Post
Great work on the build. How much does the car weigh?
With me in it and no fuel, about 2805. With gear I'm around 200 so the car is a bit over 2600. I could run it at 2746 if I disabled the ABS but I can't see how to get it down to that weight.

Thanks,
Adax is offline
Old 01-28-2018, 02:52 PM
  #34
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2016
Posts: 167
Thanked 9 Times in 9 Posts

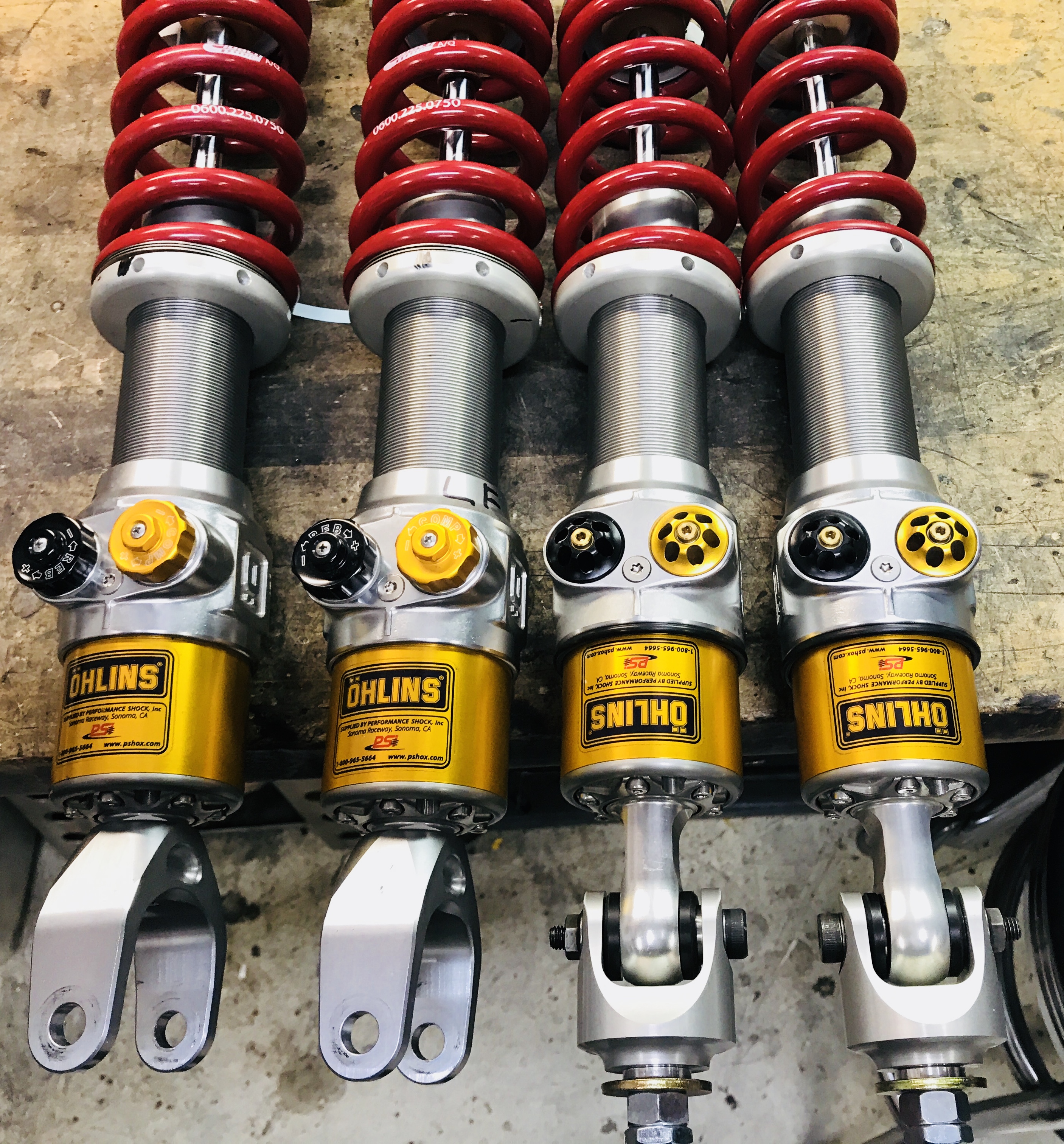

Just picked up this set of lightly used TTX 36's, custom built for an RX8. They are beautiful.

This means my Koni 2812 setup will be up for sale soon if anyone is interested. It they have literally 5 laps on them since a complete rebuild at ProParts.
Attached Thumbnails SCCA STL Build-img_1467.jpg
Adax is offline
Old 01-28-2018, 03:00 PM
  #35
1% evil, 99% hot gas.
iTrader: (21)

wankelbolt's Avatar

Join Date: Nov 2007
Location: Forest Hill, MD
Posts: 1,058
Thanked 56 Times in 43 Posts
Beautiful. Bet they weren't cheap!
wankelbolt is offline
Old 01-29-2018, 07:15 AM
  #36
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 284
Thanked 9 Times in 9 Posts
wow that's beautiful. can you post some pics of the rear top hat setup. what spring rate are you running on those shocks.
trackjunkie is offline
Old 01-29-2018, 09:20 AM
  #37
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,551
Thanks: 0
Thanked 280 Times in 230 Posts
I'll opt for the 2822s , lol
TeamRX8 is offline
Old 02-23-2018, 09:52 PM
  #38
Registered

Join Date: Jan 2004
Posts: 682
Thanked 1 Time in 1 Post
Which transmission are running? And why not STU, instead of STL? In STU the weight restriction is lighter and you donít have to run the restictor plate.
TORacing is offline
Old 02-24-2018, 08:28 AM
  #39
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2016
Posts: 167
Thanked 9 Times in 9 Posts
Series II trans.

The competition is better in STL, and I think the car will be more competitive in STL.

AC
Adax is offline
Old 02-24-2018, 08:53 AM
  #40
Registered

Join Date: Jan 2004
Posts: 682
Thanked 1 Time in 1 Post
Are you running the S2 final gear, regeared S1 diff, or the stock S1 final gear?

Are your running it without the headlight assembly? I see you’ve got the lexan rear door inserts, are you running CF fenders or door panels?

And what about ABS and PS, what was your solution for this?

I’m running one of Speedsource’s old Grand Am cars, and i’ve got no PS or ABS. Of course no one there remembers how they wired the car up, and the Motec system is so old no one at Motec is any help. I’ve been flirting with the idea of taking a donor factory harness and trying to rewrite the ABS from scratch.
TORacing is offline
Old 02-24-2018, 12:58 PM
  #41
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2016
Posts: 167
Thanked 9 Times in 9 Posts
Good questions about final drive. I'm not sure, I should probably measure it.

Without headlight assembly. Just the gutted lenses. They won't fit with my oil cooler fittings.

With ABS and PS. Have tried briefly without PS and it slows me down a little on some tracks. Generally like having ABS as well. Solution is the stock ECU with CAN bus connected. Neither will work without. May try Adaptronic ECU in the future.

Sounds challenging. Keep us posted.

Alan
Adax is offline
Old 02-24-2018, 04:52 PM
  #42
Registered

Join Date: Jan 2004
Posts: 682
Thanked 1 Time in 1 Post
We gutted the factory rack and pinion and removed the factory electric assist motor which was just dead weight and made steering even more of an effort, converting it to basically a manual steering setup. It helped a lot, but there’s still some effort when it comes to steering which I’m sure results in some lost time.

The factory wiring and CAN bus is still in there and sending signals to the Motec, but nothing (or at least not the right signals) are making to the ABS and PS. Speedsource, and the drivers, can’t remember if they were running ABS/PS at all in Grand Am. Without rewiring the whole Motec the solution seems to be running a twin harness with factory CAN and ECU just to the ABS/PS, the issue may still be getting the right signals through to the right components.
TORacing is offline
Old 04-30-2018, 04:25 PM
  #43
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2016
Posts: 167
Thanked 9 Times in 9 Posts

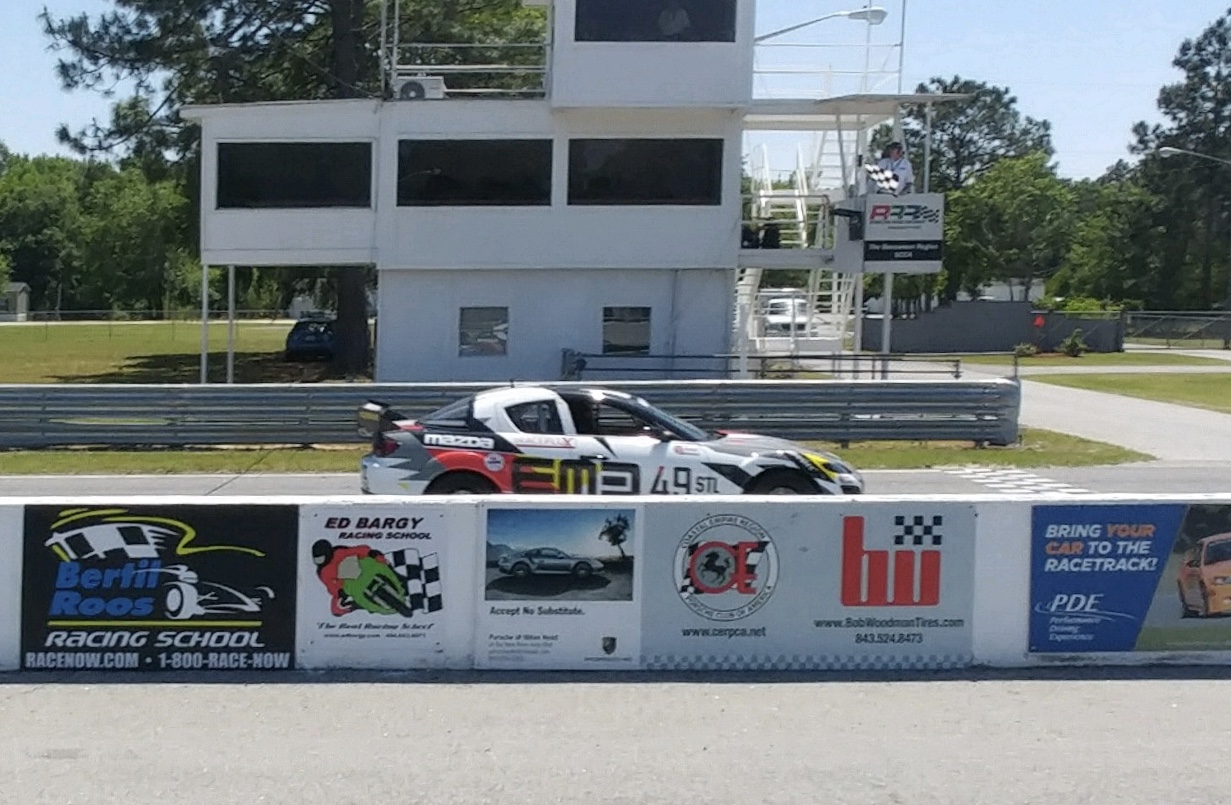

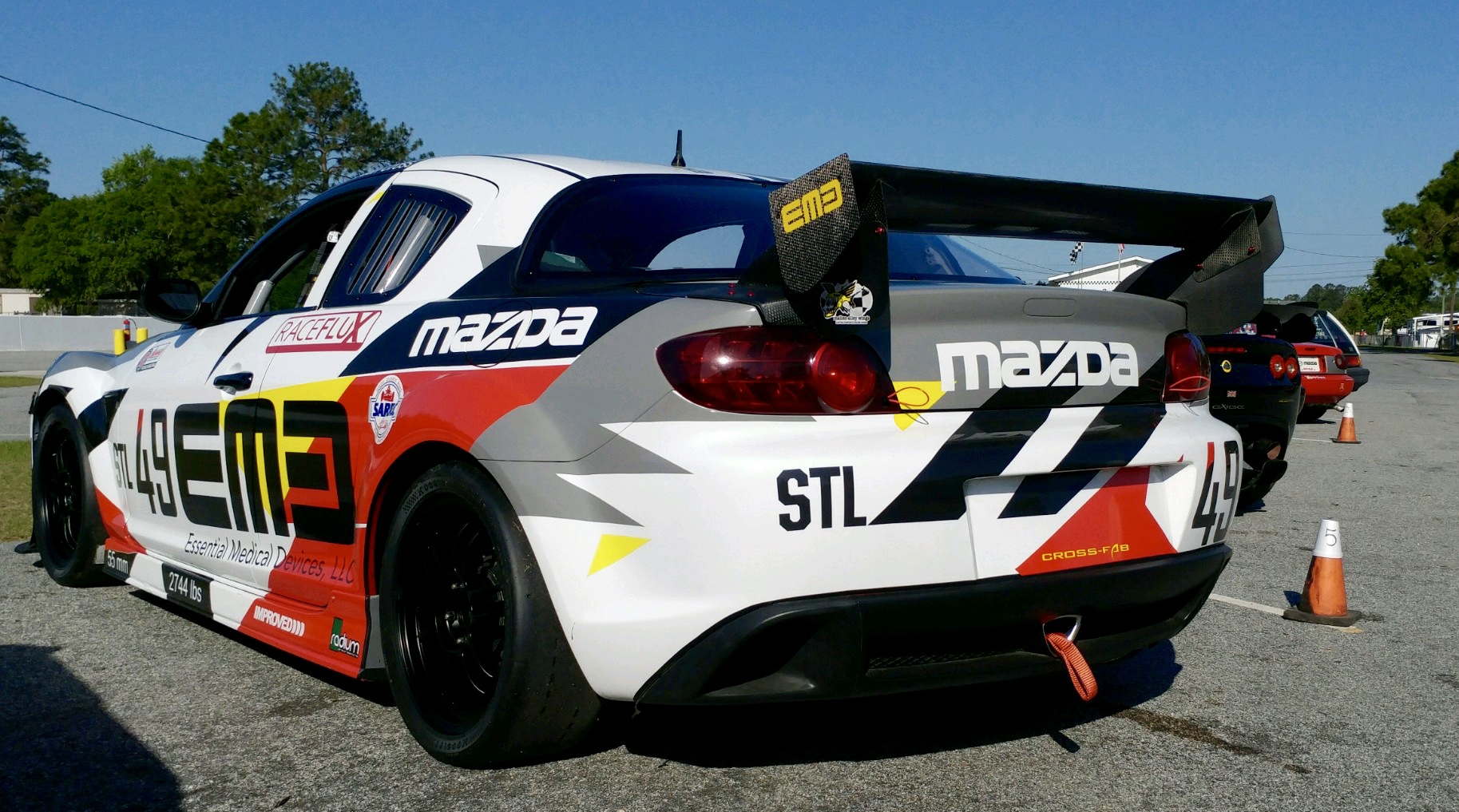

After months of work on this car it finally took a green, and subsequent checker flag at Roebling in Savannah, GA last weekend. There is still a lot of development to be done before it is nationally competitive but the potential is encouraging. The competition was light but I manage to set a new STL track record, besting the old one by over a second. Probably not a wise move since I'm lobbying for more power.

I also race a Spec Miata - put both cars on pole in qualifying and finished P1 in STL and P2 in SM. Not a bad weekend for me and Mazda. VIR in two weeks.
Attached Thumbnails SCCA STL Build-0429180915.jpg   SCCA STL Build-0429181418-2.jpg
Adax is offline
Old 04-30-2018, 08:46 PM
  #44
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 284
Thanked 9 Times in 9 Posts
congrats on a successful first run. too bad you're going to be at VIR a week before us. We'll be there for NASA Hyperfest on May 19/20. would have love to see the car in person.
trackjunkie is offline
Old 05-15-2018, 08:42 PM
  #45
1% evil, 99% hot gas.
iTrader: (21)

wankelbolt's Avatar

Join Date: Nov 2007
Location: Forest Hill, MD
Posts: 1,058
Thanked 56 Times in 43 Posts
Adax got some nice coverage on Mazda Motorsports today:

https://www.mazdamotorsports.com/201...osss-stl-rx-8/
wankelbolt is offline
Old 05-16-2018, 11:43 AM
  #46
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2016
Posts: 167
Thanked 9 Times in 9 Posts
Originally Posted by wankelbolt View Post
Adax got some nice coverage on Mazda Motorsports today:

https://www.mazdamotorsports.com/201...osss-stl-rx-8/

Thanks. I was thrilled to be featured. They did a great job with the article.

Alan
Adax is offline
Old 05-22-2018, 06:44 AM
  #47
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 284
Thanked 9 Times in 9 Posts
do you have any pictures of the front door gutted. i'm going to do my front door next.
Thanks,
trackjunkie is offline
Old 05-22-2018, 11:49 AM
  #48
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2016
Posts: 167
Thanked 9 Times in 9 Posts
Give me a couple of days.
Adax is offline
Old 05-24-2018, 05:12 PM
  #49
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2016
Posts: 167
Thanked 9 Times in 9 Posts

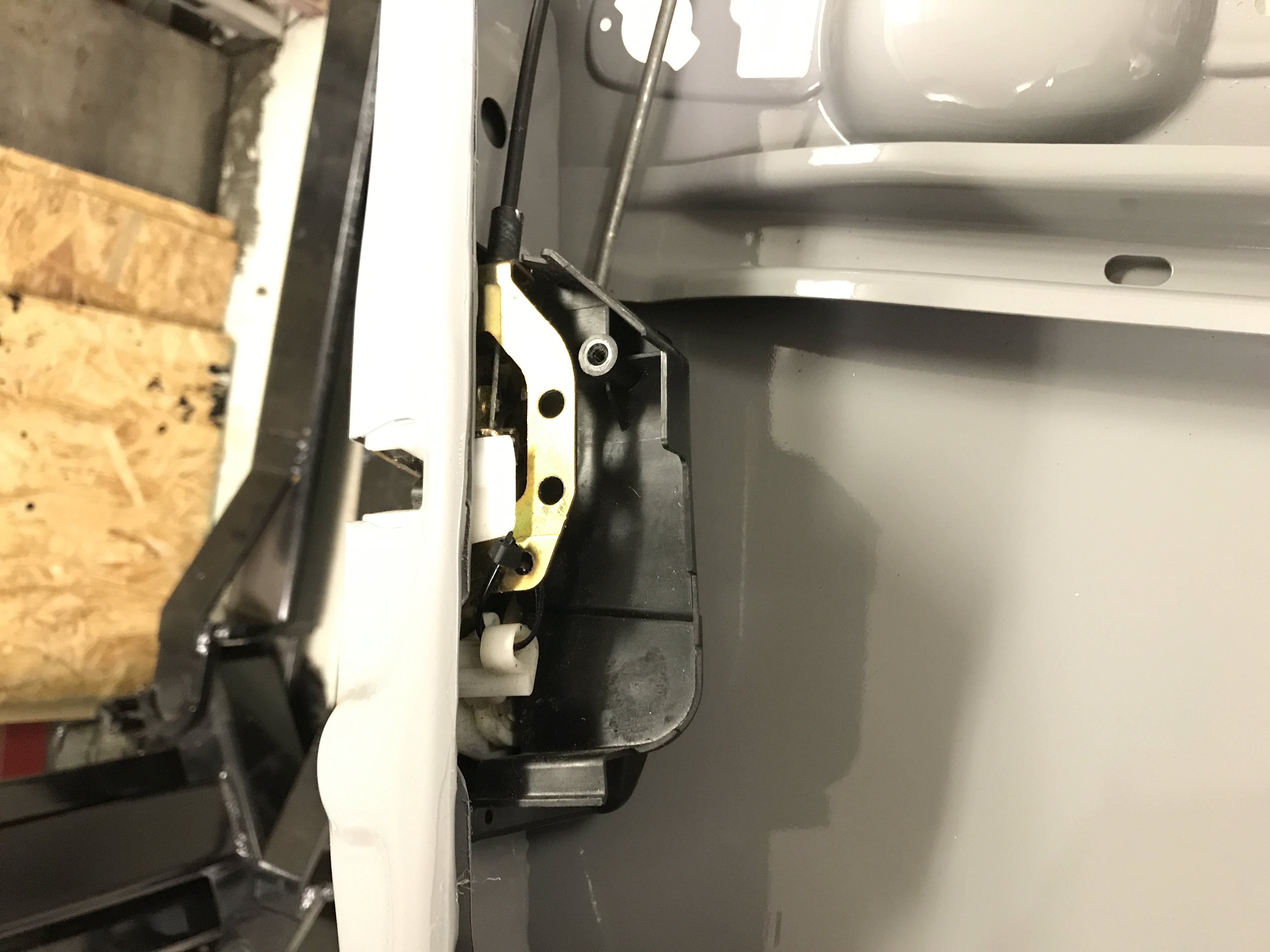

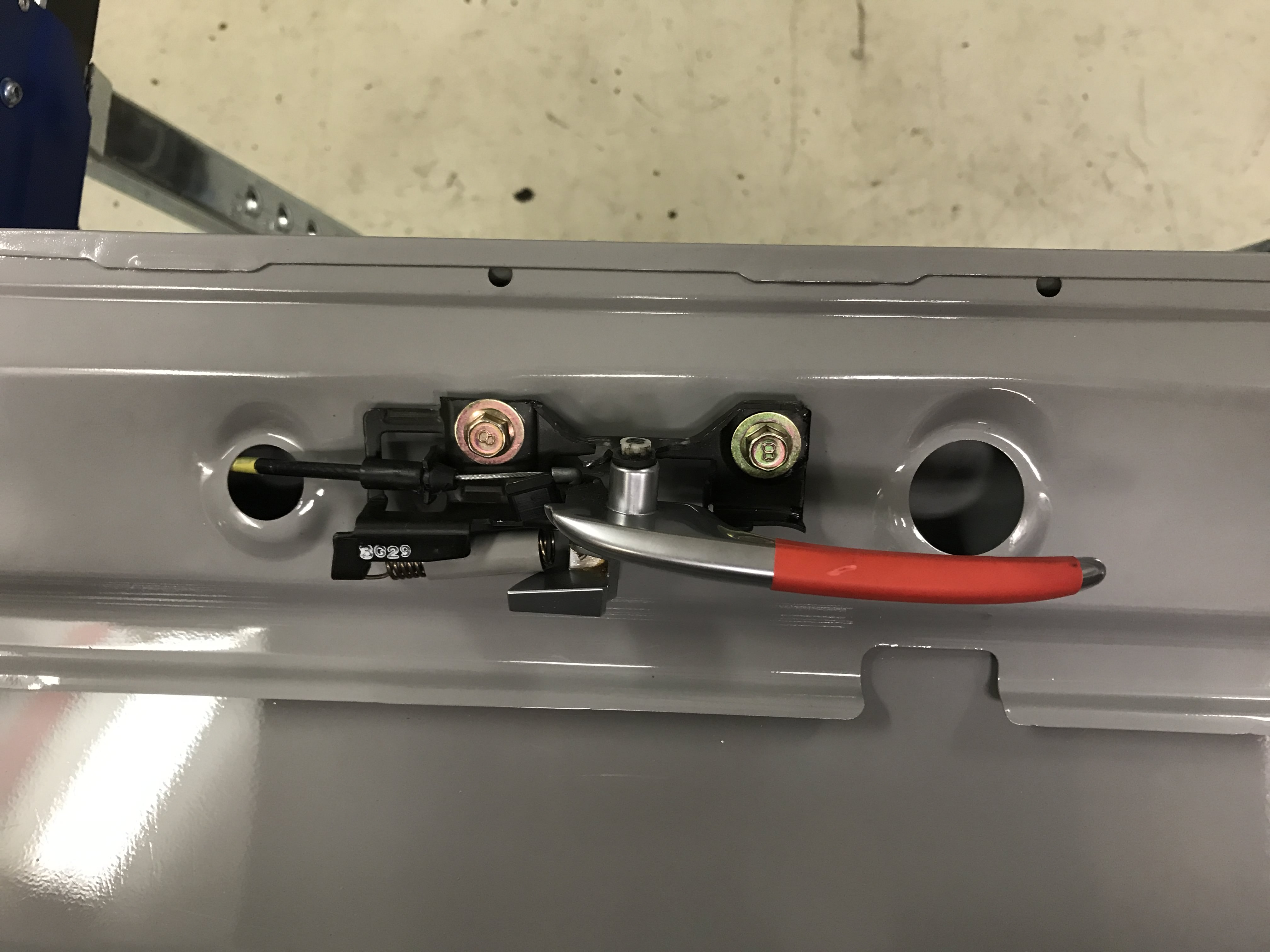

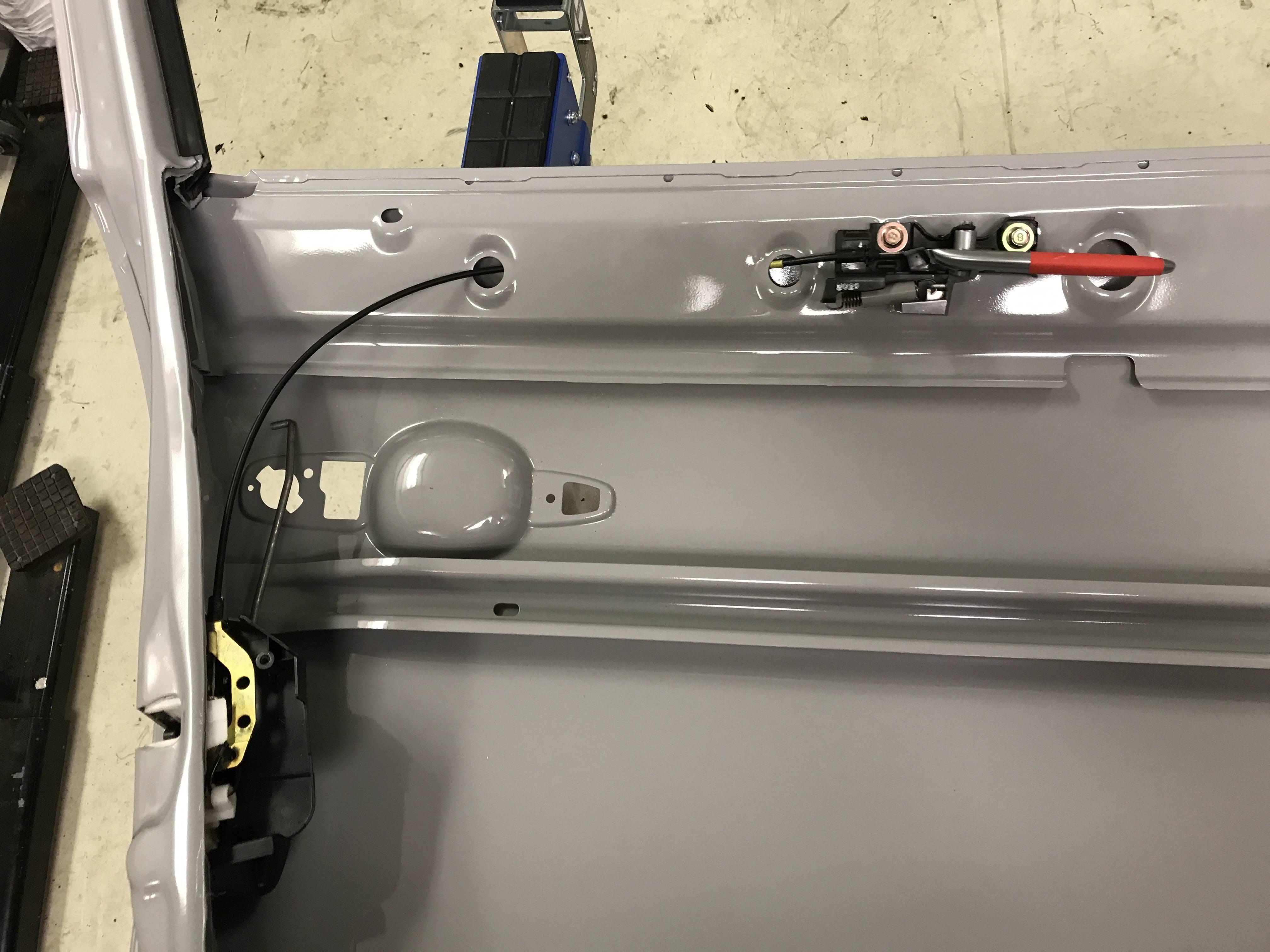

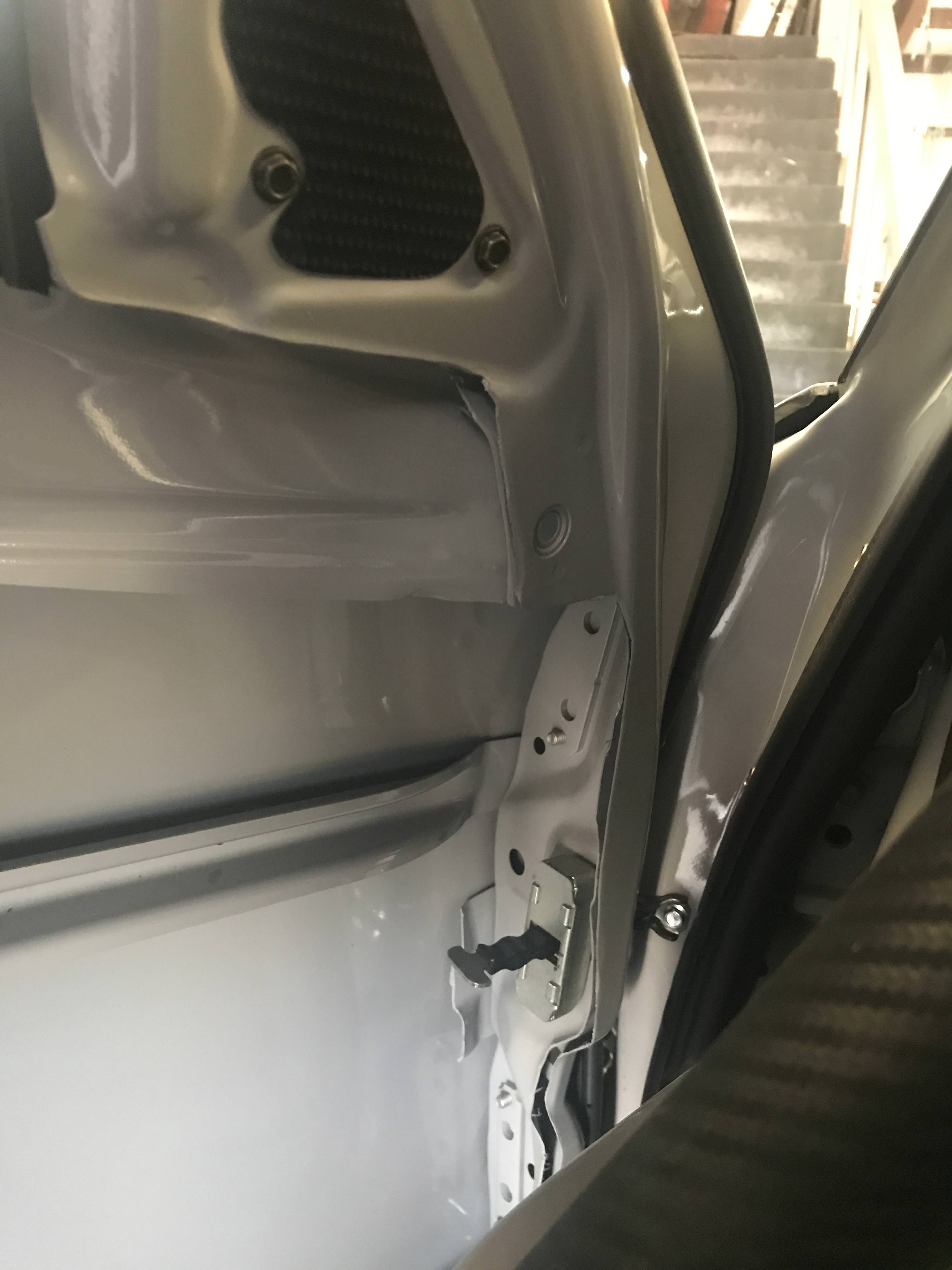

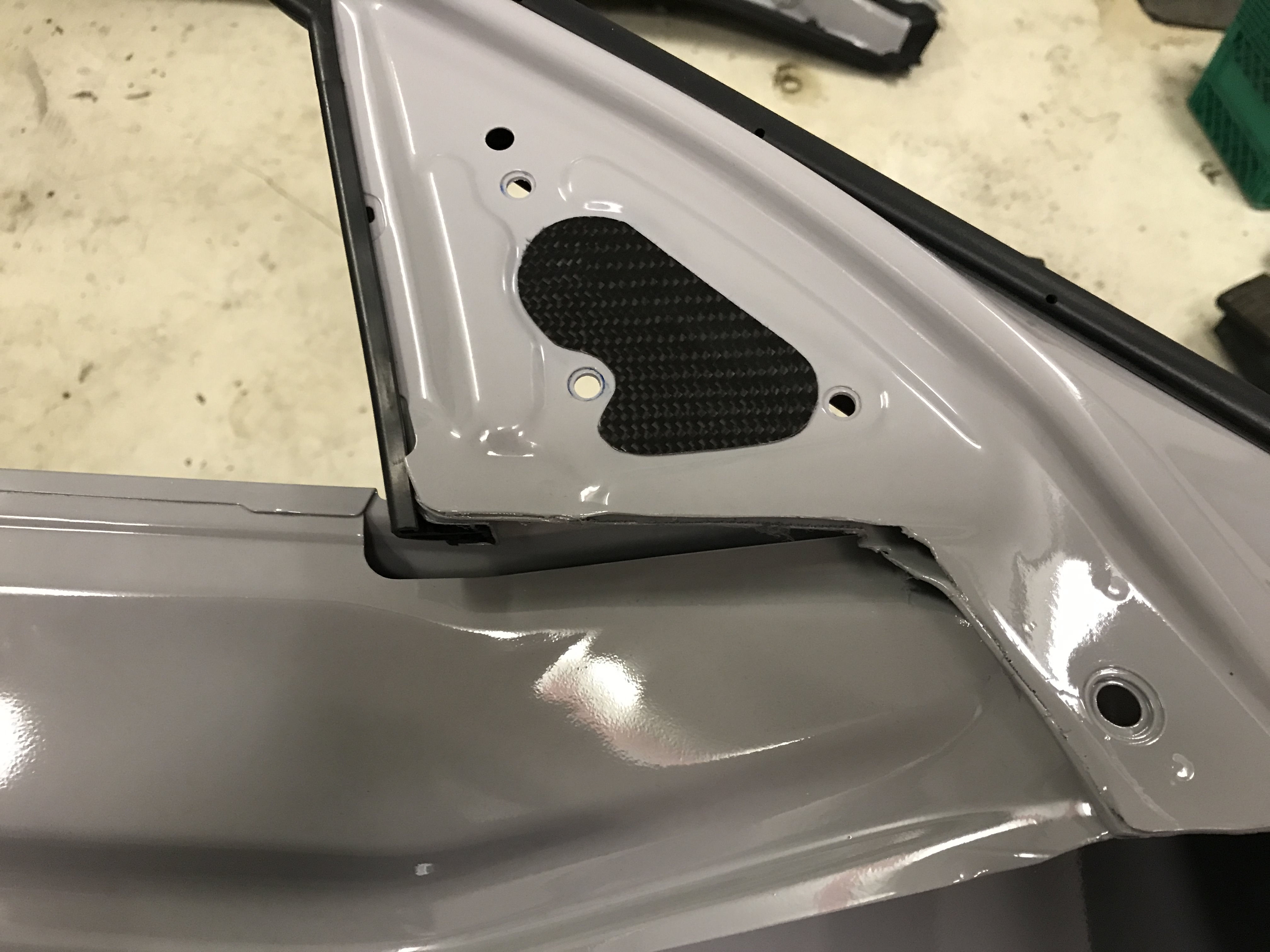

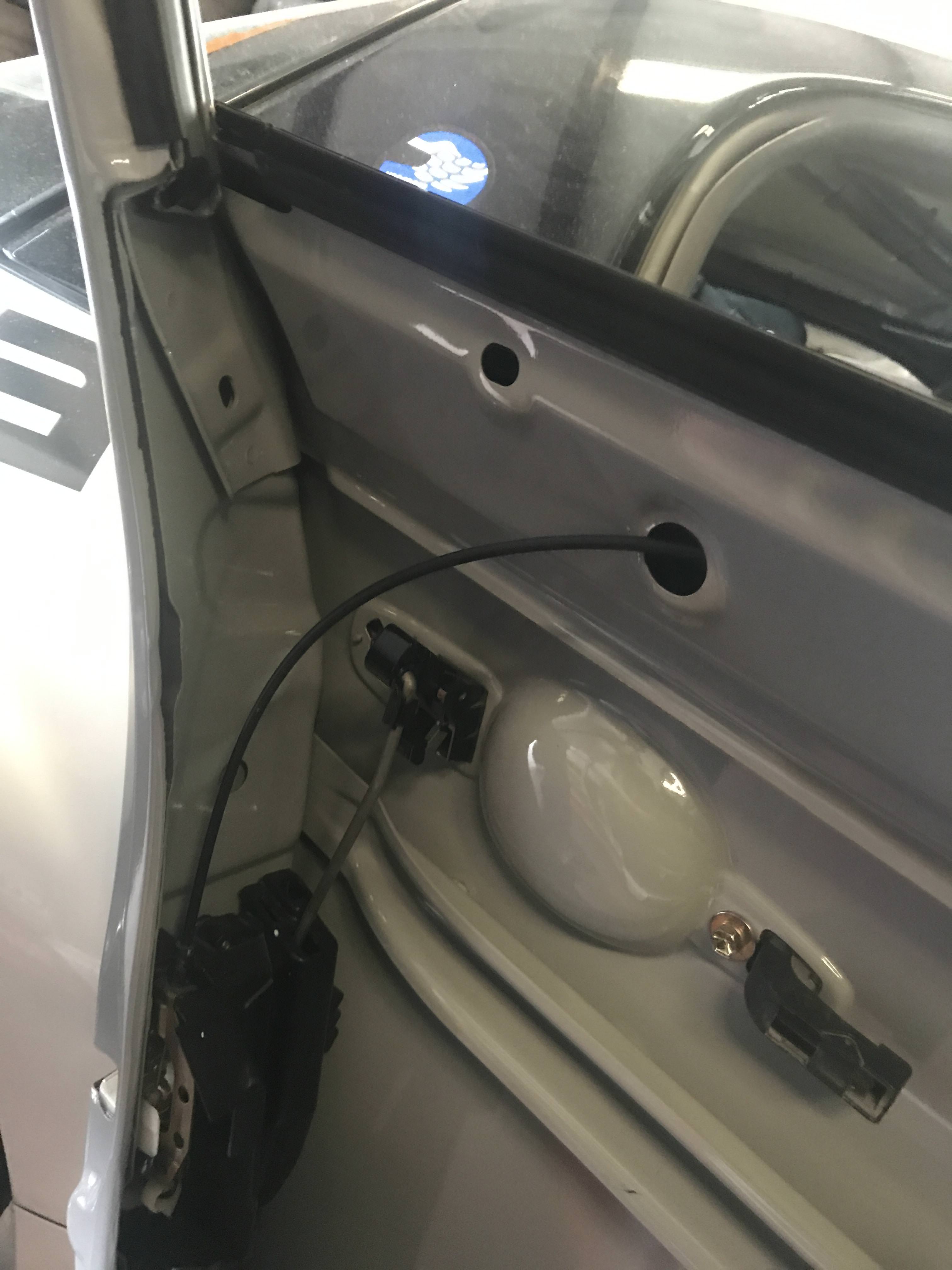

Front Door Gutting

















Adax is offline
Old 05-24-2018, 08:35 PM
  #50
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 284
Thanked 9 Times in 9 Posts
Very nice. Thanks for posting the pics. Are you going to make lexan windows for the front doors I was considering it for the passenger side.
trackjunkie is offline
