I don't know what this connector is for!

RX-8 Racing Want to discuss autocrossing, road-racing and drag racing the RX-8? Bring it here. This is NOT a kills/street racing forum.

I don't know what this connector is for!

Reply




Old 04-12-2018, 09:08 AM
  #26
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 205
Thanked 6 Times in 6 Posts
so i have a 6 pole kill switch for my car, and only disconnecting the battery positive doesn't kill the engine, it keeps running.
according to diagram below, do i just ground out the positive cable with a resistor, which is connected to the alternator. would that work?




trackjunkie is offline
Reply With Quote
Old 04-12-2018, 02:02 PM
  #27
Registered
iTrader: (1)

Join Date: Nov 2016
Posts: 136
Thanked 6 Times in 6 Posts
From earlier in this thread:

Originally Posted by Adax View Post
NB Miata alternator diagram (attached) is identical to the RX8 so I infer that it is computer controlled. I posted the RX8 diagram because the wire colors are listed. Here's how it was explained to me for the NB (I've change the wire descriptors to make it correct for the RX8), take it or leave it.

The W/G wire is the signal wire to the PCM. It is connected to one of the three stators so it senses whether or not the alternator is turning. The BR/R wire is the signal wire from the PCM to the exciter. If the alternator stops turning, there are no pulses on the W/G wire so the PCM cuts signal to the BR/R wire disabling the exciter and turns on the ALT warning light (presumably).

So cutting the W/G wire triggers the PCM to disable the internal exciter and charging stops.

Now I'm going to have to disconnect this wire on my car to prove the theory.
The W/G alternator wire works for my switch.

So all our previous theory is incorrect apparently. I'll verify that battery positive alone doesn't kill the car next weekend.
Adax is offline
Reply With Quote
Old 04-13-2018, 07:02 AM
  #28
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 205
Thanked 6 Times in 6 Posts
Originally Posted by Adax View Post
From earlier in this thread:



The W/G alternator wire works for my switch.

So all our previous theory is incorrect apparently. I'll verify that battery positive alone doesn't kill the car next weekend.
i PM mr.pockets yesterday and he tired his kill switch which only disconnect battery positive while engine is running and the engine stays running. That's two case that has proven it. no need for you to go through the trouble to try it.

so if i disconnect the W/G wire, and battery positive, that would kill the engine, correct?

so according the the wiring diagram i posed above, do i bypass the W/G wire to the Z connector on the kill switch?
do i also wire the ground wire with resistor to the kill switch W connector and to the battery positive. i guess that's for surge protection?
trackjunkie is offline
Reply With Quote
Old 04-13-2018, 08:40 AM
  #29
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,546
Thanks: 0
Thanked 266 Times in 219 Posts
Even if you kill Bat+ the running engine will still receive power from the alternator because the Alt+ wire attaches right at the Bat+ post terminal. You would need to have the disconnect between both of those wires and the battery post to kill it that way instead.
TeamRX8 is offline
Reply With Quote
Old 04-13-2018, 09:39 AM
  #30
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 205
Thanked 6 Times in 6 Posts
if that's the case, you'd have to run a larger gauge wire from Alt+ to the cut off inside the car. it would be easier to run smaller gauge wire from cut off to the w/g wire on the alternator.
trackjunkie is offline
Reply With Quote
Old 04-14-2018, 07:19 AM
  #31
Registered
iTrader: (1)

Join Date: Nov 2016
Posts: 136
Thanked 6 Times in 6 Posts
Originally Posted by trackjunkie View Post
if that's the case, you'd have to run a larger gauge wire from Alt+ to the cut off inside the car. it would be easier to run smaller gauge wire from cut off to the w/g wire on the alternator.
Agreed
Adax is offline
Reply With Quote
Old 04-14-2018, 03:11 PM
  #32
Registered
Thread Starter

Mr. Pockets's Avatar

Join Date: Mar 2008
Location: Champaign, IL
Posts: 429
Thanked 6 Times in 5 Posts
Originally Posted by trackjunkie View Post
if that's the case, you'd have to run a larger gauge wire from Alt+ to the cut off inside the car. it would be easier to run smaller gauge wire from cut off to the w/g wire on the alternator.
I just tried this. It didnít work. Car still runs when the switch is turned off.

Hrm...
Mr. Pockets is online now
Reply With Quote
Old 04-14-2018, 04:13 PM
  #33
Registered
Thread Starter

Mr. Pockets's Avatar

Join Date: Mar 2008
Location: Champaign, IL
Posts: 429
Thanked 6 Times in 5 Posts
Okay, in that very first picture on this thread I can tell the br/r wire is the one that's switched. I ran that through the master switch, and now the car shuts off.

Conclusion: I have no idea why it works, but switching the br/r wire and the positive battery cable kills the car.
Mr. Pockets is online now
Reply With Quote
Old 04-14-2018, 07:59 PM
  #34
Registered
iTrader: (1)

Join Date: Nov 2016
Posts: 136
Thanked 6 Times in 6 Posts
I don't know either but W/G and bat + works on my car.
Adax is offline
Reply With Quote
Old 04-14-2018, 10:25 PM
  #35
Registered
Thread Starter

Mr. Pockets's Avatar

Join Date: Mar 2008
Location: Champaign, IL
Posts: 429
Thanked 6 Times in 5 Posts
Originally Posted by Adax View Post
I don't know either but W/G and bat + works on my car.
Weird. That absolutely did not work in mine.
Mr. Pockets is online now
Reply With Quote
Old 04-16-2018, 07:41 AM
  #36
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 205
Thanked 6 Times in 6 Posts
lol. so BR/R wire works for Mr.Pockets and W/G wire works for Adax. i guess ill just pick on to try and see.
trackjunkie is offline
Reply With Quote
Old 04-25-2018, 07:23 AM
  #37
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 205
Thanked 6 Times in 6 Posts

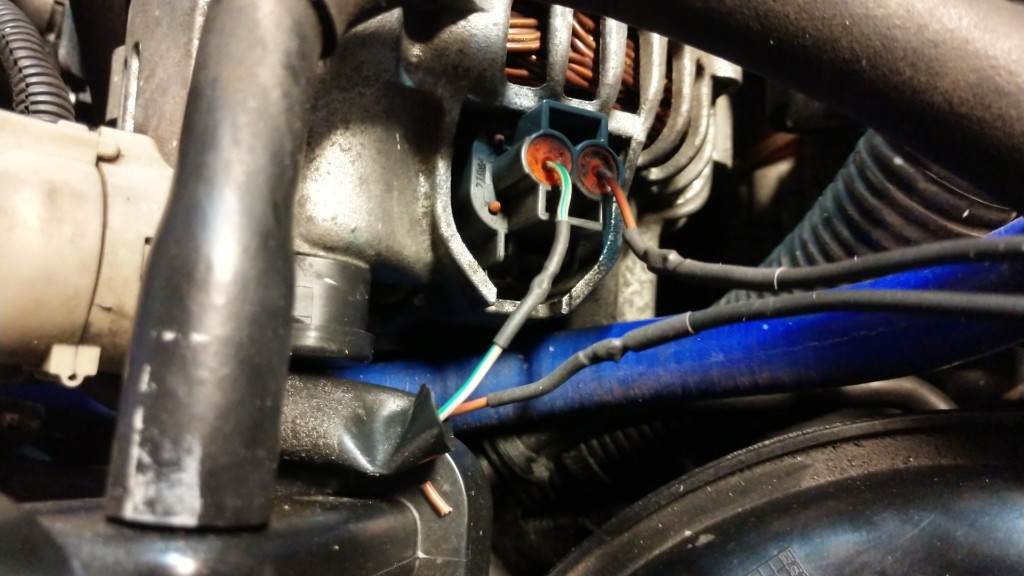

So I finally wired the alternator cut off last night. Looks like the w/g wire didn't kill the engine for me. The other wire did. The kill switch will cut all power and kill the engine now while it's running.
Attached Thumbnails I don't know what this connector is for!-img_20180424_213141041_hdr%7E01.jpg
trackjunkie is offline
Reply With Quote
Old 07-01-2018, 11:42 AM
  #38
Registered
iTrader: (1)

Join Date: Nov 2016
Posts: 136
Thanked 6 Times in 6 Posts
I was doing some electrical work on the car today and decided to investigate this further. My car dies when the kill switch is thrown whether or not the W/G wire is connected. This is because I have a very large alternator pulley and the alternator doesn't charge until around $4k RPM.



I didn't try throwing the switch at 5K out of respect for the neighbors.



For anyone reading this thread, go with the known, BR/R.


AC
Adax is offline
Reply With Quote
Old 07-02-2018, 10:43 PM
  #39
Registered

trackjunkie's Avatar

Join Date: Oct 2017
Location: South Central PA
Posts: 205
Thanked 6 Times in 6 Posts
haha, why not go with under drive crank pulley. i just got one that i need to install. hoping to slow down the water pump and reduced chance of cavitation
trackjunkie is offline
Reply With Quote
Old 07-03-2018, 07:16 AM
  #40
Registered
iTrader: (1)

Join Date: Nov 2016
Posts: 136
Thanked 6 Times in 6 Posts
Originally Posted by trackjunkie View Post
haha, why not go with under drive crank pulley. i just got one that i need to install. hoping to slow down the water pump and reduced chance of cavitation

Got that too (BlackHalo crank and water pump) so the alternator is spinning really slowly.


AC
Adax is offline
Reply With Quote
