TeamRX8

iTrader: (25)

Category: Accessories
Price: $320
Private or Vendor Listing: Private Listing
Part Fits (you may select multiples): Series I
Location (US State/Canada/Int): TX
Item Condition: Used

SOLD

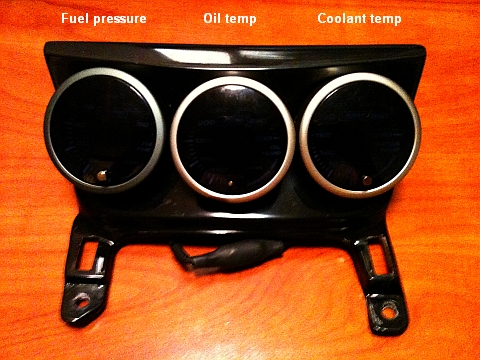

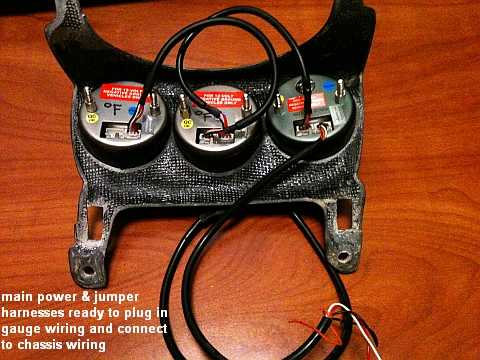

RB gauge pod didn't photo well, but is in excellent condition - no scratches mars etc. Comes with Prosport 52mm premium series peak/alarm gauges for fuel pressure, oil temp, and coolant temp with white/amber lighting options. The amber lighting matched my 2005 OE gauge color well. Includes the sensors, most wiring, and most sensor adapters. Exceptions are:

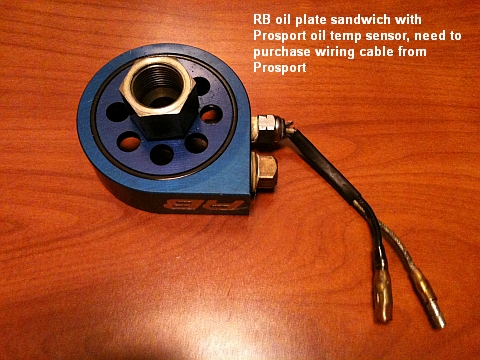

1. The oil temp sensor harness will need to be purchased from Prosport because the gauge connector popped off the wire end when I tried to pull it through the firewall grommet. Costs $12 + shipping from prosport.com

Prosport Gauges premium series water and oil temperature gauge wire harness

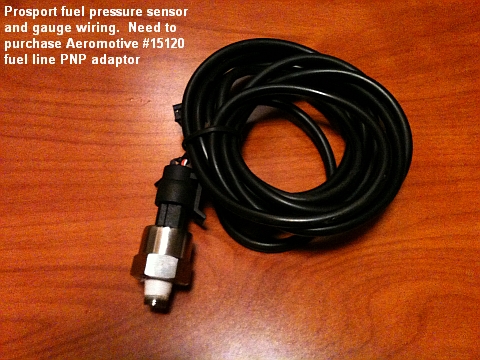

2. You will need a fuel line adaptor for the fuel pressure sensor, Aeromotive sells a plug & play adapter that plugs into the RX8 fuel line quick disconnect connector in the engine bay next to the brake booster canister

Aeromotive*|*15120 - 5/16'' Quick Connect with AN-06 Access Port

This can be bought at Jegs, Summit, etc. and BHR used to sell it too. Costs approx. $60. You'll also need an AN-06 plug to seal off that port in the adapter as the fuel pressure sensor screws into the 1/8" NPT port for about $5

Earl's Performance Plugs 581406ERL - SummitRacing.com

Couple of other things I didn't ever notice until taking it out last night. The trim ring around the fuel pressure gauge is slightly darker gray/smoked tint than the trim rings on the oil & coolant temp gauges. The oil temp gauge has a small dent in the lower trim ring. Since it's at the bottom you can't really notice it when installed. Again, I never really noticed either one, just trying to give you full disclosure.

Gauge/sensor info:

Amber/White Premium Fuel Pressure Gauge

Premium Oil Temperature Gauge with peak & Warning Prosport Gauges

Amber/White Premium Water Temperature Gauge


RB Gauge Pod and oil plate adapter info:

RX8: Cooling System: 3-Gauge Dash Panel - 04-08 RX-8 -

RX8: Oil System: Oil Presssure /Temperature Sensor Adapter -

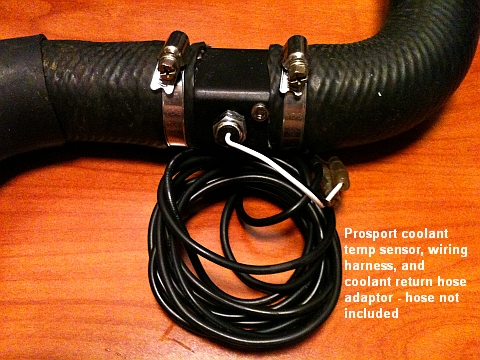

Can't remember where I bought the coolant hose adapter, but it's a general part sold under various brand names. Originally had an RB adapter, but seemed to have lost or misplaced it following a relocation. So I bought this one instead. I had to cut the hose end to get it off, otherwise I'd give you the hose too. It might still be able to reach after you cut that piece off if you want me to send it. Otherwise I was going to remove and trash it.

$320 shipped in the US48

comebackqid

iTrader: (13)

willing to part with just the racing beat gauge pod?

320 is a good price for all 3

GLWS.

TeamRX8

iTrader: (25)

no, this is mostly a package deal only, but thanks for asking just the same


.

kevinande

Sure, now you want to sell this after I already bought all this stuff, and paid more than what your asking I might add. lol. Damn good price, if I didn't do this already I would certainly buy it. Although I went with banjo bolts for the oil sender data

TeamRX8

iTrader: (25)

suppose I should add that my only reason for removing and offering this up for sale is because it is being replaced with a digital race dash display that pulls both OE/CAN data from the OBD2 sensors as well as external sensors with both engine and vehicle performance data logging capability, GPS lapping, etc.

AiM Sports - The World Leader in Data Acquisition



.

REV-illusions

iTrader: (3)

I'll gladly take these off your hands.

TeamRX8

iTrader: (25)

The person who asked about buying this prior to it being posted publicly has to pass due to purchasing a wheel set recently. So this is now available on a first pay - first receive basis.

REV-illusions

iTrader: (3)

PMed for payment info.

TeamRX8

iTrader: (25)

sold

9krpmrx8

iTrader: (46)

****. How did I miss this? That AiM setup is sick.

TeamRX8

iTrader: (25)

the FS ad is also posted in the Gulf forum area, and we already discussed the AiM setup in a different thread 3 or 4 weeks ago

and I thought my memory was going to crap

m.morales84

What hose you use to get the water temperature sensor?
