Special Mazda tool to replace oil filter?

Thread Tools

Search this Thread

Rate Thread

Old 10-16-2007, 03:35 PM
  #1
Registered User
Thread Starter

xenon's Avatar

Join Date: Jul 2005
Location: Aylmer, Quebec
Posts: 82
Likes: 0
Received 0 Likes on 0 Posts
Special Mazda tool to replace oil filter?

I am ready to perform and oil change for the 1st time. I have never done it before and while reading thru the manual it says I need a special tool to replace the oil filter.

Any idea what this is all about?
Old 10-16-2007, 04:20 PM
  #2
Mulligan User
iTrader: (1)

ZoomZoomH's Avatar

Join Date: Jan 2003
Location: caddyshack
Posts: 4,612
Likes: 0
Received 2 Likes on 2 Posts
any of those 'filter wrenches' at the local auto parts store should be able to take the filter out for you... no special tool required.
Old 10-16-2007, 04:25 PM
  #3
PUSHER ROBOT

w0rm's Avatar

Join Date: Sep 2004
Location: Norman
Posts: 655
Likes: 0
Received 0 Likes on 0 Posts
The factory seal on the original filter can be rather tight. Some people have needed to get the aforementioned filter wrenches.

The only really special tool you need is a hand with an opposable thumb.
Old 10-16-2007, 04:47 PM
  #4
ಠ_ಠ

Socket7's Avatar

Join Date: Aug 2007
Location: Under the Dumbarton Bridge
Posts: 2,228
Likes: 0
Received 6 Likes on 5 Posts
Some people like to poke a hole in the top of the filter with a screwdriver to let the oil drain better.

Mazda specific oil filter wrenches can be found at your local auto parts store next to the blinker fluid and muffler bearings.
Old 10-16-2007, 04:49 PM
  #5
Registered

Revvittupp's Avatar

Join Date: Oct 2007
Location: Owings Mills, near Baltimore MD
Posts: 614
Likes: 0
Received 0 Likes on 0 Posts
That screwdriver hole can be used to turn the filter too.
Old 10-16-2007, 07:20 PM
  #6
Registered User

gnj152's Avatar

Join Date: Feb 2004
Location: Laval,Quebec,Canada
Posts: 180
Likes: 0
Received 1 Like on 1 Post

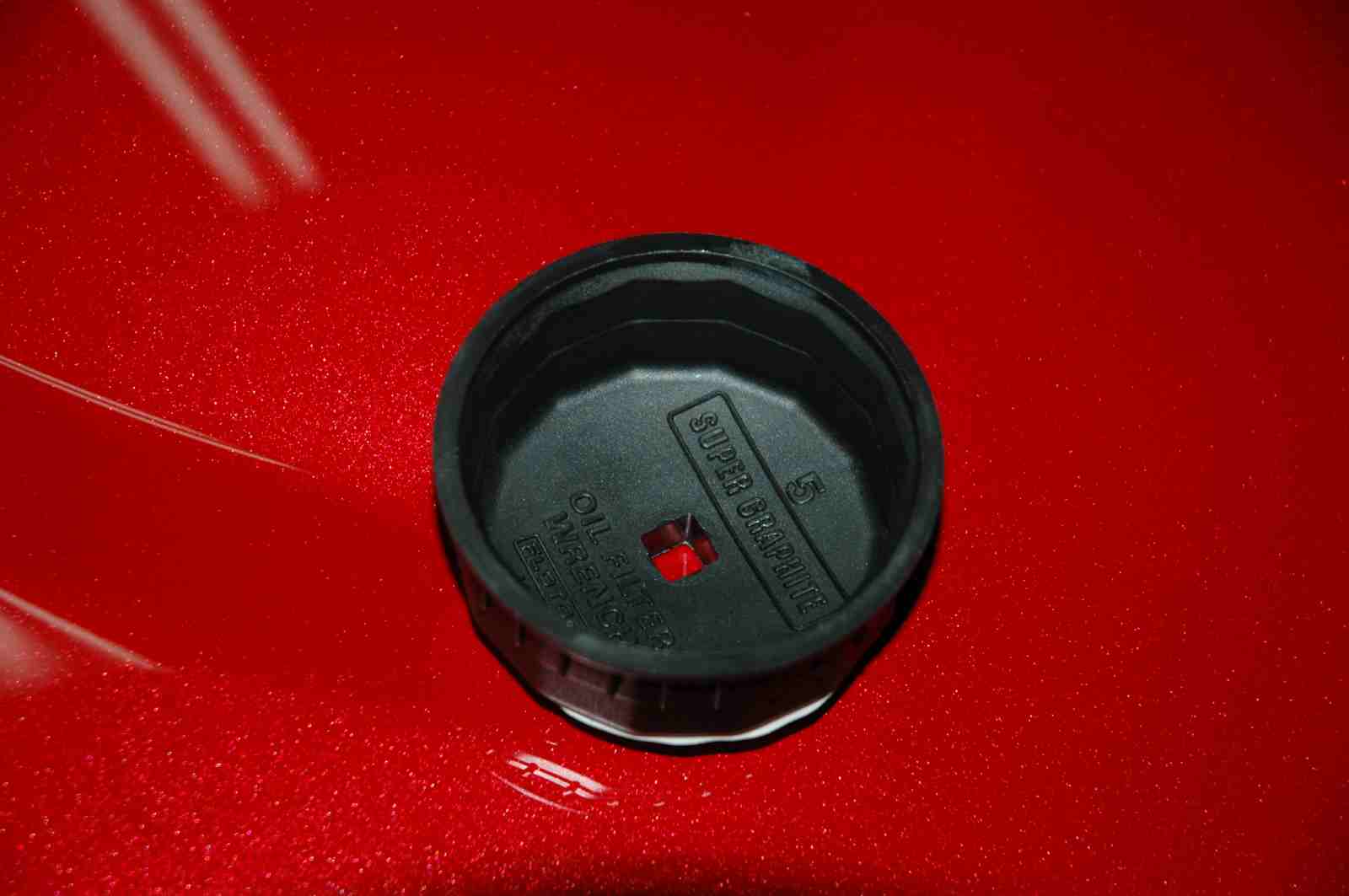

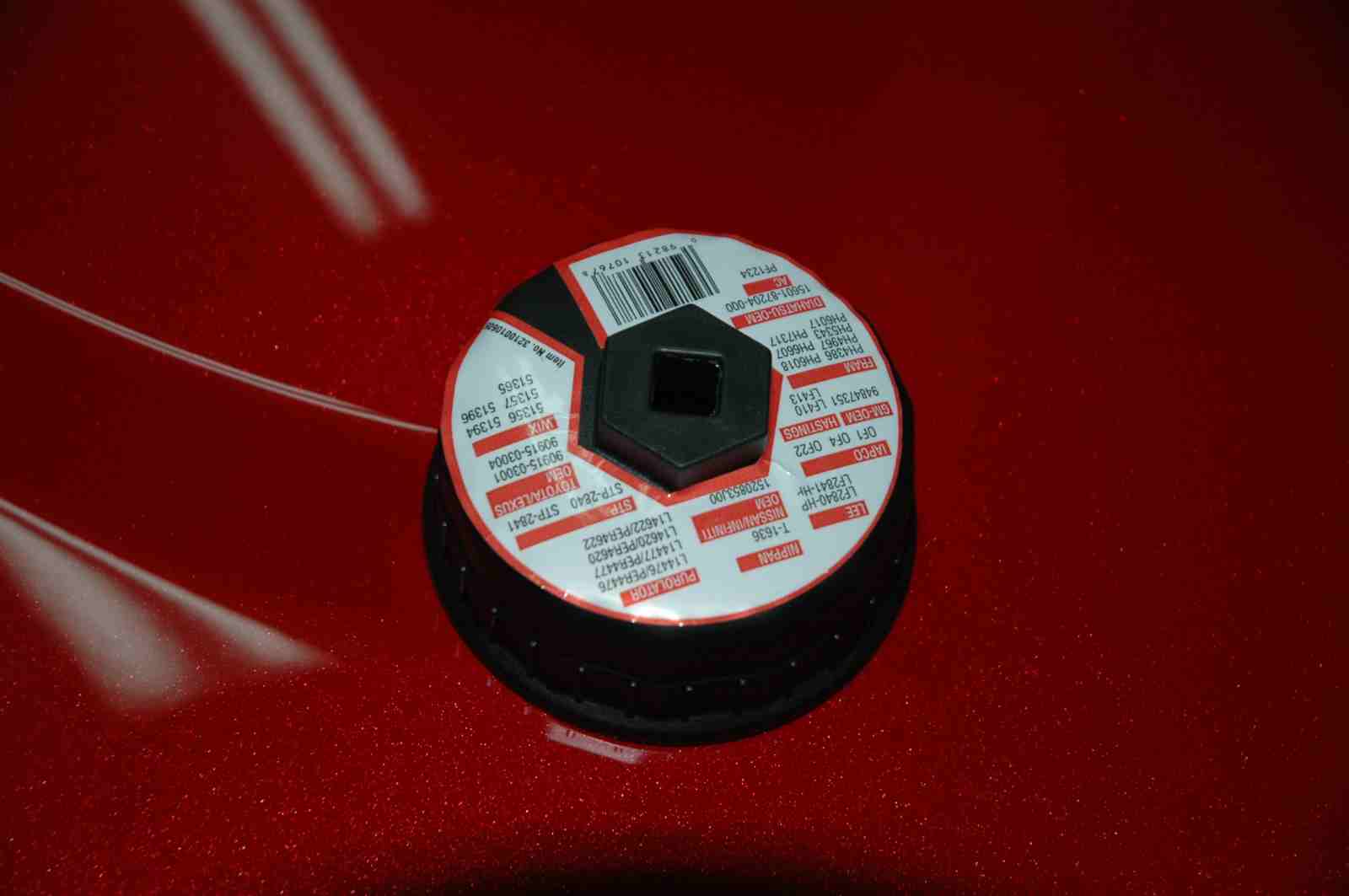

The best is a #5 filter socket!!!
Attached Thumbnails Special Mazda tool to replace oil filter?-dsc_0001.jpg   Special Mazda tool to replace oil filter?-dsc_0002.jpg   Special Mazda tool to replace oil filter?-dsc_0003.jpg
Old 10-16-2007, 07:38 PM
  #7
jersey fresh

dillsrotary's Avatar

Join Date: Dec 2005
Location: Boston, MA
Posts: 3,688
Likes: 0
Received 0 Likes on 0 Posts
grip it by hand and wrap it in sand paper, it'll come off.
Old 10-16-2007, 07:44 PM
  #8
Mu ha.. ha...

Razz1's Avatar

Join Date: Aug 2004
Location: Cali
Posts: 14,361
Likes: 0
Received 3 Likes on 3 Posts
Special technique. Look forward from drivers side. rech right arm in. Grab it take it off.
Old 10-16-2007, 08:13 PM
  #9
Registered User

WoodsOfGreenRx8's Avatar

Join Date: Dec 2006
Location: Omaha
Posts: 1,015
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Revvittupp
That screwdriver hole can be used to turn the filter too.

can see that going bad....
Old 10-16-2007, 08:18 PM
  #10
Rotary Wanker

Ericok's Avatar

Join Date: Sep 2005
Location: Washington, DC
Posts: 413
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Revvittupp
That screwdriver hole can be used to turn the filter too.
Once you punch the hole in the filter, there's no turning back. You're committed to getting if off.
Old 10-16-2007, 08:26 PM
  #11
Registered

Revvittupp's Avatar

Join Date: Oct 2007
Location: Owings Mills, near Baltimore MD
Posts: 614
Likes: 0
Received 0 Likes on 0 Posts
Normally, an oil filter should be hand tight. If it is not, a hole in the side, can be used with the screwdriver to "torque" the first quarter turn, as you now have a lever arm with which you can exert more rotational force. It's not the best way, but it is a way, that requires no additional tools. Usually, I reach in and turn it by hand.
Old 10-17-2007, 12:28 AM
  #12
Zoom-Freakin'-Zoom
iTrader: (5)

swoope's Avatar

Join Date: Jan 2004
Location: orlando, fl
Posts: 14,602
Received 35 Likes on 31 Posts
Originally Posted by Revvittupp
Normally, an oil filter should be hand tight. If it is not, a hole in the side, can be used with the screwdriver to "torque" the first quarter turn, as you now have a lever arm with which you can exert more rotational force. It's not the best way, but it is a way, that requires no additional tools. Usually, I reach in and turn it by hand.
and you are going to get a hole in the side, and get a screwdriver down there how???

i really need to know.. i have read about it for while..

beers
Old 10-17-2007, 06:40 AM
  #13
Registered

RX8Maine's Avatar

Join Date: Jul 2006
Location: Richland, WA
Posts: 558
Received 3 Likes on 3 Posts
The only reason I put a hole in the top is to let more of the oil drain out. I still get about a teaspoon worth of drippage, though. I hate that g#$&@mn inverted filter!!
Old 10-17-2007, 07:37 AM
  #14
Registered Abuser

Socr8tes's Avatar

Join Date: Jan 2005
Posts: 469
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Revvittupp
Normally, an oil filter should be hand tight. If it is not, a hole in the side, can be used with the screwdriver to "torque" the first quarter turn, as you now have a lever arm with which you can exert more rotational force. It's not the best way, but it is a way, that requires no additional tools. Usually, I reach in and turn it by hand.
I tried this method once on a stubborn filter (on another car) and succeeding only in twisting the hell out of the filter and sheering the top off. If you thought it was hard to remove before...
Old 10-17-2007, 08:50 AM
  #15
Out of NYC
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,881
Received 32 Likes on 30 Posts
Just go to your local auto parts store.

find the right size of oil filter, then try each of the oil filter wrench on it until it fits.

buy the wrench, put the oil filter back (or buy it if you dont have 1)

Go home, do the oil change.

Feel good about yourself.
Old 10-17-2007, 09:29 AM
  #16
PUSHER ROBOT

w0rm's Avatar

Join Date: Sep 2004
Location: Norman
Posts: 655
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RX8Maine
The only reason I put a hole in the top is to let more of the oil drain out. I still get about a teaspoon worth of drippage, though. I hate that g#$&@mn inverted filter!!
The trick I've found is to poke a hole when I start the drain, when it's all done stick an oil rag down around the bottom of the filter and as I twist it off take the rag with it. I've gotten oil leakage down to a minimum/non-existent.
Old 10-17-2007, 09:32 AM
  #17
FEAST!

Wurmfist's Avatar

Join Date: May 2004
Location: noneyabusiness
Posts: 365
Likes: 0
Received 0 Likes on 0 Posts
Once you get the old one off with whatever method mentioned above, buy a K&N Oil filter. The K&N filter has a normal hex bolt head on the end of the filter and if you couldn't get it off with your hand you can just use a socket set. Plus a K&N filter is a really great filter.
Old 10-17-2007, 09:59 AM
  #18
Registered

Revvittupp's Avatar

Join Date: Oct 2007
Location: Owings Mills, near Baltimore MD
Posts: 614
Likes: 0
Received 0 Likes on 0 Posts
I don't know of their filetering abilities, per se, but the frams with the sticky black handguard are easy to use by hand as well. I know my father's construction company ran Fram everything for years, but I haven't checked on them for my 8.
Old 10-17-2007, 10:16 AM
  #19
Registered User
Thread Starter

xenon's Avatar

Join Date: Jul 2005
Location: Aylmer, Quebec
Posts: 82
Likes: 0
Received 0 Likes on 0 Posts
I got a filter wrench and was able to remove the Mazda filter no problem.

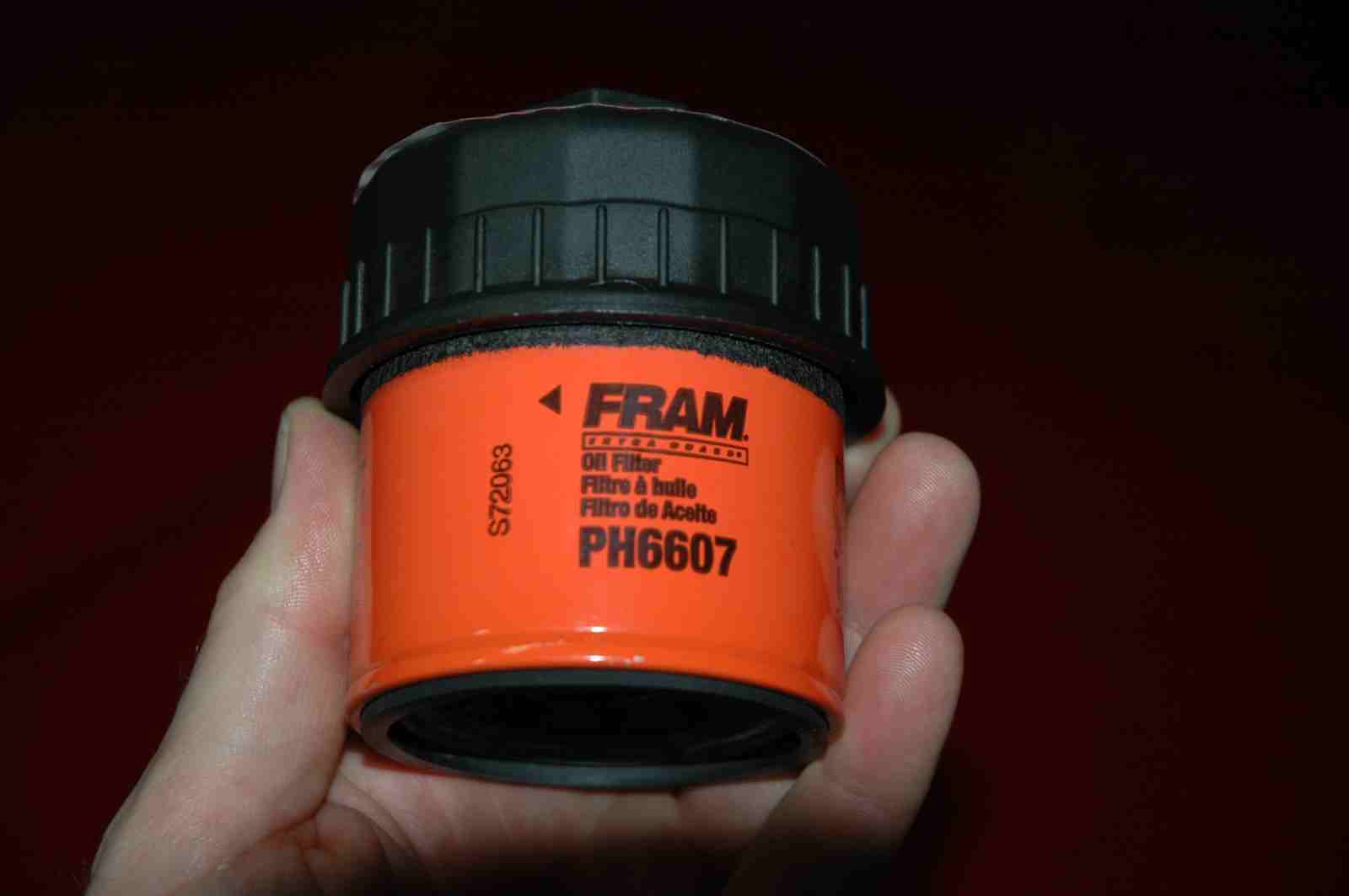

I decided to go with the Fram filter PH6607 and Castrol GTX 10w-30. It needed EXACTLY 5qt's of oil because I have the Greddy oil pan.
Old 10-17-2007, 05:17 PM
  #20
Mazda Only. 10+yrs

NoRotorNoMotor's Avatar

Join Date: Nov 2006
Location: Reading PA
Posts: 189
Likes: 0
Received 0 Likes on 0 Posts
10w- 30 ??? why that thick???

I'd use 5w 30 or 20
Old 10-17-2007, 08:19 PM
  #21
Registered

yamajj's Avatar

Join Date: Oct 2004
Location: Tulsa, OK
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
if you go buy yourself some "hp-1008" oil filters. made by k&n engineering. they have a nut at the top of the filter that you can easily fit a metric socket on.(as said above...except i gave you the k&n part number)

yamajj

Last edited by yamajj; 10-17-2007 at 08:22 PM.
Old 10-18-2007, 12:11 AM
  #22
Registered User
Thread Starter

xenon's Avatar

Join Date: Jul 2005
Location: Aylmer, Quebec
Posts: 82
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by NoRotorNoMotor
10w- 30 ??? why that thick???

I'd use 5w 30 or 20
Do some reading. 10W-30 is what I need since I have a greddy turbo kit.

Some even say 10W-40
Old 10-18-2007, 03:22 PM
  #23
Mazda Only. 10+yrs

NoRotorNoMotor's Avatar

Join Date: Nov 2006
Location: Reading PA
Posts: 189
Likes: 0
Received 0 Likes on 0 Posts
Ahhh interesting.

I did not know that.

Very interesting.
Old 10-19-2007, 10:25 AM
  #24
The "other RX8" owner

Ben98gs's Avatar

Join Date: Aug 2005
Location: McCordsville, IN
Posts: 110
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Socr8tes
I tried this method once on a stubborn filter (on another car) and succeeding only in twisting the hell out of the filter and sheering the top off. If you thought it was hard to remove before...
If you had that happen then you were not going to get that filter off in the first place. If it was torqued tight enought that you ripped through the filter with the screwdriver then someone overtorqued it to begin with.

I have used the screwdriver method probably about 10+ times. Usually the first oil change after a rebuild (when the motor is out of the car you tend to over torque it because it is SOO much easier to put on because you do not have to twist your arm through everything else when it is installed). I seem to do this on 1/2 of the rebuilds that I do and that first oil change can be a bitch
