RX8 - 20b swap / part II
#103
Yeay Boosted!
Join Date: Oct 2007
Location: New Hampshire
Posts: 271
Likes: 0
Received 0 Likes
on
0 Posts
question.. What turbo are people using for their 3 rotor? I'm looking at a few, but i'm interested in something that doesn't take forever to spool up, I'd like to be in boost early. not really planning on pushing any more than 650 hp max out of the engine. What rpm do we see boost in current turbos. I'm basically making my turbo decision. gt35? Turbonetics t76? just curious on what people choose, when they are seeing boost, and how much they like it.
#105
Boostin'
question.. What turbo are people using for their 3 rotor? I'm looking at a few, but i'm interested in something that doesn't take forever to spool up, I'd like to be in boost early. not really planning on pushing any more than 650 hp max out of the engine. What rpm do we see boost in current turbos. I'm basically making my turbo decision. gt35? Turbonetics t76? just curious on what people choose, when they are seeing boost, and how much they like it.
http://www.turblown.net/store/index.php?productID=64
We also offer a GT40 compressor housing for them to make packaging a little easier..
http://www.turblown.net/store/index.php?productID=193
#109
q2 = ignition switch wiring: how do i connect my wires like that? i don't want to use relays unless i have to.
q3 = I have my battery relocated, so i can't ground straight to the battery as shown on the photo. is this a problem? can i just ground to chassis?
q4 = " * " is for falling vs rising edge. I'm using 2nd gen CAS with haltech e11v2. which one do i use?
q3 = I have my battery relocated, so i can't ground straight to the battery as shown on the photo. is this a problem? can i just ground to chassis?
q4 = " * " is for falling vs rising edge. I'm using 2nd gen CAS with haltech e11v2. which one do i use?
Not sure why you have the ign 5 and ign 6 "X" out as the 20b needs this for trailing 2 and 3 ignition. Here:
http://www.tuningtechnology.net/Down...B_LS1coils.pdf
Diagram is of the Ps2000 from the rx7club forum Haltech section. I have a E11 also with my 20b and this diagram helped me.
Last edited by T-von; 05-31-2011 at 11:59 PM.
#111
Registered
iTrader: (3)
Join Date: Mar 2010
Location: Toronto, On
Posts: 241
Likes: 0
Received 0 Likes
on
0 Posts
Prove to me that a GT35R chokes on a two rotor. I sincerely doubt it.
A standard GT35R chokes on a 2 rotor. I would run the smaller GT4294R ( or the X) version T4 frame 1.0 with 4" exhaust. Probably see 1 bar around 3.5K rpms..
http://www.turblown.net/store/index.php?productID=64
We also offer a GT40 compressor housing for them to make packaging a little easier..
http://www.turblown.net/store/index.php?productID=193
http://www.turblown.net/store/index.php?productID=64
We also offer a GT40 compressor housing for them to make packaging a little easier..
http://www.turblown.net/store/index.php?productID=193
#112
Registered
Join Date: Jan 2002
Location: Czech Republic
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
I run GT35R (T3 hotside, 1.06) on streetported 20B and i dont feel any choke.....i find it perfect turbo for fast response (even with poor tuning) on budget 20B project....
#113
Boostin'
Even on a 2 rotor( should have clarified earlier 2 rotor Rx-7 engine).
#115
Unregistered User
Thread Starter
Join Date: Apr 2006
Posts: 824
Likes: 0
Received 0 Likes
on
0 Posts
Update: I ran the car last year for a few months because I just had to drive it.. otherwise I was pretty close to chucking it into the pacific. but it had a huge manifold leak, so I decided to redo the manifolds & cut the fiirewall to fit a stock upper intake manifold rather than a leaky custom one I had.

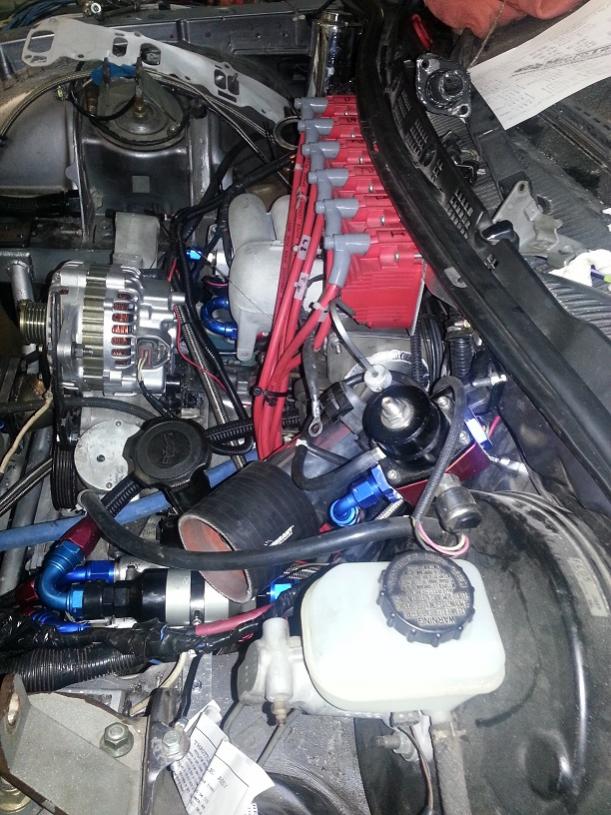

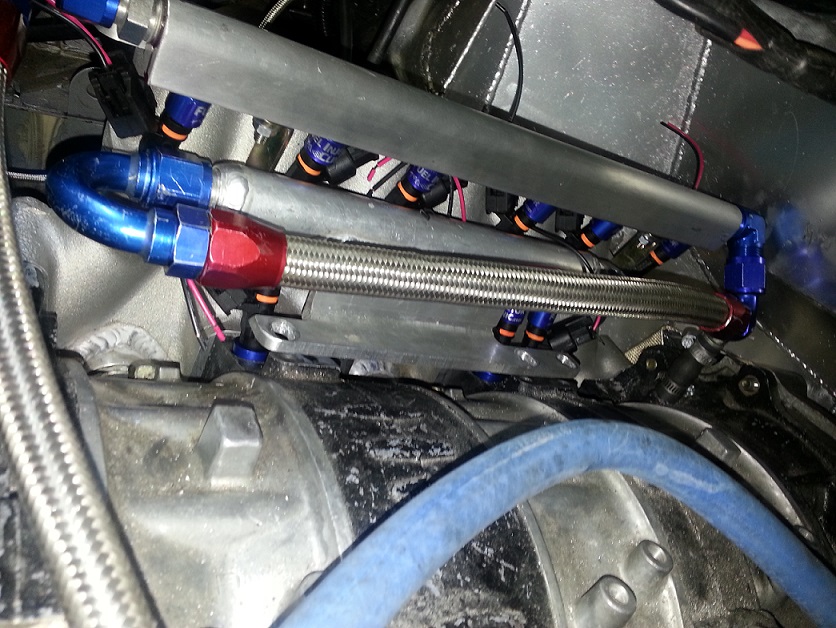

Firewall is made now. Interior is back in. Upper intake manifold is gutted. I have 9 1000cc injectors on xcessive lower intake manifold as shown. Wires are being tucked now which explains the clutter. and after fighting to keep the a/c compressor in a loosing battle, I just decided to yank it out along with the evap core & the blower. Just another 3 rotor swap which is going through constant revisions after revisions. price tag so far is about 90k of which about 70k was a waste. My story would be a good example of what not to do when doing a 3 rotor swap lol. btw, much special thanks to dznut, teamrx8, and many more that helped me along the way. it's finally done, alive, and I'm focusing more on making it prettier and faster now.
Firewall is made now. Interior is back in. Upper intake manifold is gutted. I have 9 1000cc injectors on xcessive lower intake manifold as shown. Wires are being tucked now which explains the clutter. and after fighting to keep the a/c compressor in a loosing battle, I just decided to yank it out along with the evap core & the blower. Just another 3 rotor swap which is going through constant revisions after revisions. price tag so far is about 90k of which about 70k was a waste. My story would be a good example of what not to do when doing a 3 rotor swap lol. btw, much special thanks to dznut, teamrx8, and many more that helped me along the way. it's finally done, alive, and I'm focusing more on making it prettier and faster now.
Last edited by stickmantijuana; 03-31-2013 at 01:12 PM.
#119
Unregistered User
Thread Starter
Join Date: Apr 2006
Posts: 824
Likes: 0
Received 0 Likes
on
0 Posts
thanks! I will update with more pic and videos. I really had nothing too noteworthy to report lol. My AFR had been in the 15's with the leak whenever I hit the boost. once this build is done, I'll post some vids and pics.
#121
Unregistered User
Thread Starter
Join Date: Apr 2006
Posts: 824
Likes: 0
Received 0 Likes
on
0 Posts
idiot is an understatement. i love this car, but i hate it at the same time. it's very much like having a super hot gf who has some major psychotic issues.. when she works, i want to marry her, but normally, she's just an f'ing dead weight breaking my bank i spend most of my days dreaming about the days that she is actually working though. there's a funny article on rx7club.com that portrays the similar story. i think it rang true with most members including me.
#122
Registered
iTrader: (3)
i kinda know what you mean. Its like throwing $20 bills into a fire........
but sometimes when you are driving it, and the stars align --its irreplaceable. I will NEVER forget one late night drive on a particular low traffic interstate--it was like I was in a different world--the feel, the sound, the responsiveness-------ohhhhh wait--that wasnt the car that was a girl I remember in Bangkok
but sometimes when you are driving it, and the stars align --its irreplaceable. I will NEVER forget one late night drive on a particular low traffic interstate--it was like I was in a different world--the feel, the sound, the responsiveness-------ohhhhh wait--that wasnt the car that was a girl I remember in Bangkok
#123
Londons Yellow Peril
Haha! One drive for me nailed it. 2 years ago, by myself on a 2 hour drive through the mountains, actually really pushing on and working the gears. By the time I got out I actually ran around whooping and jumping it was sooo great.
#124
Unregistered User
Thread Starter
Join Date: Apr 2006
Posts: 824
Likes: 0
Received 0 Likes
on
0 Posts
is water pump from FD and the pump from RX8 interchangeable? I ask because I want to wrap the belt around the water pump pulley rather than FD stock belt position due to my modified alternator position. Thanks!
