Jul 24, 2015 | 03:23 AM

#51

F51

New Member

Joined: Jul 2015

Posts: 9

Likes: 0

nice build, really interested in how you go about getting it wired up. you planning to keep the drive by wire throttle?

Jul 24, 2015 | 07:54 AM

#52

MaD666MaX

Thread Starter

Rew rew rew your boat

iTrader: (3)

Joined: Jun 2008

Posts: 621

Likes: 36

From: Montreal, Qc

Yes, everything exept ac will work like its supposed to. Im using the adaptronic pnp ecu.

Jul 24, 2015 | 08:18 AM

#53

F51

New Member

Joined: Jul 2015

Posts: 9

Likes: 0

Awesome, Im planning to use adaptronic ecu too. I will be binning my A/C because its never really not enough in the uk to really need it.

Jul 24, 2015 | 09:13 AM

#54

firecran

Renesis out... REW in

iTrader: (3)

Joined: Jan 2007

Posts: 1,526

Likes: 4

From: Melbourne, Fl

Quote:

Originally Posted by F51

you planning to keep the drive by wire throttle?

You can see the TB mounted to the elbow in his pics.

Max is doing it right... REW is the way to go for anything north of 300rwhp.
This is gonna be a fun car!

Jul 27, 2015 | 08:58 AM

#55

GK1707

Registered

iTrader: (10)

Joined: Jan 2012

Posts: 1,051

Likes: 6

From: Queens, NY

Quote:

Originally Posted by MaD666MaX

Im gonna use the adaptronic pnp ecu. The support with this ecu is good and its a modern unit compared to others. Its gonna control the engine and boost and oem ecu will do the rest of the car to keep oem functions. I have the full function trigger kit with a rx8 teeth patern so the oem ecu will work like it should. It will be tuned by derwin as well.

Any pics on how you're mounting the Renesis CAS to the REW cover?

Jul 27, 2015 | 07:03 PM

#56

MaD666MaX

Thread Starter

Rew rew rew your boat

iTrader: (3)

Joined: Jun 2008

Posts: 621

Likes: 36

From: Montreal, Qc

Its a full fonction engineering kit for fd with rx8 teeth pattern

Jul 27, 2015 | 11:35 PM

#57

TeamRX8

Registered

iTrader: (25)

Joined: Apr 2005

Posts: 26,936

Likes: 2,140

I would cut the top radiator pipe back some and make the silicone hose(s) longer to ensure flexibility and not stress the radiator fitting. Being that it's the engine coolant outlet rigidty is not a primary concern.

Jul 28, 2015 | 06:20 AM

#58

MaD666MaX

Thread Starter

Rew rew rew your boat

iTrader: (3)

Joined: Jun 2008

Posts: 621

Likes: 36

From: Montreal, Qc

Thanks for the advice, ill take note. That beeing said, the engine wont move much but a little flex wont hurt

Jul 28, 2015 | 01:08 PM

#59

TeamRX8

Registered

iTrader: (25)

Joined: Apr 2005

Posts: 26,936

Likes: 2,140

you might be surprised how much things can twist and move around even with solid mounts

Aug 3, 2015 | 08:41 PM

#60

MaD666MaX

Thread Starter

Rew rew rew your boat

iTrader: (3)

Joined: Jun 2008

Posts: 621

Likes: 36

From: Montreal, Qc

Name: 6A419E42-1DE3-4690-9D41-EFB72EAD7426_zpsahutskge.jpg
Views: 1512
Size: 390.7 KB

Name: 516B2C9D-9B39-4AC7-AB7E-56F8C1046AAE_zpsdf143eix.jpg
Views: 1593
Size: 230.2 KB

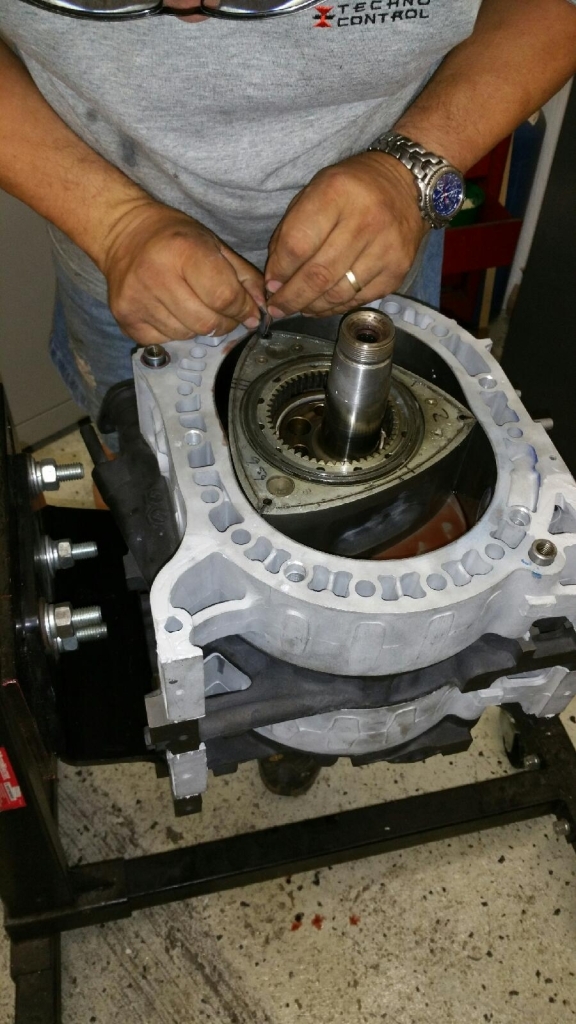

Name: 45791528-8938-4885-AC5A-D83A87CD3D0D_zps9woq65lo.jpg
Views: 1566
Size: 398.6 KB

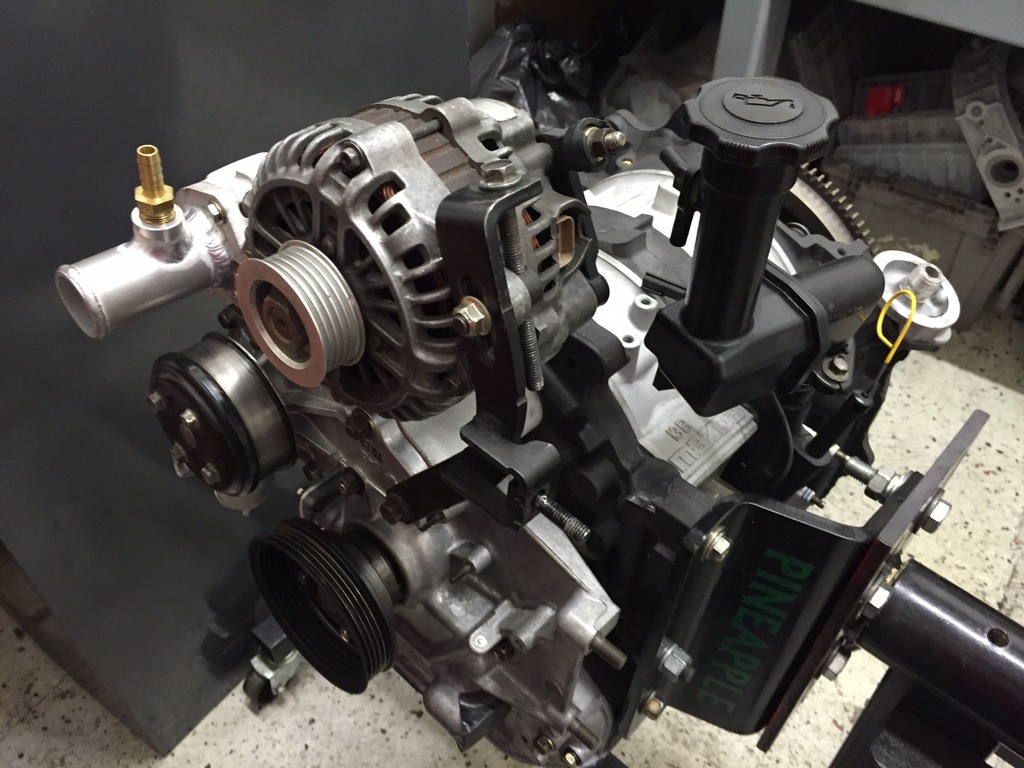

Name: F5C469F2-6085-4AF4-A8F7-42FB906AEC87_zpsil1zpp8w.jpg
Views: 1601
Size: 196.7 KB

Engine is ready, fire in the hole!

Aug 4, 2015 | 11:08 AM

#61

LiveWire

Registered

iTrader: (1)

Joined: Mar 2012

Posts: 440

Likes: 1

From: Richfield

Looking pretty fancy! Nice job.

Aug 4, 2015 | 11:30 AM

#62

firecran

Renesis out... REW in

iTrader: (3)

Joined: Jan 2007

Posts: 1,526

Likes: 4

From: Melbourne, Fl

Good stuff bro.
Getting closer!

.

Sep 5, 2015 | 07:25 AM

#63

MaD666MaX

Thread Starter

Rew rew rew your boat

iTrader: (3)

Joined: Jun 2008

Posts: 621

Likes: 36

From: Montreal, Qc

Heres where i am at the moment, couple of things to finalise and fill oils and coolant and its a start

Sep 5, 2015 | 08:23 AM

#64

yomomspimp06

El Jefe

Joined: Mar 2007

Posts: 1,833

Likes: 7

diameter on turbo intake piping

Sep 5, 2015 | 08:43 AM

#65

MaD666MaX

Thread Starter

Rew rew rew your boat

iTrader: (3)

Joined: Jun 2008

Posts: 621

Likes: 36

From: Montreal, Qc

Intake piping is 3.5"(because of maf), turbo inlet 4", charge pipe is 2.5"

Sep 5, 2015 | 08:43 AM

#66

GK1707

Registered

iTrader: (10)

Joined: Jan 2012

Posts: 1,051

Likes: 6

From: Queens, NY

Nice! So you're running a surge tank or is it stock style just upgraded? Or did you do a return style system?

Sep 5, 2015 | 09:20 AM

#67

MaD666MaX

Thread Starter

Rew rew rew your boat

iTrader: (3)

Joined: Jun 2008

Posts: 621

Likes: 36

From: Montreal, Qc

For now its gonna be stock upgraded fuel system(oem s2 assembly with denso 265 fuel pump(same as gtr r35 evox frs)

It should be good for 4xxwhp

Sep 5, 2015 | 09:21 AM

#68

MaD666MaX

Thread Starter

Rew rew rew your boat

iTrader: (3)

Joined: Jun 2008

Posts: 621

Likes: 36

From: Montreal, Qc

Quote:

Originally Posted by TeamRX8

you might be surprised how much things can twist and move around even with solid mounts

I shortened the ss water pipe and put a longer silicone

Now the only non flexible part is the turbo inlet, cannot find a reducer hump from 4 to 3.5

Sep 6, 2015 | 02:40 PM

#69

firecran

Renesis out... REW in

iTrader: (3)

Joined: Jan 2007

Posts: 1,526

Likes: 4

From: Melbourne, Fl

Getting close

Sep 6, 2015 | 03:17 PM

#70

TeamRX8

Registered

iTrader: (25)

Joined: Apr 2005

Posts: 26,936

Likes: 2,140

Quote:

Originally Posted by MaD666MaX

I shortened the ss water pipe and put a longer silicone

Now the only non flexible part is the turbo inlet, cannot find a reducer hump from 4 to 3.5

Most are rubber rather than silicone

http://www.intakehoses.com/mm5/merch...duct_Code=4H35

.

Sep 6, 2015 | 04:08 PM

#71

TeamRX8

Registered

iTrader: (25)

Joined: Apr 2005

Posts: 26,936

Likes: 2,140

assuming it's not on the boost side, which would require a charge air hose instead:

HPS 4-ply Aramid 3.5" 4" inch Charge Air Cooler CAC Silicone Hose turbo coolant 76mm 89mm diesel

Sep 6, 2015 | 07:48 PM

#72

MaD666MaX

Thread Starter

Rew rew rew your boat

iTrader: (3)

Joined: Jun 2008

Posts: 621

Likes: 36

From: Montreal, Qc

Thanks team, will replace non hump one soon

Sep 13, 2015 | 07:34 PM

#73

MaD666MaX

Thread Starter

Rew rew rew your boat

iTrader: (3)

Joined: Jun 2008

Posts: 621

Likes: 36

From: Montreal, Qc

Done!

Sep 13, 2015 | 07:45 PM

#74

dannobre

Modulated Moderator

iTrader: (3)

Joined: Feb 2004

Posts: 13,720

Likes: 344

From: Smallville

Congrats....zoom Zoom

Sep 13, 2015 | 08:29 PM

#75

GK1707

Registered

iTrader: (10)

Joined: Jan 2012

Posts: 1,051

Likes: 6

From: Queens, NY

Nice! Looks almost OEM aside from the soda catch can lol. Any vids of startup?!
