The I don't know what the fork I'm doing swap
Thread Starter
Registered
Joined: Dec 2016
Posts: 111
Likes: 1
From: Trackside
Good idea, thanks! The door handle now is a bit difficult to get to now due to the cage, a single cable would be much easier.
Registered
Joined: Oct 2017
Posts: 612
Likes: 61
From: South Central PA
Thread Starter
Registered
Joined: Dec 2016
Posts: 111
Likes: 1
From: Trackside
Starting to attach the subframe to the chassis.

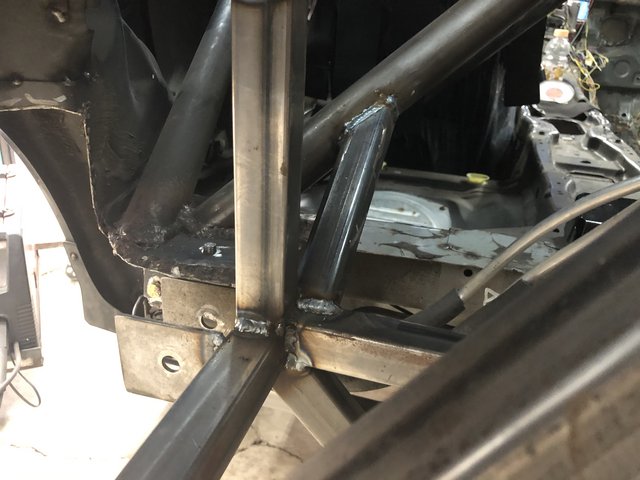

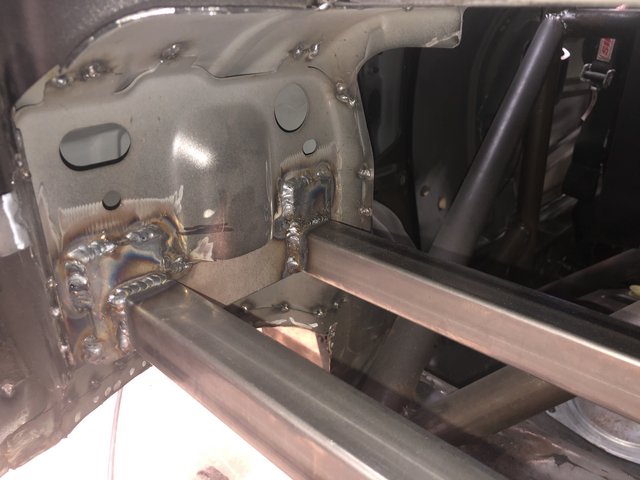

Had to do some very acrobatic welds

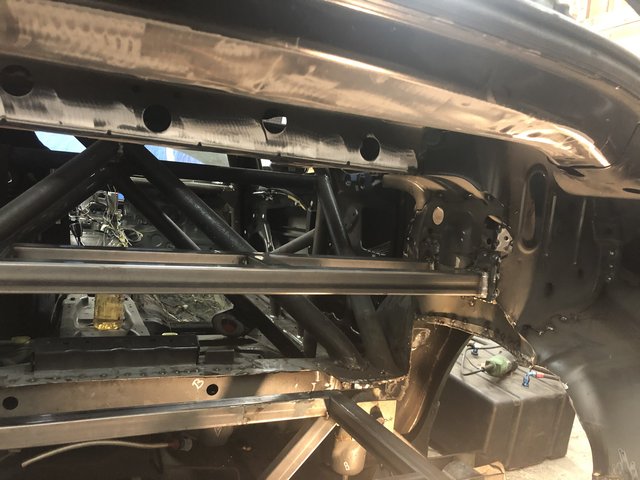

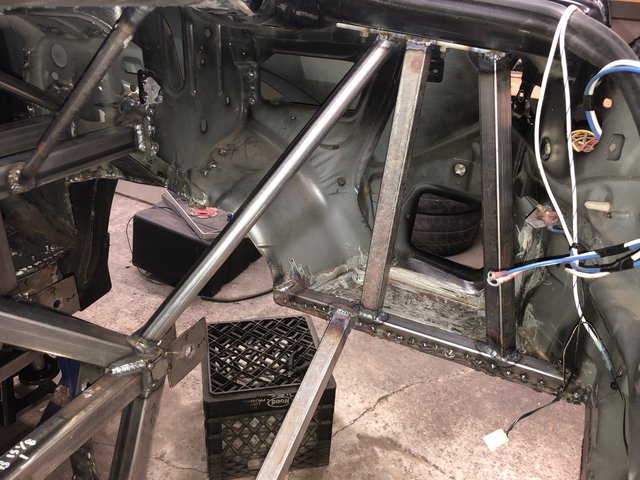

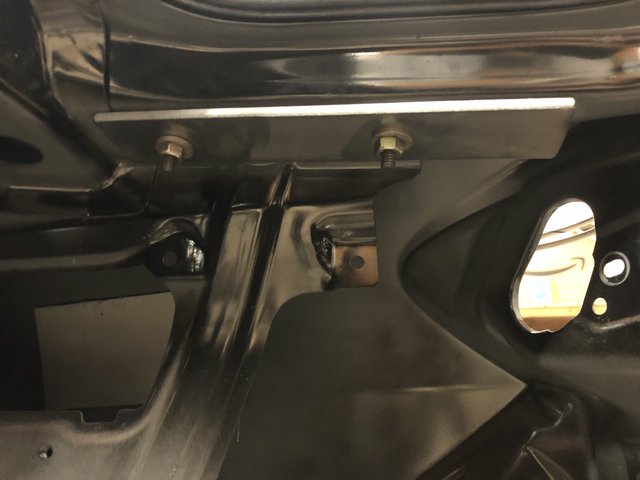

Tied into cage...this was a little difficult because I originally designed the cage to connect to the factory chassis back there.

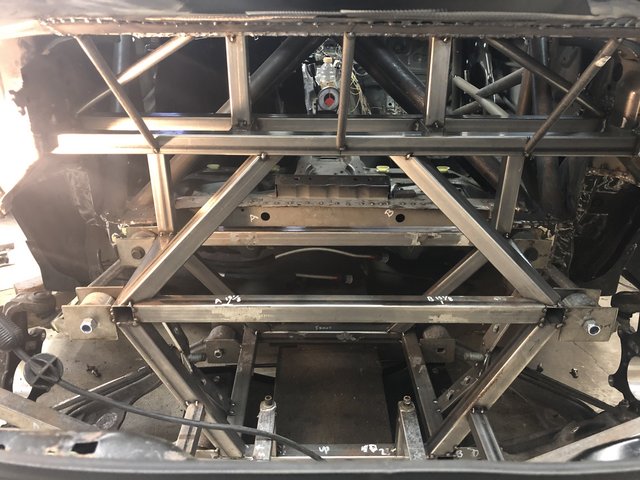

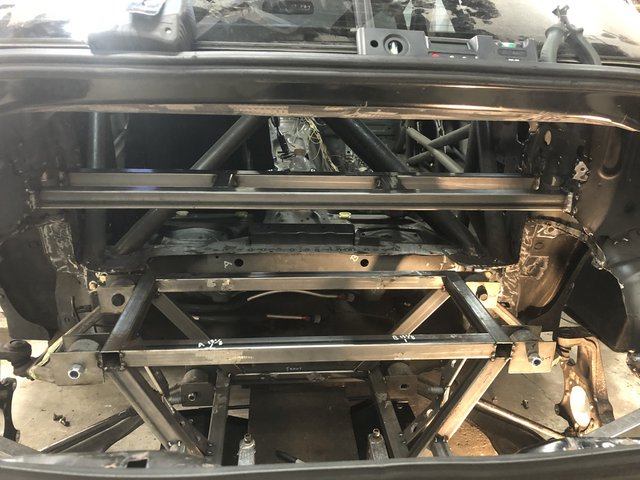

LotsO' bracing. Need to build a complete model for FEA, but have a lot to learn before I can get there.

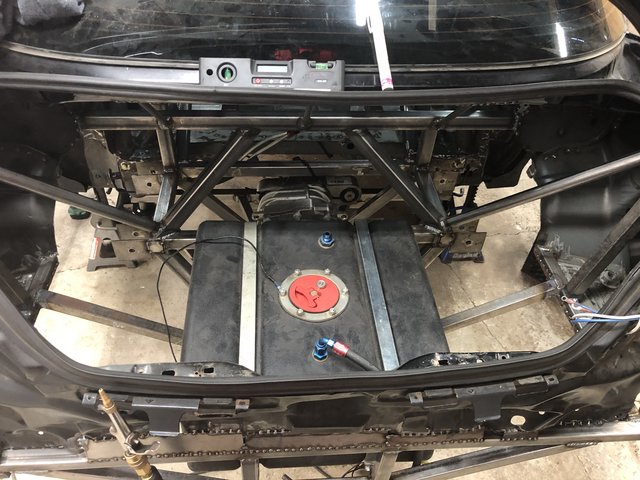

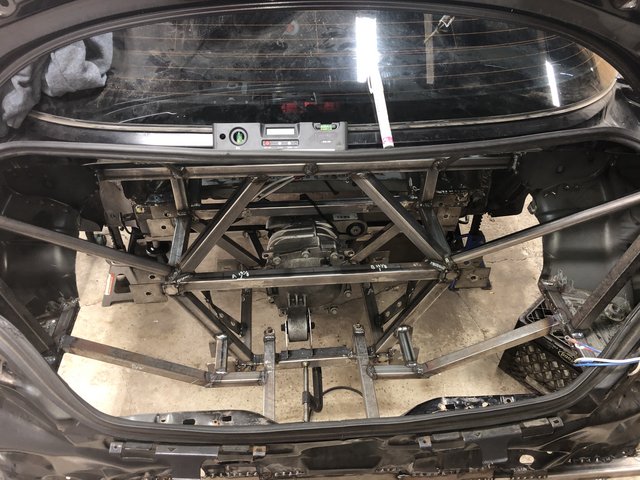

More bracing....the aero will also integrate through the trunk into this section...not sure exactly how yet.
Something like that

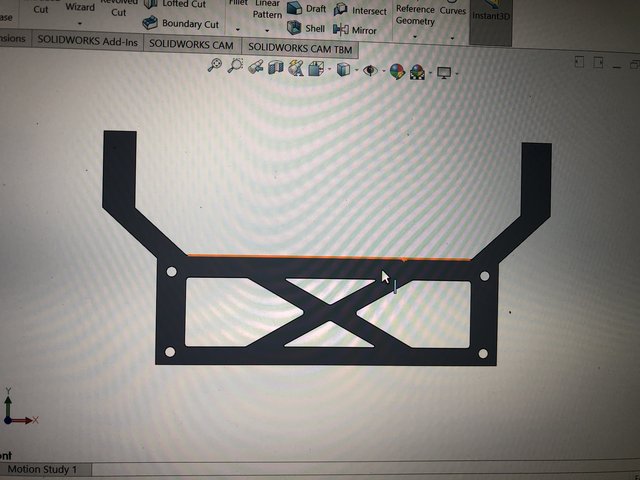

SendCutSend.com for all my brackets....way better than cutting with an angle grinder

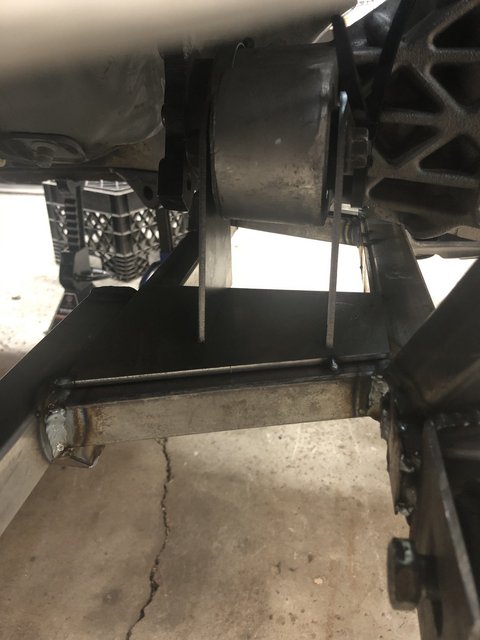

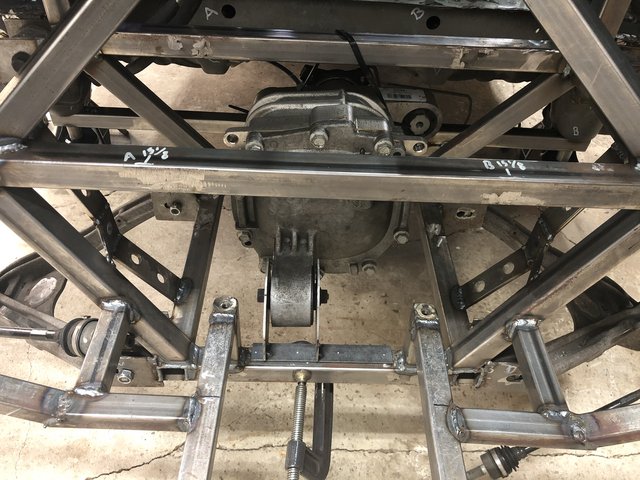

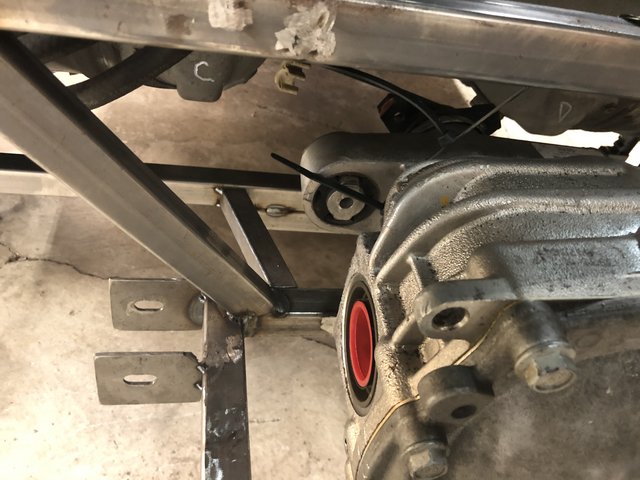

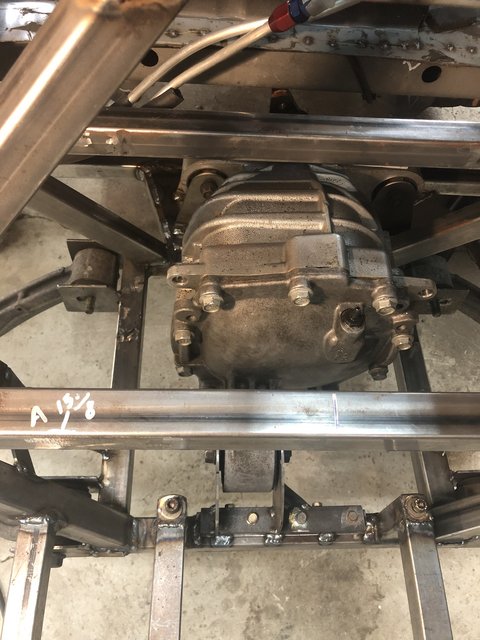

Camaro differential! It is almost half the weight of the RX8 differential!!!
My super stiff coilovers

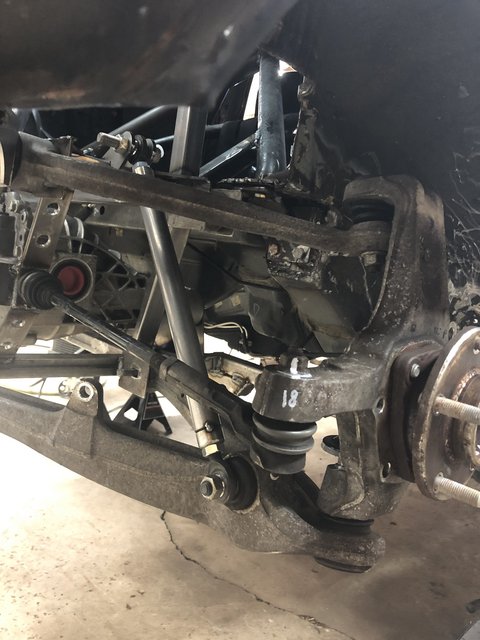

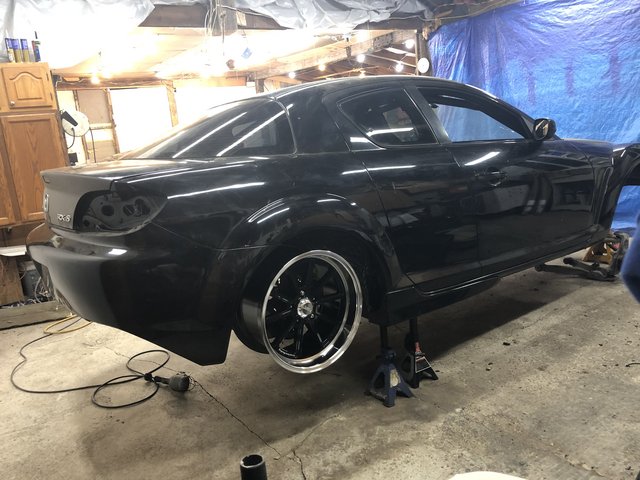

Tried a 12mm backspace, but its too much...need about a 35mm.
Doesn't fit where I want...tough decision

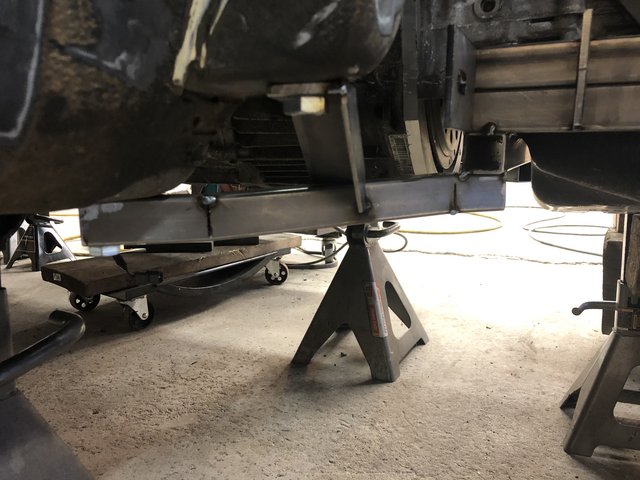

Mock and tack
Got a mile to spare

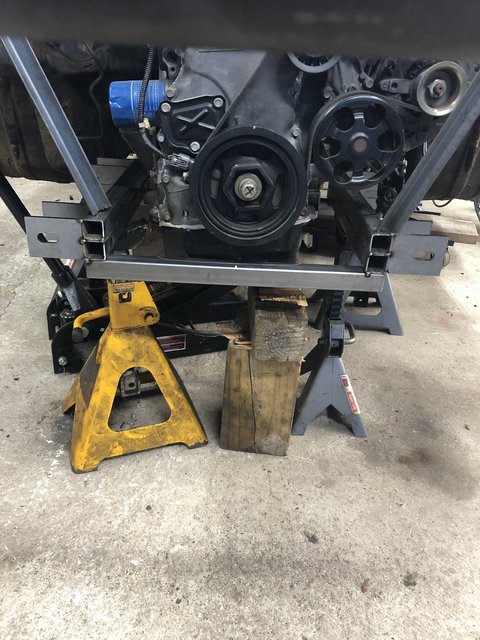

Mockup
More mockup!
Had to do some very acrobatic welds
Tied into cage...this was a little difficult because I originally designed the cage to connect to the factory chassis back there.

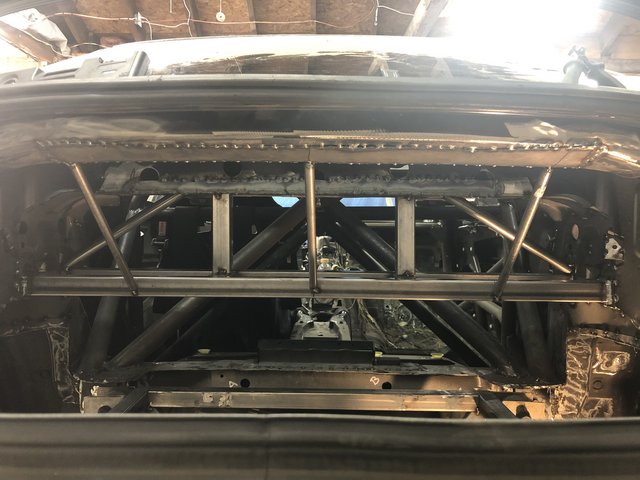

LotsO' bracing. Need to build a complete model for FEA, but have a lot to learn before I can get there.
More bracing....the aero will also integrate through the trunk into this section...not sure exactly how yet.
Something like that
SendCutSend.com for all my brackets....way better than cutting with an angle grinder
Camaro differential! It is almost half the weight of the RX8 differential!!!
My super stiff coilovers
Tried a 12mm backspace, but its too much...need about a 35mm.
Doesn't fit where I want...tough decision
Mock and tack
Got a mile to spare
Mockup
More mockup!
Last edited by BecauseRaceCar; Dec 1, 2020 at 08:09 AM.
Thread Starter
Registered
Joined: Dec 2016
Posts: 111
Likes: 1
From: Trackside

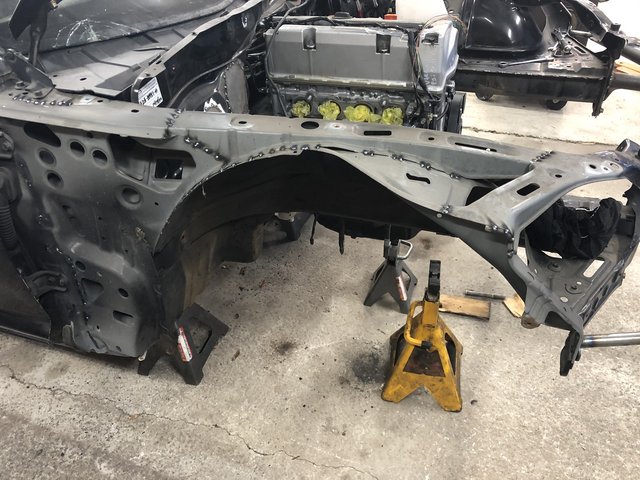

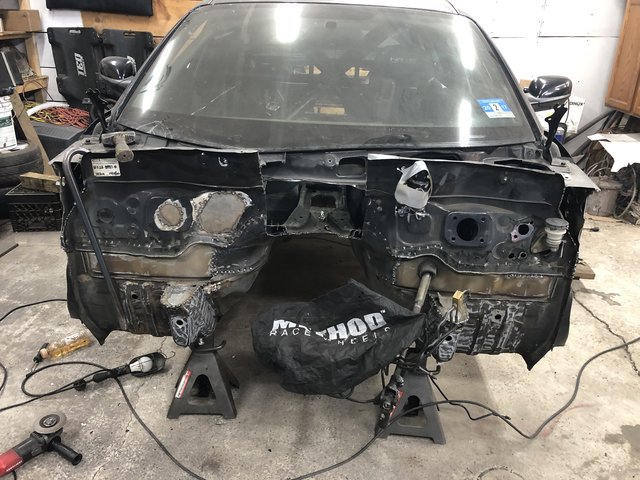

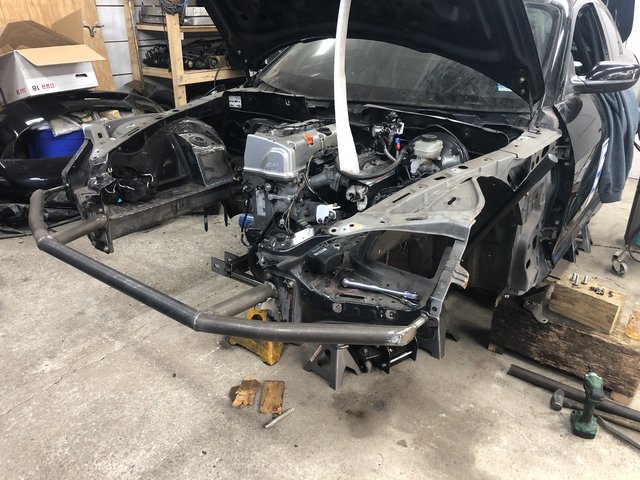

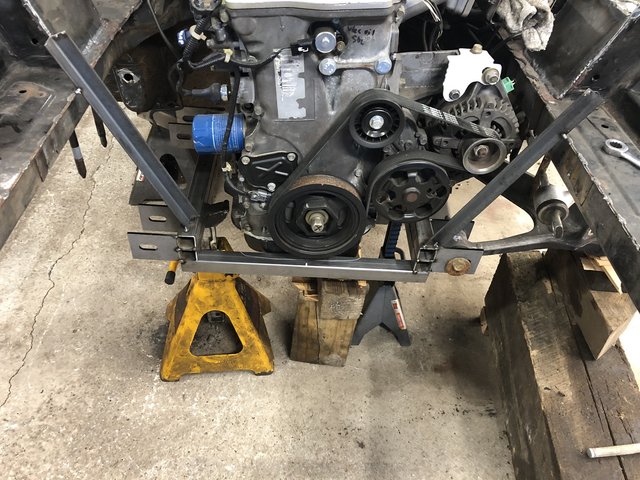

Cut the front off...102 lbs for the frame related items...should save about 30 pounds with my new setup.
Plasma cutting the passenger side door

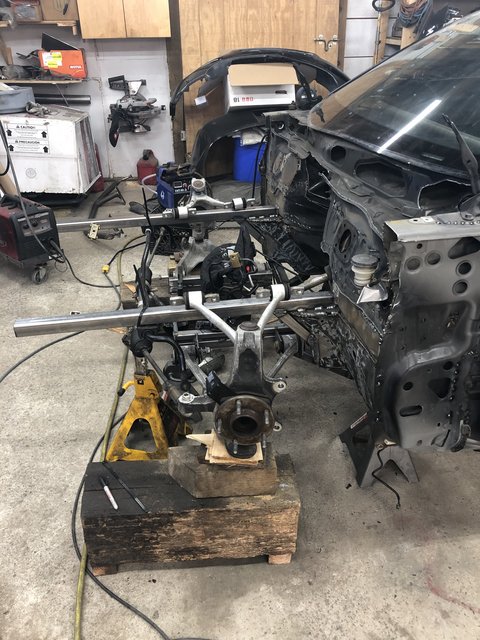

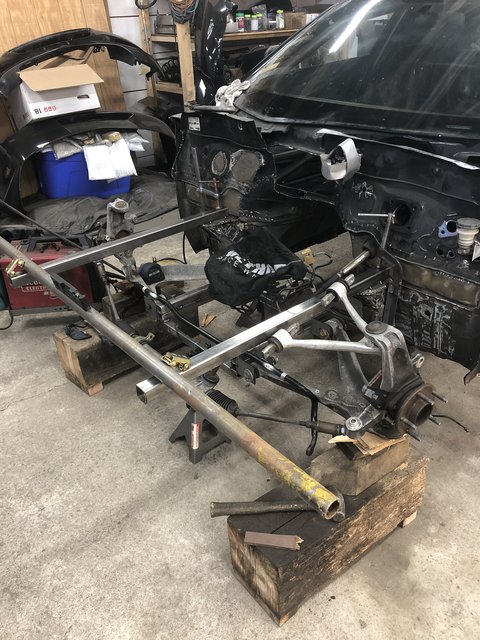

Lots and lots of measuring

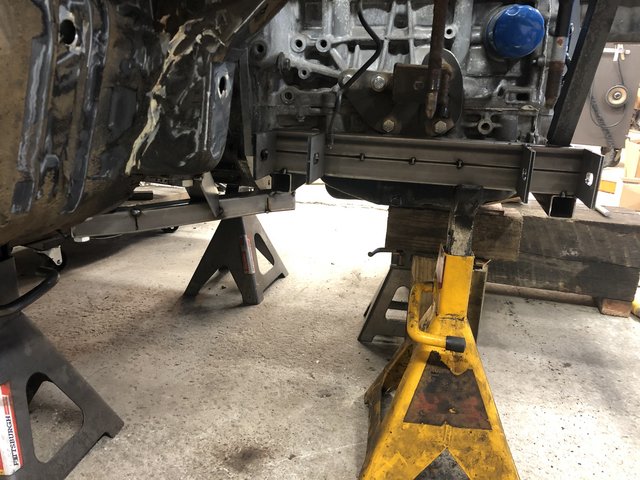

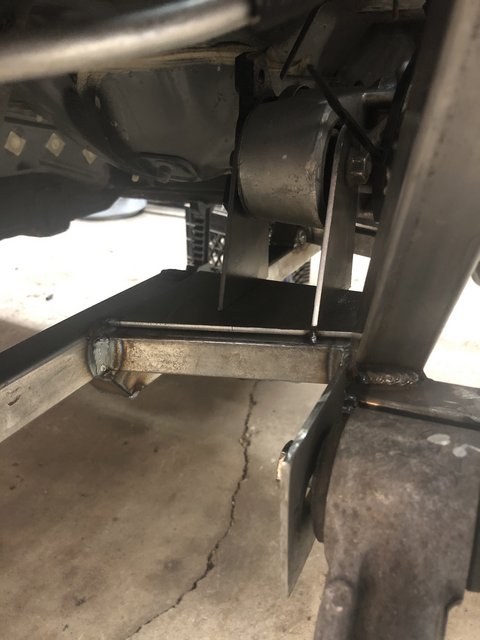

Steering rack mount

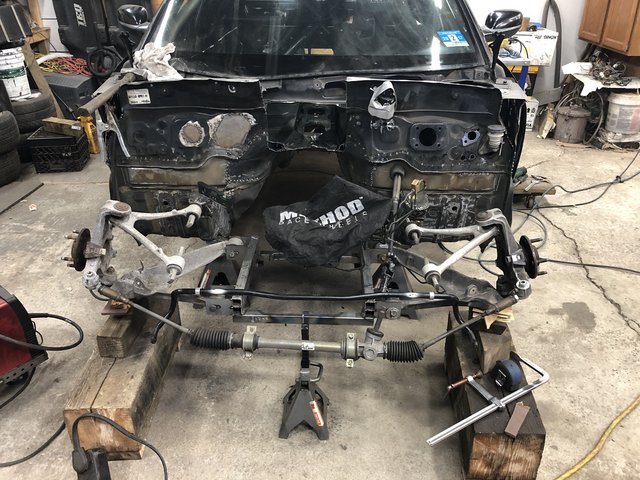

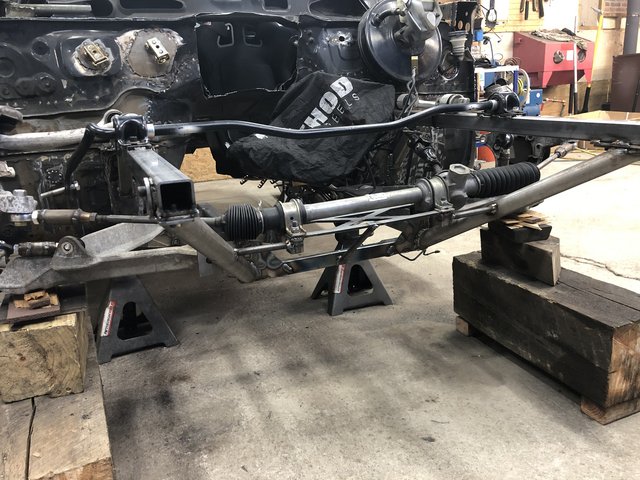

Steering rack with all the current bracing. FEA will determine weakness at a later time.
Got a trophy case, and won my first event this year (the glass).

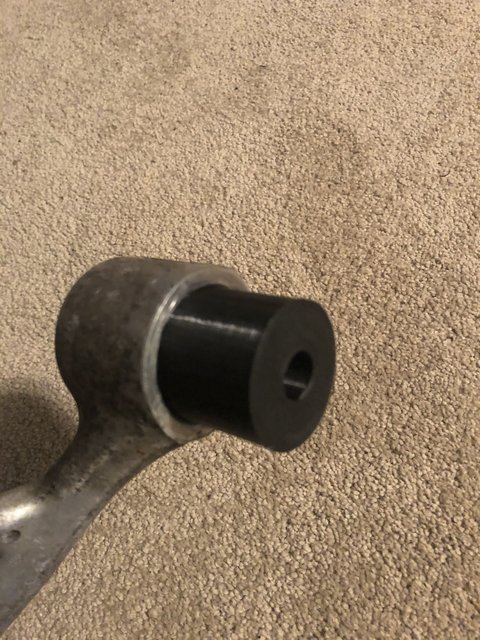

Printed some bushings for mockup. PLA has very similar Tensile, Flexural, and Compressive strengths, however PLA's durability, wear factor, and coefficient of friction are not quite up to the task.

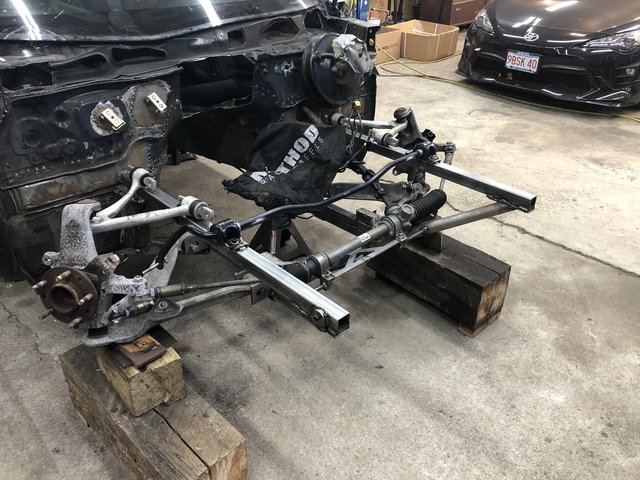

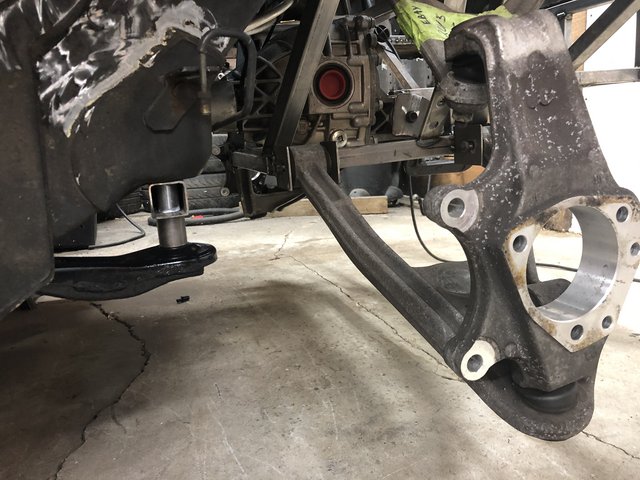

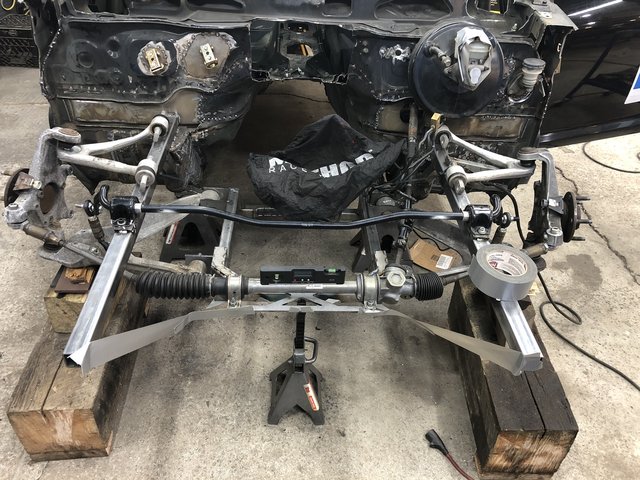

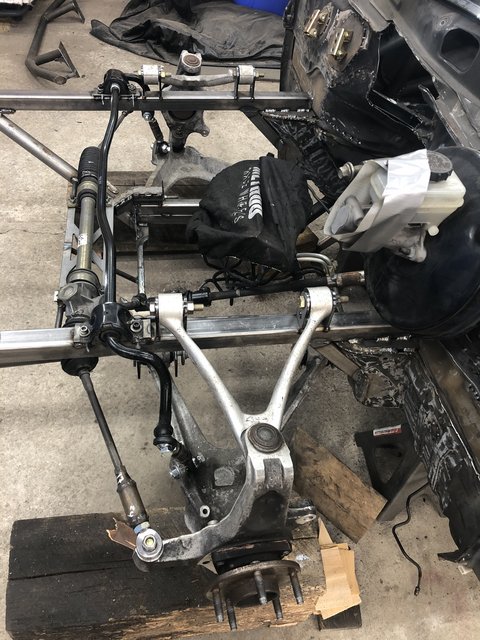

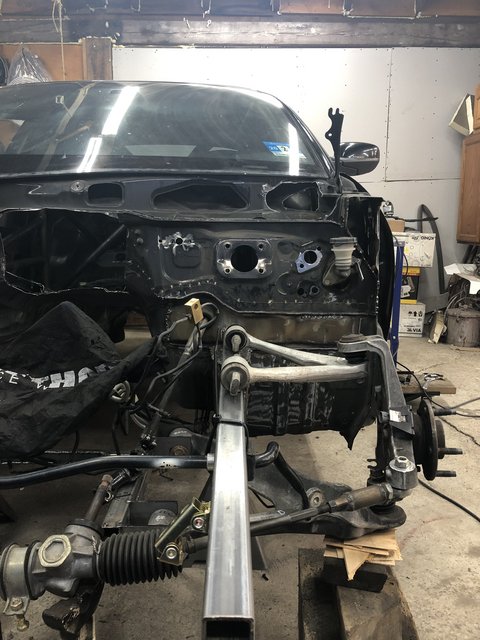

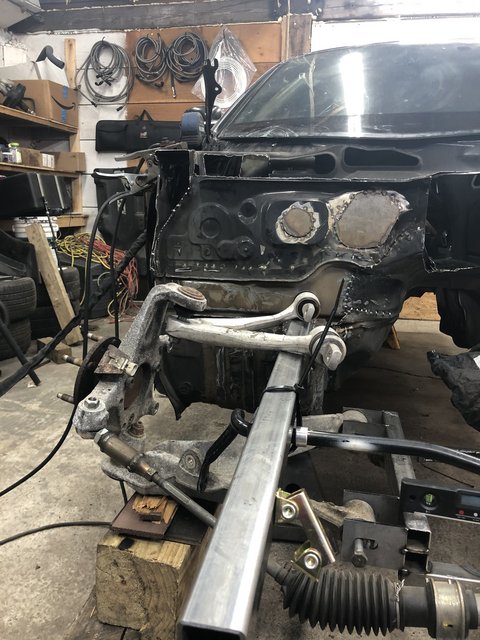

Steering rack, and front sway bars are in. Mockup UCA mounts and steering rack tie rods are in for now. Plan is to make my own spherical bearings for the the control arms.

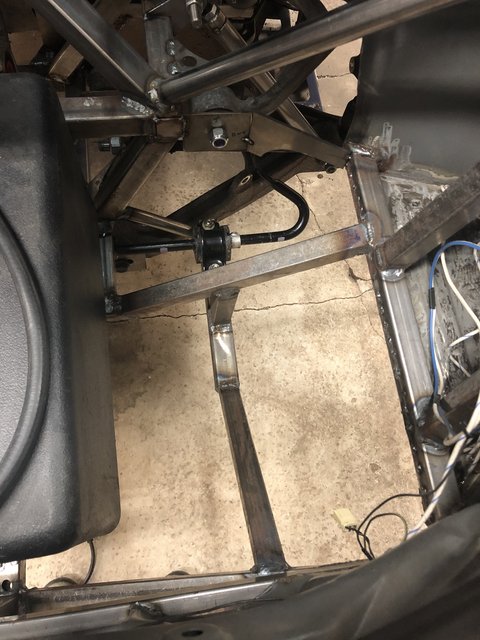

Rear sway bar mount...its a factory rear sway bar off of my 86.

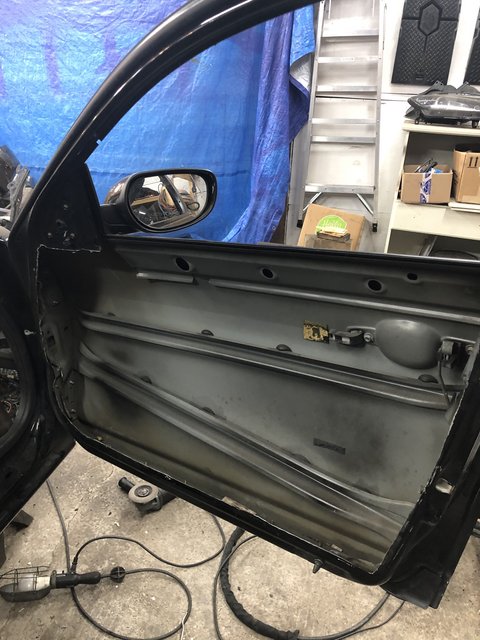

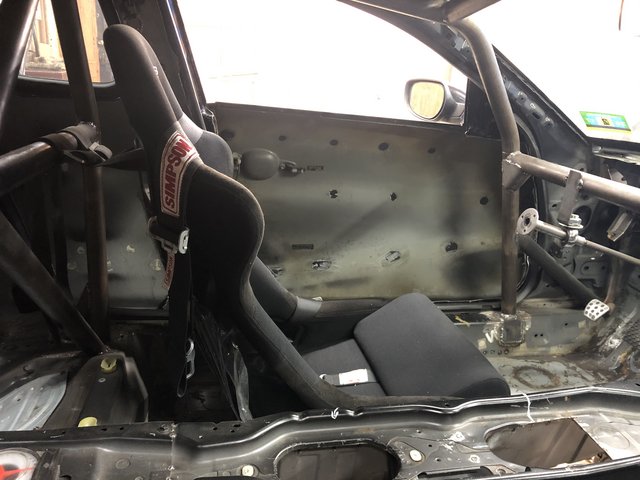

Removed 5 more pounds out of each front door and 15lbs out of each rear door.

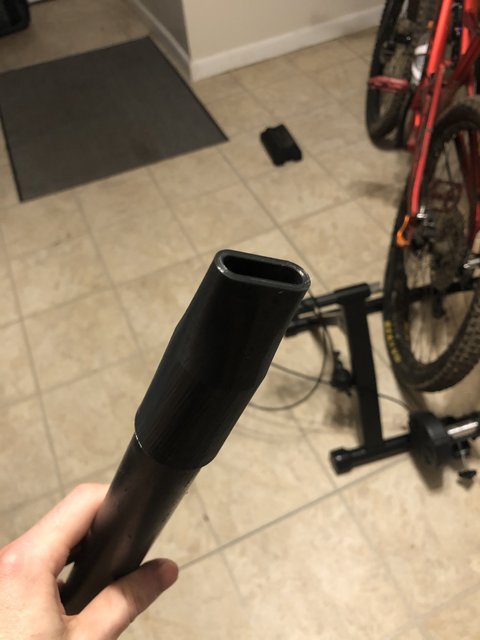

Made an adapter for my shop vac

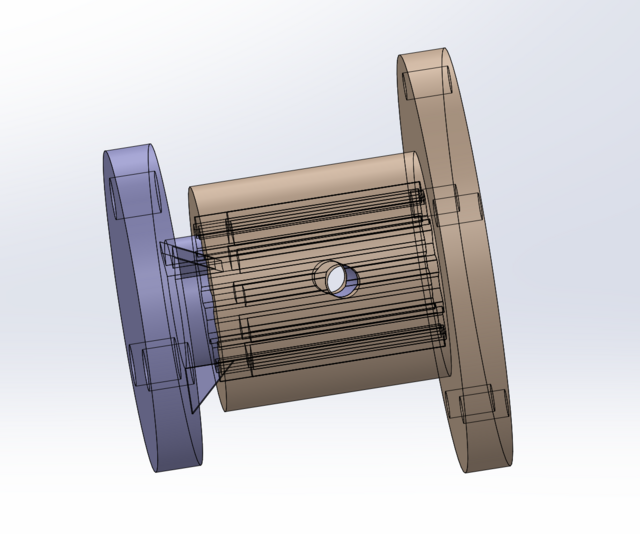

Prototype Quick Connect steering adapter. Going to print out of PLA for now.
Plasma cutting the passenger side door
Lots and lots of measuring
Steering rack mount
Steering rack with all the current bracing. FEA will determine weakness at a later time.
Got a trophy case, and won my first event this year (the glass).
Printed some bushings for mockup. PLA has very similar Tensile, Flexural, and Compressive strengths, however PLA's durability, wear factor, and coefficient of friction are not quite up to the task.
Steering rack, and front sway bars are in. Mockup UCA mounts and steering rack tie rods are in for now. Plan is to make my own spherical bearings for the the control arms.
Rear sway bar mount...its a factory rear sway bar off of my 86.
Removed 5 more pounds out of each front door and 15lbs out of each rear door.
Made an adapter for my shop vac
Prototype Quick Connect steering adapter. Going to print out of PLA for now.
