deltamazdaracingteam

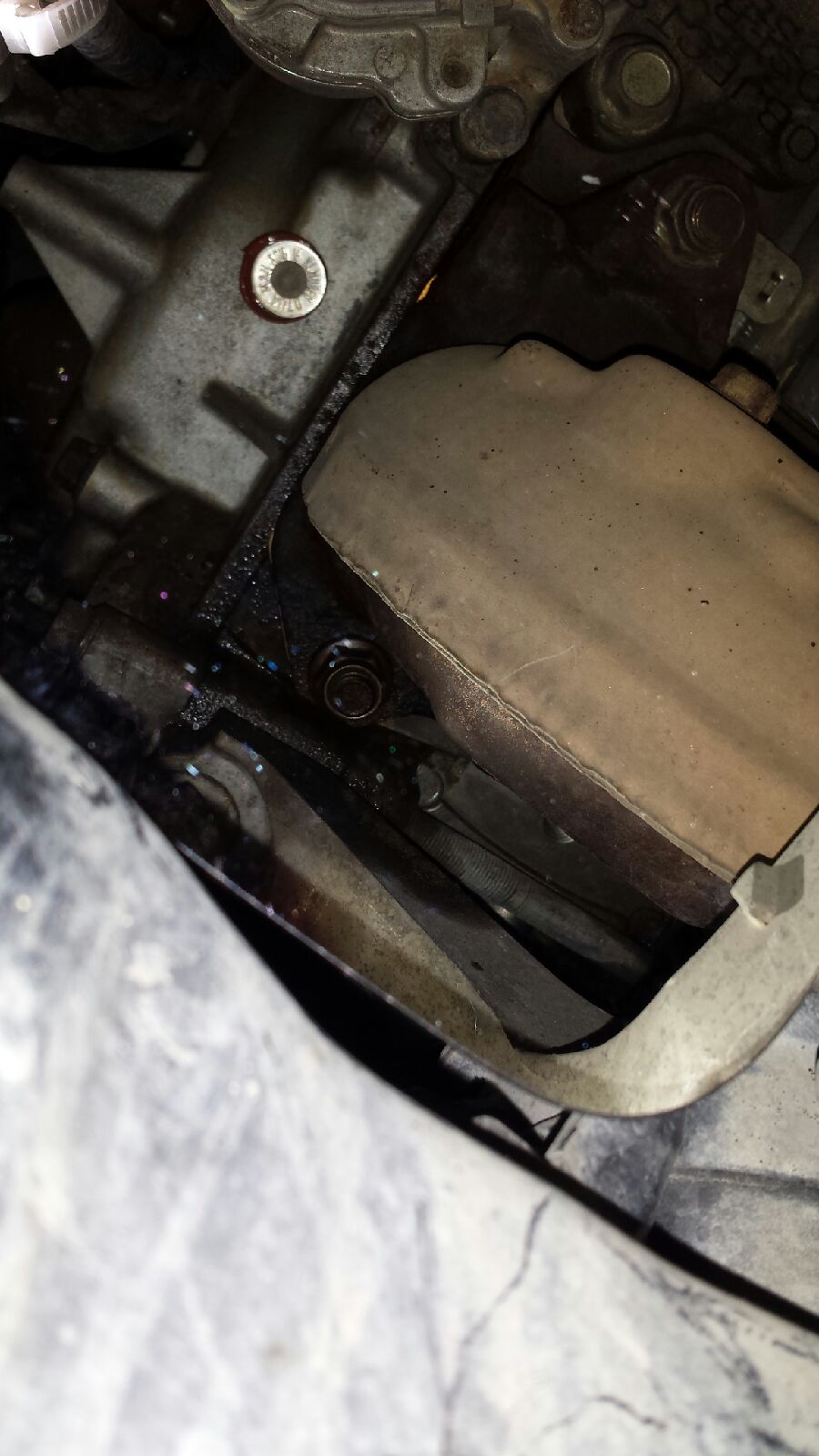

Hi everybody here, I would like to have an idea to try to solve my RX problem, I detect a tiny leak from the right side of my engine, first I though comes from the water pump but after check I noticed comes from a tiny separation begin the water pump and is not from the thermostat housing or any of the hoses there , does some body got an idea of it? please give hand please!!!

dannobre

iTrader: (3)

Hard to see much in the picture.

Is it coming from in between the housing and the end plate?
There are quite a few gaskets there...one between the water pump and front cover and between the front iron and front cover. And at the thermostat. There is a weep hole on the water pump shaft as well that would leak down the side of the block. Could also be a hose or connection....or even the nipple on the radiator under the overflow bottle.....or even the overflow drain
