rx8na

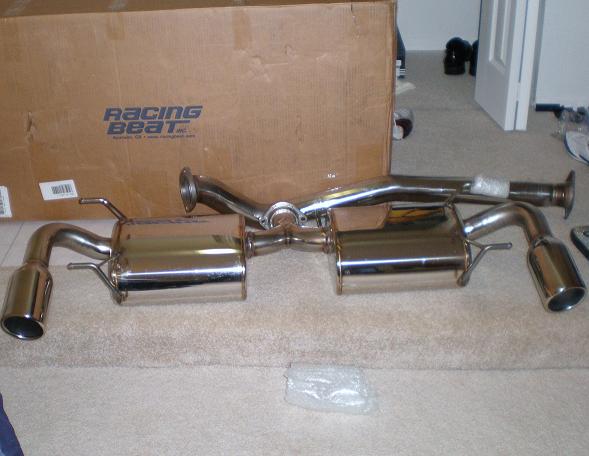

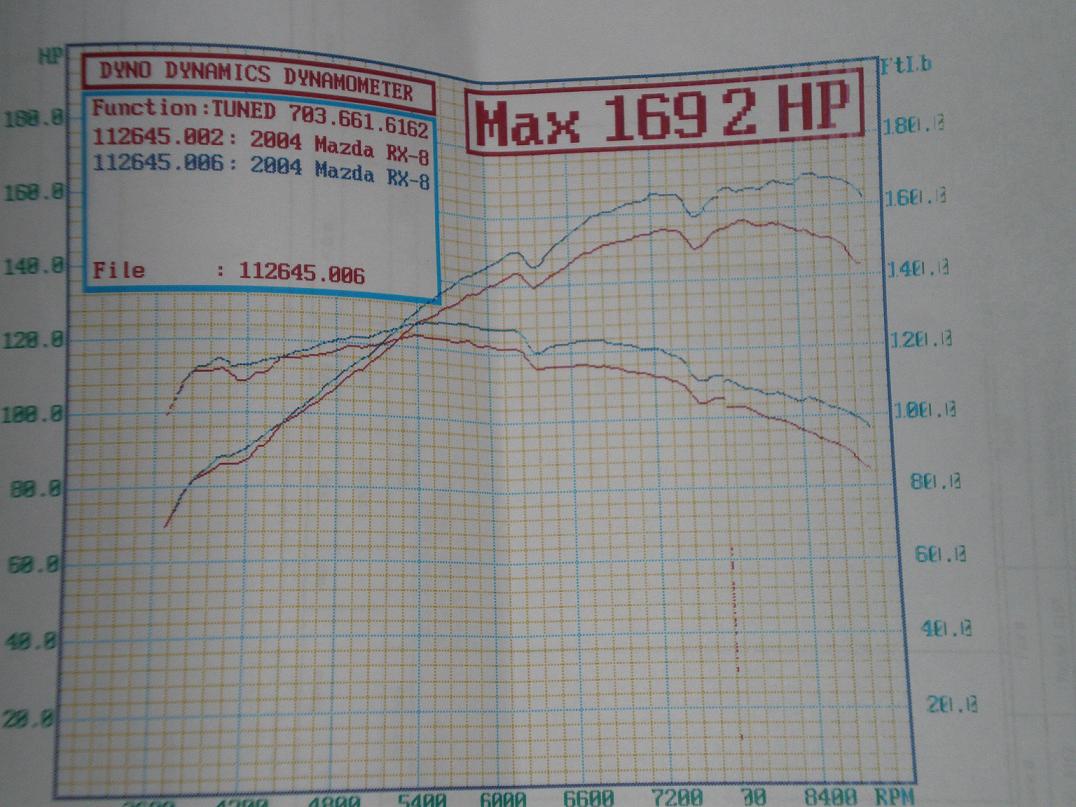

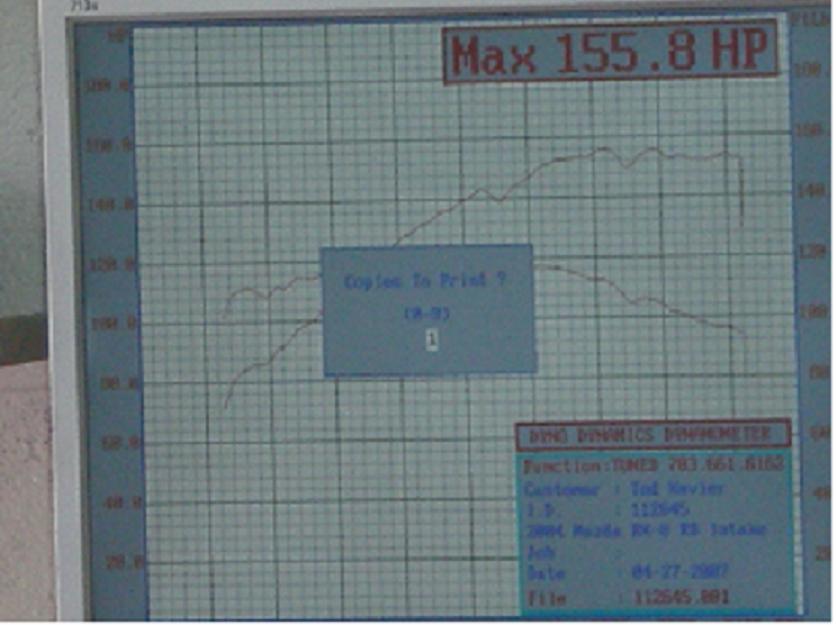

Hello everybody on the N.E. Just started the new project. Below you will see today's dyno with baseline and intake and then the addition of the RB 3' exaust. WhY? am i doing this. to show the true horspower gains. and yes i really did get 14 horspower out of the RB exaust.

I am building full NA for now to see how far i can push the motor so i want to keep u guys in the loop. My full race headers and arive tomorow still waiting on RX7 store highlfow cat 3' pipe. and pully's

PS. also this is a dyno dynamics that reads always 15% lower then dynojet as we all know. so it is more like actually 190 to the wheels.

rx8na

And sorry forgot to tell u guys the intake system is also the RB. intake

TrboLvr

Good luck rx8na. I'm interested to see how this works out. Are you sticking with bolt-ons or is this a full-out project?

FoxyRoxy

Thanks for this rx8na. My "bottom dyno" said Roxy was faster after adding the revi intake and RB catback exhaust, but even RB claims it as being only 1-4 hp gain so I just wrote it off to wishful thinking.

So what is next?

Keep up the good work,
Lynn

rx8na

I am going to do all bolt on's and then after that do what i call efficient tunning. like radiator oil pan. better oil pump. better fuil pumpl. regulator and ecu tunning. and then yep. rip the engine out and send it over to pettit and let him have go at reinforcement and street porting. it will be a fun summer

rx8na

Yeah. that was actually why i orginally got the RB. I wanted real world numbers and quality. but surely they were being conservitive. you got just love RB. The only exhaust on the market i think that even come close (and this is with lots of research and real life viewing) was the Jic titan. but it is dumb loud. my RB is a nice rumble and thats it. so if u consider how loud it will be with the 3' mid and then headers. this is the best fit. unless u want insane loud.

rx8na

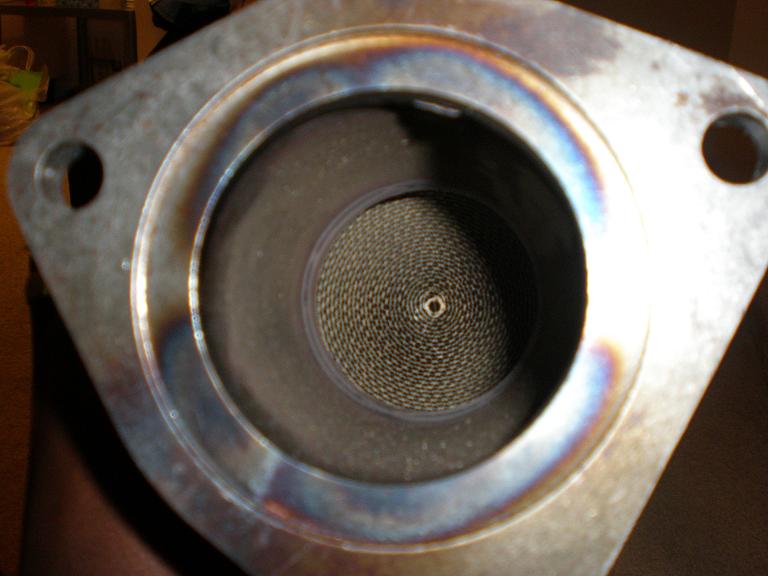

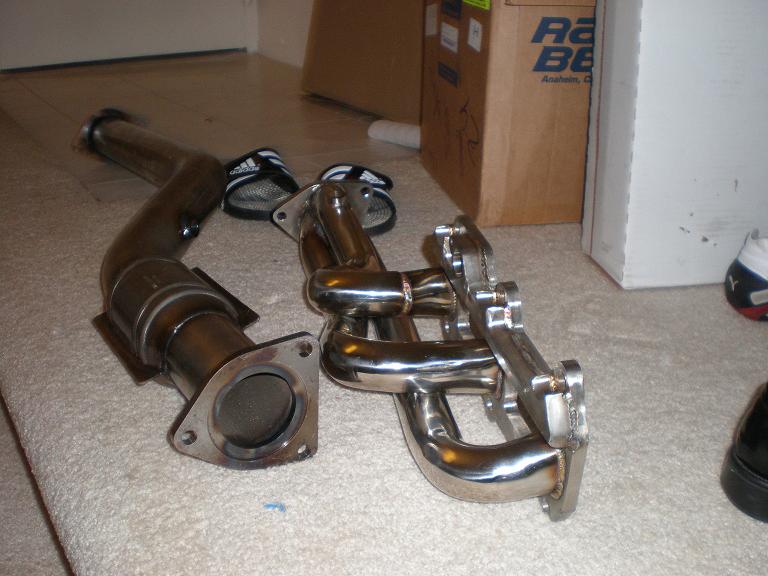

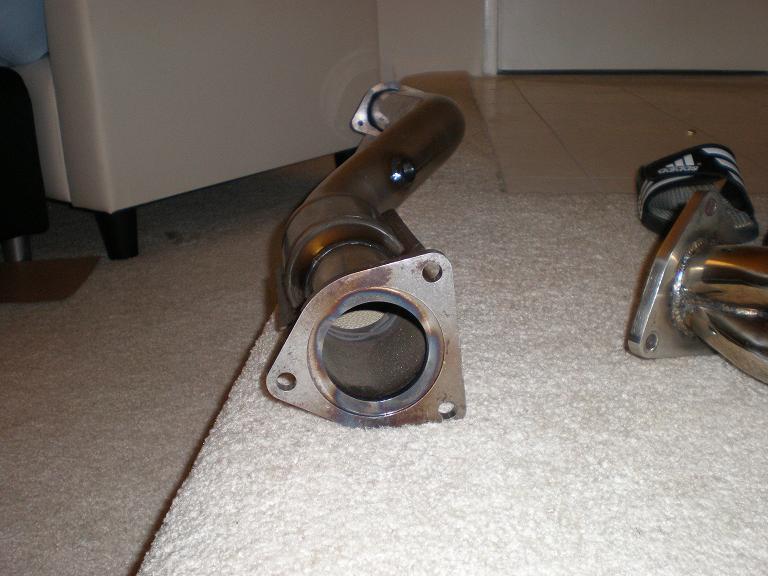

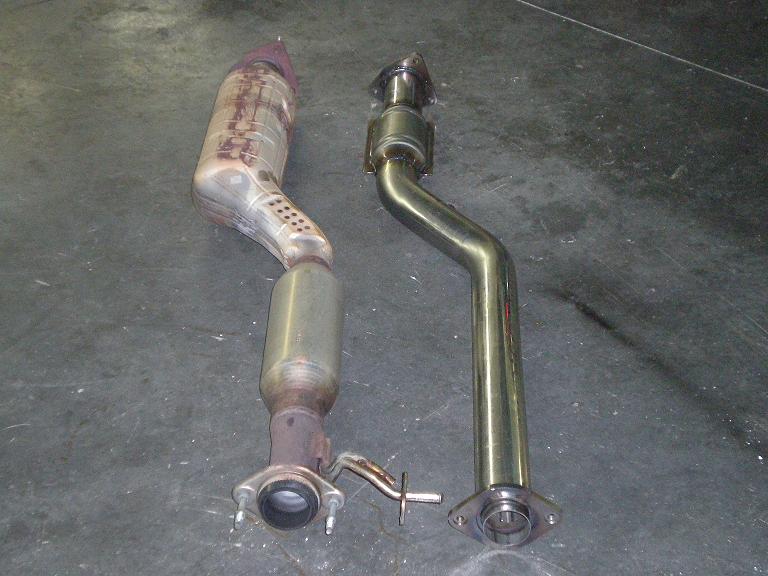

new updates on build. new picks of RX* store 3' highflow cat pipe with

full race headers or exhaust manifold which ever lingo u prefer.

rx8na

The Agency power pulley still not hear. and the gready oil pan is still to be shipped. for some reason. mmm

rx8na

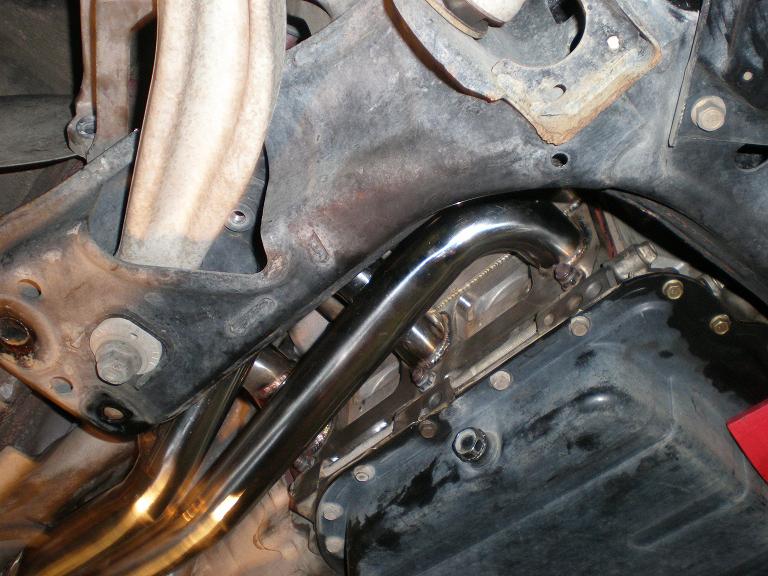

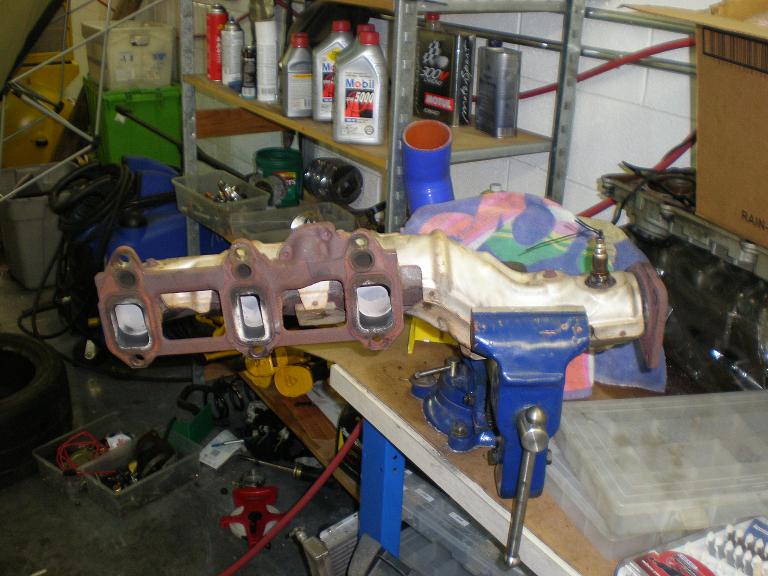

Well very interesting install. had to end up grinding down. the exhaust manifold to make it fit. so much for a thousand dollars took 5 hours to put on the headers and highflow cat. now car is loud as sin sounds like gt race car. putting a resonator on it this weak to help witht the noise.

supergoat

Very cool!

mac11

iTrader: (1)

who makes the manifold?

rx8na

Was made by RE. orderd from japan parts. took a month. so not like i can return them. but i have to dyno tomorow and we will see how much it got over just intake and exaust. so then we will know if it was worth it or if i should have bought the intercepter x. ecu.

ted

Nemesis8

iTrader: (3)

Why did the headers not fit correctly? Where did you have to grind metal?

eforer

Looking at your base line dyno, it looks like you have something wrong with your motor to start with. Check my DynoDynamics pulls in the cumulative dyno sticky. My pulls were all in the mid 180s with the best at 186. My car is completely stock, yours should be closer to that to start with. Granted, I got lucky and mine was the best rx8 stock pull I've seen on that dyno, but even still that number seems very low. If you haven't already, get your compression checked, get fresh plugs and coils and go from there. Mine was dog *** slow prior to getting the ignition squared away with new plugs and coils from the dealer.

Edit, upon closer inspection of your graph, it looks abnormal when compared to that of a healthy 8. While there are little sags at consistent intervals, the wobbliness near the peak looks like something squirrely with the ignition. Probably a burned up coil.

rx8na

it was on the lower part of the manifold flange. huge flange and very thick. only took like 15 mins. but it was the point that it had to be done in the first place. or i am thinking the japanese model has more room down there since the stearing is on the right in japan.

rx8na

Well i am going to have it checked out today. to check for exhauste leaks for the new headers and mid. i will check the ingnition but car runs fine. and i have seen a lot of low dynos with this car i dont realy know why. i am thinking we did not pull the fuse for DSC instead we just turned it off. maybe that was why. ???

maxxdamigz

iTrader: (1)

You need some wideband O2 data as well. The Renesis runs fairly rich stock. Some of that, I think, is to lower full throttle EGTs to not blow torch the Cat. People have netted some decent NA gains with retunes.

Nemesis8

iTrader: (3)

With all my NA mods and a lightly tuned CZ, I netted +21 RWHP total. I have since pulled the CZ in hopes for either the RB flash or the Cobb unit to come out. With the RB flash out, I do not see spending the money on it, if the Cobb will do the same thing. Hell, the RB flash will most likely be in the public domain soon after the first Cobb unit nabs it and it goes on the Internet for download.

eforer

My pull(s) were with dsc on. It may seem like it runs fine, but the graph near the top of the rev range looks very odd. I would definately get some pulls done with wideband 02 as well. I really suspect there is some sort of ignition issue. Most of the DynoDynamics (yes it is definately a heart breaker dyno) pulls I've seen have been at least in the 160s, and those were the lowest of the lot. There is someting afoot, get your dealer to test your compression and if you have the original coils, get them replaced along with the plugs.

Also, Nemesis, did you find that as the pcm "learned" around the CZ, that the performance diminished. I never like the idea of a piggy back + learning PCM as the PCM will try to compensate for the CZ. I was going to go RB, but I'm holding out now for the AccessPort.

EDIT: Didn't see the printout pic, the second pull or whatever the blue line is looked alot better and more inline with the graphis I've seen. The screen shot looked iffy though. Don't know what the deal with the difference is.

RoXanneBlack8

the consistent dips in the hp graph are normal.
3500, 5500, 6250, and 7300 are all spots where things r changing in the intake manifold so u will see the car adjust....we all kno what ports/injectors/valves are opening so theres no need for me to tell of them here....

the high rpm weirdness, ignition, compression? who knows....but if it idles fine its prolly not the compression....

edit, u had the dsc on? hold that button for 7 seconds man, completely kill that sucker!!!!


good luck with the build man! im sure ull be ok, but it seems like ur spendin a decent amount of money for this project.....but if u got the money...who cares! ya only live once! have a blast doin it!!!!

rx8na

Thanks yeah. i see alot of dynos with the same dips. i am thinking just the ecu doing some funny stuff. car runs fine. ideals fine. and holds all the way through. or is compression on these motors much harder to read then regular. I am worried but i have to take it someware else beside my dealer cause if the compression is bad i would just rather take the bolt ons of and get a new motor. Does any one know were i can get a accurate compression test done specific to this motor? Thanks.

eforer

The better pull looked a little less hinky at the top. As said before we all have dips in the same spots, but on that lower pass, it looks almost like a misfire at the uppermost rev ranges.

I guess it could be TCS kicking on if you had some slippage on the rollers. Like I said, I did all my passes with DSC on (and by association tcs) and had no problems, and all 3 pulls were consistent. That said, if the rollers were slippery for any reason, or perhaps you were in a lower gear, the TCS DSC might be a factor.
