My new install project.
06-16-2009, 09:58 PM
#1
Original Turbo 'd Auto !!
Thread Starter
My new Turbo install project.
Here is a pic of the manifold in pieces, turbo flange, turbo blanket, and a turbo. I forgot which one this is. Its not for my application. I'm using a T4 60 trim which has the same size of compressor housing as the 3071r
This will be a custom topmount. Battery will have to be relocated into the trunk and the AST will be Aluminium.

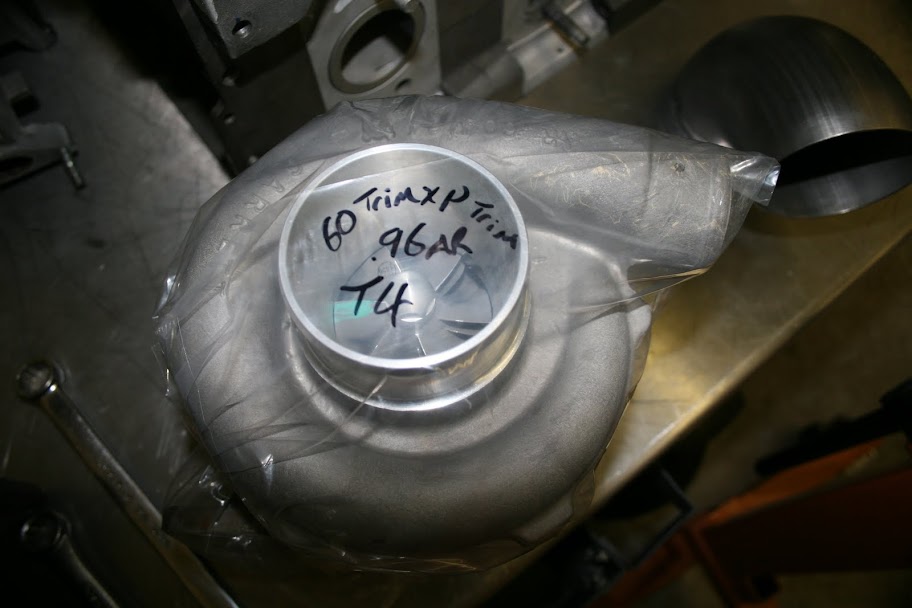

Specs of the selected turbo:
flow: 50 lbs/min 640cfm
.60 Trim Compressor
TURBINE SPECS:
P-Trim Turbine
.96 A/R HOUSING
Builder: Turblown.net
Garrett T4.
Racing Beats cast stainless header flange.
Now you can see the TUBO !! no more hiding below.
Exhaust manifold in the works.
chaos ensuing above!
This will be a custom topmount. Battery will have to be relocated into the trunk and the AST will be Aluminium.
Specs of the selected turbo:
flow: 50 lbs/min 640cfm
.60 Trim Compressor
TURBINE SPECS:
P-Trim Turbine
.96 A/R HOUSING
Builder: Turblown.net
Garrett T4.
Racing Beats cast stainless header flange.
Now you can see the TUBO !! no more hiding below.
Exhaust manifold in the works.
chaos ensuing above!
Last edited by 09Factor; 09-13-2009 at 01:36 PM. Reason: updated pics
06-16-2009, 09:59 PM
#2
Original Turbo 'd Auto !!
Thread Starter

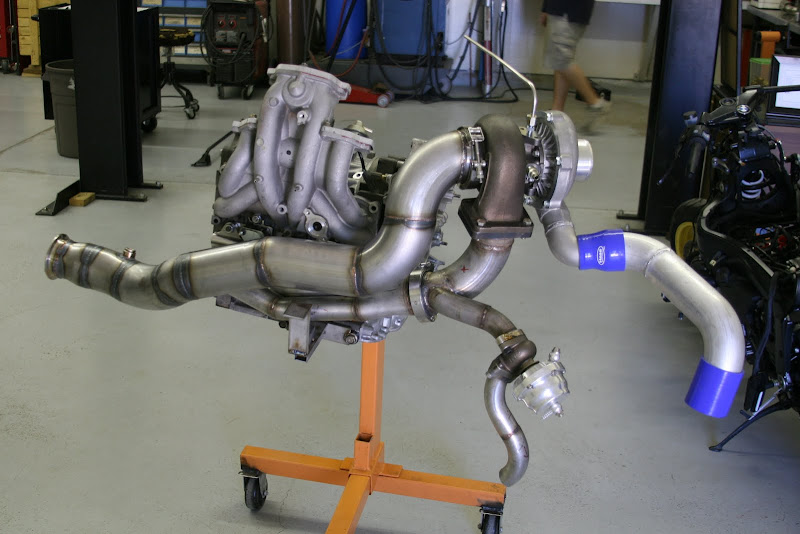

Shot of the header mocked up to the exhaust. The OMP has been removed for space.
New exhaust manifold pics as of 7/1/09
New pic 8/23/09 V-band flange attached.
New exhaust manifold pics as of 7/1/09
New pic 8/23/09 V-band flange attached.
Last edited by 09Factor; 08-23-2009 at 02:27 PM.
06-16-2009, 10:00 PM
#3
Original Turbo 'd Auto !!
Thread Starter
Possible location for the Turbo. Still deciding on the BEST location to allow correct airflow and minimize turbulence in the intake charge.
New pics 8/23/09 placement of External WG in relation ship to the manifold
better shot of the finished welds of the manifold
New pics 8/23/09 placement of External WG in relation ship to the manifold
better shot of the finished welds of the manifold
Last edited by 09Factor; 08-23-2009 at 02:33 PM.
06-16-2009, 10:00 PM
#4
Original Turbo 'd Auto !!
Thread Starter

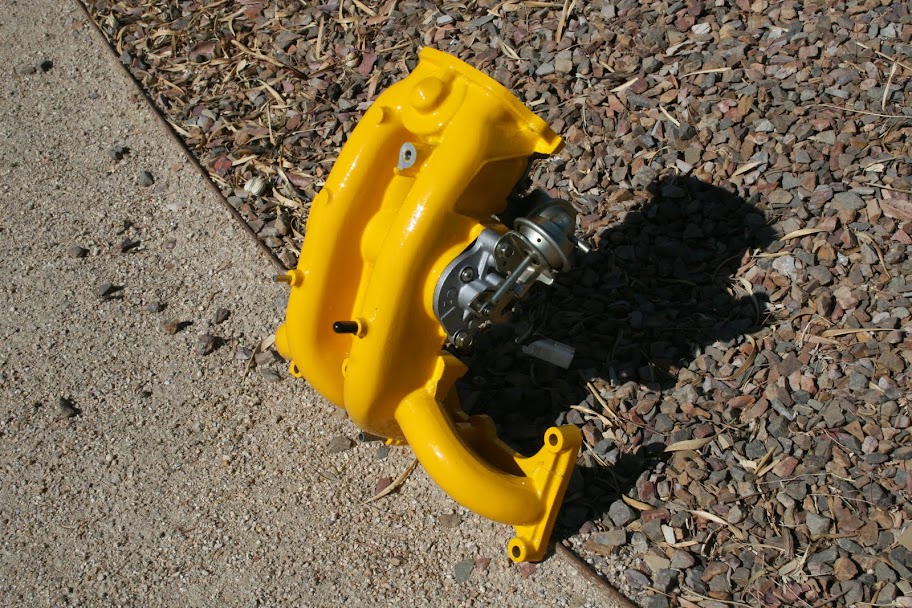

PIcs of LIM with VDI and APV cleaned and installed.
It's in the car! (yes it's not a direct color match)

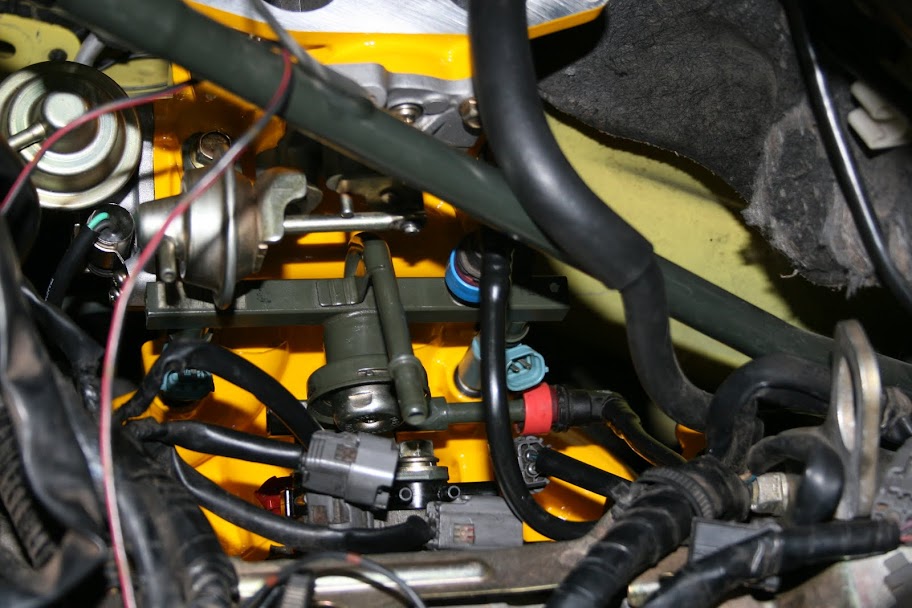

This one shows the wires and rail nicely.
Recirc.
Last edited by 09Factor; 12-12-2010 at 03:31 PM.
06-17-2009, 11:36 AM
#9
Administrator
iTrader: (7)
I demand pics...
06-24-2009, 01:08 AM
#12
Boostin'
That is a Precision Billet Gt35R. Last time I checked Garrett didn't have the 1.06 T4 framed turbine housing available. We are probably going to go with the .82 T4 turbine housing . I am hoping with a 3.5" down-pipe and open dump waste-gate that the pre-turbine back pressure will be low with that small of a turbine side.. If not then we will just switch back to the original plan of a 1.0 P trim 57trim To4E...
06-24-2009, 10:09 AM
#13
Original Turbo 'd Auto !!
Thread Starter
AHHHHHHHHHH! I have been thread jacked !
j/k
Thanks for tth pics E.
As for expected/gestimated power levels, who knows. we will find out when we get there... Now I will say this. I did pick up 65 hp from the Greddy kit.
This custom setup blows the doors off the Greddy one in parts alone. Not withstanding the lbs of air that this build will supply at the same psi compared to the Greddy..
j/k
Thanks for tth pics E.
As for expected/gestimated power levels, who knows. we will find out when we get there... Now I will say this. I did pick up 65 hp from the Greddy kit.
This custom setup blows the doors off the Greddy one in parts alone. Not withstanding the lbs of air that this build will supply at the same psi compared to the Greddy..
06-25-2009, 11:56 AM
#16
Original Turbo 'd Auto !!
Thread Starter
Nothing major planed yet for Transmission upgrades. Just better ATF.
If Easy_E1 can light up his tires in 1st and make massive clouds of smoke and His still shifts fine and runs smooth.
I don't plan on lighting the tires so I should be ok.
06-25-2009, 03:26 PM
#22
Original Turbo 'd Auto !!
Thread Starter
The current bat is a Yellow top Optima. So I'm not worried about any leakage.
I'd be damned if I get stains on the trunk carpet !
We saw 202hp @ 7 psi.( i think). The dyno is in my Greddy build thread
i'll see if I can get more upclose pics of the compressor wheel.
I can't any of the credit.. Turblown picked the parts. I just gave him a car to use them on.
Last edited by 09Factor; 06-25-2009 at 03:30 PM. Reason: furgot NGo's comment. Durka durka
06-25-2009, 10:19 PM
#25
Turblown, do you think i could get a quote for the battery relocation kit? i want to get it in an aluminum box. i haven't seen 09Factor's yet but i'm sure it looks good.
come to think of it, is it being moved to the trunk? thats the way i want mine. i guess i could just get one of the kits off summit racing or something but i'm not sure what size. i have the same yellow top battery.
come to think of it, is it being moved to the trunk? thats the way i want mine. i guess i could just get one of the kits off summit racing or something but i'm not sure what size. i have the same yellow top battery.
