DIY: Install.....RX8 Performance Motor Mounts
#26
Registered
iTrader: (4)
I just swapped mine out, finally.... I ended up buying an OEM for the drivers side, because the top bolt snapped off and I couldnt drill it out. The passenger side one I filled with the 60a compound, which ending up being really easy. Overall it wasnt a difficult job at all, I reached all the bolts from the wheel wells and didnt have an issue at all taking any of the bolts out with a small hand rachet and 14mm socket (besides the broken bolt). Getting them back in was a pain, you really have to wiggle them around and pry a little bit to get the one side over the bolt and the other in the bracket.
Overall changing these things is a must if you have the rattle, either with filling them or these updated mounts. I realize now that Ive been dealing with this vibration for probably 40k and just got used to it being pretty bad. Its literally a different car now... Thanks for the pics and writeup on this, rx8club saved me spending hundreds again
Overall changing these things is a must if you have the rattle, either with filling them or these updated mounts. I realize now that Ive been dealing with this vibration for probably 40k and just got used to it being pretty bad. Its literally a different car now... Thanks for the pics and writeup on this, rx8club saved me spending hundreds again
#27
Registered
iTrader: (2)
Agreed, I was just explaining dannobres method since he asked.
--
As long as you are using a board to distribute the load, there is very little risk to damaging the pan, it is a very common method of dropping an engine, either method would work, of course less supplies will be needed with dannobres method lol
--
As long as you are using a board to distribute the load, there is very little risk to damaging the pan, it is a very common method of dropping an engine, either method would work, of course less supplies will be needed with dannobres method lol
(In December, a friend broke 2 vertebrae in his neck when his WRX fell off a lift - and he wasn't even under the car; it fell sideways. Safety first!)
#28
Registered
iTrader: (2)
I didn't have much trouble with alignment. Perhaps it's because I didn't unbolt both mounts at the same time. One side, I backed off the two fasteners to the frame about 3/4", fully unbolted the other side, then lifted. With the first new mount in place, I lowered the engine enough to engage the frame nut and bolt there, then released the original side and lifted. This limits the motion of the engine while being raised. YMMV.
#29
Registered
iTrader: (4)
I didn't have much trouble with alignment. Perhaps it's because I didn't unbolt both mounts at the same time. One side, I backed off the two fasteners to the frame about 3/4", fully unbolted the other side, then lifted. With the first new mount in place, I lowered the engine enough to engage the frame nut and bolt there, then released the original side and lifted. This limits the motion of the engine while being raised. YMMV.
#31
Release the twins.
what he said, about the tranny mounts. My jacking point of choice for most cars is the side of the oil pan+wood.
#33
Registered
iTrader: (3)
same here and the enginet doesnt have to move very much. Its nice to have the proper equipment , but backyard monkey mechanics have to improvise.
Driving impression is a big positive--i have diy mounts but the end result would be the same. I did mine before these were on the market. Better shifting, better throttle response were very evident.
I would not hesitate to get better mounts.
Hey dan what header (RB's??)
Driving impression is a big positive--i have diy mounts but the end result would be the same. I did mine before these were on the market. Better shifting, better throttle response were very evident.
I would not hesitate to get better mounts.
Hey dan what header (RB's??)
#35
Registered
iTrader: (2)
The most obvious plus is the vast reduction in side-to-side motion of the shifter under accel/decel! It changes the shifter from an analogue to near-digital device. I've as of yet had no chance to see how the firmer mounts translate into transitioning in and out of corners, but expect that to be improved too.
So far =
#36
9K All Day
im thinking yes, but does the tranny/motor have to be jacked up a little bit? or is it just easier that way but still possible without it. 20 minute DIY sounds more like 2 hours for me lol.
#37
9K All Day
If youre still looking for some and If I end up changing mine out ill send them to you for free, unless you would want new ones but my mounts only have 33k on them.
Just dont know how soon I would do this, it comes below my AFE SS and BHR ignition on my to do list cause i dont track/autox. Plus it would probably take some help from a friend that has all the necessary tools.
Just dont know how soon I would do this, it comes below my AFE SS and BHR ignition on my to do list cause i dont track/autox. Plus it would probably take some help from a friend that has all the necessary tools.
#43
Motor Mount Replacement
Followed the advise of others in the DIY and jacked the car - placed on jack stands - removed front wheels - removed 14 mm bolts and nut on each motor mount - used recommended transmission jack point with hydraulic floor jack & wood block to provide enough clearance for removal of old mounts.
The new mounts went in relatively easy (straight in on drivers-side but passenger side required a little coaxing to align upper bolt).
Would certainly recommend this to others as it was an easy DIY project of approximately one hour (taking my time and first motor mount job) or less.
There is a huge savings from ordering the parts online and eliminating the labor (had a couple of quotes for 200-300 for labor alone).
Even better was the resultant elimination of transmitted vibration....
Buttery smooth again.....
The new mounts went in relatively easy (straight in on drivers-side but passenger side required a little coaxing to align upper bolt).
Would certainly recommend this to others as it was an easy DIY project of approximately one hour (taking my time and first motor mount job) or less.
There is a huge savings from ordering the parts online and eliminating the labor (had a couple of quotes for 200-300 for labor alone).
Even better was the resultant elimination of transmitted vibration....
Buttery smooth again.....
#46
Just ordered these at the end of last week. As soon as they get here they are going on, so another set of busted mounts will be available. The chassis has 136k on it but motor was replaced at 96k so I'm not sure how many miles are on the mounts that are currently installed.
#48
I also ordered a set and will be giving away the old set long as you're willing to pay for the shipping. SoCal resident near Los Angeles can pick them up. 06 auto model with 27k miles. I'm pretty sure the passenger side mount leaked out since I am currently experiencing rough idling.
Last edited by GTSimmo; 08-24-2012 at 02:50 PM.
#49
Registered User
Join Date: Feb 2012
Location: Queens NY
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
Hi great DIY; I installed the same mounts, just some things I discovered while doing this that you might want to take into consideration.
1. I found lifting from the very front of the oil pan with a long piece of wood between the jack felt sturdier.
2. You will probably have to loosen the 12mm bolt for the brake lines to get to the top bolt on the mount, (this really makes life easier.
3. You want some tough tools these things are on there pretty tight, along with a 14mm short AND long socket. The front nut has a lot of thread and is not reached by the regular 14mm length socket.
4. Do one at a time and lower it into place, then the other side, it's hard enough getting one side to slide in when you lower the engine. You don't want to strip the bolt or the mount.
These new mounts feel great!, no more rough idle or vibrations when A/C is on.
Thanks for a great DIY
1. I found lifting from the very front of the oil pan with a long piece of wood between the jack felt sturdier.
2. You will probably have to loosen the 12mm bolt for the brake lines to get to the top bolt on the mount, (this really makes life easier.
3. You want some tough tools these things are on there pretty tight, along with a 14mm short AND long socket. The front nut has a lot of thread and is not reached by the regular 14mm length socket.
4. Do one at a time and lower it into place, then the other side, it's hard enough getting one side to slide in when you lower the engine. You don't want to strip the bolt or the mount.
These new mounts feel great!, no more rough idle or vibrations when A/C is on.
Thanks for a great DIY
#50
Alright, just got mine installed. Took me about an hour and a half because I could not could the bolts on the original mounts loose. Once I got that, the rest took about 20 minutes.
Haven't drive the car yet but I know that my passenger side mount was shot.

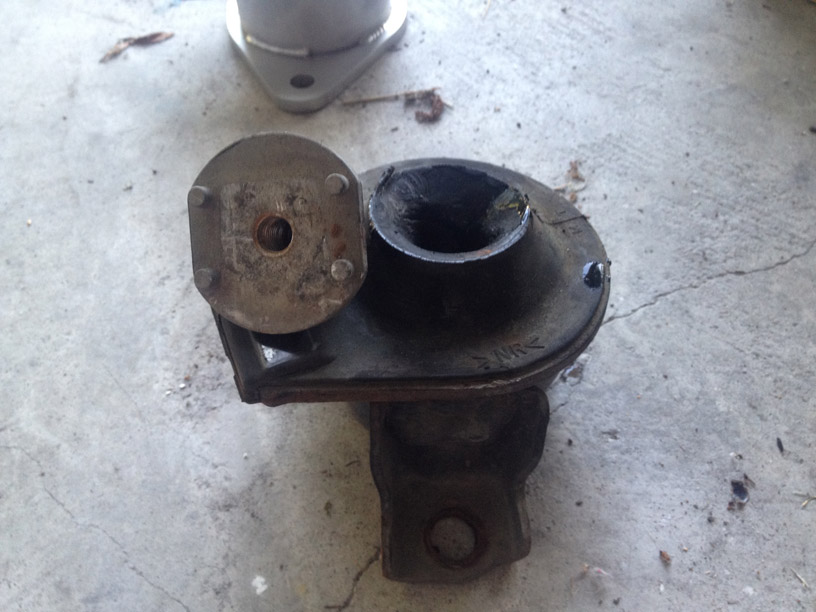

I went to remove the passenger side mount once I lifted the motor and that top chunk fell right off.
Very easy install as long as you have the right tools. I'll share impressions tomorrow after I get home from work.
Haven't drive the car yet but I know that my passenger side mount was shot.
I went to remove the passenger side mount once I lifted the motor and that top chunk fell right off.
Very easy install as long as you have the right tools. I'll share impressions tomorrow after I get home from work.
