i have been talking to gregs and Shady but if other members know where to get these parts that would be great!

here is the link to the Greddy Manual PDF
http://greddy.com/upload/file/03-RX8_TK_T618Z.pdf

the parts i am missing are
#18 - bracket [steel]
#23-26 oil pressure union fittings [mainly the male to male fitting]
#49 [intake manifold block off plate



I might have the bracket (not using it) and the oil line (if I didn't give it to shady). I have the block off plate. As for the oil feed line, I would go from an oil filter adapter plate and use a custom feed line from ATP Turbo, Vibrant, or ebay.



that bracket is for the original air cleaner assembly, hopefully you don't plan to use that POS

you don't need the block off plate if you intend to tune it with a Cobb AP



ahh that clears things up. i was planning on using my mazdaspeed intake, and yes i am planning on using the COBB with MM's tuning



hopefully you didnt! i was just talking to shady on Facebook about it.

as for the oil feed line, i was going the route gregs recommended, which was using an oil filter sandwich plate instead of using the t fittings, but when i was double checking the parts list, i could not find the fittings.

anyways could you provide links to the custom parts i would need? not sure if im looking in the right places for these things but im having a difficult time finding the right parts



the sandwich plate that I use is from prosport:

http://prosportgauges.com/oil-filter-adaptor-plate.aspx

Make sure you get a restrictor for you oil line. I used this one:
http://www.atpturbo.com/mm5/merchant...Category_Code=

You will not need the T fitting if you are running off a sandwich plate like me.



thanks for the reply RWD+LSD=Zoom

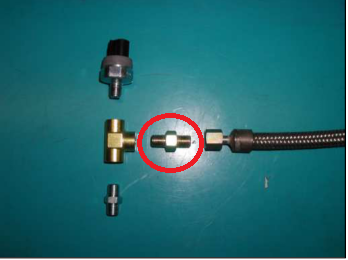

anyways with the restrictor and the adapter plate, would i still need this fitting?


greddy finally got back to me and they said they sell them for 10-18 bucks depending on the part. just need to know if i need it



probably - yes . Although any where that sells brass fittings will have that piece .



take your oil line to a hose supply store and ask to have oil line made in the exact same lenth as your current greddy in 1/8 npt female thread. then you can buy a .99 cent 1/8 npt male fittings ( problem with the greddy line is it has a very hard to find 1/8 npt thread count) the line and fittings should not cost you more than $30 or so and have it made withing 15 min. easy solution.
