I got sick of trying to find a head unit with firmware 9.55 or higher for all the aux modules to work with. So I created my own soloution, by tapping into the iPod audio as it enters the head unit. Since I used a 5 pin jack instead of a 3, the iPod audio passes straight to the head unit uninterrupted until something is plugged into the auxiliary jack.

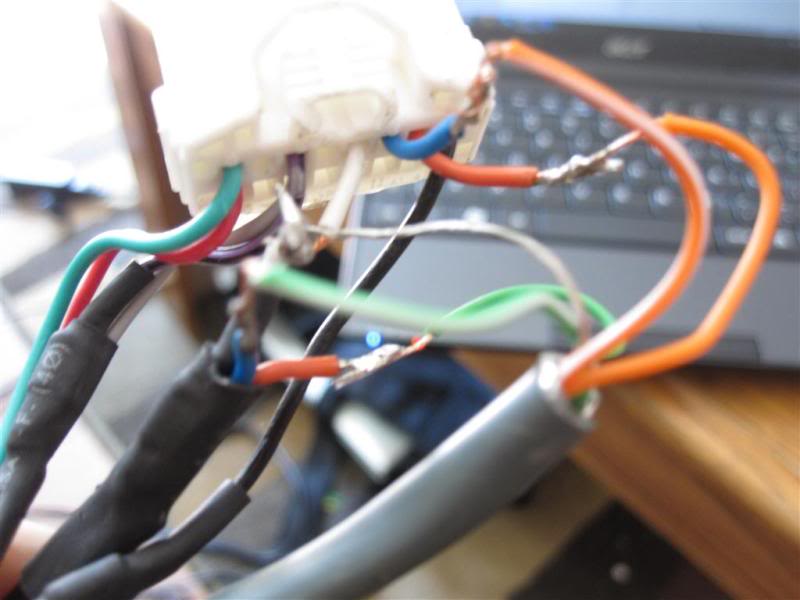

Hijacking the iPod input at the connector that enters the head unit from the iPod module. “WHITE” is Common Signal Ground “BLUE” is + Left "ORANGE” is + Right.
Keep in mind you don’t need to cut the "WHITE" Common Signal Ground but simply splice in the (1) Common Signal Ground of the auxiliary 3.5mm jack

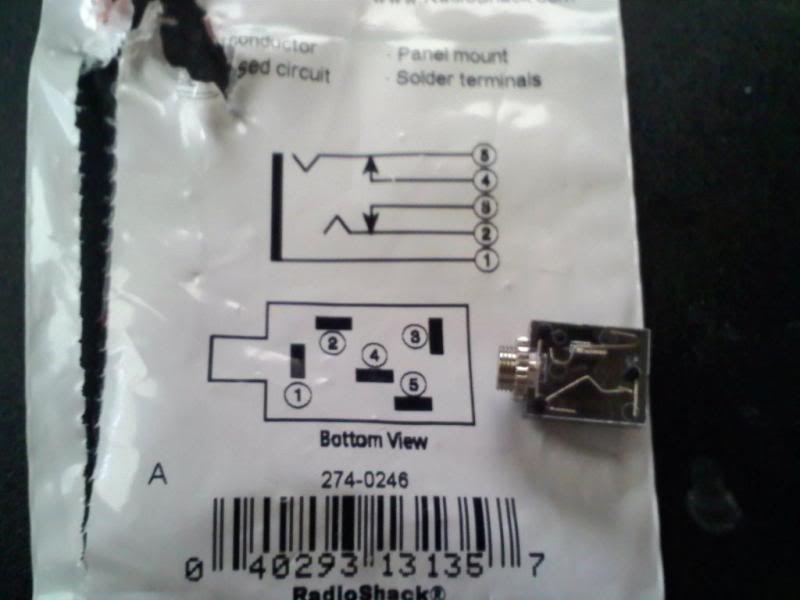

1=Common Signal Ground, 2= + Right Channel, 3= + Right Channel Pass Through, 4= + Left Channel Pass Through, 5= + Left Channel.


Bottles of beer make great soldering iron holders, especially since they multiply as the night goes on.


I cut the ends off a fairly short CAT 5 network cable since I only needed 1.5ft of cable to run from the 3.5mm auxiliary jack to the back of the head unit to the iPod input module connector. They also happen to have 5 wires in them including the ground outside shield which are all we need.

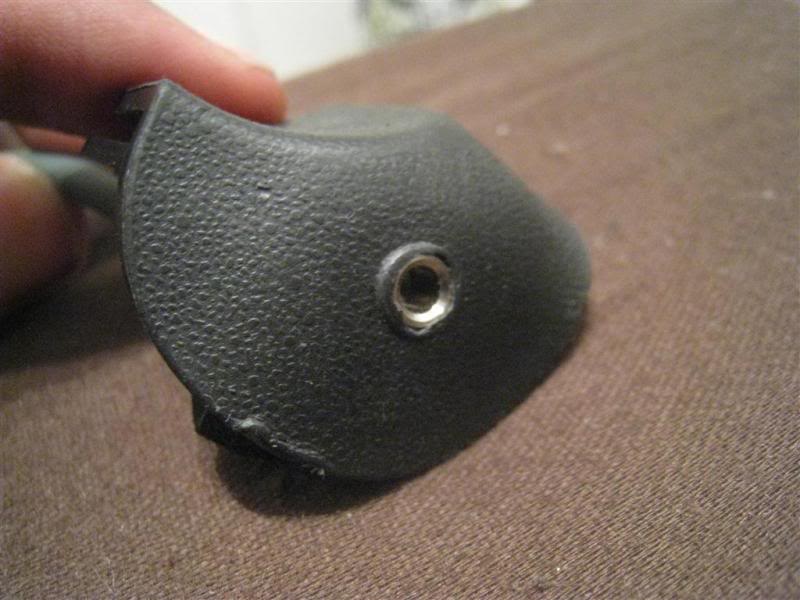

I put the aux jack in this plastic cover. Which made it much easier then pulling out my entire rear console to drill a small undersized hole so it threads in nice and snug and shouldn't get pushed out anytime soon.

This thread got me thinking about this mod, I also borrowed the pic of the 5 pin aux jack from it.
