Part ID

Old 01-18-2019, 09:27 PM
  #1
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
Part ID


Howdy what's this gizmo ? My S1 doesn't have it Cheers
Sydo is offline
Old 01-18-2019, 11:30 PM
  #2
转子之魂

UnknownJinX's Avatar

Join Date: Apr 2017
Location: Victoria, BC
Posts: 1,927
Thanked 278 Times in 256 Posts
That's the cooling fan control kit from RX8Performance, or something similar to it.

Basically, it keeps the coolant temperature lower by telling the fan to come on earlier. IIRC it keeps the coolant temp below 90 C instead of the factory 98 C.
UnknownJinX is online now
Old 01-18-2019, 11:32 PM
  #3
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
Thanks mate. Previous owner also fitted silicone radiator hoses. He lived in an extremely hot area. Makes sense
Sydo is offline
Old 01-20-2019, 03:27 AM
  #4
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
Originally Posted by UnknownJinX View Post
That's the cooling fan control kit from RX8Performance, or something similar to it.

Basically, it keeps the coolant temperature lower by telling the fan to come on earlier. IIRC it keeps the coolant temp below 90 C instead of the factory 98 C.
I'm just wondering if it's working properly. My S1 fans are louder than the S2 fans after engine is switched off when hot. I was parked for 5 minutes today with engine running in 107f 42c heat and temp gauge went over half way
Sydo is offline
Old 01-20-2019, 03:35 AM
  #5
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
....

Took these pics when coolant temp was 105c

Maybe I should disconnect it ?
Sydo is offline
Old 01-20-2019, 06:39 AM
  #6
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
Also fan comes on with ignition when cold ?
Sydo is offline
Old 01-20-2019, 09:04 AM
  #7
^^^ Fluent in snark.

NotAPreppie's Avatar

Join Date: Mar 2006
Location: Chicago, IL, USA, North America, Earth, Sol System, Sector ZZ9 Plural Z Alpha, Milkyway, Universe
Posts: 3,083
Thanked 386 Times in 313 Posts
Originally Posted by Sydo View Post
Also fan comes on with ignition when cold ?
You sure that's the radiator fan and not the secondary air injection pump?
NotAPreppie is offline
Old 01-20-2019, 09:10 AM
  #8
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
Originally Posted by NotAPreppie View Post
You sure that's the radiator fan and not the secondary air injection pump?
just went and checked fan noise from front and can feel air near coolant overflow.
doesnt air pump only come on when engine is running ?
Sydo is offline
Old 01-20-2019, 11:09 AM
  #9
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
Ok cooling fan comes on when cold and stays on all the time . Checked up to operating temp. Maybe whoever did the mod didn't do it right ? So maybe just one fan is working hence it went over half when idling today ?
Sydo is offline
Old 01-20-2019, 11:13 AM
  #10
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
....

Unsure about relay wiring
Sydo is offline
Old 01-20-2019, 11:57 AM
  #11
Chief Meteobraptologist
iTrader: (1)

Loki's Avatar

Join Date: Jun 2009
Location: Montreal
Posts: 4,340
Thanked 274 Times in 242 Posts
Sounds like they might have forced fan 1 to operate all the time. Hard to conclude without being near the car, but faced with such a situation, I'd disconnect any wiring associated with this mod and restore stock functionality. If you still have heating problems then we can diagnose from there.
Loki is offline
Old 01-20-2019, 12:22 PM
  #12
^^^ Fluent in snark.

NotAPreppie's Avatar

Join Date: Mar 2006
Location: Chicago, IL, USA, North America, Earth, Sol System, Sector ZZ9 Plural Z Alpha, Milkyway, Universe
Posts: 3,083
Thanked 386 Times in 313 Posts
Originally Posted by Sydo View Post
just went and checked fan noise from front and can feel air near coolant overflow.
doesnt air pump only come on when engine is running ?
The air pump only runs for a short time when starting up the car after the engine has cooled. It dumps air into the exhaust to help light off the catalytic converter faster.

Originally Posted by Loki View Post
Sounds like they might have forced fan 1 to operate all the time. Hard to conclude without being near the car, but faced with such a situation, I'd disconnect any wiring associated with this mod and restore stock functionality. If you still have heating problems then we can diagnose from there.
What he said.
NotAPreppie is offline
Old 01-20-2019, 03:12 PM
  #13
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
Loki so it's ok to just cut those wires off relays ?

Shouldnt really need this mod with S2

Last edited by Sydo; 01-20-2019 at 03:19 PM.
Sydo is offline
Old 01-20-2019, 03:15 PM
  #14
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
Originally Posted by NotAPreppie View Post
The air pump only runs for a short time when starting up the car after the engine has cooled. It dumps air into the exhaust to help light off the catalytic converter faste.
Yes I did say fan was on with ignition only
Sydo is offline
Old 01-20-2019, 04:20 PM
  #15
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
Ok set up is back to factory but fan still comes on with ignition on which doesn't seem right
Sydo is offline
Old 01-20-2019, 05:40 PM
  #16
转子之魂

UnknownJinX's Avatar

Join Date: Apr 2017
Location: Victoria, BC
Posts: 1,927
Thanked 278 Times in 256 Posts
This the correct stock setup. The extra relay in the green circle is for the optional seat heaters, and I wouldn't be surprised if Australian cars don't come with them.

The previous owner set it up wrong, BTW. The instructions say that you need to replace fan relay 1 and 2 with the provided units, except the kit is designed for S1, and while it works for S2, fan relay 2 in S1 is called fan relay 3 in S2 and vice versa, so you need to pull out fan relay 3 on an S2 and replace it with the relay in the kit. If you wish to use the kit, the two relays in the red circle are the ones you use.

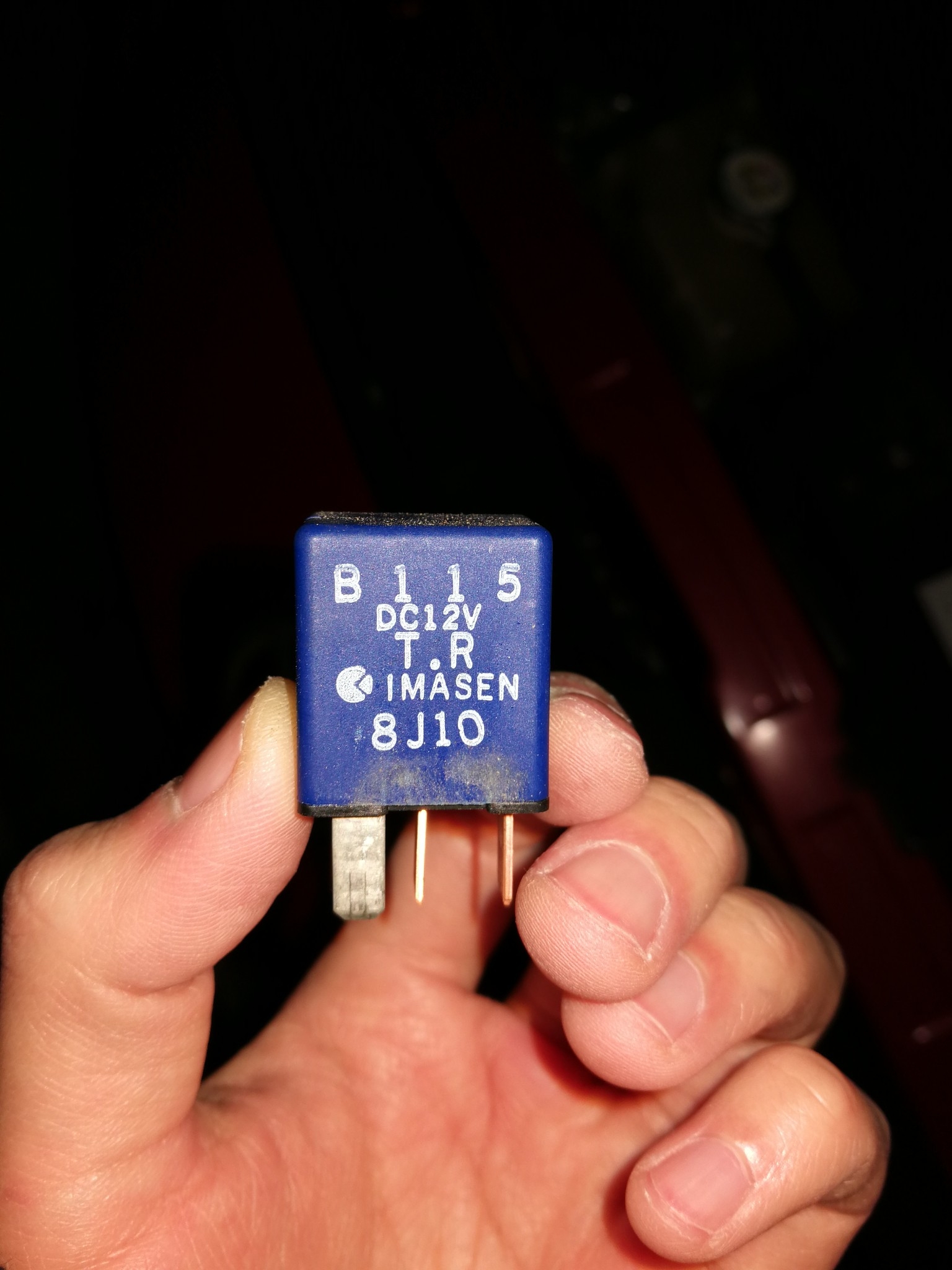

I also included a picture of the relay for fan relay 2. It's a different unit compared to relay 1 and 3.
Attached Thumbnails Part ID-img_20190120_134830-1536x2048.jpg   Part ID-img20190120143851.jpg
UnknownJinX is online now
The Following User Says Thank You to UnknownJinX For This Useful Post:
Sydo (01-20-2019)
Old 01-20-2019, 05:55 PM
  #17
Registered
Thread Starter

Join Date: Sep 2018
Location: Down Under
Posts: 249
Thanked 6 Times in 6 Posts
Yes I just replaced far right one with the correct blue one and no difference still
please do me a favour and see if your fan comes on with ignition and stays on when started

Last edited by Sydo; 01-20-2019 at 06:06 PM.
Sydo is offline
Old 01-22-2019, 12:47 PM
  #18
Water Foul

Steve Dallas's Avatar

Join Date: May 2013
Location: Republic of Texas
Posts: 2,202
Thanked 145 Times in 117 Posts
Originally Posted by Sydo View Post
Yes I just replaced far right one with the correct blue one and no difference still
please do me a favour and see if your fan comes on with ignition and stays on when started
I have an S2. My fans do not come on with the ignition when cold.
Steve Dallas is offline
The Following User Says Thank You to Steve Dallas For This Useful Post:
Sydo (01-22-2019)
