Dumb idea: a screensaver mode which plots sniffed data Matrix-style.
http://hackaday.com/2011/07/11/water...cellphone-lcd/
oltmann is offline
Old 07-12-2011, 06:37 PM
  #77
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
My "testbed" for checking the MSCAN messages coming from the radio

Name:  IMG_1095.jpg
Views: 141
Size:  109.1 KB

Name:  IMG_1096.jpg
Views: 139
Size:  97.1 KB

Name:  IMG_1093.jpg
Views: 149
Size:  115.8 KB
paimon.soror is offline
Old 07-12-2011, 07:22 PM
  #78
I zoom therefore I am.

laythor's Avatar

Join Date: Mar 2007
Location: San Jose, CA
Posts: 4,919
Likes: 0
Received 5 Likes on 5 Posts
dont see many carpeted test benches
laythor is offline
Old 07-12-2011, 07:23 PM
  #79
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
Lol what can I say... King of queens was on
paimon.soror is offline
Old 07-12-2011, 07:26 PM
  #80
I zoom therefore I am.

laythor's Avatar

Join Date: Mar 2007
Location: San Jose, CA
Posts: 4,919
Likes: 0
Received 5 Likes on 5 Posts
I know why i use to watch that show:

Name:  King-of-Queens-the-king-of-queens-8.jpg
Views: 129
Size:  90.2 KB
laythor is offline
Old 07-12-2011, 07:27 PM
  #81
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
Umm yea... I would eat her
paimon.soror is offline
Old 07-12-2011, 07:29 PM
  #82
I zoom therefore I am.

laythor's Avatar

Join Date: Mar 2007
Location: San Jose, CA
Posts: 4,919
Likes: 0
Received 5 Likes on 5 Posts
lol
laythor is offline
Old 07-21-2011, 06:59 AM
  #83
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
Sorry for the lack of updates guys. I will post up some more recent shots but so far I got the commanded and measured AFR's working. Btw what are the acceptable ranges for the AFR? I want to make sure that the measurements coming out are right, and I am seeing numbers like 14.7 (which i know is normal) under idle and soft driving, but then from 12-20 under aggressive driving.

I also added a new mode which reads the data coming from the ABS module so that you can see the current speed of each wheel. It is actually pretty interesting to watch to see how the wheels react when going down windy roads or hard launches.

The bluetooth logging has been working like a charm, and the last thing I really want to get down is the location of the cruise control signals which after reading some various Ford related documentation it seems that those signals should be available.
paimon.soror is offline
Old 07-21-2011, 12:23 PM
  #84
Registered

Join Date: Sep 2010
Posts: 531
Likes: 0
Received 0 Likes on 0 Posts
AFRs sound correct, very high ratios just mean the off-throttle fuel-cut is engaged.
oltmann is offline
Old 07-21-2011, 12:36 PM
  #85
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
roger that, thanks !
paimon.soror is offline
Old 07-21-2011, 05:28 PM
  #86
Registered

jrx13's Avatar

Join Date: Sep 2004
Posts: 590
Likes: 0
Received 0 Likes on 0 Posts
Paimon, can you get TPMS data up. Like see the individual tire pressures for each wheel? That would be pretty useful. The data is there, the factory scan tool can do it.
jrx13 is offline
Old 07-21-2011, 05:33 PM
  #87
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
Sure I will just need to find out what address the TPMS controller sits on. I will do some digging around to see if I can find that out.
paimon.soror is offline
Old 07-21-2011, 06:31 PM
  #88
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
So I am taking a look at some wiring diagrams...doesn't look like the tpms is sitting on the bus? I dont even see it connecting to the ECU anywhere. You sure that the device wasn't one that communicated via RF to the module? I know a lot of the TPMS configuration devices use RF.
paimon.soror is offline
Old 07-21-2011, 09:27 PM
  #89
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
GOOD NEWS ... i think i found the ECU for the TPMS .... I will do some more testing tomorrow cross your fingers
paimon.soror is offline
Old 07-21-2011, 09:53 PM
  #90
Registered
iTrader: (1)

rafaga's Avatar

Join Date: Oct 2007
Location: Boston, MA
Posts: 193
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by paimon.soror View Post
GOOD NEWS ... i think i found the ECU for the TPMS .... I will do some more testing tomorrow cross your fingers
This is amazingly cool news. I've dreamt about adding this info to the carputer.
rafaga is offline
Old 07-21-2011, 10:07 PM
  #91
Registered
iTrader: (1)

unknown__Disciple's Avatar

Join Date: Jun 2009
Location: Houston
Posts: 797
Likes: 0
Received 0 Likes on 0 Posts
paimon you are the man. you give us s2 owners hope.
unknown__Disciple is offline
Old 07-21-2011, 10:28 PM
  #92
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,743
Received 344 Likes on 277 Posts
Nice man, great info.
9krpmrx8 is offline
Old 07-21-2011, 10:46 PM
  #93
The Red Sex
iTrader: (2)

Join Date: Mar 2011
Location: Cincinnati, Ohio
Posts: 184
Likes: 0
Received 0 Likes on 0 Posts
If I liked the front end on the S2, and had more money...I'd be tempted to get one, just for this...lol
ThatNewGuy is offline
Old 07-22-2011, 06:43 AM
  #94
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
Thanks for the vote of confidence guys. I managed to get my hands on a piece of software that is used on Mazda's (and advertised for the RX8) to read canbus information. For obvious reasons I wont mention the name of this software, but after spending some time disassembling the code, I managed to come across the ECU address for the TPMS, the gauge cluster, and the transmission ecu. I also confirmed this by checking to make sure that the PCM address is the same as the one I had was the same one that was listed in this program, which it is, so that gives some confidence.

The next thing is to be able to decrypt the exact pid under the addresses for certain data. All of the pids that are used in this software are encrypted into a binary, but I am hoping I can crack it. I will keep you guys posted.

And fyi one of the pids that are used in this program are the cruise control switch voltage which is what I have been looking for all this time WOO WOO lol

Btw, I did some reading, and it looks like I may be able to not only read the PSI's in each tire, but also the temperature of the tire read by the TPM which is something I think you track guys would love

Last edited by paimon.soror; 07-22-2011 at 06:45 AM.
paimon.soror is offline
Old 07-22-2011, 09:22 AM
  #95
Registered

jrx13's Avatar

Join Date: Sep 2004
Posts: 590
Likes: 0
Received 0 Likes on 0 Posts
Yes the TPMS does temperature & pressure. But it only reads overall temperature in the tires. So it can tell you if the tire is overheating and about to shred! Usually due to low tire pressure.....

Only bad thing, I don't think the TPMS can tell you which location the low tire is. It just has the four TPMS sensors registered and communicating at all times and if one pressures is out of range/temperature, the TPMS light will illuminate.
No big deal, just find the one that's low or maybe Paimon you can enable the user to program the RxDuino to find & manually register the pids to each wheel location, and allow the user to change it again when the user rotates their tires the next time?
jrx13 is offline
Old 07-22-2011, 09:40 AM
  #96
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
Yea that's one caveat that I noticed about tpms modules is their lack of reporting which tire is having issues. I saw that things like corvettes had the external devices that you would put next to your tire when you were marrying the tpms to the car, so that the car 'learned' which tire was what ID.

I am sure once I investigate more we can probably have the rxduino do something like 'please release some air from FL tire' ... have the device monitor which tire had a pressure change, and store that pid as that particular tire... I dunno ... I guess we will see. First things first though, lets see if I can confirm that I have the right ECU pids lol.
paimon.soror is offline
Old 07-23-2011, 01:57 PM
  #97
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
Ok guys, I managed to get the files decrypted, and now have access to a lot of the mazda specific codes. Looks like just for the rx8 and mazda6. These codes are part of the extended canbus dataset so some of my code needs to be refined to properly handle that.
paimon.soror is offline
Old 07-23-2011, 02:03 PM
  #98
Maude Rater
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts

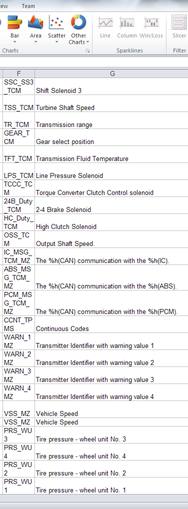

Name:  excel-1.png
Views: 133
Size:  46.7 KB

*snipped up a bit for security reasons*

Last edited by paimon.soror; 07-23-2011 at 02:08 PM.
paimon.soror is offline
Old 07-23-2011, 03:09 PM
  #99
The Red Sex
iTrader: (2)

Join Date: Mar 2011
Location: Cincinnati, Ohio
Posts: 184
Likes: 0
Received 0 Likes on 0 Posts
Amazing work Paimon
ThatNewGuy is offline
Old 07-24-2011, 12:00 AM
  #100
Registered

Join Date: Oct 2010
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
i want that software...lol
drifthappens is offline
