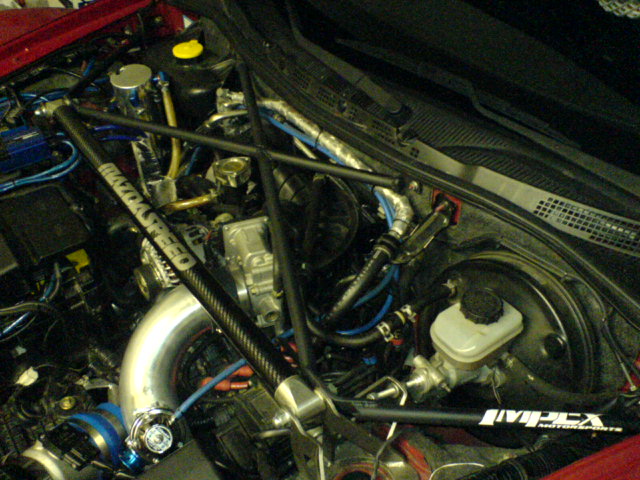

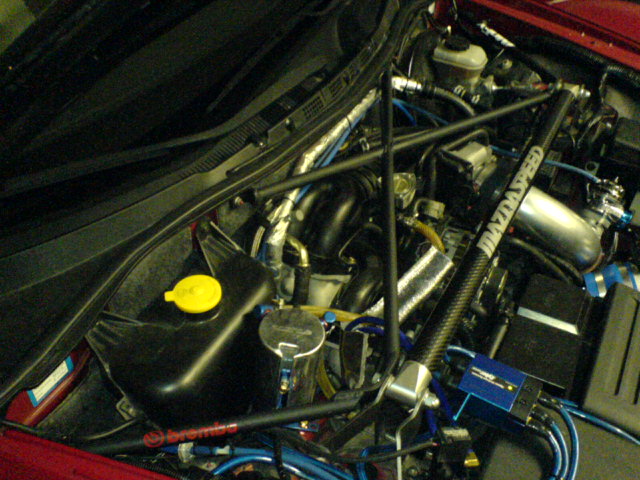

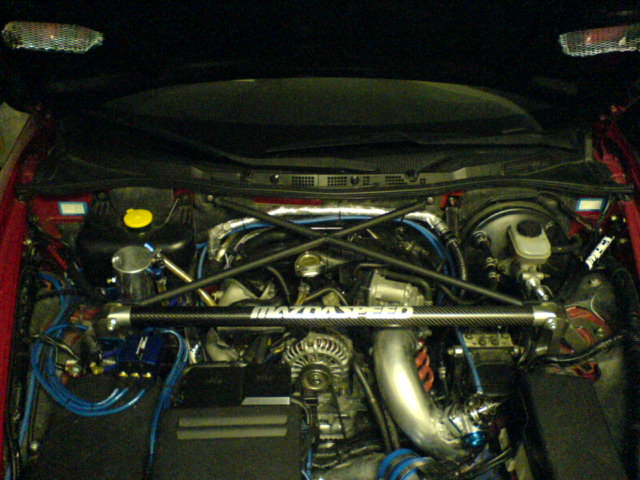

My new 6 points front strut bar
06-19-2006, 01:47 AM
#3
Registered User
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Los Angeles
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by NgoRX8
does it work? looks wacky.
06-19-2006, 10:10 AM
#6
Registered
Join Date: Apr 2005
Location: Union, NJ
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
06-19-2006, 12:18 PM
#8
Registered User
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Los Angeles
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 4 years to Supercharge
What do the side points mount to?
That's why I have it custom made. None of the 4 points strut bar have the brake cylinder stopper for the left hand drive model.
06-20-2006, 04:38 AM
#12
Momentum Keeps Me Going
Originally Posted by sammytcl
I will let you know after the drift day I am going this coming Sunday. Basically it is the combination of the Mazdaspeed 4 points and the Autoexe 4 points struts.
The side brace is a sandwich of very heavy metal, you have to open up the fender area to get the behind the fender to tighten the metal bracket down against the main brace. The brace pretty much becomes an integral part of the chassis at that point. How does this afix to the side?
But there is the nice triangles formed by these braces and that is a very good idea and design. I think if you're going to make a brace, some solid triangles forms are essential to rigidity. Surprised no one has made a brace like this before, hope it work good for you at track.
Last edited by Spin9k; 06-20-2006 at 04:42 AM.
06-20-2006, 01:32 PM
#14
Registered User
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Los Angeles
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Spin9k

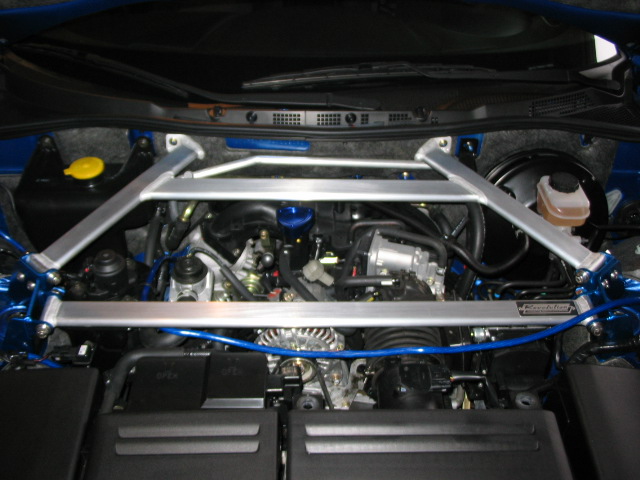

Looks pretty interesting, with some lineage w/the Autoexe 4 pt brace. The Autoexe braces against the side of the engine bay only, but not that flimsy piece of cowl metal.

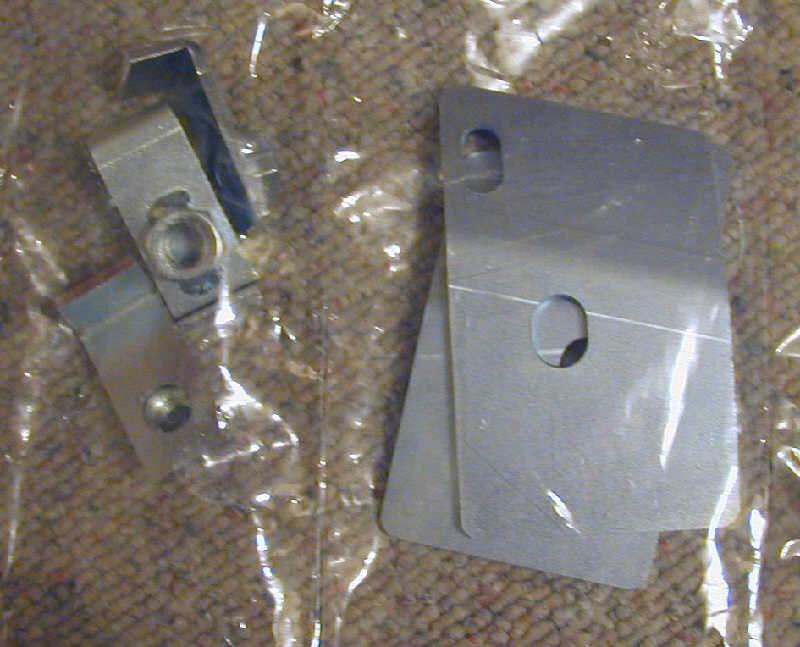

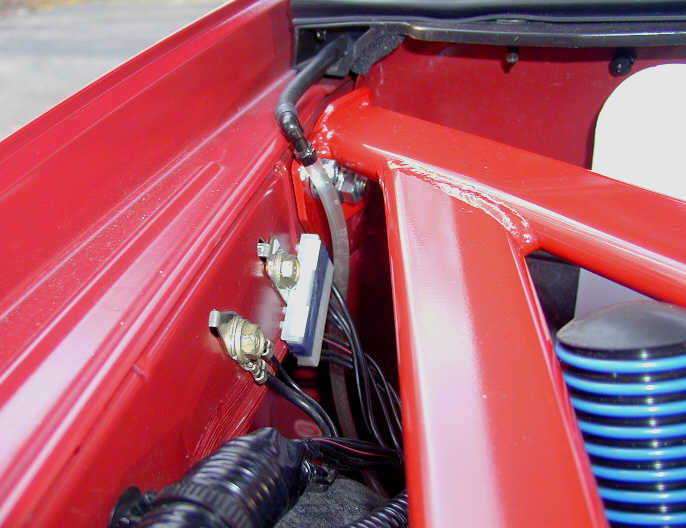

The side brace is a sandwich of very heavy metal, you have to open up the fender area to get the behind the fender to tighten the metal bracket down against the main brace. The brace pretty much becomes an integral part of the chassis at that point. How does this afix to the side?
But there is the nice triangles formed by these braces and that is a very good idea and design. I think if you're going to make a brace, some solid triangles forms are essential to rigidity. Surprised no one has made a brace like this before, hope it work good for you at track.
The side brace is a sandwich of very heavy metal, you have to open up the fender area to get the behind the fender to tighten the metal bracket down against the main brace. The brace pretty much becomes an integral part of the chassis at that point. How does this afix to the side?
But there is the nice triangles formed by these braces and that is a very good idea and design. I think if you're going to make a brace, some solid triangles forms are essential to rigidity. Surprised no one has made a brace like this before, hope it work good for you at track.
I am using the exact mounting location as the Autoexe on the side fender mounting points. Why I am so sure? Because the guy made mine strut bar installed the Autoexe on the other rx8 2 days ago. We did used a backing plate on each side mounting point, and the only different is that Autoexe uses 2 bolts on each side, but we used 1 on each side only, the big 1 on Autoexe's setup. However, I may go to 2 bolts setup later.
Last edited by sammytcl; 06-20-2006 at 01:37 PM.
06-20-2006, 02:59 PM
#16
Registered
Join Date: Feb 2006
Location: Oreland, PA
Posts: 271
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Bangadrum5
dumb question, but what does the brake cylinder stop do?
06-20-2006, 03:29 PM
#17
Registered User
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Los Angeles
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by bong
haha. sammy, I guess that would be my car? :P
you going drifting this sunday rite? I'll see can I drop by.
you going drifting this sunday rite? I'll see can I drop by.
Yes, I am going this Sunday in Irwindale Speedway. See you there.
06-20-2006, 06:10 PM
#18
drivelinestore.com
Join Date: Jun 2005
Location: OC
Posts: 2,756
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by sammytcl
You are right, that was your car.
Yes, I am going this Sunday in Irwindale Speedway. See you there.
Yes, I am going this Sunday in Irwindale Speedway. See you there.
