Series I Trouble Shooting This is the place to learn more about or discuss any issues you're having with your RX-8

Brake malfunction

Thread Tools

Search this Thread

Rate Thread

Old 01-04-2013, 08:30 PM
  #1
Registered
Thread Starter

malharmemon's Avatar

Join Date: Feb 2011
Posts: 40
Likes: 0
Received 0 Likes on 0 Posts
Brake malfunction

I hit a curb and blew a tire, got a temp for now (it's more profile, running 225/40/18 front; 235/45 on the right and 235/40 on left for the rears) that's just until the shop gets kumhos in stock.

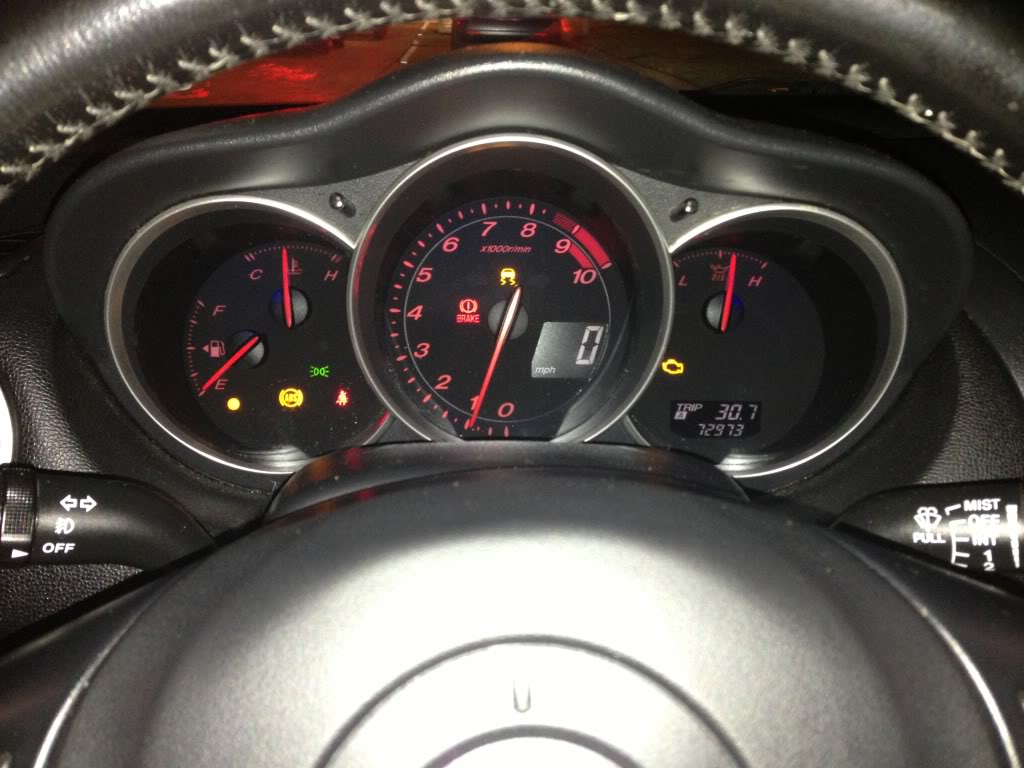

Anyways I have these lights on my dash, can anybody tell me if I should look into something? I don't want to pay unnecessarily to the dealsership if its something small, the brakes work fine for now

Name:  null-5.jpg
Views: 26
Size:  99.2 KB
Old 01-04-2013, 08:34 PM
  #2
SARX Legend
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,784
Received 452 Likes on 366 Posts
you have a problem,likely a busted abs sensor or worse. get it checked.

Last edited by 9krpmrx8; 01-04-2013 at 08:36 PM.
Old 01-04-2013, 08:37 PM
  #3
Registered

j9fd3s's Avatar

Join Date: May 2003
Posts: 1,382
Likes: 0
Received 10 Likes on 10 Posts
from left to right;

1. get gas
2. the abs light, probably one because you have a weird tire on there, ABS measures the wheel speeds, and just driving straight, they should all be the same, if they aren't it'll turn the light on
3. you headlights are on
4. your seat belt is off, tsk tsk!
5. the brake light either means your Ebrake is on, or the fluid is low. we'll assume you have the ebrake on, since the car is traveling 0mph
6. traction control light, see #2
7. check engine light, its not connected to any of the other lights.
Old 01-05-2013, 05:10 PM
  #4
Registered
Thread Starter

malharmemon's Avatar

Join Date: Feb 2011
Posts: 40
Likes: 0
Received 0 Likes on 0 Posts
Yea I think it's just cuz of the different tires...that's what causing the ABS brake and traction to be one...the others I know lol
Thanks though.
https://www.rx8club.com/series-i-trouble-shooting-95/have-abs-dcs-tcs-issues-lights-staying-202843/

This helped a lot, ill hopefully get then changed soon and post back
Old 01-05-2013, 05:22 PM
  #5
Oilfield trash
iTrader: (2)

Grungepup's Avatar

Join Date: Feb 2008
Posts: 2,509
Likes: 0
Received 0 Likes on 0 Posts
the abs light is on because the system is sensing a problem... it could be the different size in tires (causing the wheel spin between axles to be different) or the actual sensor for the wheel is bad.

since there is a problem with the abs, it will turn off you traction control (why the light is on) and will cause the brake light to come on (notifying you there is a problem with the whole brake system)

as far at the CEL... get it read and tell us the code
Old 01-05-2013, 06:19 PM
  #6
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
Originally Posted by j9fd3s
from left to right;

1. get gas
2. the abs light, probably one because you have a weird tire on there, ABS measures the wheel speeds, and just driving straight, they should all be the same, if they aren't it'll turn the light on
3. you headlights are on
4. your seat belt is off, tsk tsk!
5. the brake light either means your Ebrake is on, or the fluid is low. we'll assume you have the ebrake on, since the car is traveling 0mph
6. traction control light, see #2
7. check engine light, its not connected to any of the other lights.
Hilarious...........and you almost got it all correct.
