RotaryXLR8ing

Because of what I've read here from other RX-8 owners experiences, I elected to change my Automatic Transmission Fluid and Differential Fluid at the 2k point.

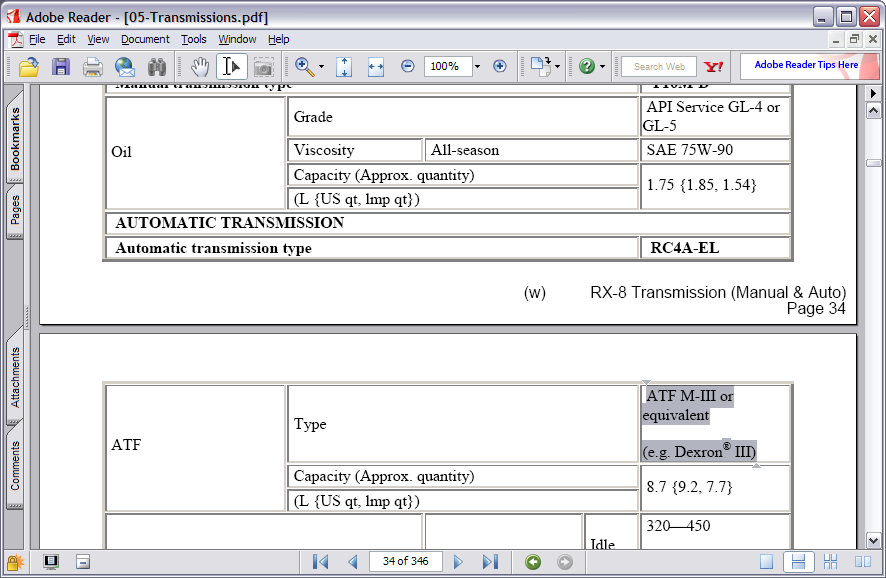

I did my research and decided that I would spring for Royal Purple ATF and Gear Oil even though they were high because of the the long service interval for these fluids and the pecieved benefits many members here reported after changing to RP. I read the Owners Manual whcih does not specify any oil except JWS3309, but the Workshop manual specifies ATF M-III or equivilent (e.g. Dexron III). So I called the dealership and said that I know they wouldn't concur with me putting synthetic oil in the engine, but that I wanted to put Royal Purple MaxATF in the transmission and Royal Purple MaxGear 75W90 in the differential. They said they would research it and later called back and said "no synthetics in the engine, but those are fine for the transmission and differential.

So I order the oils, and then take the car in. I stop by two hours later because my wife is dropping off a work van for service and the service manager waves me inside. Thinking my 8 is ready (so soon?) I go in only to be told:

"We put your Royal Purple ATF in and then the parts manager showed the mechanic a tech bulletin that said that M-III or Dexron-III oils cannot be used in the RX-8 automatic transmission"

"We drained the Royal Purple back out and put the authorized fluid back in the transmission."

"The Gear Oil is fine and we did put the Royal Purple in the differential."

But evidently after you replace the auto trans fluid, you have to run the car and then let it cool to below 100 degrees to check the levels and determine if it needs more ATF. It didn't get below 100 degrees before close of business, so I'm stuck with the loaner car for the weekend until they can check the fluid levels Monday morn. And after all that, I still don't have RP in the slushbox.

The Service Manager did say that they drained the RP back into the bottles because they know how high it is.

So two questions:
1. Is the ATF M-III (Dexron-III) authorized for the 6-speed Auto-Trans per the Workshop Manual or not? The only TSB that I could find was for the Mazda6 Auto-Trans cautioning against using M-III/Dexron-III ATF (). Is the RX-8 and the Mazda6 Automatic Transmission the same box?

2. Is the RP they put in my transmission and then immediatly drained back out of the box worth a dime now? I've half a mind to just drive the car to a transmission repair place and have them put the RP back in. Otherwise I guess I'll ask around the office to see if anyone needs some 'slightly used' ATF. Is this ATF worth putting back in ANY transmission or has it just become the most expensive Automatic Transmission Flush Fluid ever used?

Sometimes if it weren't for bad luck, I'd have no luck at all.

zoom44

not only should you NOT use the Dexron its really no tgood to even mix some in. id be really leary about your tranny now if they didnt do a proper flush. that left over dexron could destroy your tranny. if they had left it in its a good possibility you would not have made it home with the trranny failing.

RotaryXLR8ing

So the RX-8 does have the same transmission as the Mazda6?

zoom44

same basically in that its a 6speed auto made by the same people. it ha sslightly different gearing but takes the same fluid

RotaryXLR8ing

Hopefully the end of this saga:

The dealership drove it back in one of the high-bays for the weekend because I asked for it to not be left outside overnight (I garage it and wanted them to do the same). They checked levels and had my car back to me first thing Monday morning.

The service manager did assure me that they flushed to transmission (twice) before refilling with the Mazda authorized JWS3309 fluid (I don't know if it was the Mobil or Exxon brand). He did indicate that they recorded it in notes that they had initially authorized this fluid and they had put it in (for 20 minutes) before draining, flushing and replacing it. They assured me that my drive-train warranty was intact because it was their oversight since I had asked ahead of time it the fluid met spec. They gave me back the re-bottled RP MaxATF and offered to pay for it which I refused and indicated that I was more concerned about warranty than the cost of the oil.

I've got to say that I'm VERY happy with the dealership here in Enterprise, AL. Mitchell Mazda may not do everything perfect, but they dang sure try hard to ensure their customers are pleased with the end result. So know I'll just watch, feel, and listen closely to the transmission to see if its OK. Initial impression if good, smother shifting than before the ATF change.

On a related note, the car sounds a little throatier than before the Engine/Trans/Diff Oil changes, but I don't see how those would change the timber of the exhaust sound. May be psycosomatic with me 'expecting' better/faster/stronger performance from the oil changes.

marcel_gc22

Mobil ATF 3309
Lubricante para Transmisiones Automáticas.


Mobil ATF 3309 es un lubricante excepcional de alto desempeño que cumple especificaciones de los fabricantes de equipos originales para uso en ciertas transmisiones automáticas con bloqueo de deslizamiento controlado. Mobil ATF 3309 se recomienda para el uso en transmisiones fabricadas por Aisin-Warner que requieren un líquido aprobado contra el Type T-IV, JWS 3309, GM 9986195 y Audi G-052-025- A2. Estas transmisiones de Aisin-Warner se utilizan en CIERTOS vehículos domésticos, incluyendo Toyota, Lexus, Audi, Saturno, Ford, Volvo, Volkswagen, Saab, Porsche y Mitsubishi.

CARACTERÍSTICAS Y BENEFICIOS:
La formulación única de Mobil ATF 3309 está diseñada para proporcionar una excelente lubricación en transmisiones automáticas especificadas con bloqueo de deslizamiento controlado de Aisin-Warner. Estas capacidades excepcionales de funcionamiento se traducen es ventajas operacionales significativas, incluyendo:

•Excelentes características de lubricación para operación silenciosa y suave paso de los cambios en transmisiones aprobadas
•Características controladas de la fricción para una transmisión suave y eficiente de la energía, a través de todas las gamas de temperaturas normales
•Ayuda a controlar la vibración de la transmisión y proporcionar una excelente conducción del vehículo
•Ayuda a extender la vida de la transmisión basado en el control excelente del desgaste
•Larga vida del fluido basado en la excelente resistencia a la oxidación
•Excelente estabilidad de la viscosidad (alto índice de viscosidad) lo que ayuda a asegurar la lubricación adecuada sin adelgazamiento excesivo de la película lubricante a altas temperaturas ni altos espesores en temperaturas de partida
•Resistencia a formar espuma
•Protección magnífica contra la oxidación y la corrosión
•Compatibilidad con los sellos de caucho sintético.
APLICACIONES:
Mobil ATF 3309 se recomienda para el uso en las transmisiones hechas por Aisin-Warner que requieren fluidos aprobados contra JWS 3309 o GM 9986195. También se recomienda para los usos de llenado donde requieren T-IV de Toyota, T4, T-III o el T3. Favor referirse al manual del fabricante para ver los requisitos del fluido apropiado.

ESPECIFICACIONES Y APROBACIONES:
Mobil ATF 3309 cumple con las siguientes especificaciones:

Modelo N° Parte o Especif.
Audi TT, A3 G-052-025-A2
Ford Quinientos Montego WSS-M2C924-A
Lexus Mayoría de los Modelos JWS 3309/Tipo T-IV
Mitsubishi Fuso FE 2005 y vehículos más nuevos
Porche Cayenne S y Turbo JWS 3309/Tipo T-IV
Saab 9.3, 9.5 Todos las transmisiones automáticos de 5 velocidades
Saturn Vue, Ion GM9986195
Toyota Mayoría de los Modelos JWS 3309/Tipo T-IV
Volkswagen Touareg, Beetle,Cabriolet !
Volvo C70, S40, S,60, S70,S80, V40, V70, XC90 Todos las transmisiones automáticos de 5 velocidades

! Revíselo con su Distribuidor autorizado o en el manual del fabricante.

SALUD Y SEGURIDAD:
Información detallada referente a salud y seguridad de cada producto se encuentra en el Boletín de Seguridad (Material Safety Data Bulletin), el cual puede obtenerse llamando al 800-207-007.

Las características típicas de los Mobil ATF 3309 se muestran en la tabla. Deben entenderse como una guía para la industria y no como especificaciones de marketing o fabricación. Ellas pueden cambiar sin aviso debido a la continua investigación y desarrollo de nuestros productos.





CARACTERÍSTICAS TÍPICAS
Mobil ATF 3309 Método de Prueba
Densidad @ 15°C Kg/Lt. ASTM D-4052 0,8540
Viscosidad, cSt @ 40°C ASTM D-455 35
cSt @ 100°C ASTM D-455 7,2
cP @ -40°C (-40°F) ASTM D-5293 14.000
Indice de viscosidad ASTM D-2270 180
Punto mínimo de fluidez, °C ASTM D-97 < -45
Punto de Inflamación, °C ASTM D-92 > 185
Color Rojo




Manual de Productos COPEC - Derechos Reservados © 2009 -
